Description

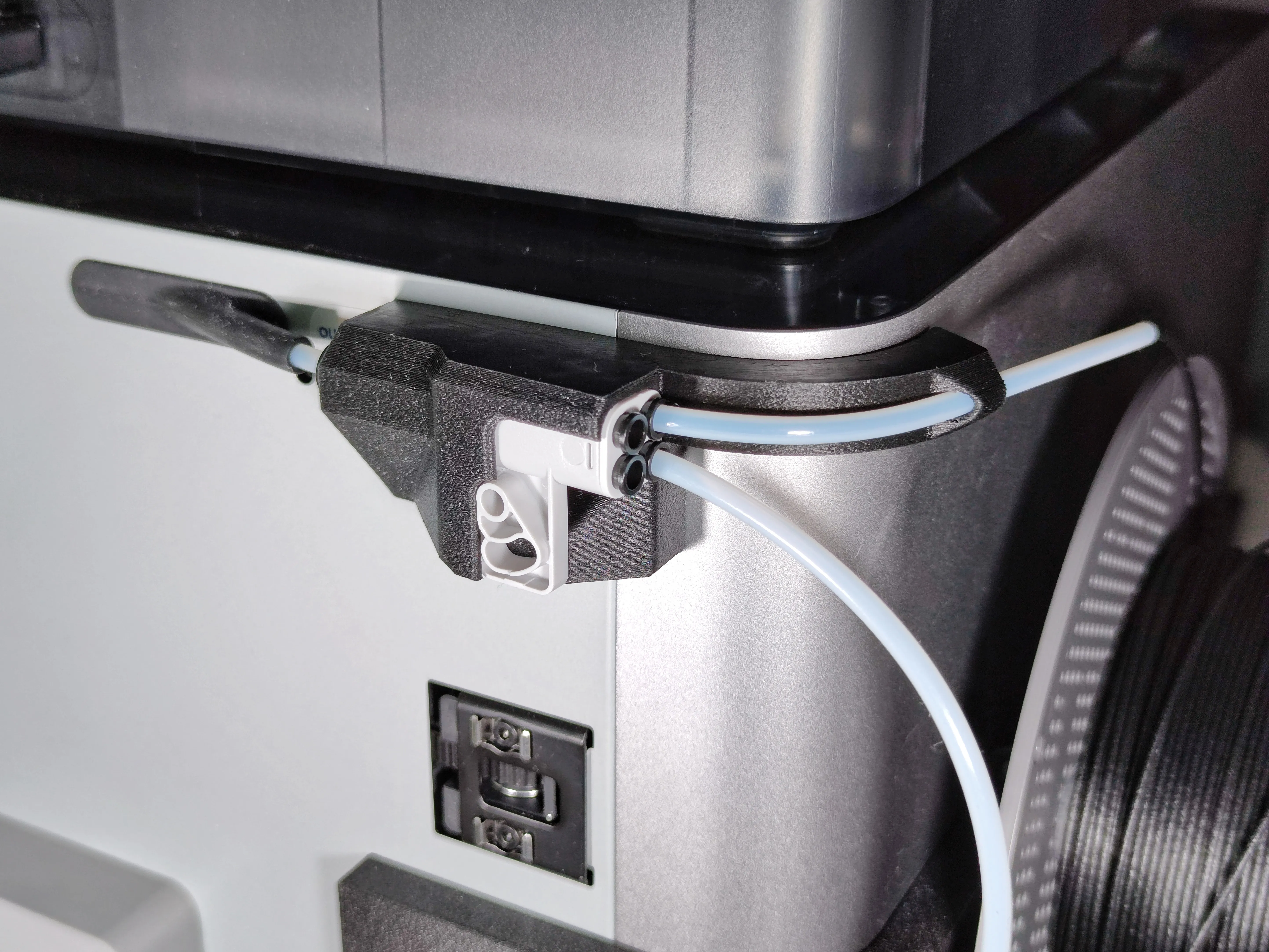

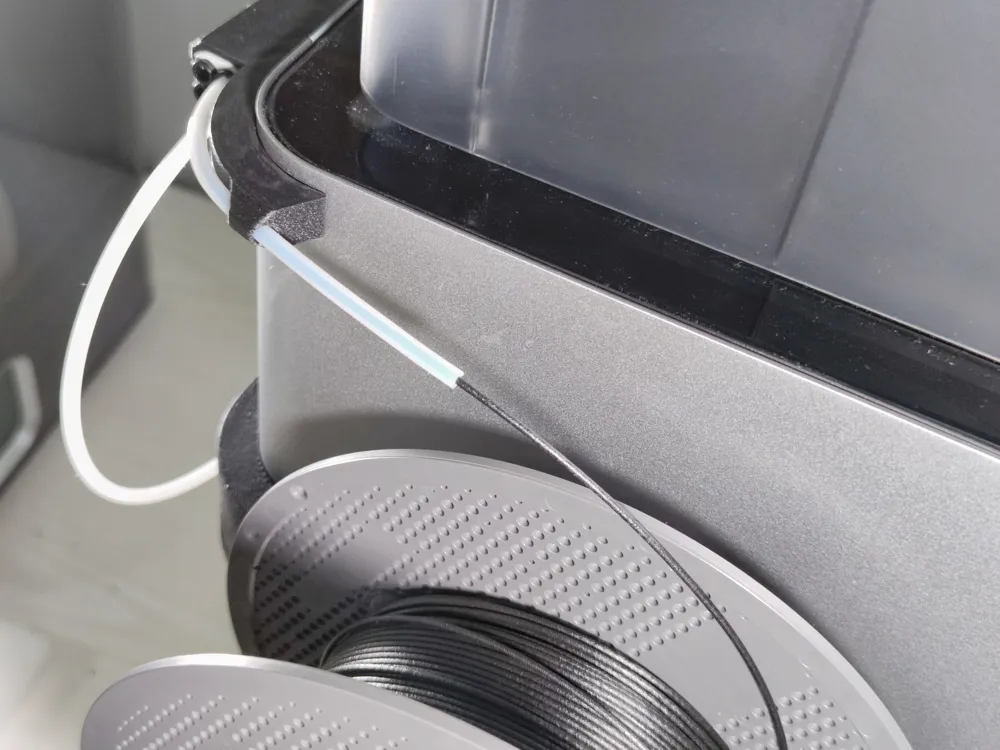

A Bambu 4-in-1 PTFE Adapter holder for the X1C and P1S. Two versions of mounting holders for one with a side spool holder and one without. The side spool guide is designed to be low profile to work with my folding side spool holder design on MakerWorld or other similar designs.

Hardware Needed

Bambu 4-in-1 PTFE Adapter
2x M3x8mm machine screws
Some 4mm OD x 2.5mm ID PTFE tubing

Assembly

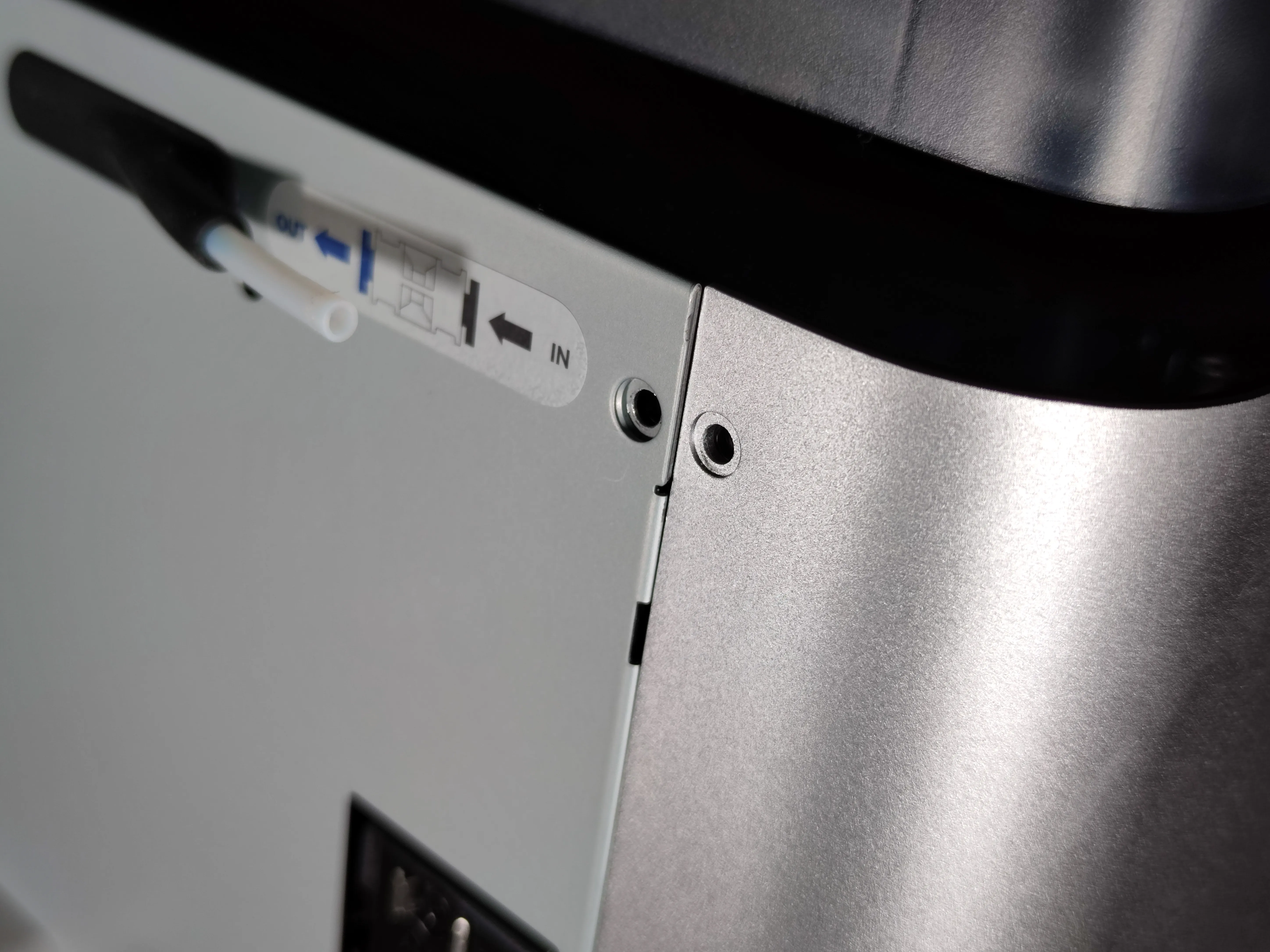

Remove the two screws on the back of the printer

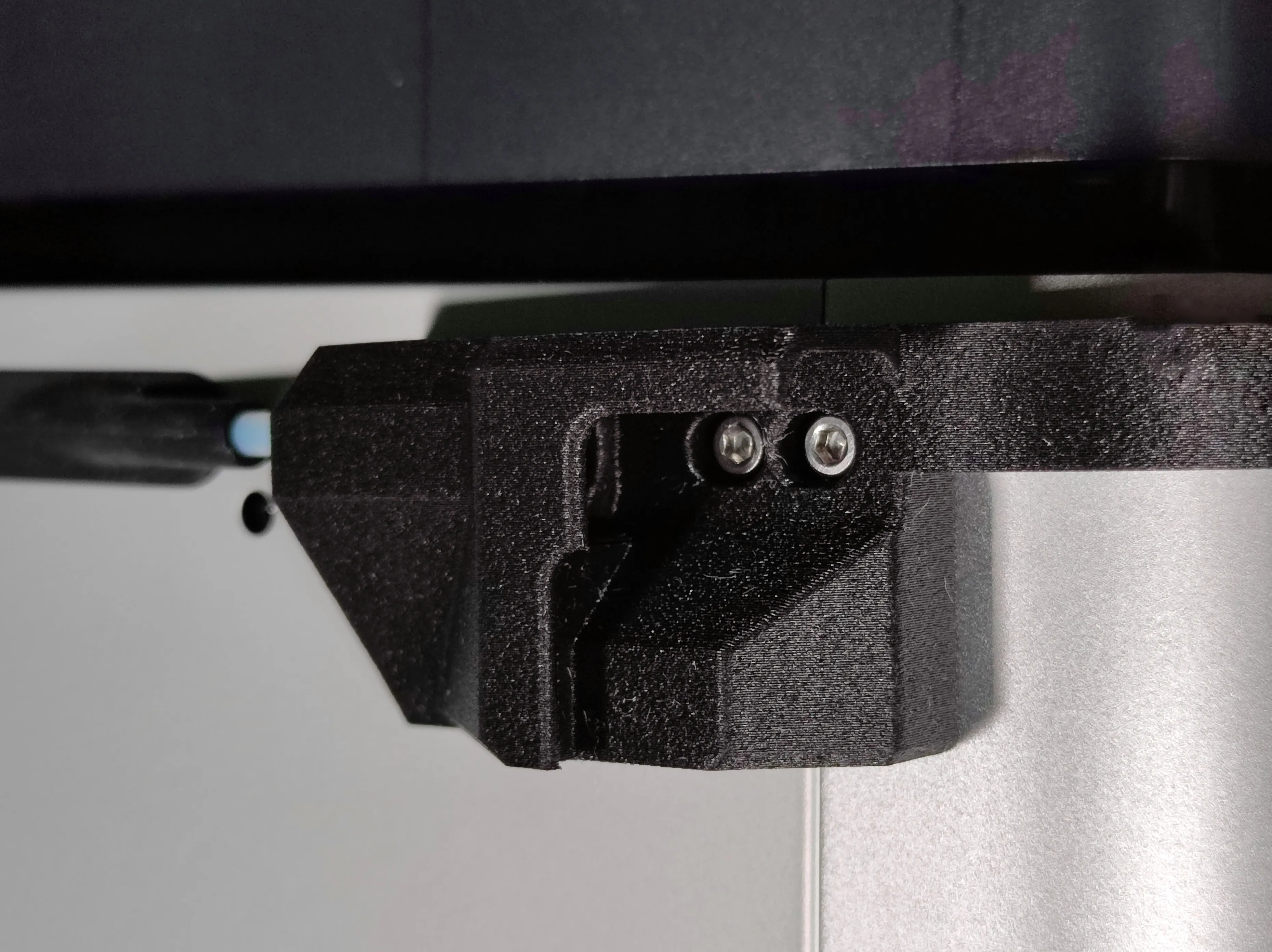

Screw on the mounting bracket using two M3x8mm machine screws

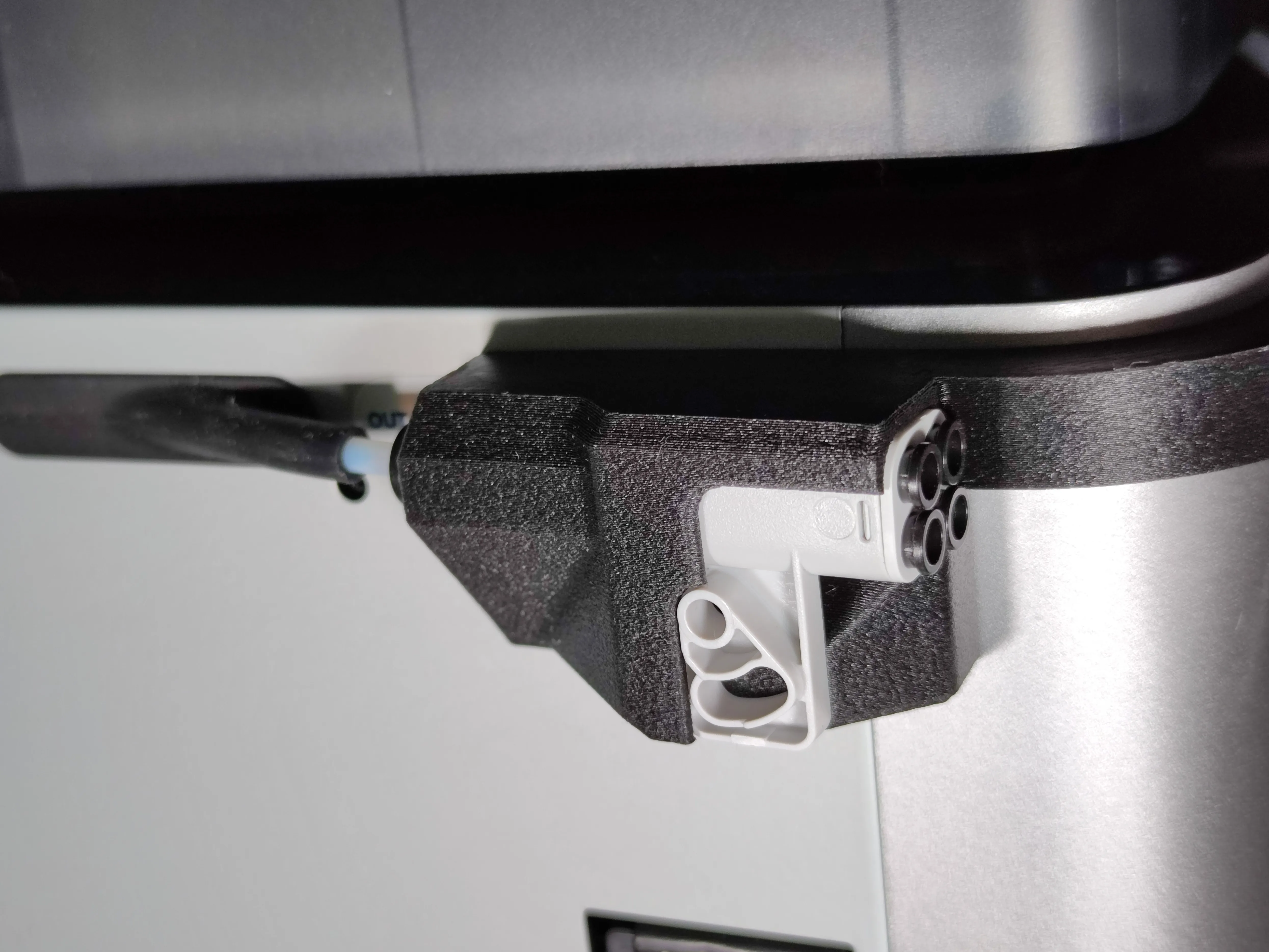

Slide in the 4-in-1 PTFE Adapter whilst pushing out the printer's PTFE tube into the outlet of the adapter from the inside the printer. You may need to adjust the position of the collar if it's preventing the tube from getting pushed out. A Bambu Lab guide to re-adjusting the tube can be found on Youtube (replacing the tube is not needed).

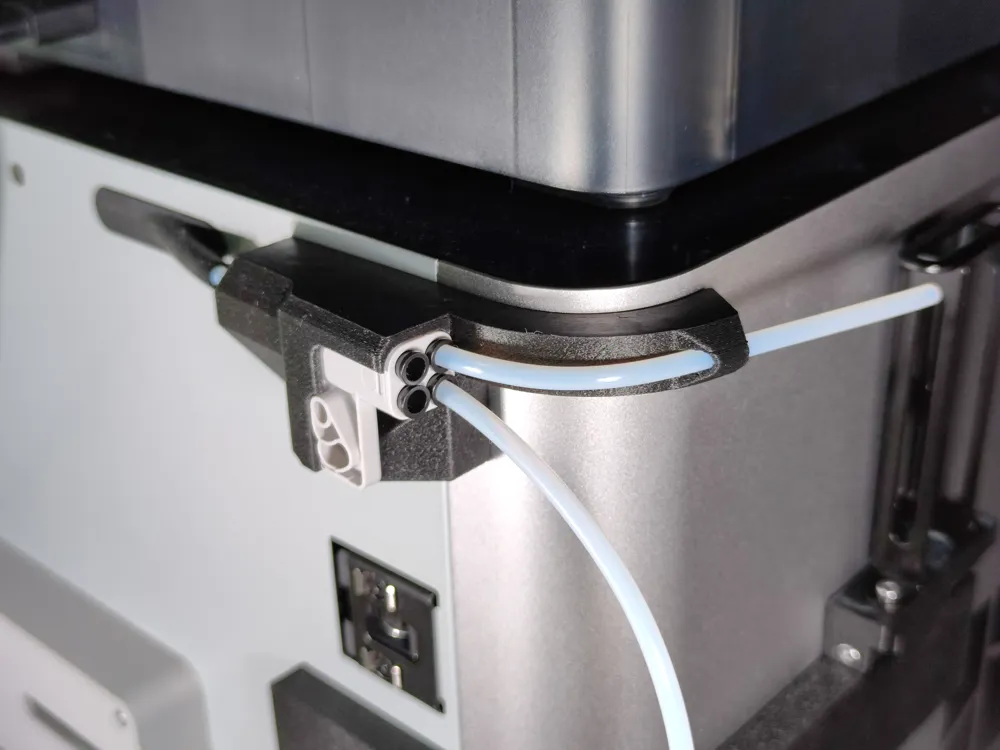

Connect up the rest of the PTFE tubes into the inlet of the adapter
