POOP CHUTE H2 Series ( H2C - H2D - H2S )

This model is for a Bambu Lab H2 Series (H2C, H2D or H2S).

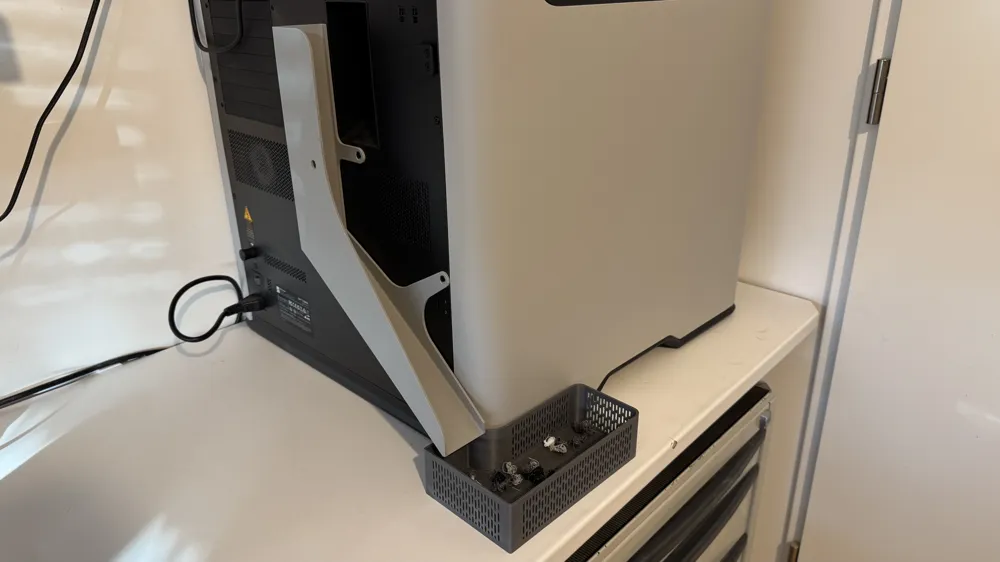

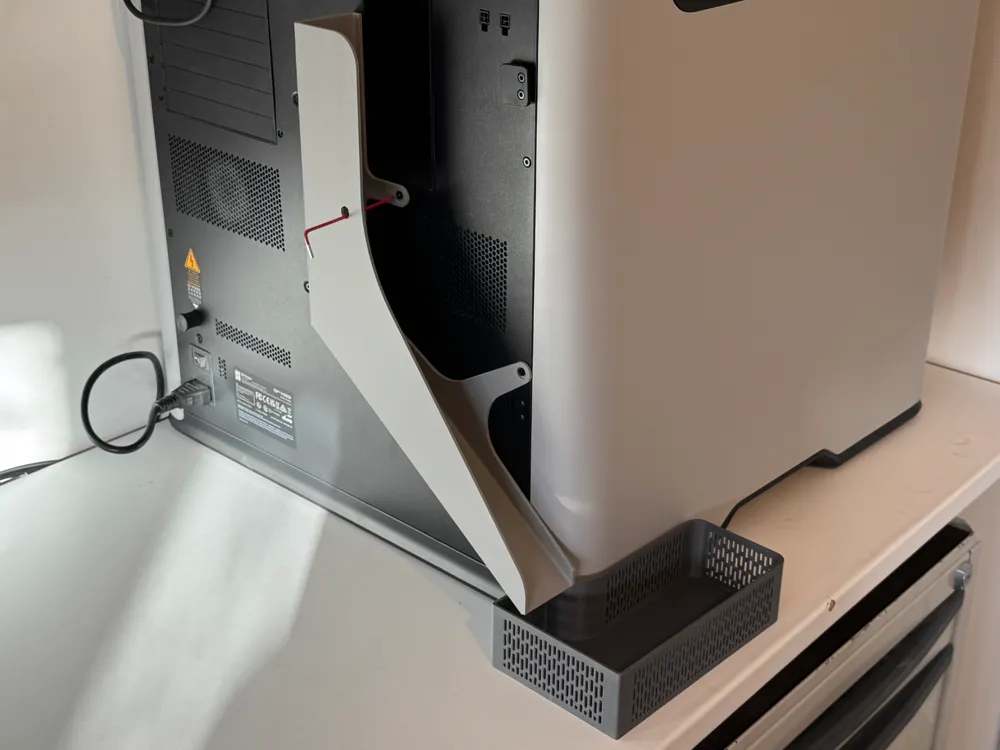

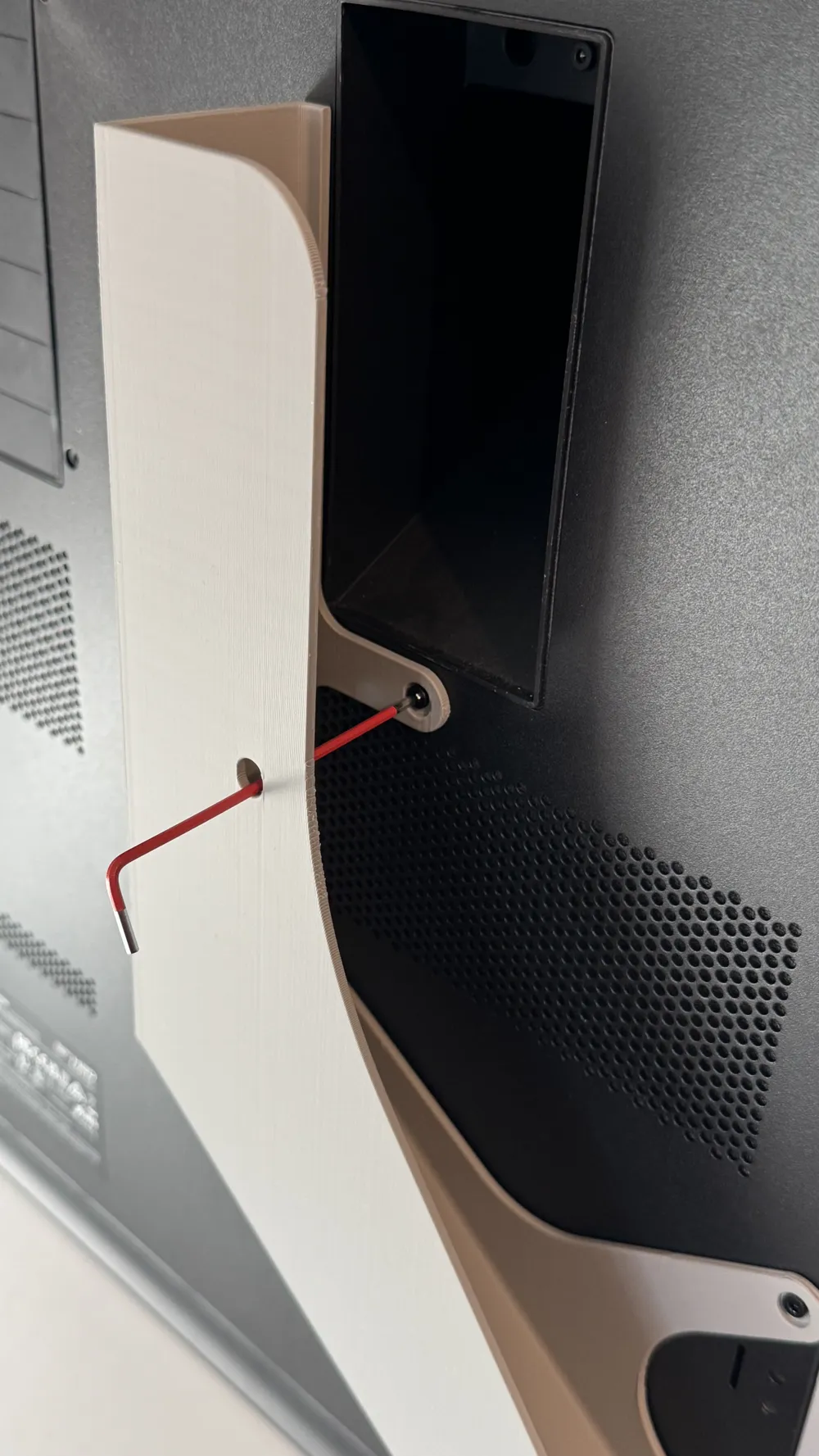

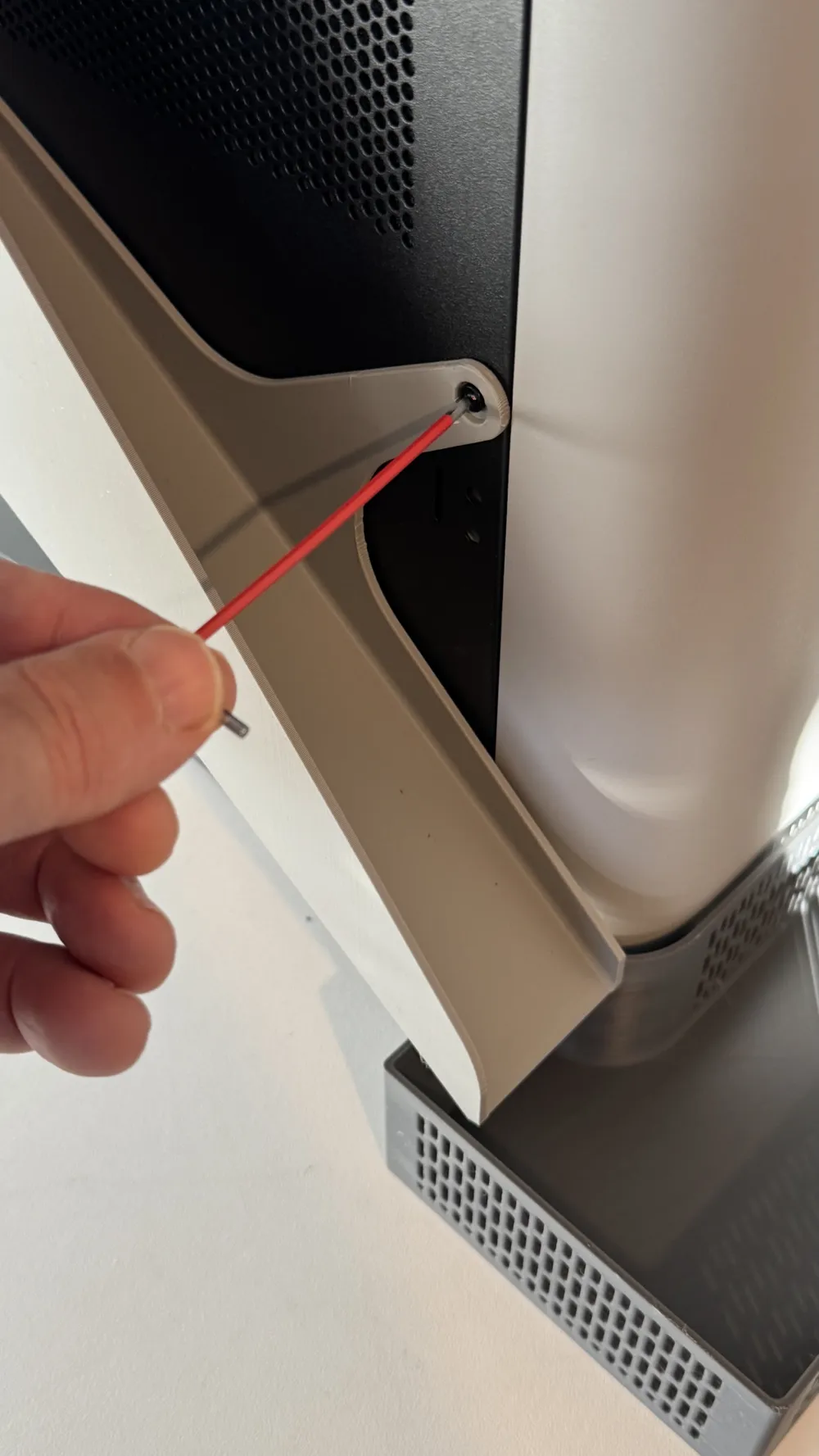

It allows the evacuation of filament waste through a small slide and sends it towards the trash. To screw the slide in place, you need to unscrew the screws shown in the picture and screw them back in once the slide is positioned.
The bottom screw may be a bit too short. If needed, please use a longer one from the maintenance kit, or use a magnet, or double-sided tape — all work fine.

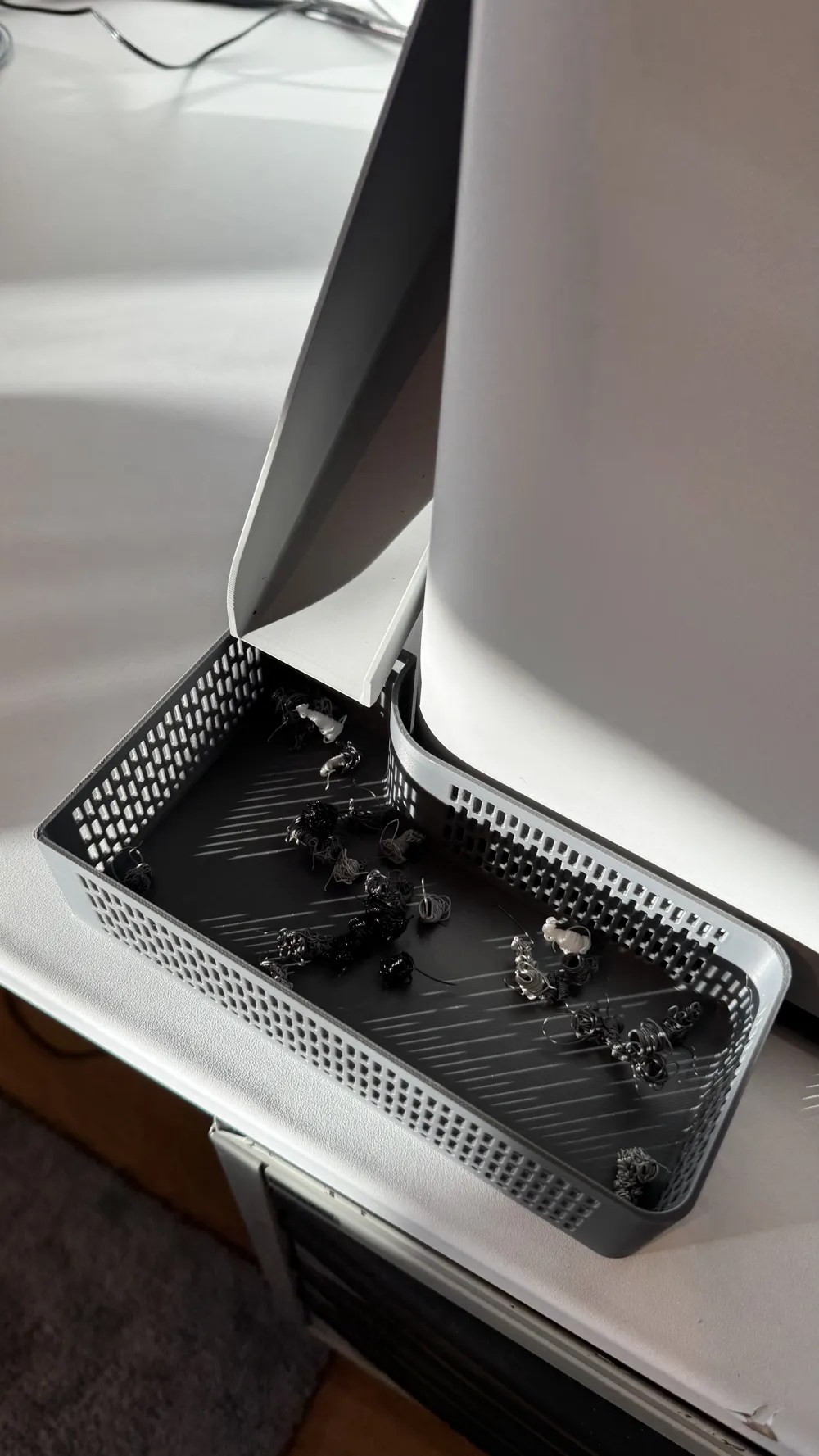

If you want the same trash bin as in the photos, then go here : LinkTrashBin

If you prefer a slightly different system, take a look at my other items:

Model 2

Model 3

🧩 Print settings

    ✔ Material: PLA works without issues. PETG is recommended if available, as hot filament debris is less likely to stick to the chute.

    ✔ Supports: Yes (setting is already defined in the print profile)

A note on print quality: I test all my models before uploading. If your print doesn't turn out well, check your filament (old? wet?) and printer calibration first. Most issues come from these, not the model.
