P2S Safe Door Hygrometer Holder for sensor

P2S Safe Door Hygrometer Holder

X1C - P1S Compatible

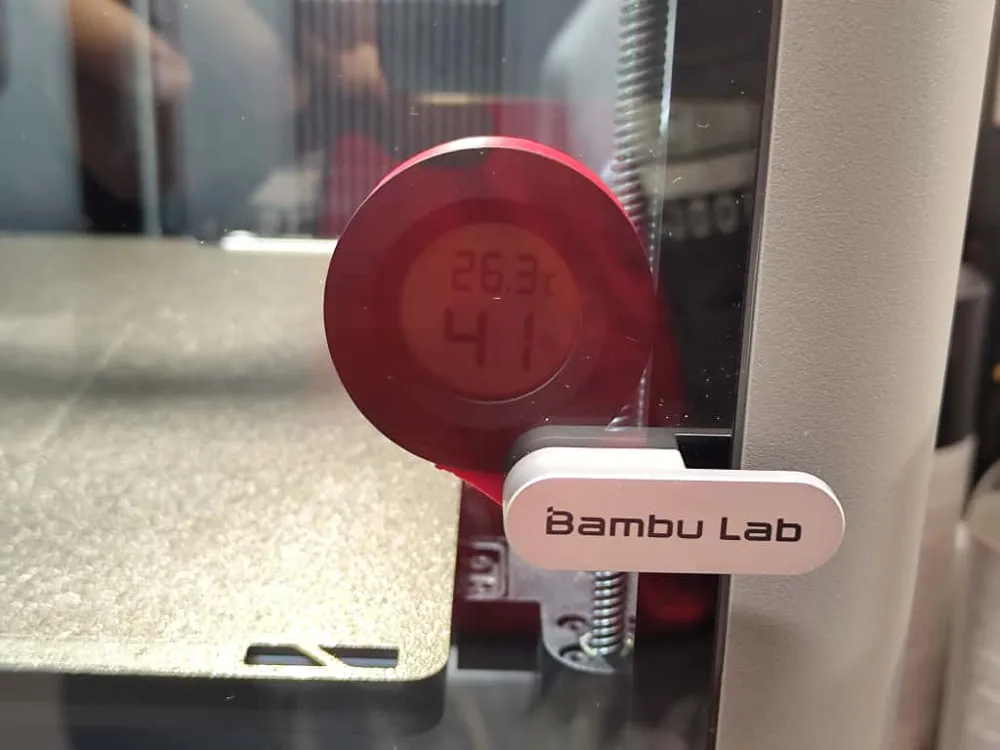

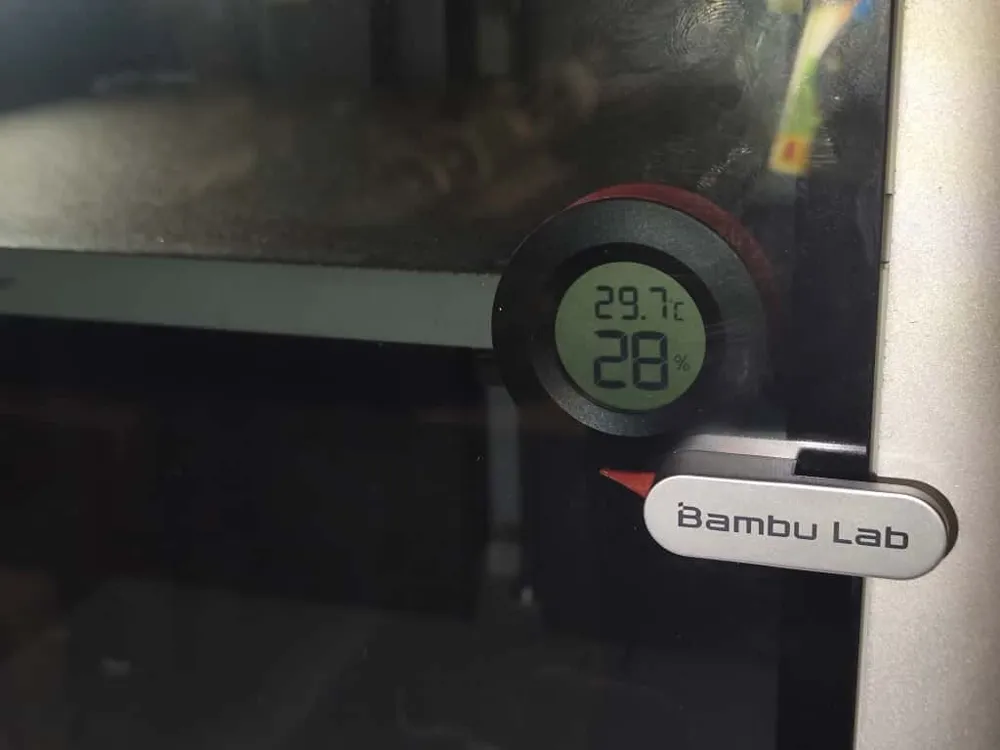

Designed temperature and humidity sensor holder, to be mounted behind our Bambulab P2S, using the glass door handle screws, so that the temperature and humidity inside the printing chamber are always visible

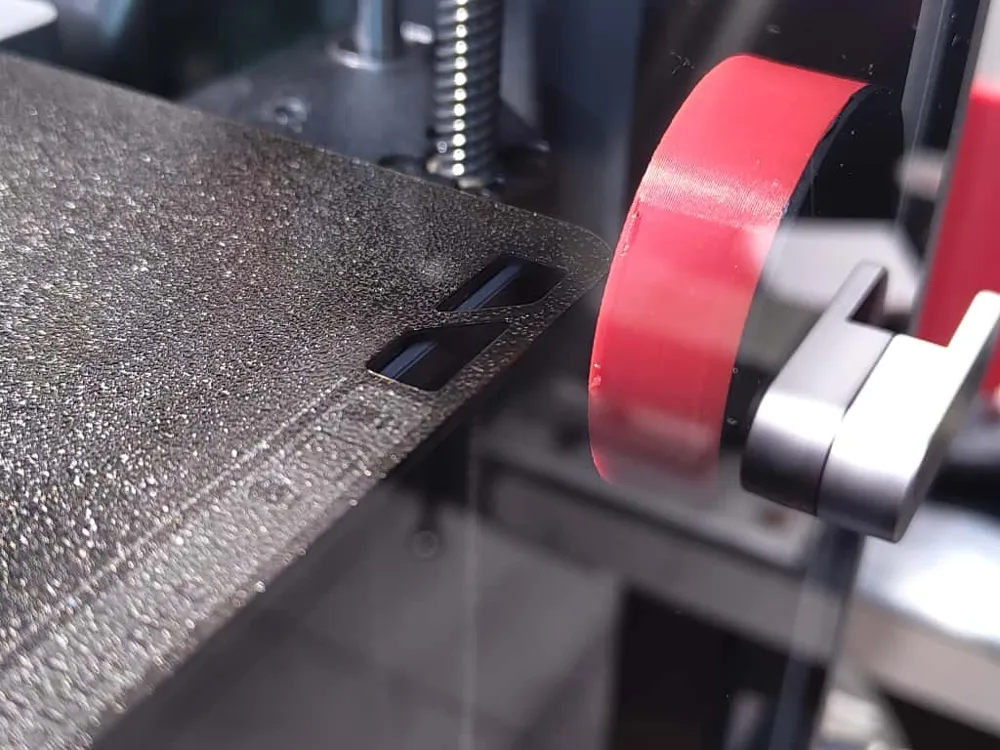

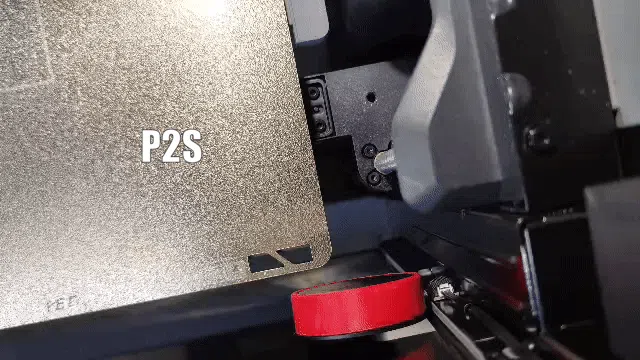

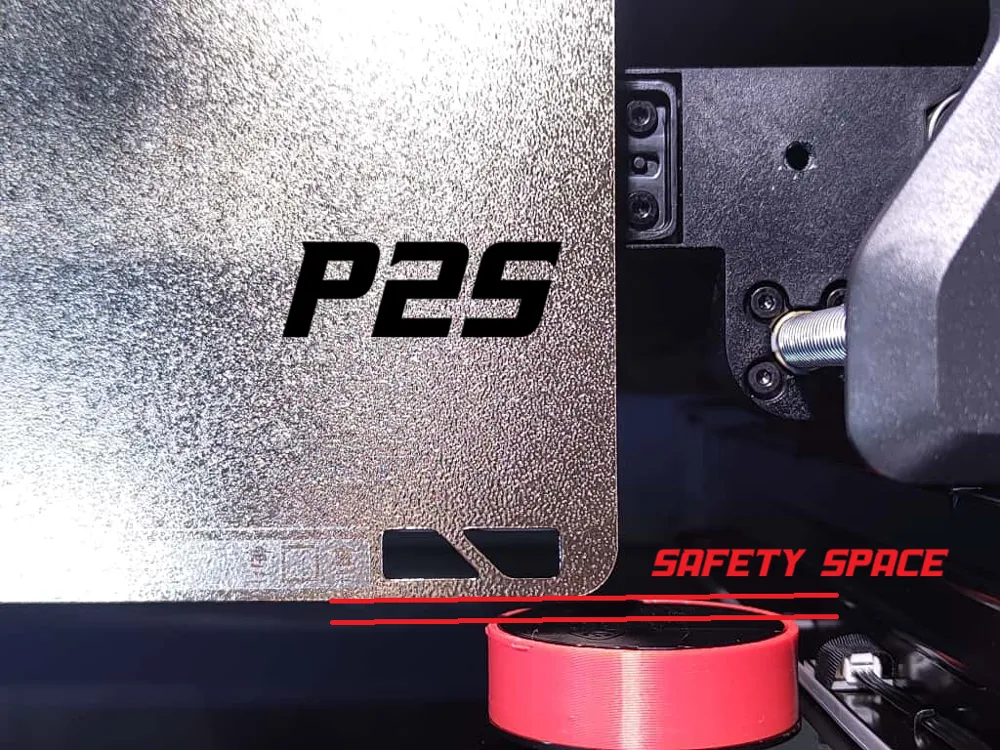

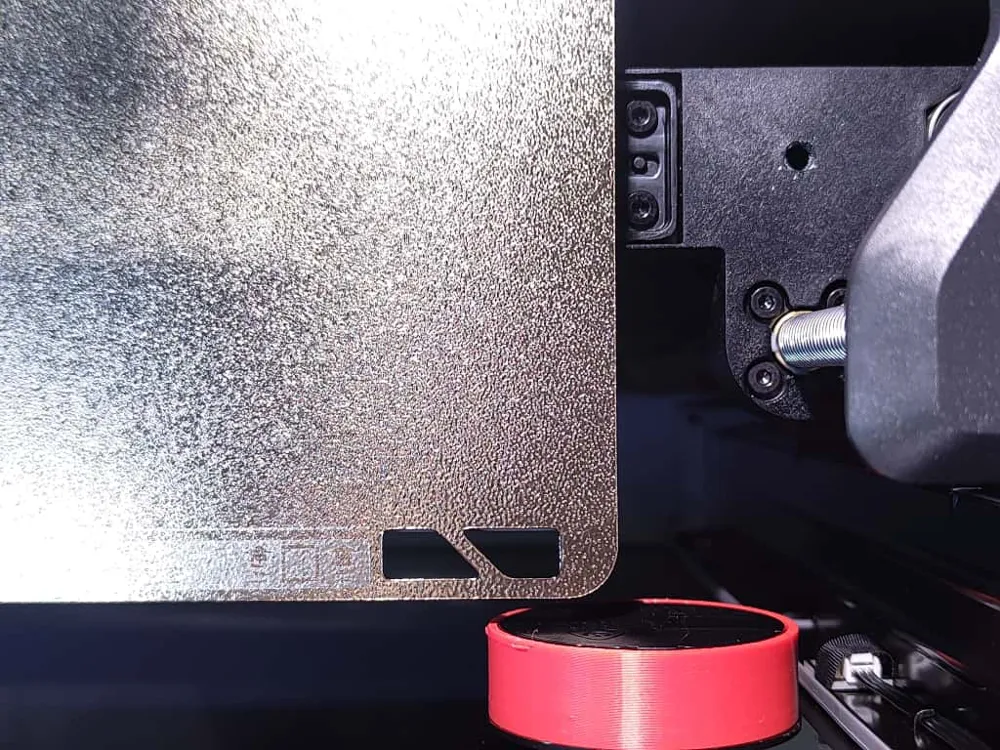

As indicated in the title, the holder is safe, it is designed not to collide with the print beds during the movement of the bed on the Z-axis

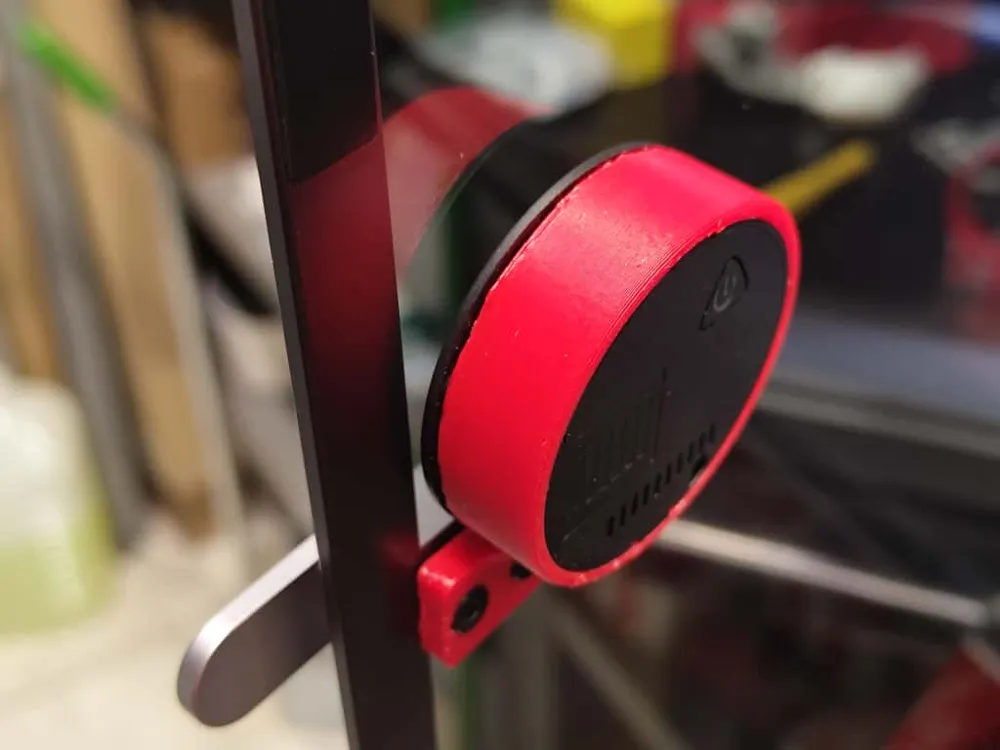

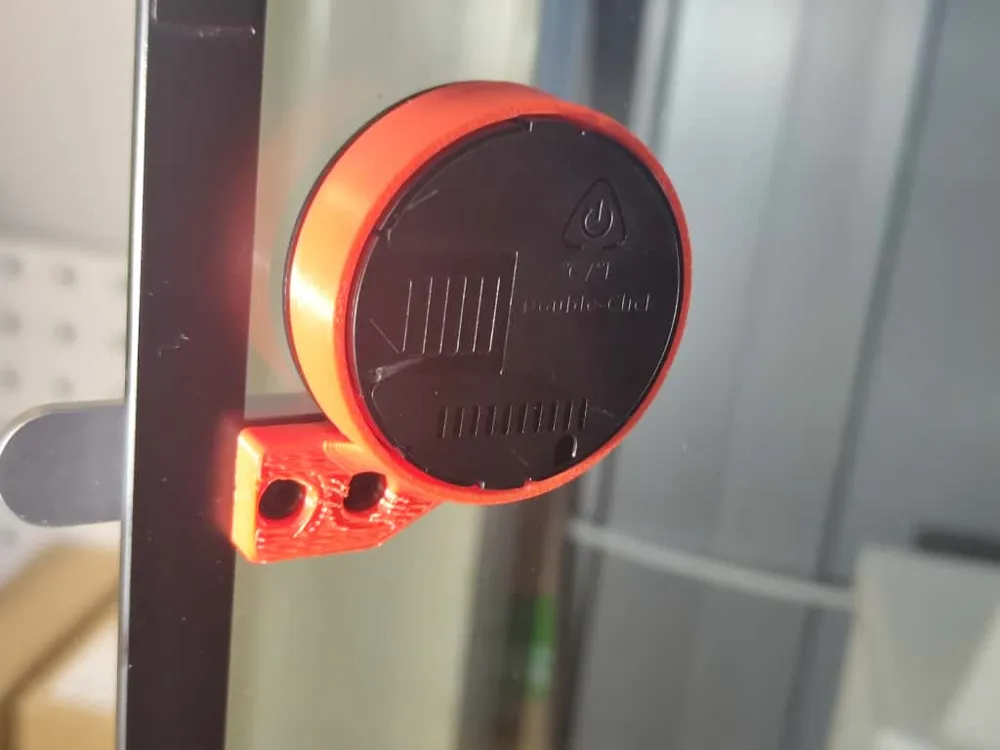

Mounting is done using the same original screws from the glass door handle

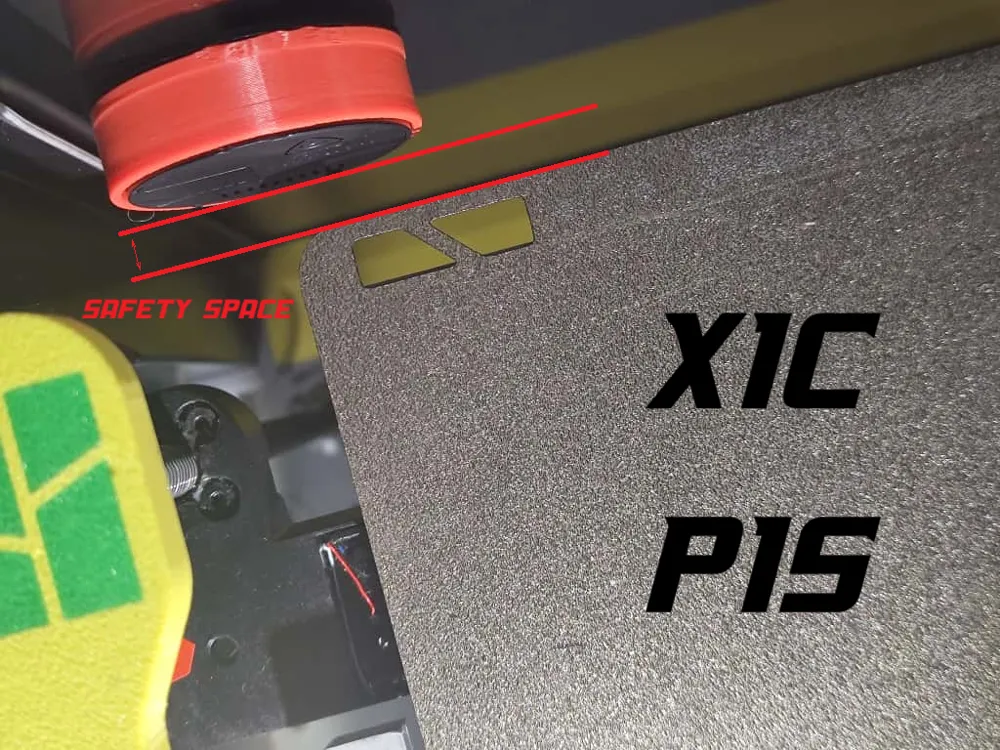

The P2S has less space available between the bed and the glass door unlike its siblings X1C and P1S

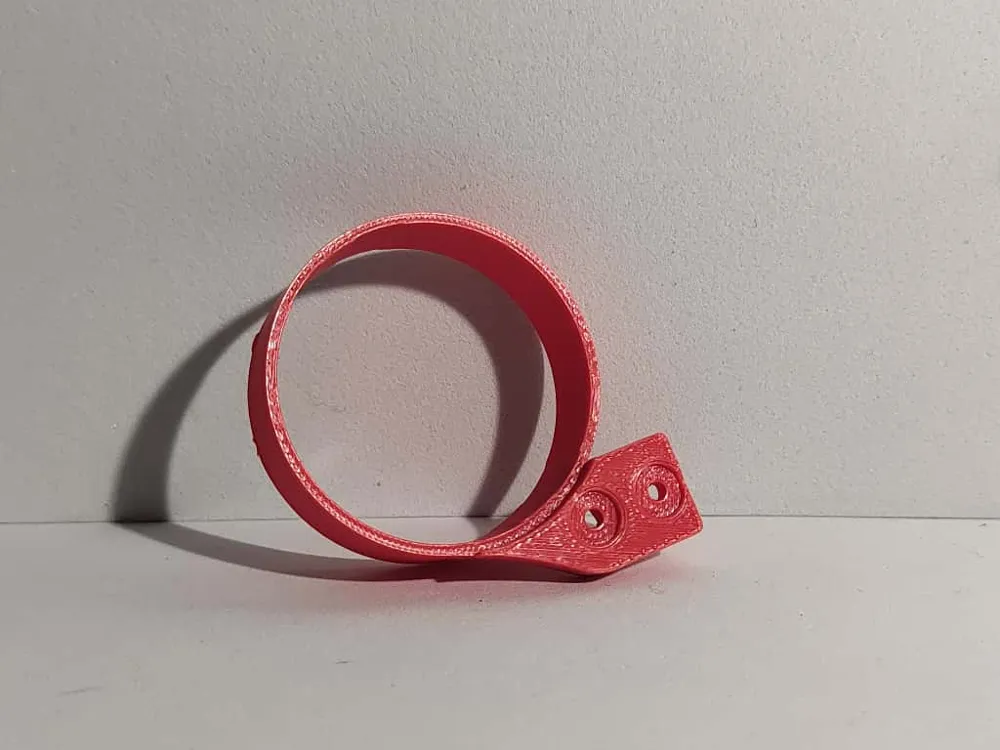

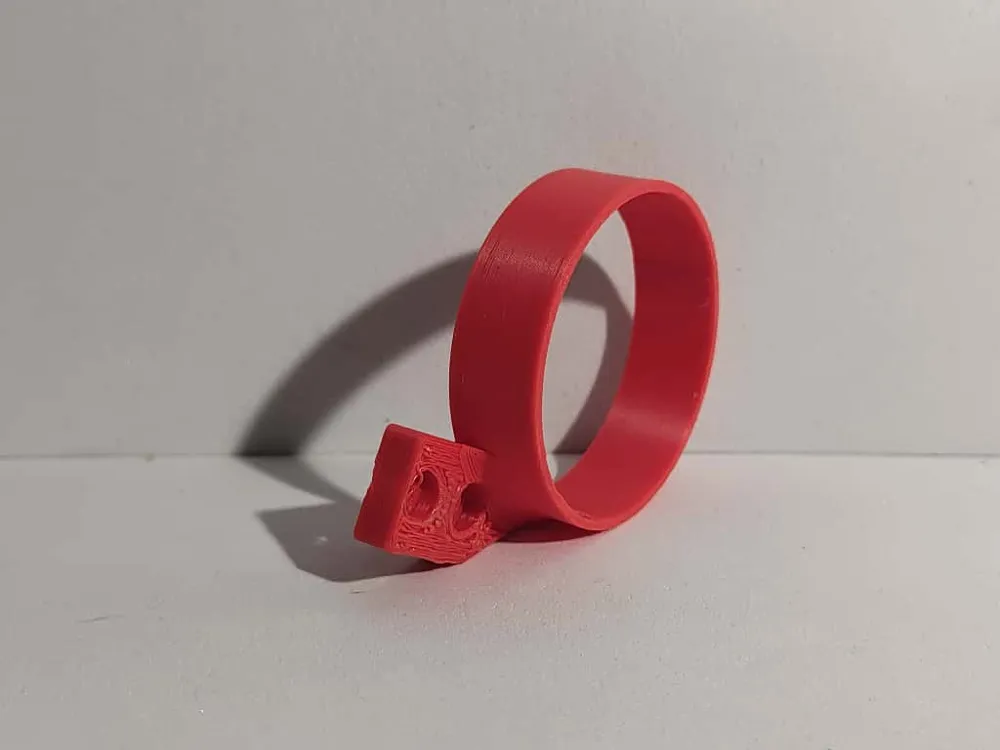

There are 2 models uploaded, one for PLA and PETG and one for ASA and ABS. I decided to upload two profiles because during print tests I found that ASA prints were tighter (probably the material shrinks a bit). Therefore, the PLA and PETG profile has an internal diameter of 41.3 mm while the ASA and ABS one has an internal diameter of 42.1mm

The choice of printing material is dictated by the type of filament you usually print, if you only print PLA or PETG the printing chamber temperatures will always be low, while if you use technical filaments I recommend printing the holder in ABS or ASA, so as not to have deformations or failures when the chamber reaches high temperatures

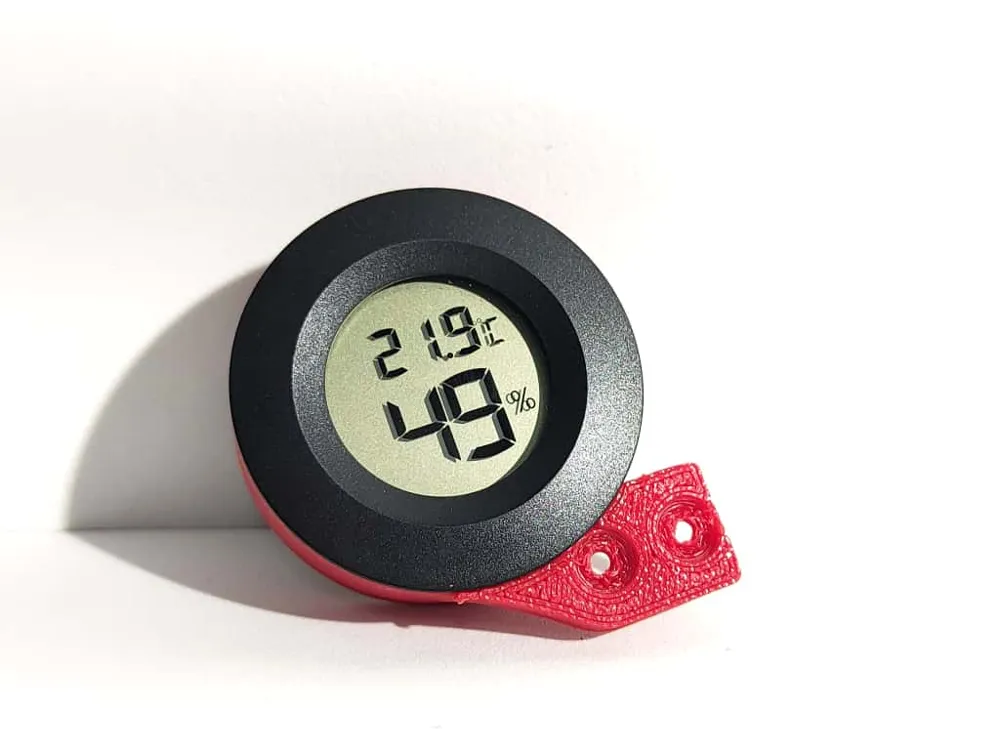

The holder should be compatible with most commercially available sensors. I used the original ones sold on the Bambulab website, and then I also tested it with a hygrometer purchased on aliexpress
