2U Fiber Patch Panel RGBP
IP Report
Print Profile(1)
Fiber Patch Panel RGBP
Designer

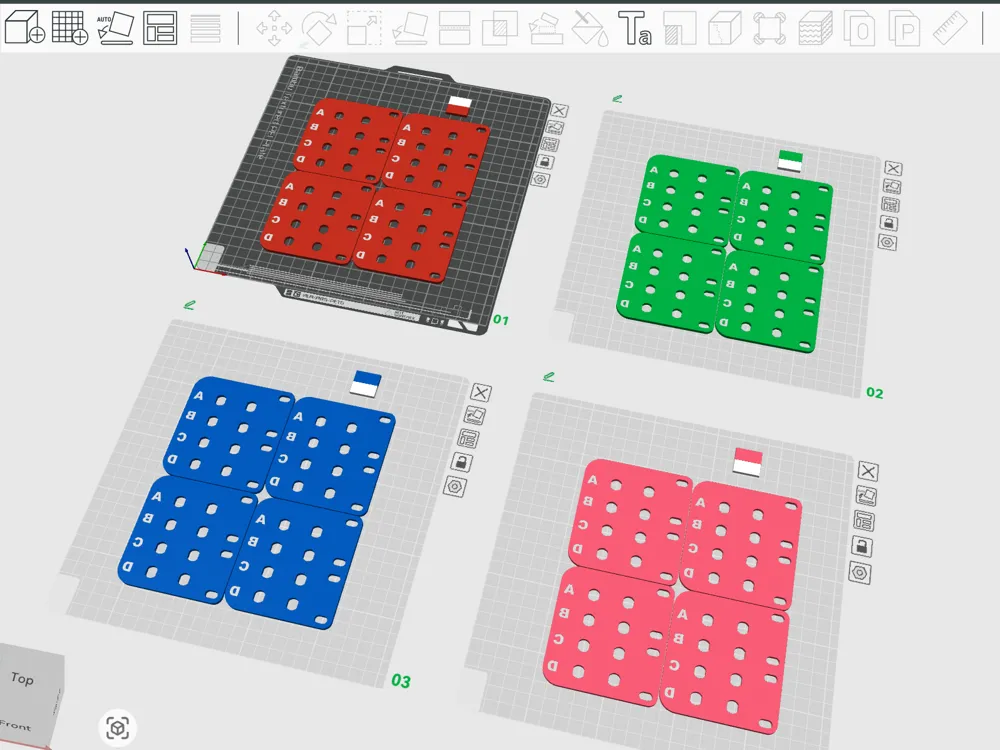

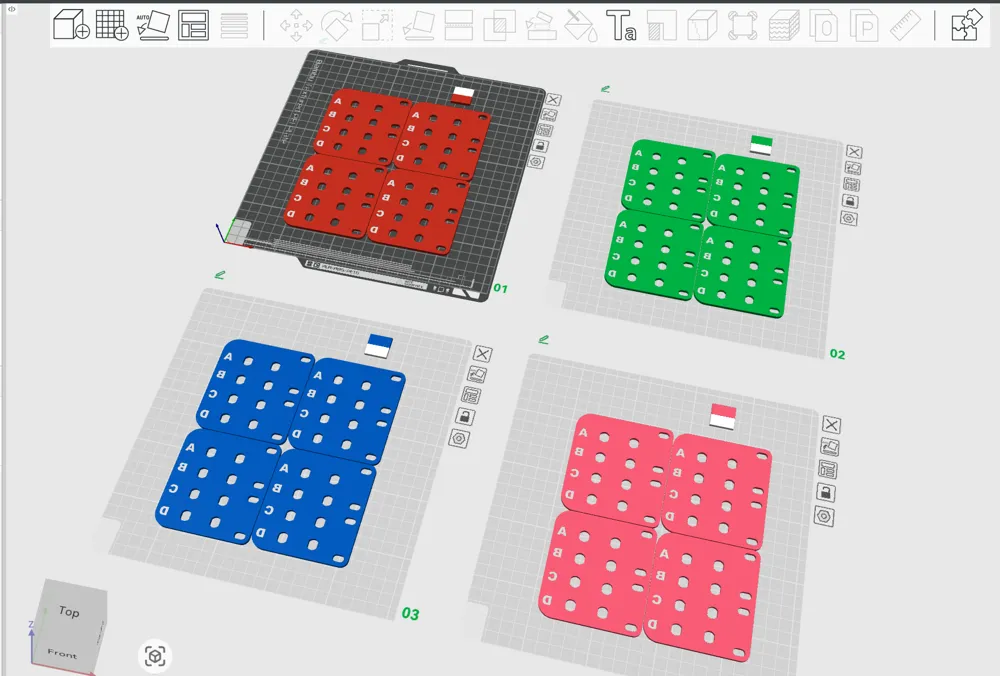

9.3 h
4 plates
Open in Bambu Studio
Boost
1
0
0
0
1
1
Released
Description
This file contains a rack-mountable fiber patch panel designed to fit standard server racks. The panel features color-coded ports in red, green, blue, and pink for easy fiber identification and management. All dimensions follow standard industry sizing for LC/SC fiber couplers and mounting holes, ensuring seamless compatibility with most rack systems.
Key Features:
- Standard rack-mount design
- Color-coded layout (Red, Green, Blue, Pink) for organized fiber routing
- Compatible with LC and SC adapters
- Accurate port spacing and screw hole alignment
- Ideal for structured cabling, data centers, and AV installations
