PPE Gear Holder V2

This is an improved version of my previous PPE gear holder that I designed.

Notable changes include

• Slight design changes for improving geometry for 3-D printing
  • Adding chamfers instead of fillets
  • Adjusting some overhangs to be 45 degree chamfers rather than complete overhangs

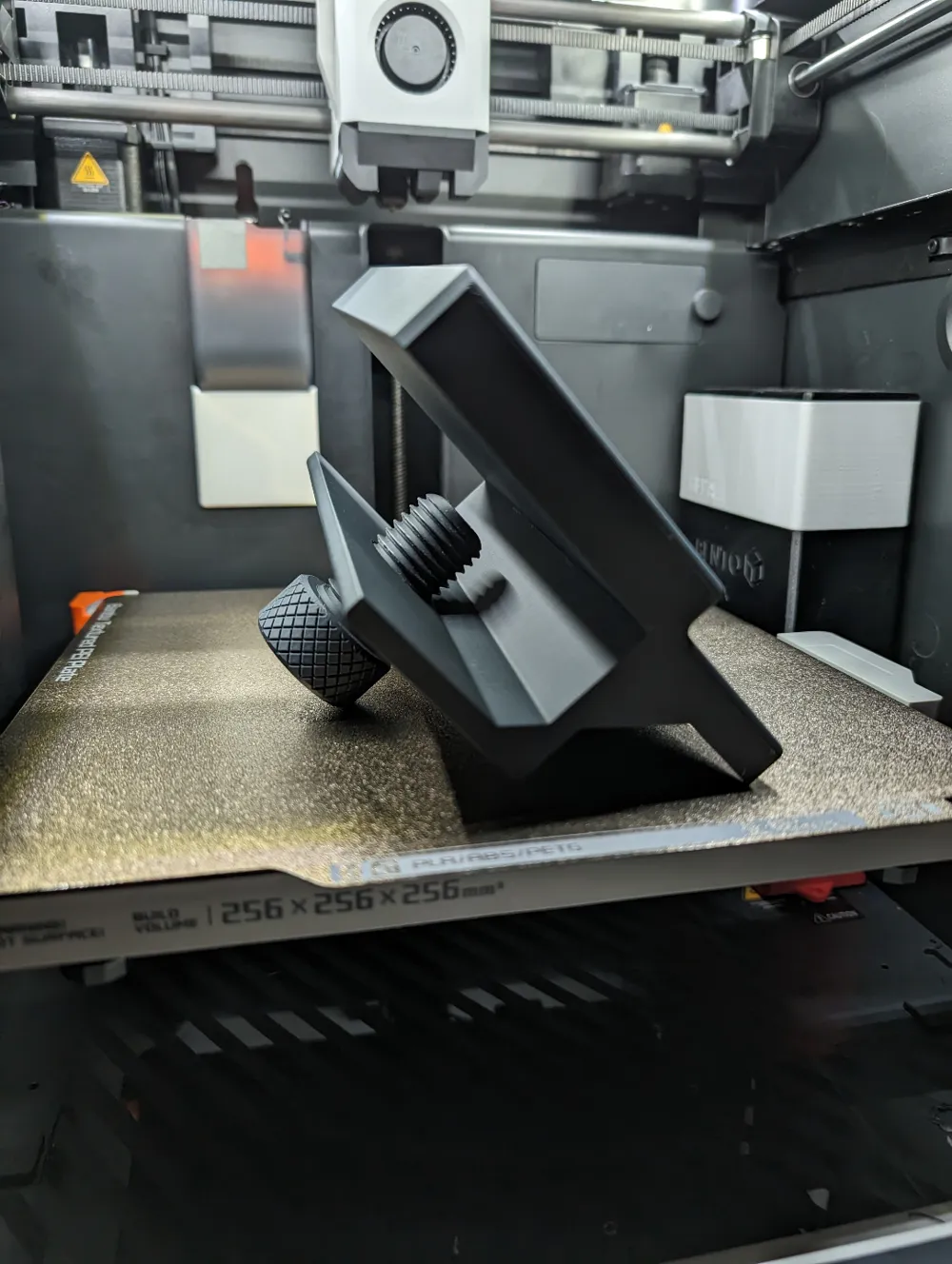

• Added chamfer on bottom part of clamp, had this piece crack on me when I tightened once on my desk, now it is much stronger
• Changed design of bolt to have rounded head in case it is not pushing perfectly flat on table

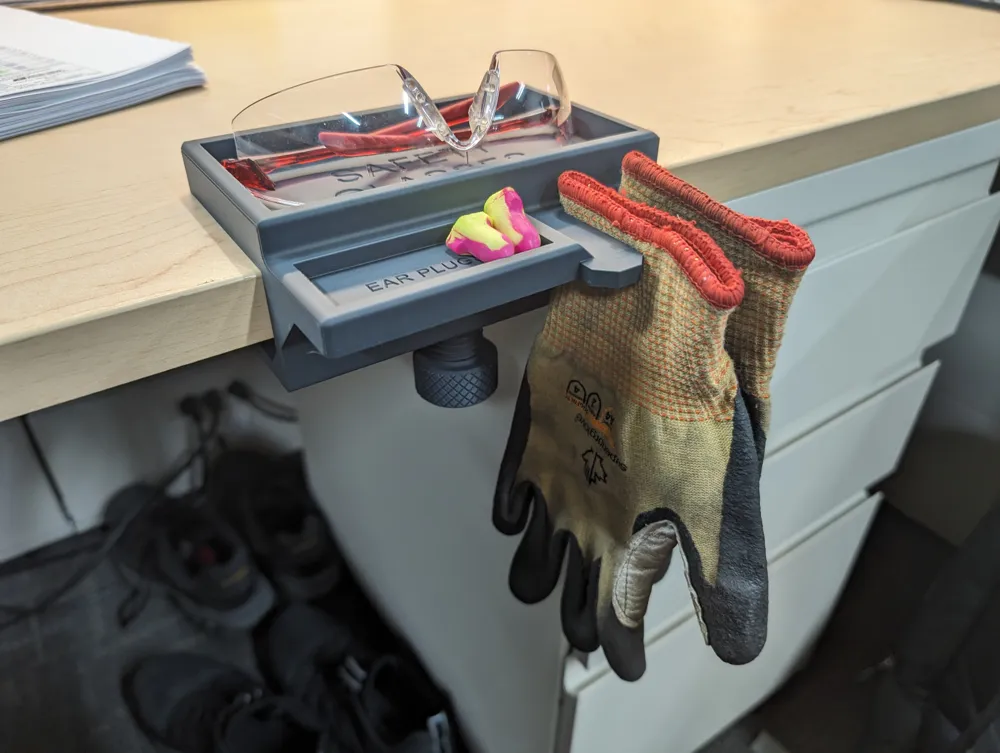

• Added “ribs” to hold thinner gloves better, still holds the gloves pictured fine.

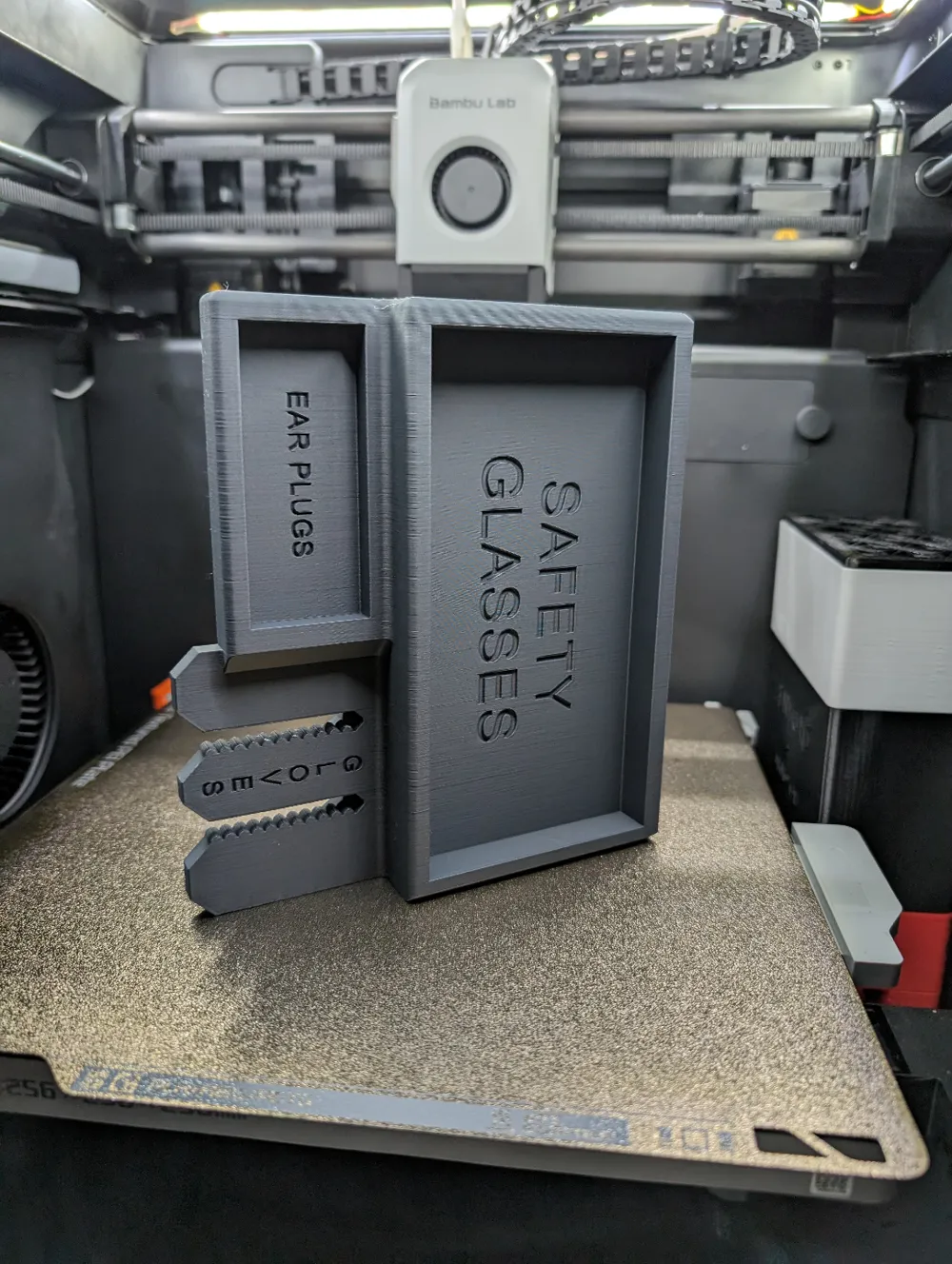

I have also changed the 3mf to use tree supports rather than normal support like my previous profile, there should not be any blemishes on bottom pieces that had regular supports on them previously.

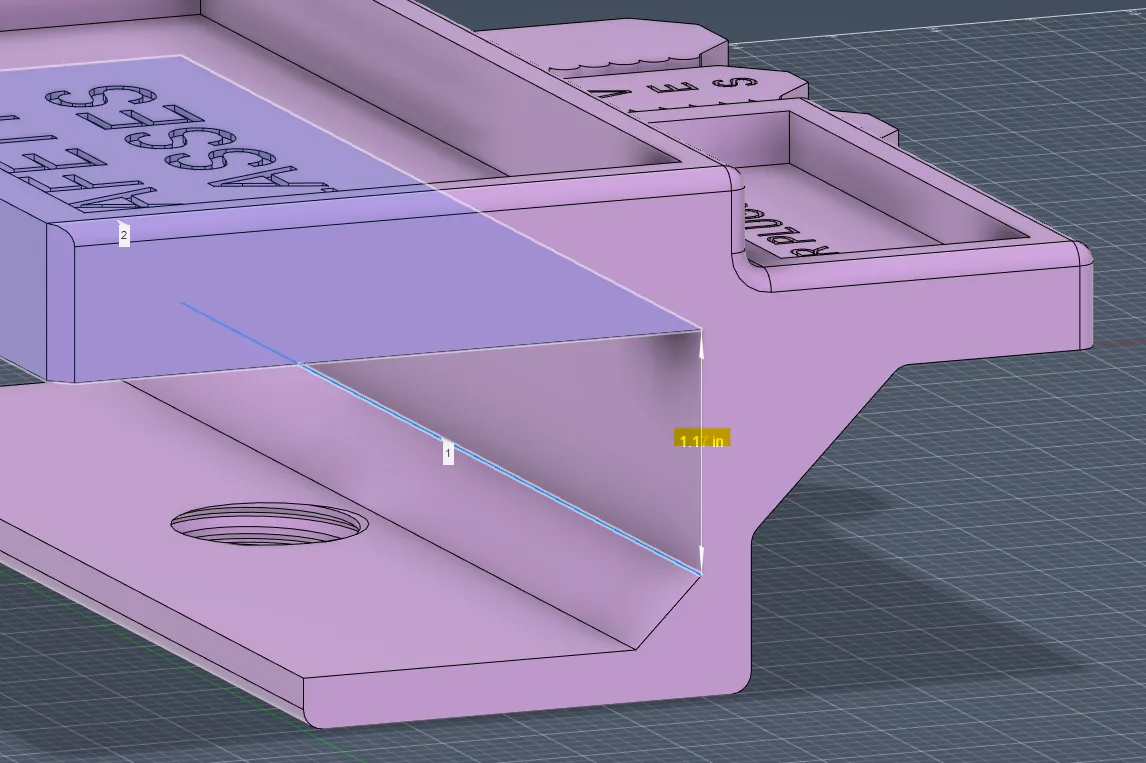

NOTE: The previous version of this model did not have the chamfer added for strength, this effectively means that the thickest table this can be slid onto and tightened is 1.17in.

If you don't mind having it not flush against your desk/table, then the overall length of the gap is 1.50 inches.
