Cougar NUC 110 intake air duct & I/O board shroud

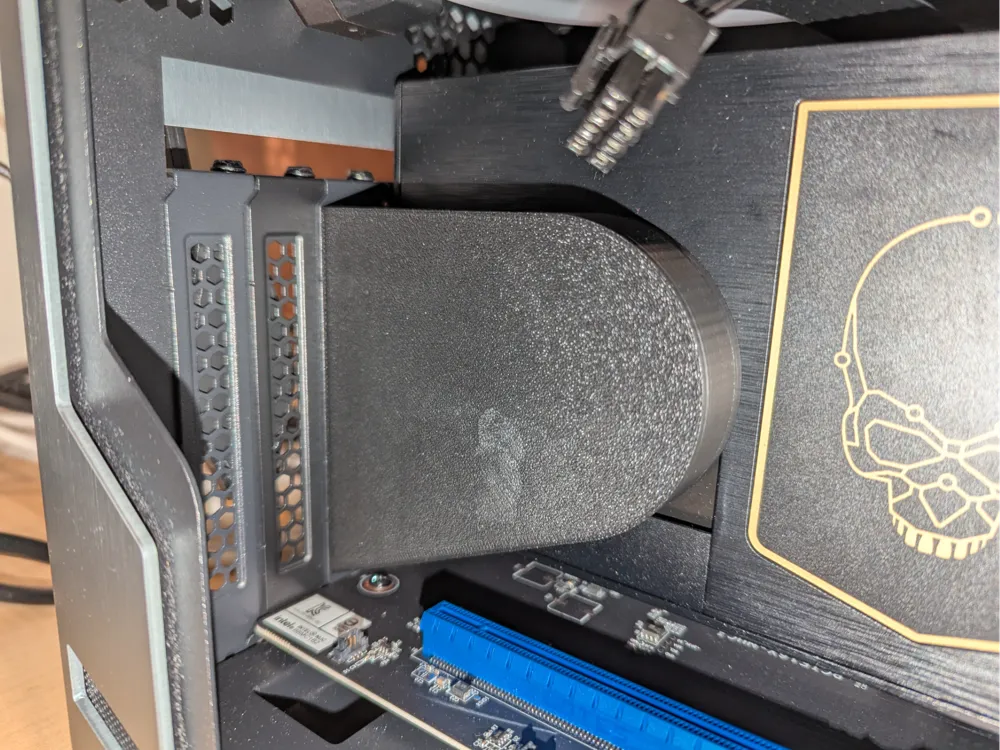

Intake air duct for Intel 11/12 extreme compute element, fits cougar NUC 110 case (sold in Australia as “Kraken mini nuke PC” by BPC), should also fit other NUC 11/12 extreme/enthusiast cases although you probably will need to alter the location of the 2 screw holes on the side depending on the design of your PCI slot plate.

Designed to be screwed onto the PCI slot place. Large diameter hole to accommodate 2 threaded inserts.

Printed in 2 parts to eliminate the need for support. The 2 parts are fixed together via 2 screws. I also recommend adding superglue to the periphery for an all-around seal.

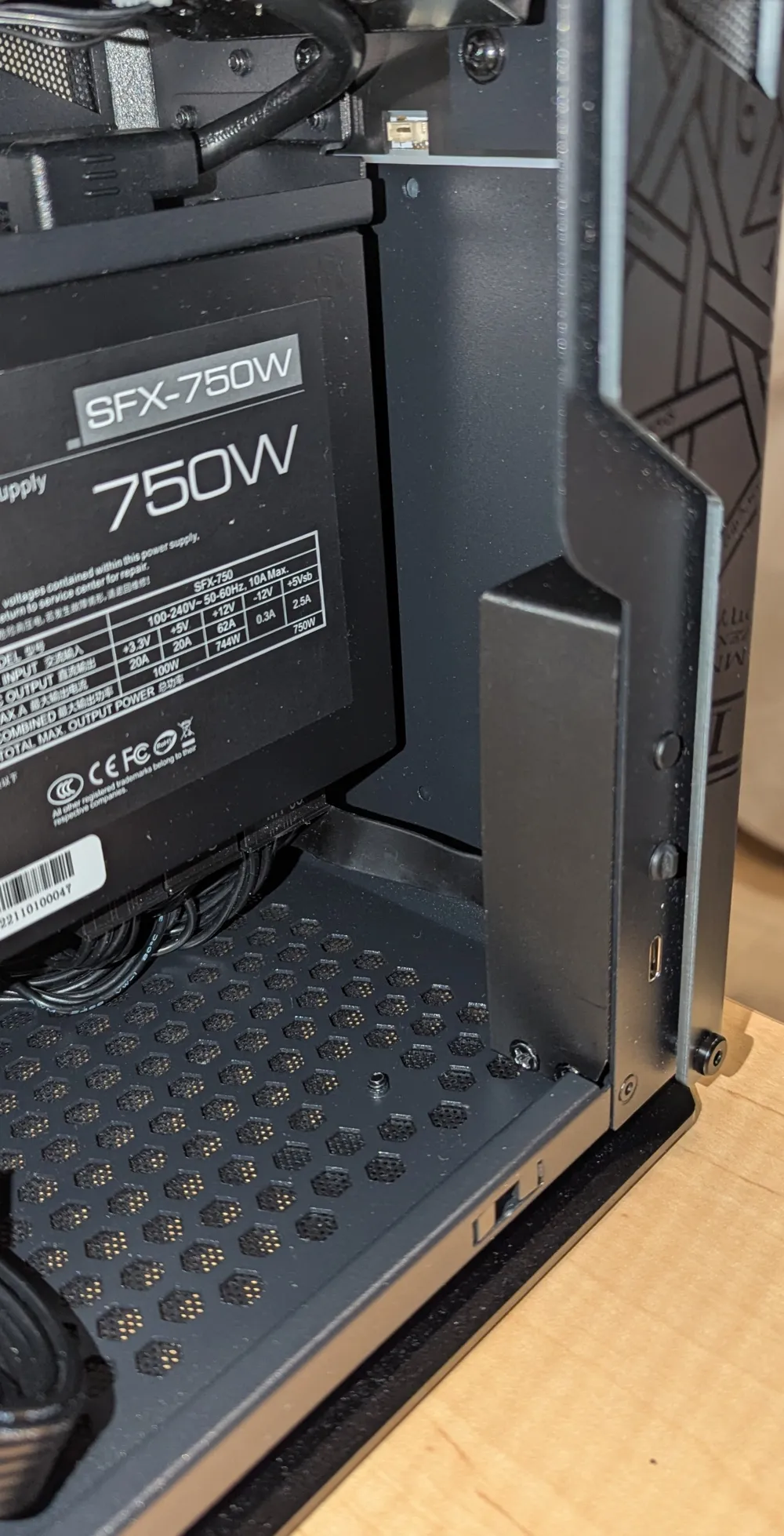

Also contains a shroud for covering the side panel I/O board. You can delete this part before printing if you don't need it.
