🔧 Honeycomb Cylinder Mount / Silencer or Pen Holder
Model Type: Parametric OpenSCAD design
Designer: © A. Newtown
Category: Functional Prints → Mounts & Holders
Recommended Printer: Bambu Lab X1 / P1 / A1 Series
🧩 Description

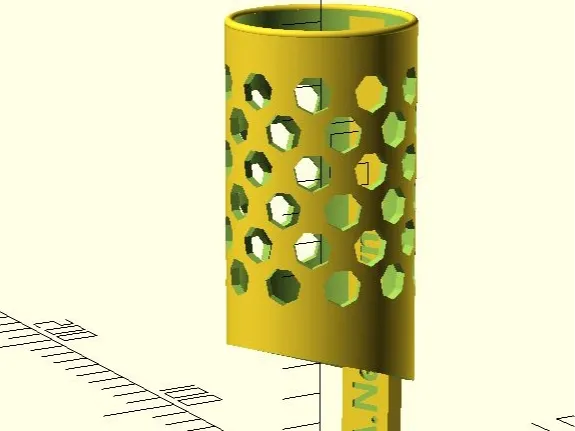

This modular honeycomb cylinder holder can be used as a silencer support, barrel sleeve, or desk / whiteboard pen holder.
It features a lightweight honeycomb structure combined with integrated magnet slots, making it easy to attach to metallic surfaces or tool walls.
The design emphasizes rigidity, precision fit, and airflow, while keeping material usage minimal.
All geometry is fully parametric — you can modify the cylinder height, diameter, honeycomb pattern, or magnet dimensions directly in the .scad file.
⚙️ Features
- 🧱 Structural honeycomb pattern for strength and visual lightness
- 🧲 Magnet holder built into the rear section (customizable size and position)
- 🪶 Thin wall design (3 mm) for low weight and quick print times
- 🌀 Smooth rounded top and base for a finished look
- 🔠 Optional engraved text label (engraving_text parameter in the SCAD file)
- 🧩 Designed for parametric customization — ideal for advanced users and OpenSCAD enthusiasts
🧰 Parameters (modifiable in OpenSCAD)
| Parameter | Description | Default |
|---|---|---|
| height | Total cylinder height | 150 mm |
| diameter | Outer diameter | 60 mm |
| thickness | Wall thickness | 3 mm |
| honey_size | Honeycomb cell size | 6 mm |
| honey_depth | Depth of honeycomb holes | 5 mm |
| magnet_x / y / z | Magnet width / height / depth | 13.5 / 6 / 61 mm |
| engraving_text | Text for the side engraving | “© Hunter Moritz” |
🧲 Mounting Options
- Attach to metallic surfaces using neodymium magnets.
- Use adhesive strips or M3 bolts through the bottom plate for fixed mounting.
- Ideal for use as:
- Whiteboard pen organizer
- Tool or brush holder
- Silencer / tube rest for technical setups
- Compact modular lab or workshop mount
🖨️ Print Settings (Bambu Lab recommendation)
| Setting | Value |
|---|---|
| Layer Height | 0.2 mm |
| Wall Count | 3 |
| Infill | 15 – 25 % (Gyroid recommended) |
| Material | PLA / PETG / ASA |
| Supports | Off (only for magnet cavity if needed) |
| Bed Adhesion | Textured PEI sheet (brim optional) |
🧠 Notes
- All parts are printable without supports when oriented upright.
- The magnet cavity can be closed post-print using a cover, epoxy, or printed plug.
AMAZON : Magnetpro 8 Stück Rechteckmagnete 30 KG Kraft 60 x 13,5 x 5 mm mit Loch und Stahlkapsel
- Engraved text depth and font can be adjusted directly in the .scad file.
