Laser Engraver Visual Positioning Plate
Print Profile(1)
Description
DIY XY-structure laser engraving machines are difficult to position.

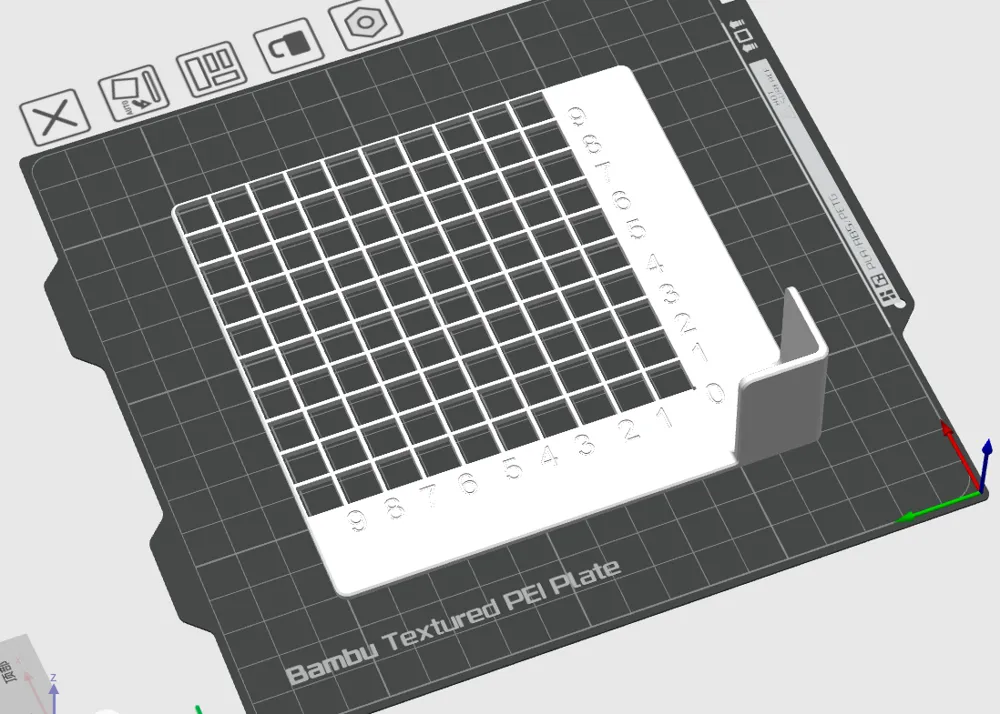

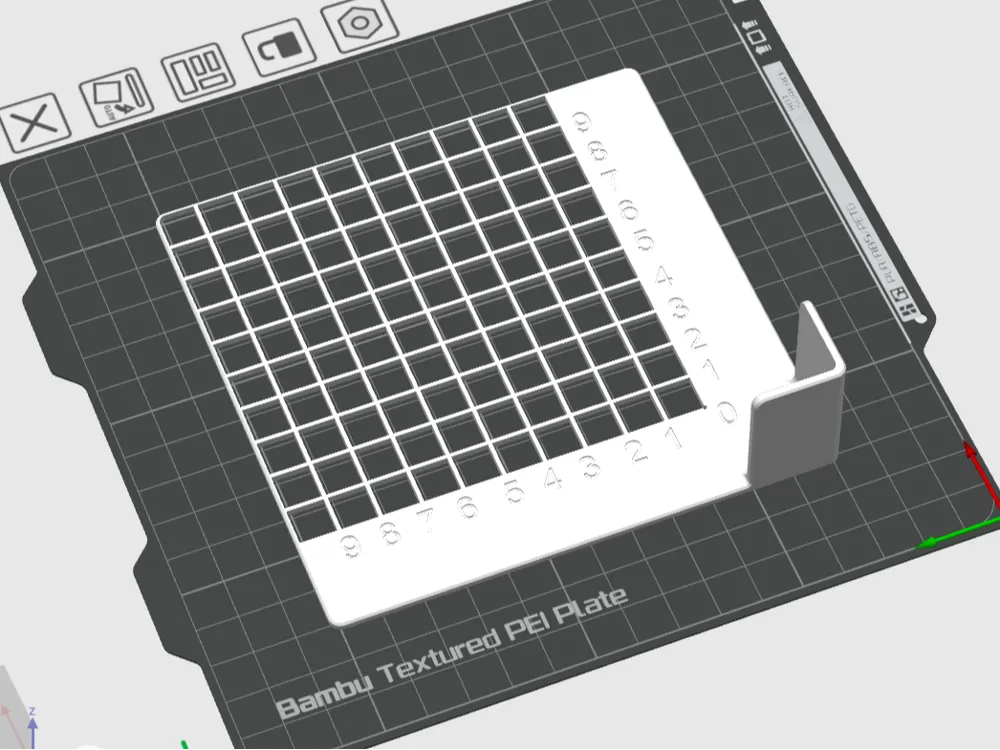

I designed a plate for visual positioning.
It is suitable for 40*40mm laser heads, with the laser emitter located exactly in the center.
Currently, the 10W laser head from Xiaozheng's store has been tested without any issues.
A STEP file has also been uploaded for easy modification to other sizes.
