Unifi UCG Max Ultra 19'' Network Rack
Print Profile(1)
Description
Boost Me (for free)
Please support me for free so that I can create more designs

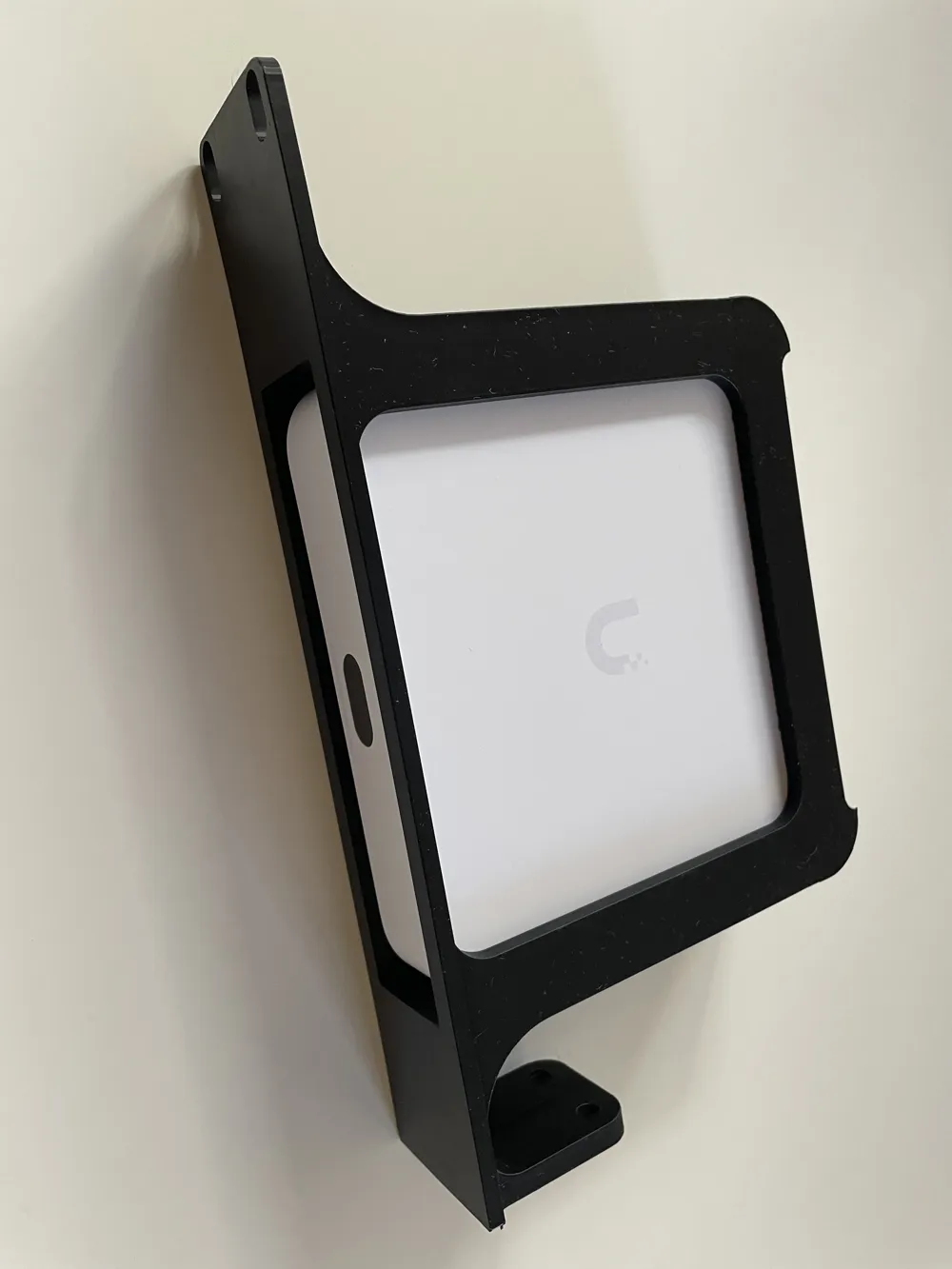

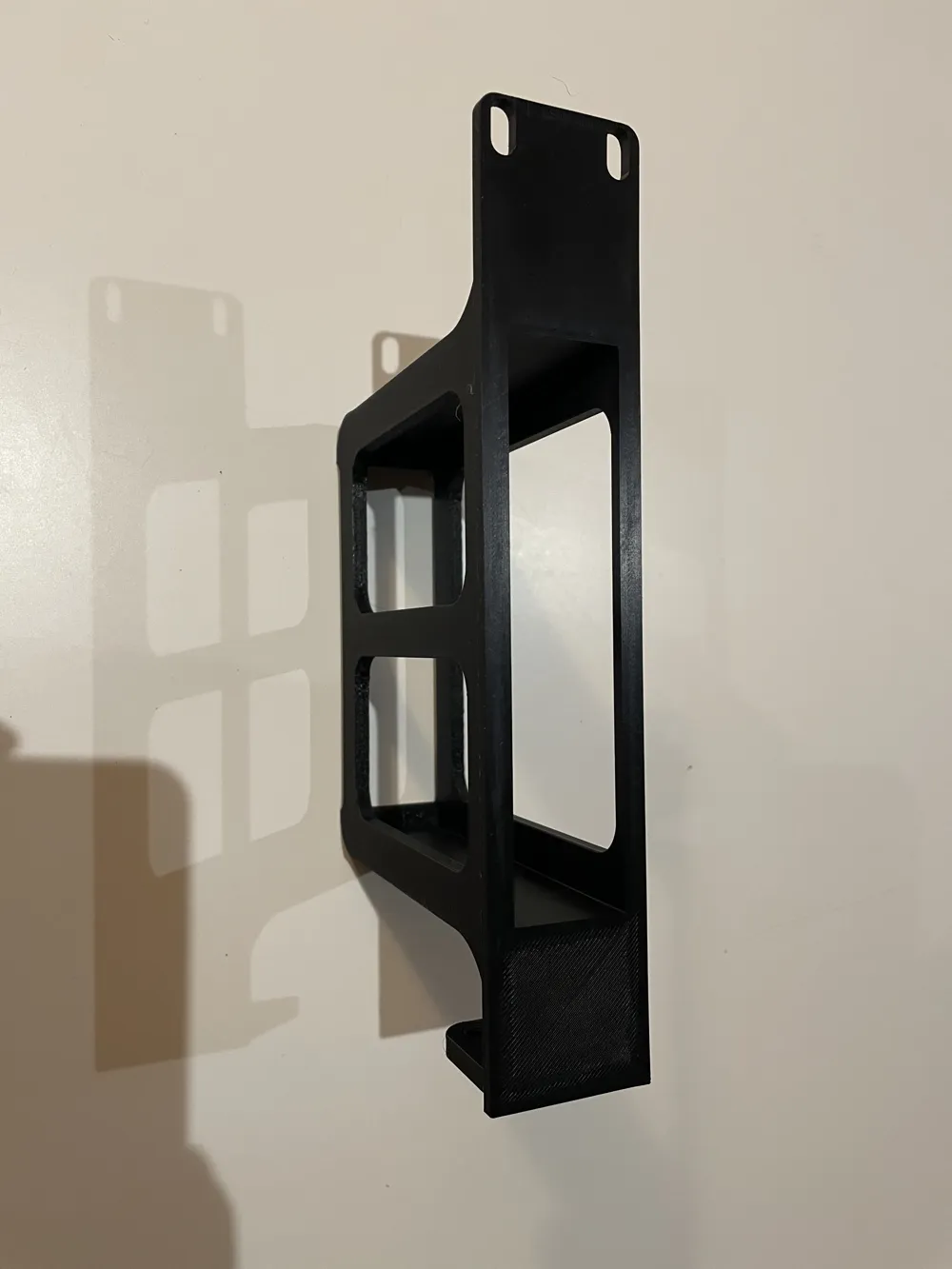

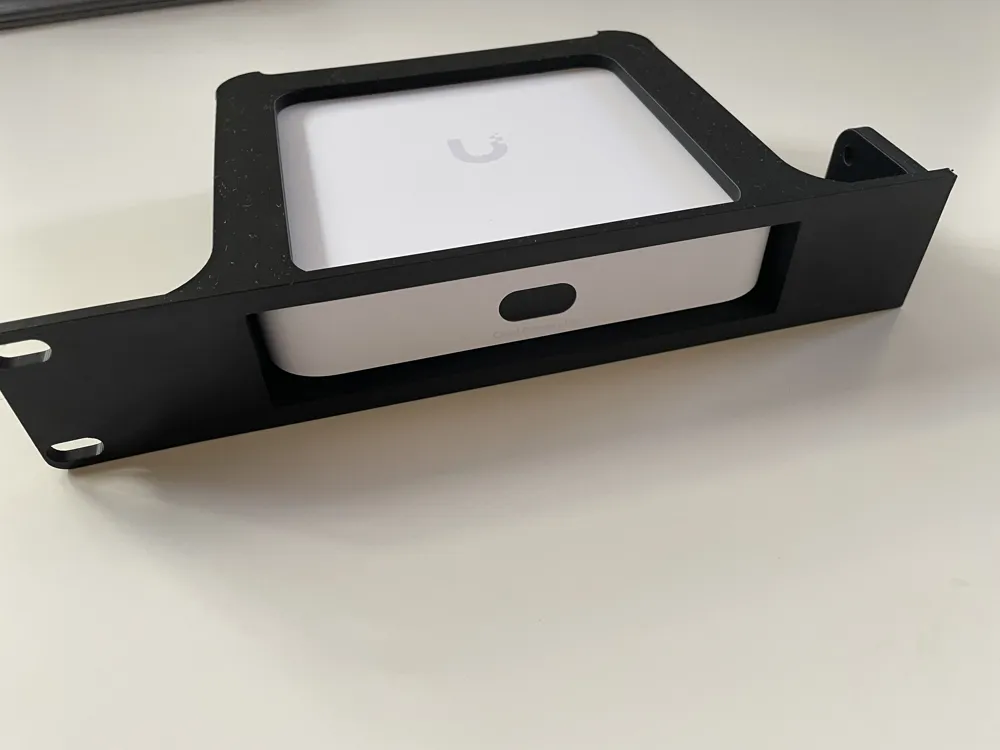

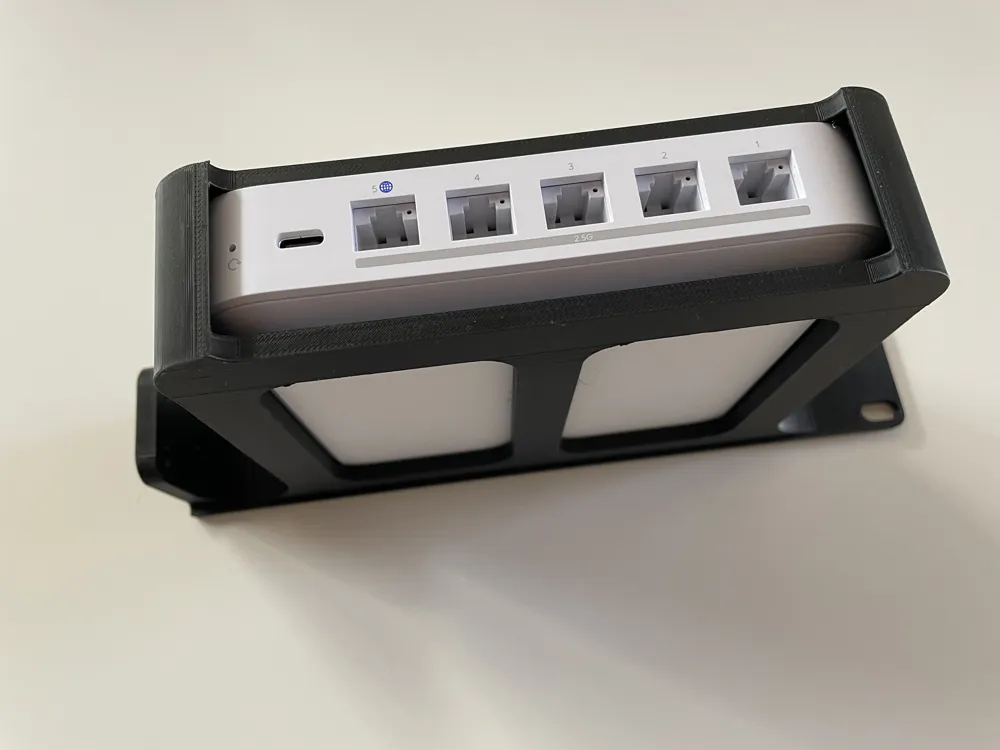

I designed this **19-inch rack mount** for my **UniFi UCG Max/Ultra**, allowing it to be mounted neatly and securely in the network rack
The model complies with the **19" (1U) standard** and allows the gateway to be securely fastened, maintaining a clean and professional appearance

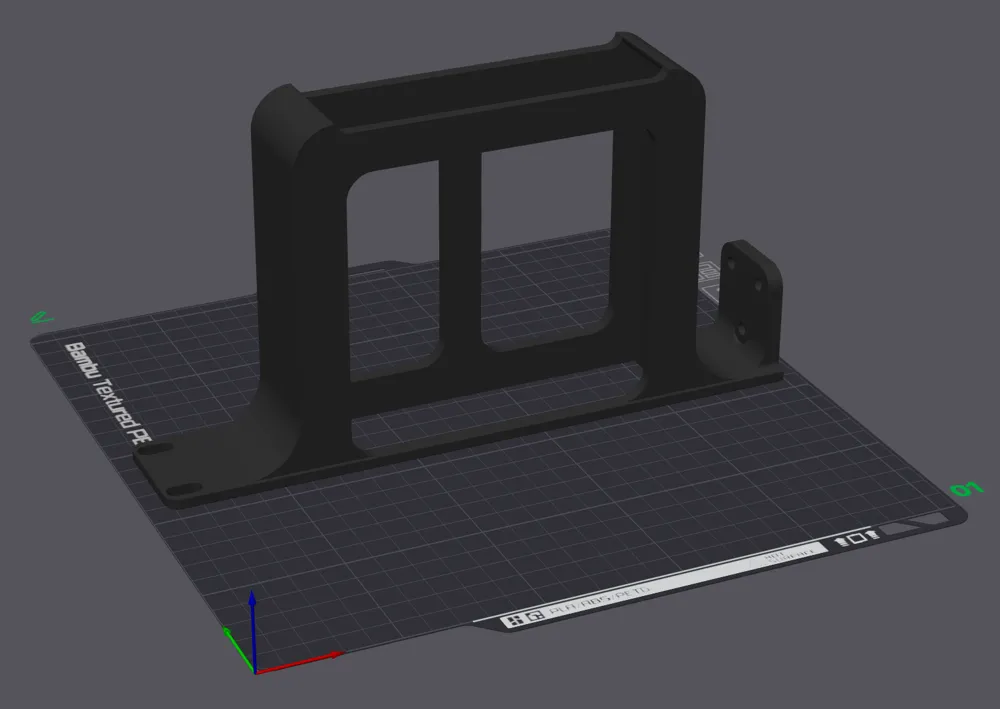

I **3D Printed** it with **PETG**, a material that ensures excellent mechanical and thermal resistance — ideal for environments where temperature can rise. The design is solid, with **perfectly aligned holes** for M6 rack screws and a structure designed to withstand even light loads
The mount is easy to install and requires no modifications: simply attach it to the rack rails and position the device
A simple but truly useful project, perfect for those who want a **clean, durable, and custom-fit mount** for their **UniFi UCG Max/Ultra**
You need 3 screws with bolts (M5 with a minimum length of 14) to fasten two panels together and then 2 screws with M6 inserts to secure everything to the network cabinet
The mount was designed to be connected with another mount (in my case, the one for the 8-port lite switch) which you can find at this link: Unifi Switch 8 PoE Lite
