Educational conveyor belt with DC motor

Remixed by

Print Profile(5)

All
P1S
H2C
X2D
A2L
H2S
H2D
X1 Carbon
P1P
X1
P2S
X1E
A1
H2D Pro

0.24mm layer, 2 walls, 15% infill
0.24mm layer, 2 walls, 15% infill
Designer
32.7 h
10 plates
5.0(2)

0.24mm layer, 2 walls, 15% infill
0.24mm layer, 2 walls, 15% infill
Designer
36.8 h
9 plates

0.24mm layer, 2 walls, 15% infill
0.24mm layer, 2 walls, 15% infill
Designer
33.2 h
9 plates

0.24mm layer, 2 walls, 15% infill
0.24mm layer, 2 walls, 15% infill
Designer
30.6 h
10 plates
Click to see more

Open in Bambu Studio
Boost
54
108
4
1
115
25
Released

Description

Content has been automatically translated.
Show original

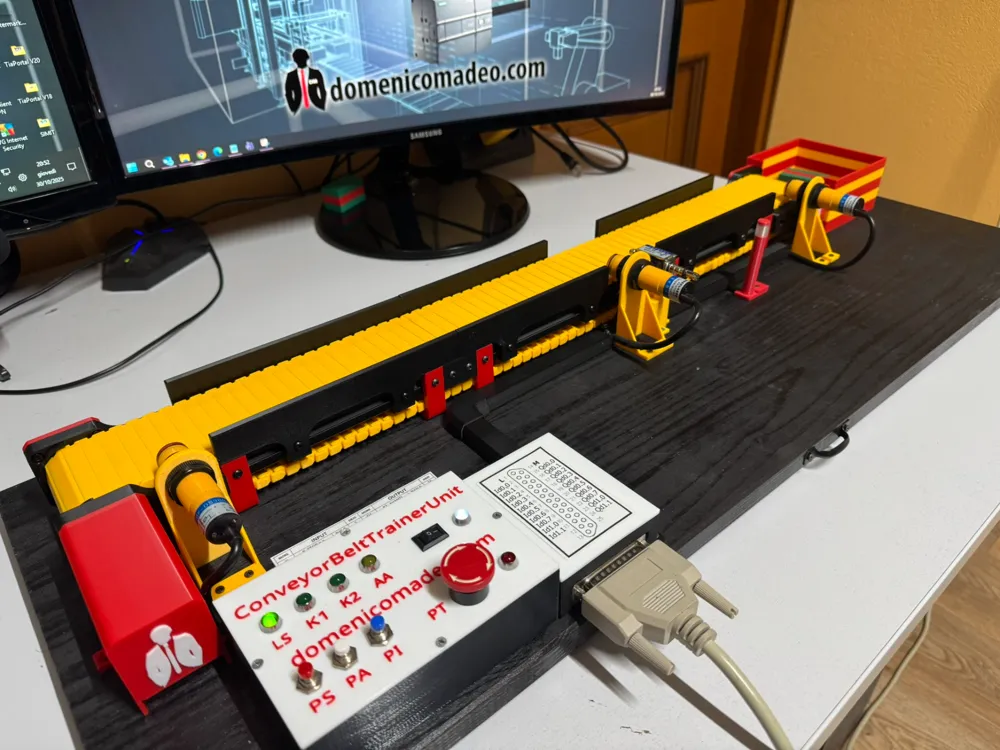

I prepared this conveyor belt for my students to conduct lessons with Siemens PLCs and adapted the original to a 24-volt DC motor

I made the conveyor belt 60 cm long + 10 cm for the two ends, with three parts plus infrared sensor holders and a solenoid holder for ejection



here

a demo video

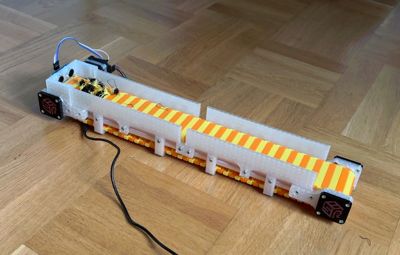

Idea and much of it comes from
https://makerworld.com/it/models/1909125-modular-t-slot-conveyor#profileId-2047052


Materials:

24V DC Motor 77 RPM
https://it.aliexpress.com/item/33011233885.html

Ejection electromagnet solenoid
https://it.aliexpress.com/item/32731717962.html

IR PnP 24V Sensor
https://it.aliexpress.com/item/1005009885758929.html

M3x 10mm, 16mm Screws and Nuts Kit
https://www.amazon.it/dp/B0DBZ9TTL1?th=1

M3 T-Nuts Kit
https://www.amazon.it/gp/product/B097NSN12M/

Optionally:
4 R8-2RS bearings

Comment & Rating (4)

(0/1000)
