Weight Plate Pin
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
1.6 h
1 plate
10mm inner hole (0.2mm layer, 3 perimeters, 30% infill)
Designer
1.9 h
1 plate
Open in Bambu Studio
Boost
5
3
8
0
1
2
Released
Description
Content has been automatically translated.

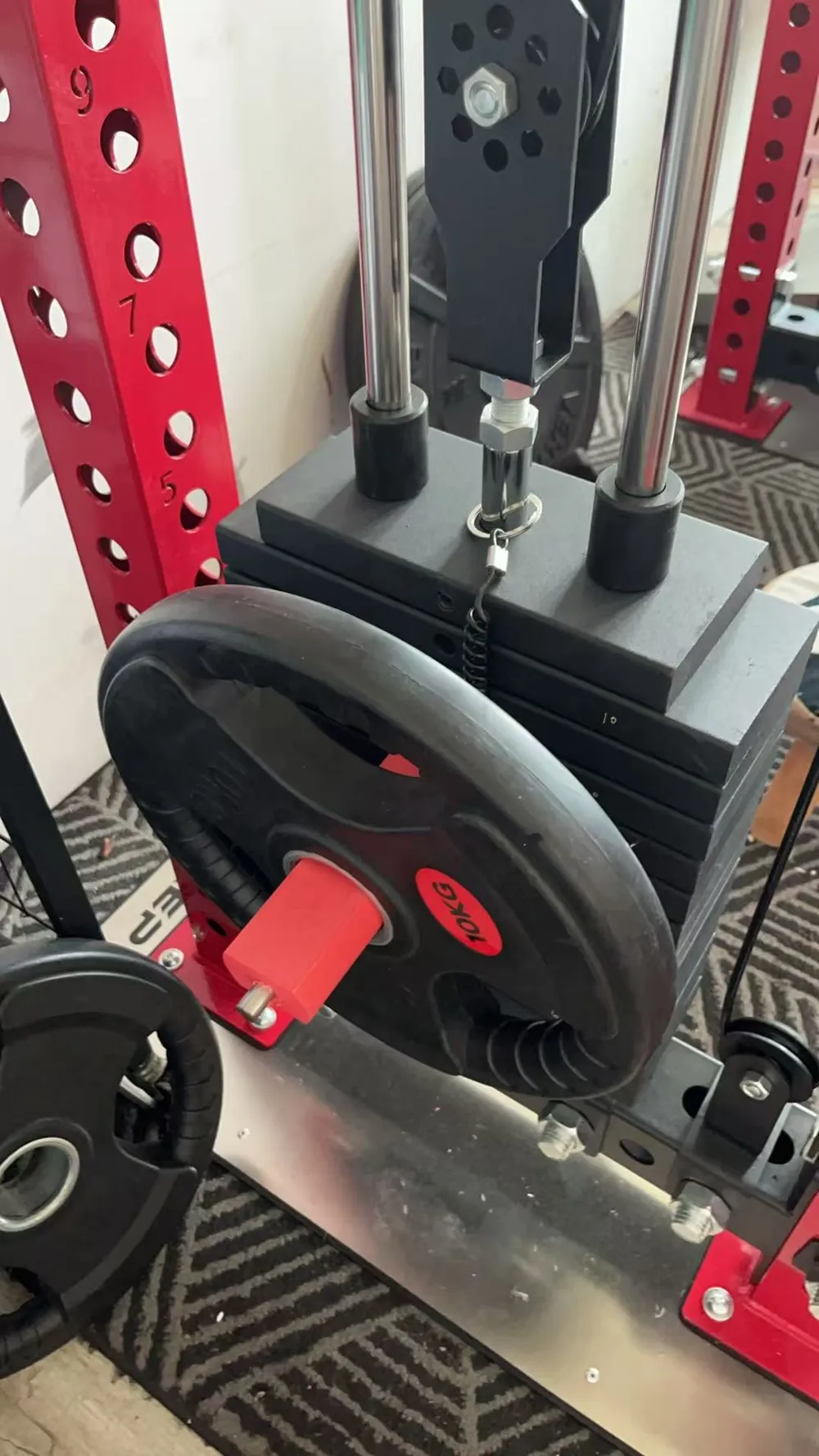

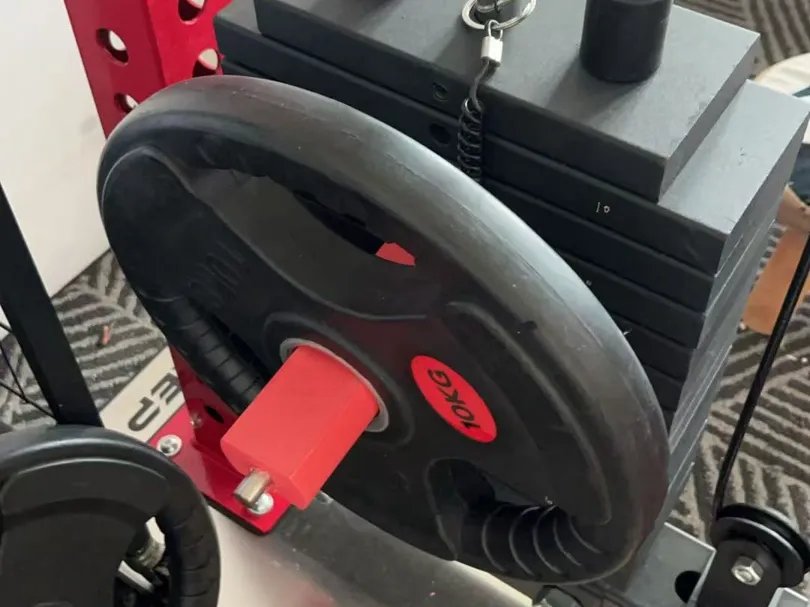

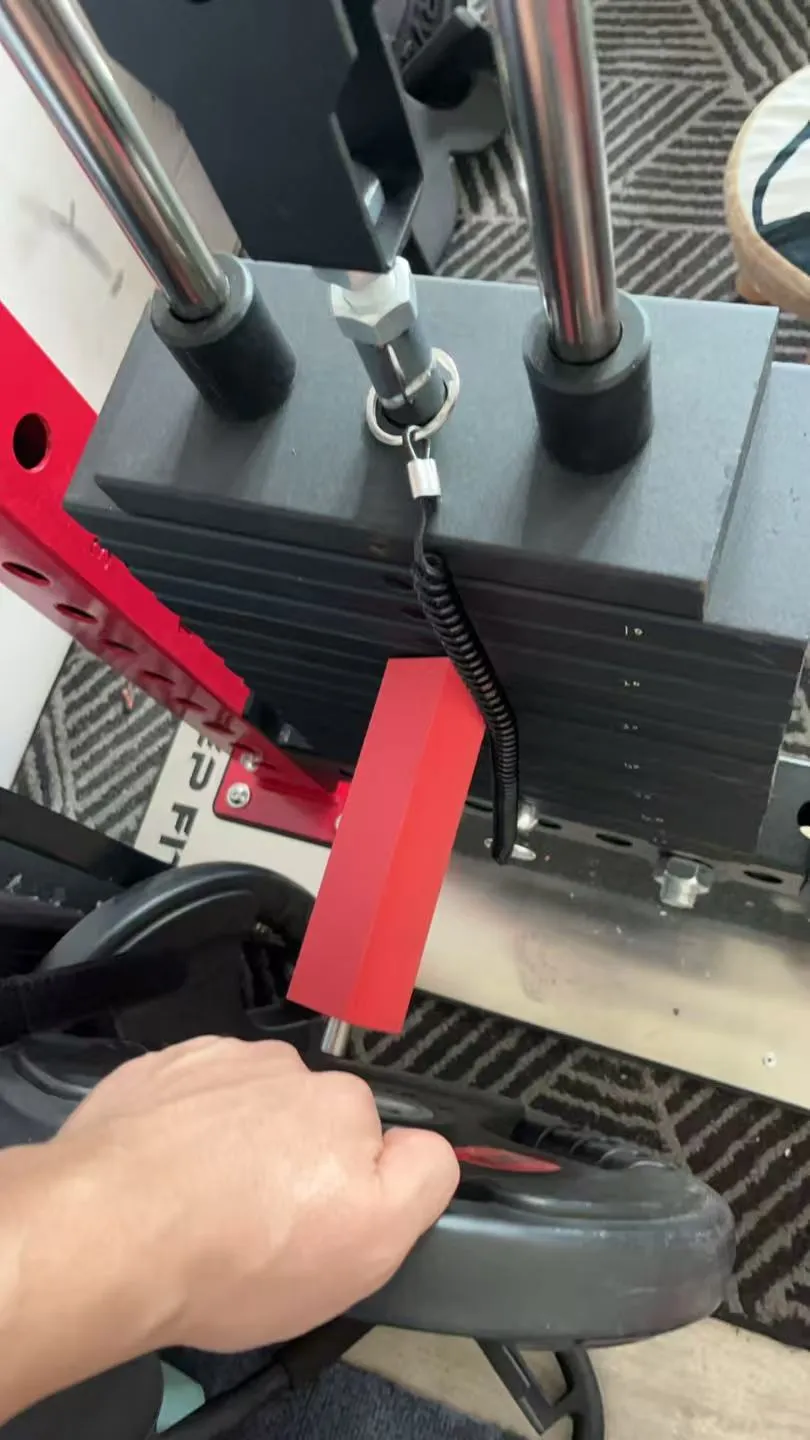

Fitness enthusiasts are naturally familiar with weight plate pins, and they naturally understand the difference between the cheap and expensive options
It is not recommended to print this model vertically, as the layer adhesion is weak and prone to cracking. The main stress point of the model is on the steel rod, so even if printed with PLA, it's fine (actual test shows a maximum load of 30kg, this is the limit of the length, not the rod's capacity)

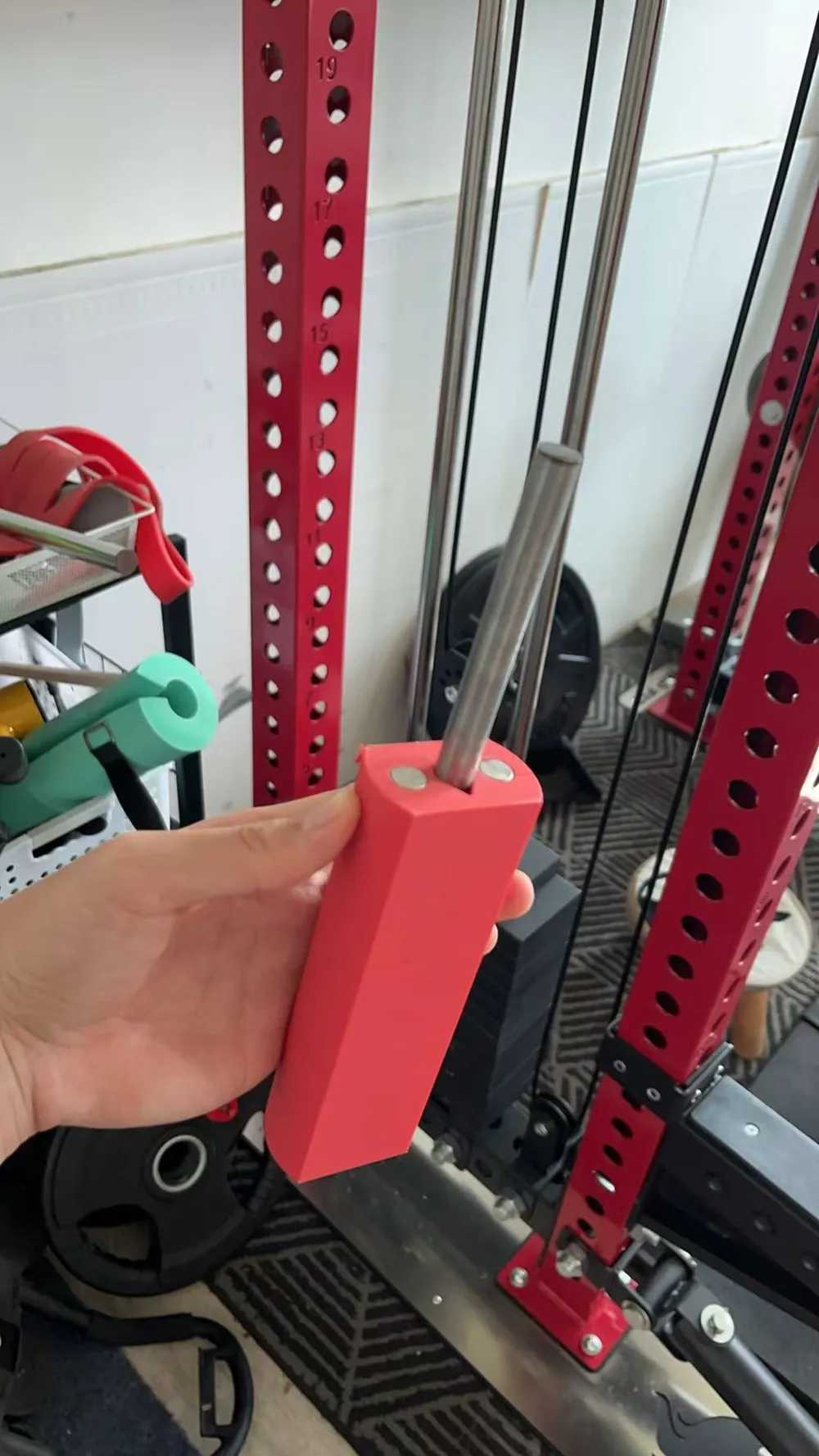

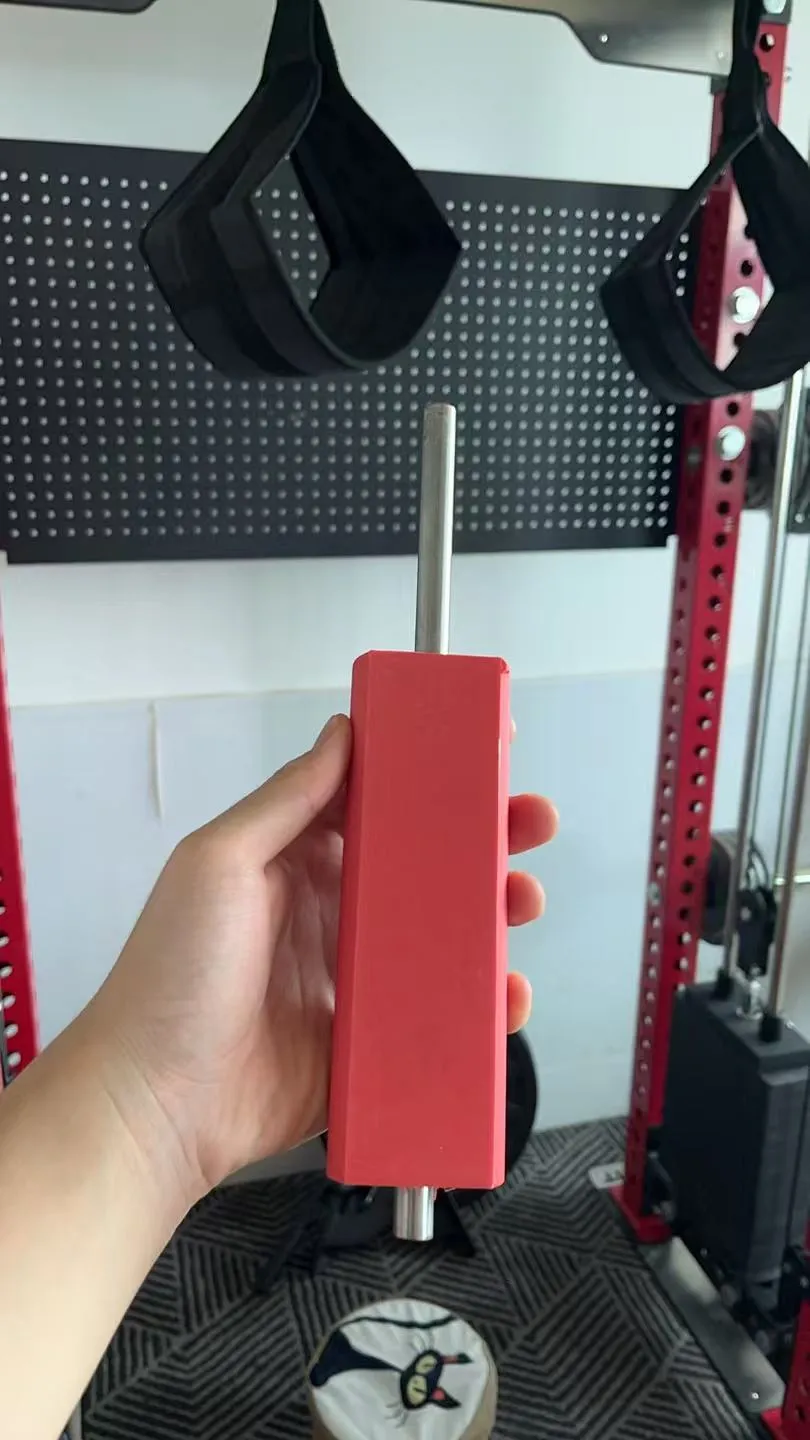

This model requires an 11mm diameter, 25cm long stainless steel rod (costs 2.5r)
It can be paired with two 10mm diameter magnets, but it's not essential
