Pliers Holder Honeycomb Wall HSW

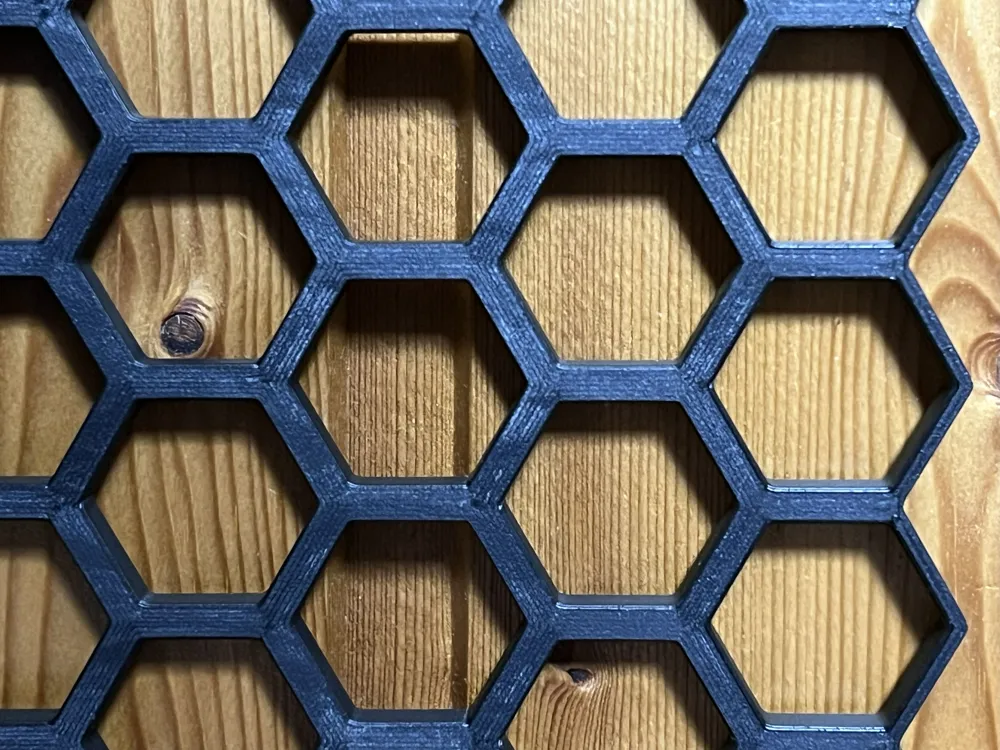

Pliers Holder for an HSW Honeycombwall Pegboard

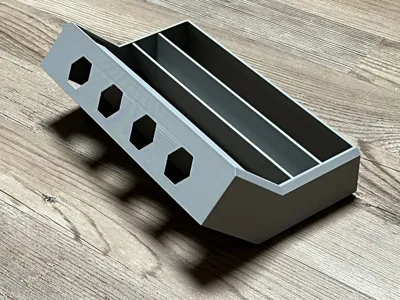

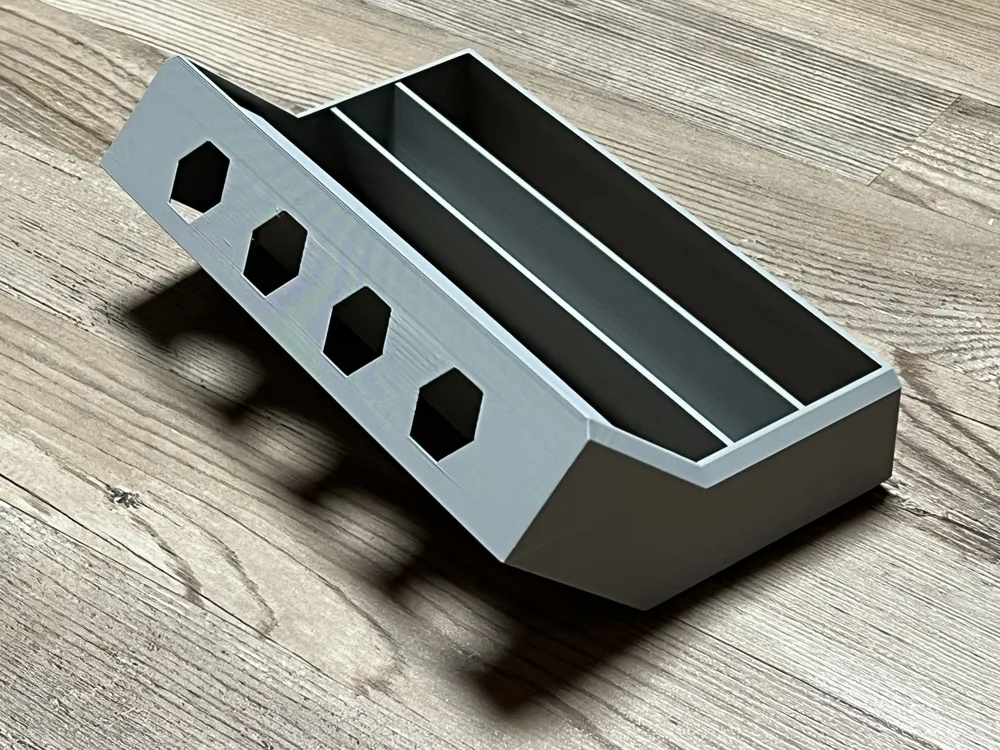

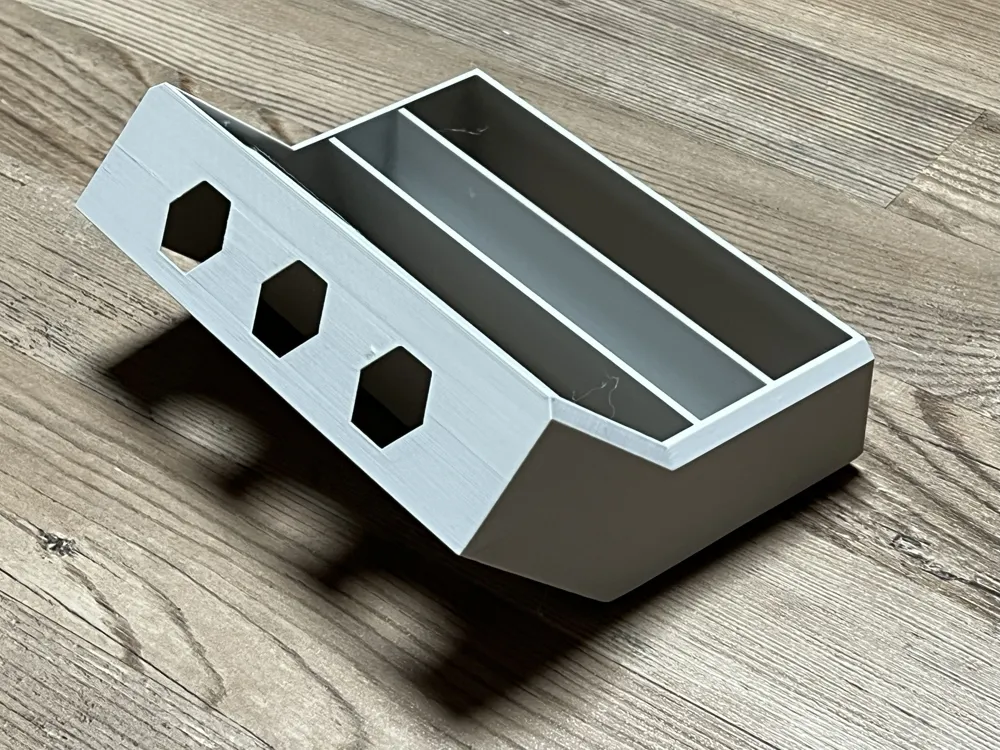

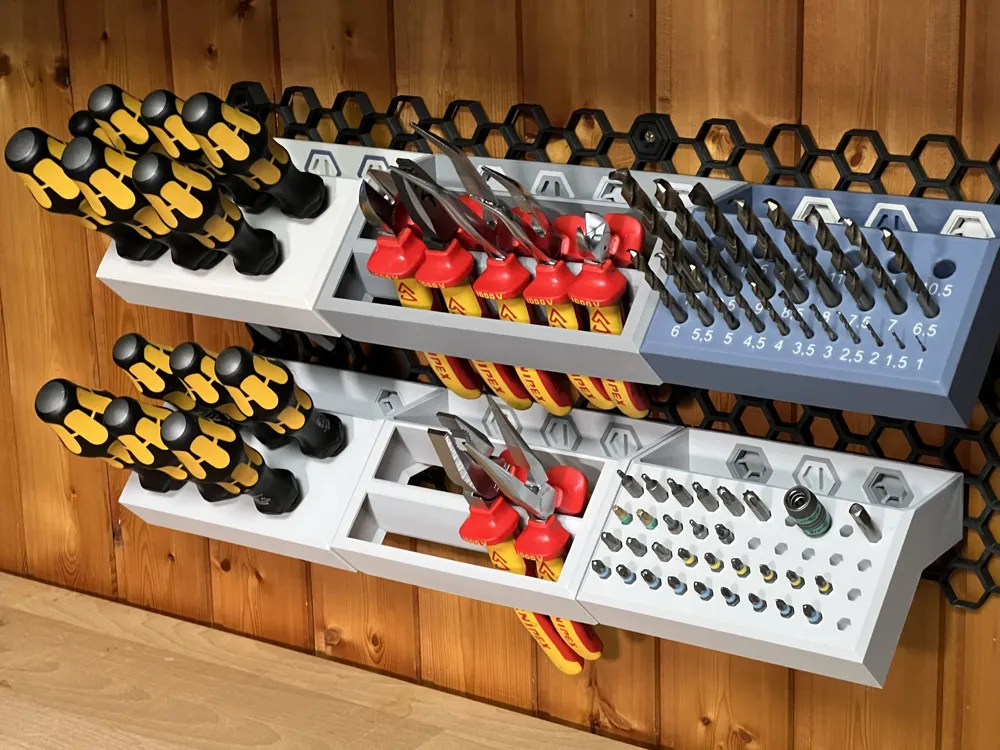

There are two different holders, one version is for small electronics pliers (115 or 125mm) and one version for medium-sized electrician pliers such as side cutters or combination pliers with a length of approx 140mm or more. One holder accommodates a varying number of pliers, depending on how large or wide the pliers are; for these pliers, there is also a slightly larger L-variant. The holders certainly also work with pliers from other manufacturers, but I have only tested it with Knipex pliers

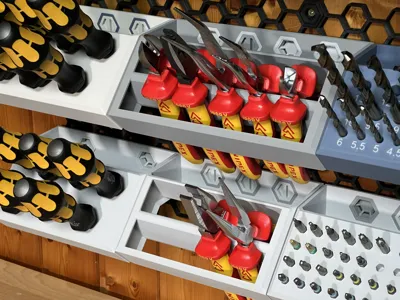

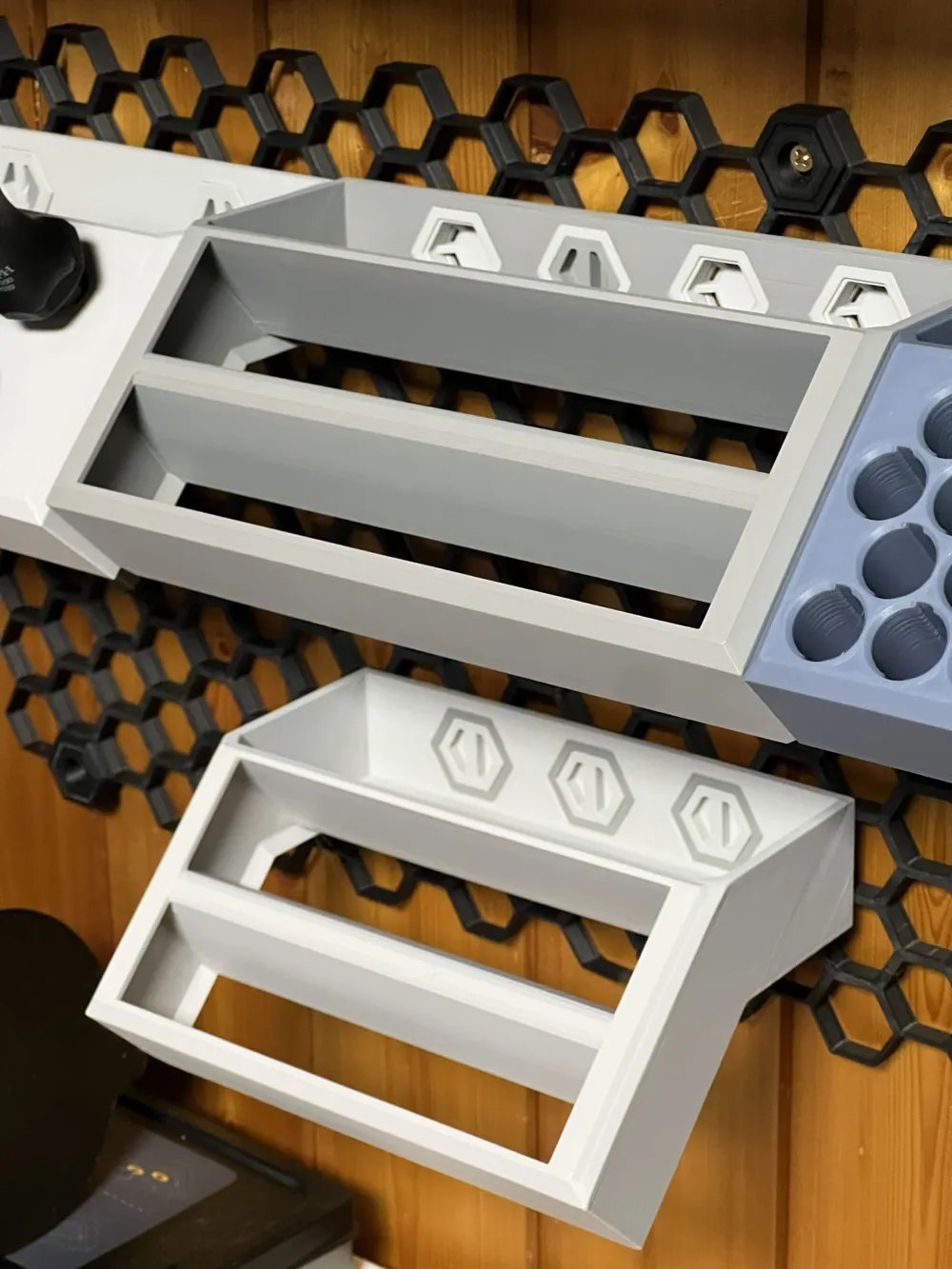

Any number of holders can be arranged directly next to each other or with some distance above each other

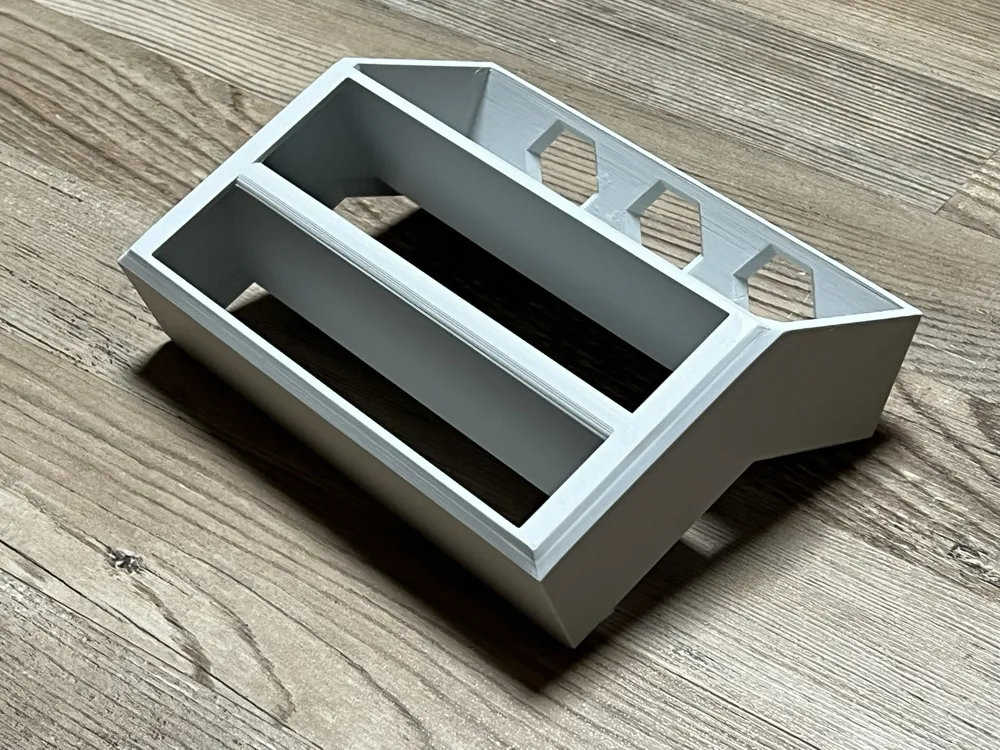

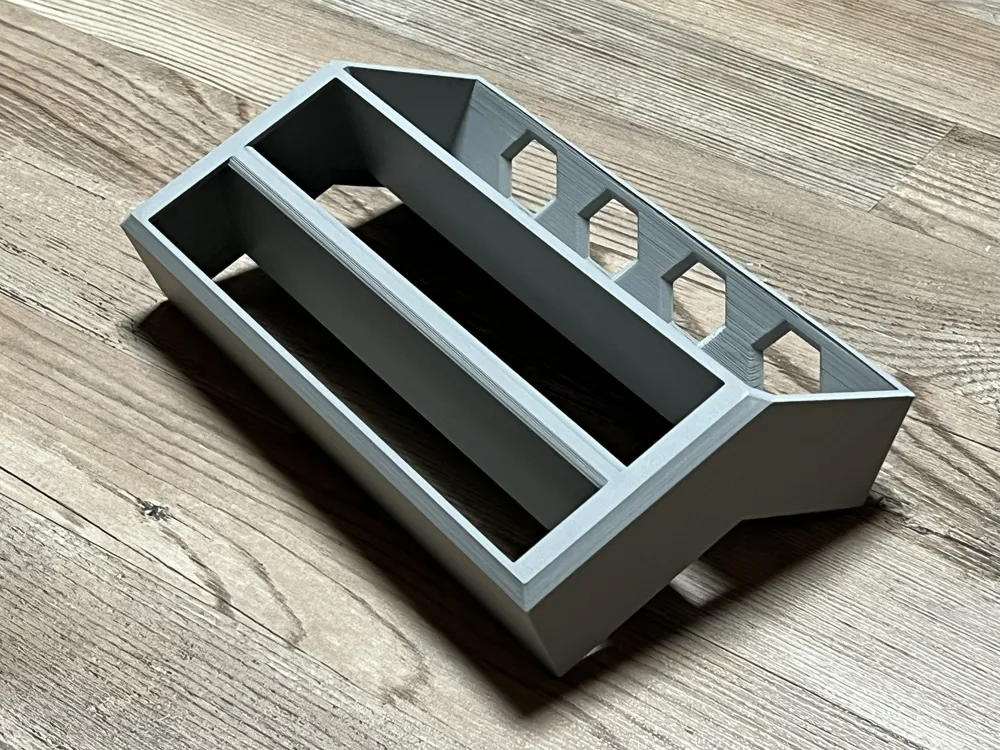

For easy removal and to optimize space on the pegboard, the receptacles are arranged at a 45-degree angle. Additionally, there is a small storage compartment at the back of the holder to utilize the necessary clearance meaningfully

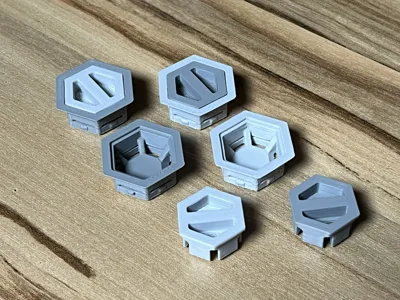

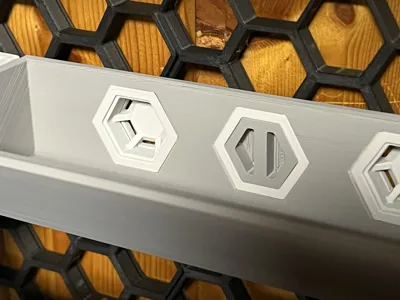

To securely hold the weight that occurs when fully loaded, I designed a retaining clip that has a locking mechanism. The clip is two-part; the first part of the clip holds the holder to the honeycomb wall, the second part of the clip (Key) secures the retaining clip against unintentional slipping out

The model can be printed with different materials, minimal support is necessary

Due to the geometry of the model, it may tend to warp slightly at the beginning of the print, so good bed adhesion must be ensured. A 5mm brim is already provided, an increase in bed temperature by 5-10 degrees can also be helpful

Also check out my other holders for the Honeycombwall:

Screwdriver Holder Honeycomb Wall HSW

Screwdriver Bit Holder Honeycomb Wall HSW

Drill Bit Holder Honeycomb Wall HSW

More holders for the Honeycombwall will follow

You don't have a Honeycombwall but a pegboard from Küpper, Ikea, or Element System

I have also created suitable holders for that

Happy Printing
