Bill of Materials
- Screw (4.5mm) x 2: Per Bracket
- Wall Plug x 2: Per Bracket
Description

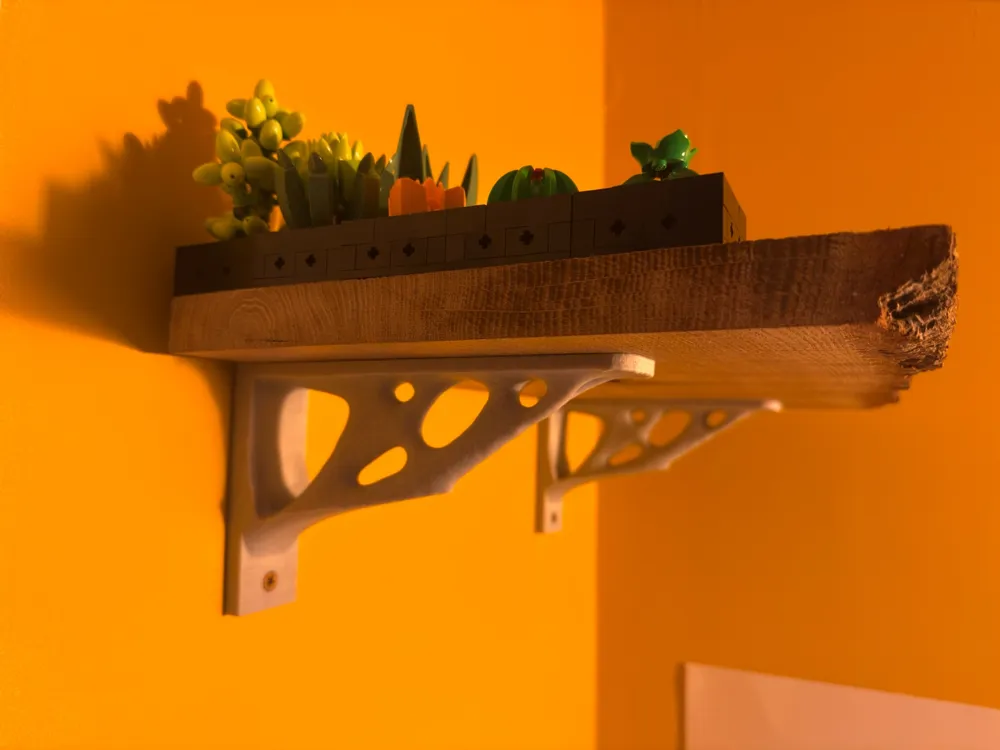

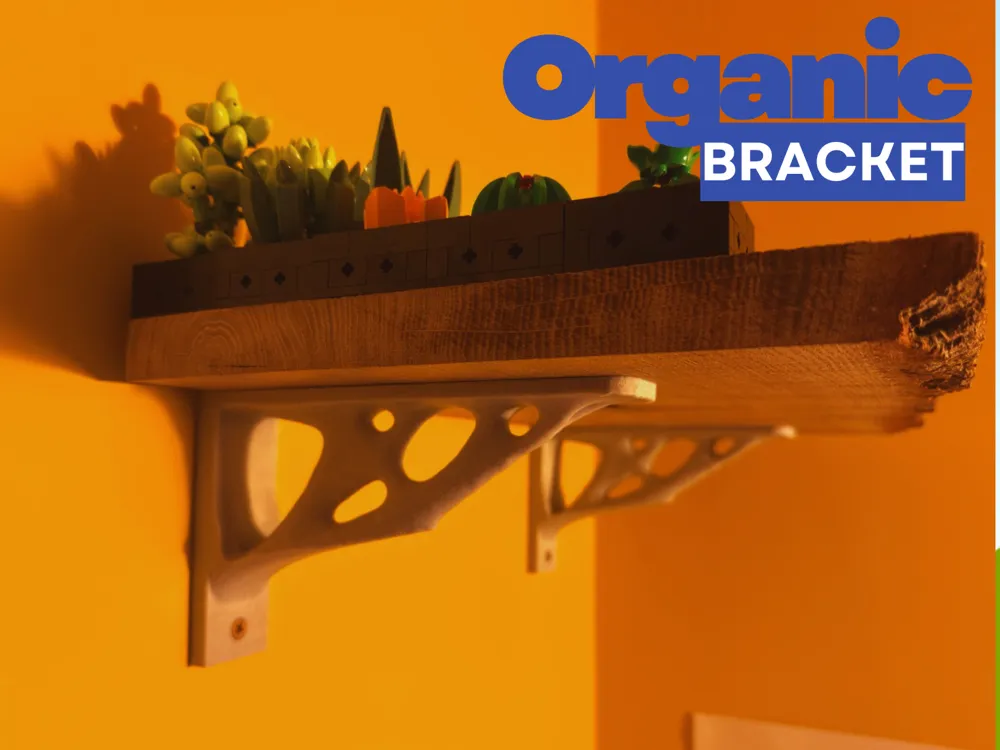

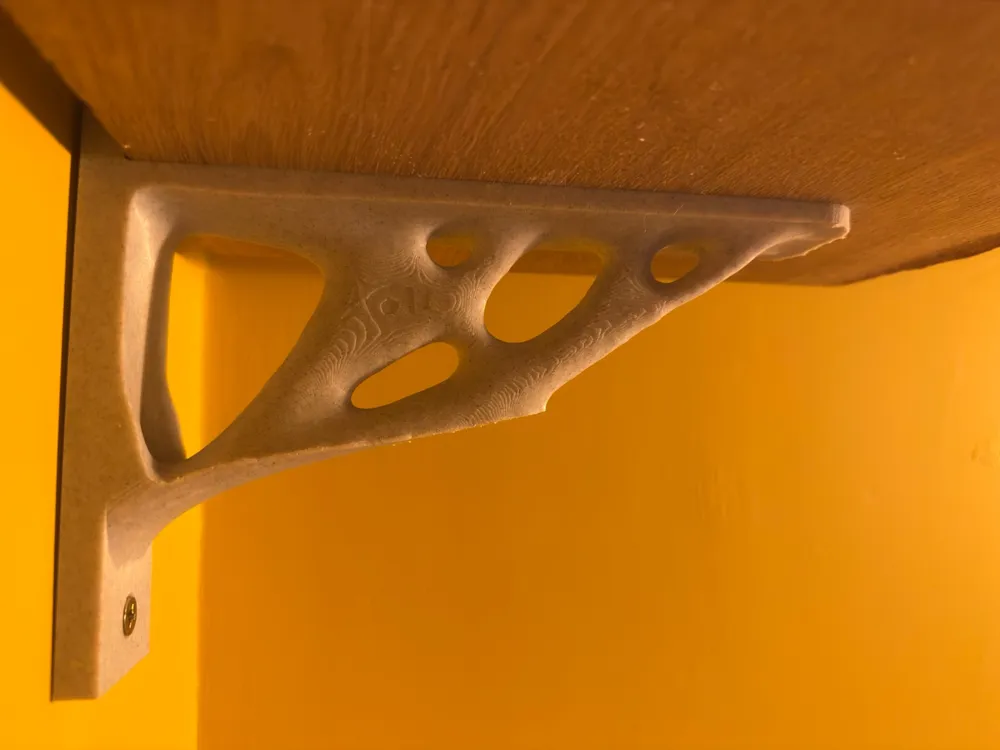

This 3D-printed shelf bracket was designed using topology optimization - the same process used in aerospace and F1 to remove material everywhere except where force actually travels.
That means:
- ✅ High strength with less filament
- ✅ Lightweight but load-bearing
- ✅ Looks like a sculpted “bone” structure, but it’s fully engineered
🖨 Print Settings (Recommended)
| Setting | Value |
|---|---|
| Walls | 4 walls |
| Infill | 20–30% Gyroid or Cubic |
| Layer height | 0.2mm (0.16mm for smoother finish) |
| Screws | 4.5 mm standard wood screws into wall plugs (there is some leeway) |
🔧 Mounting Notes
- Designed for standard wall plugs + screw heads
- Flat surface means it's compatible with wood, laminate, IKEA, etc.
💬 FAQ
Q: How much weight can it hold?

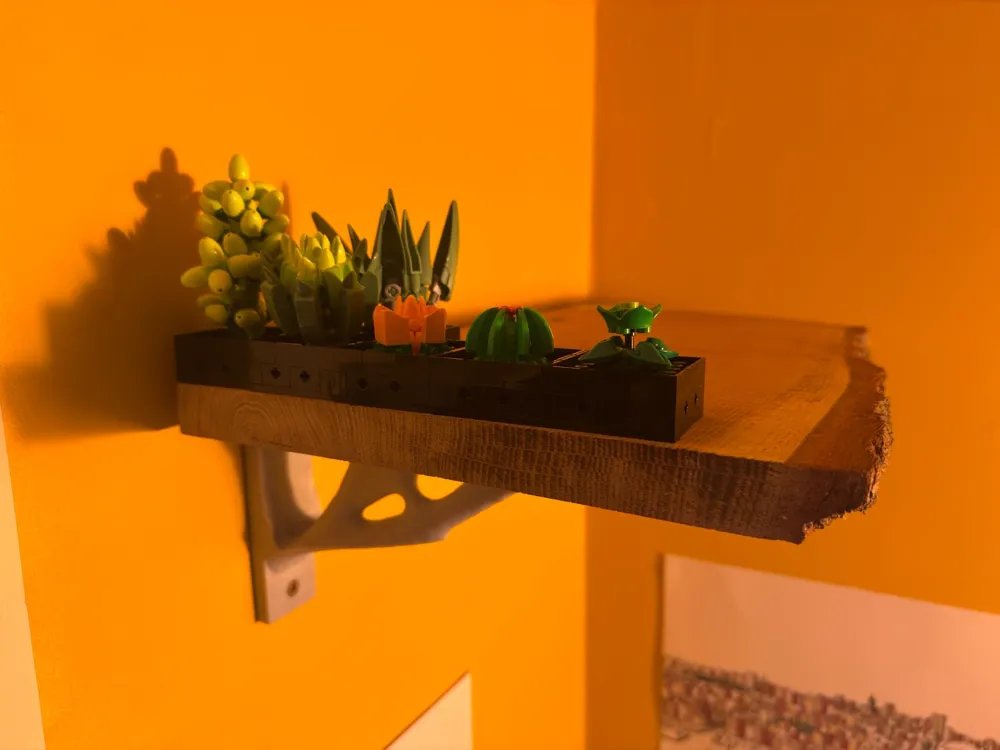

A: Printed in PLA+ with 4 walls and 25% infill, mine supports a solid wood shelf + objects (10kg). Doesn't seem close to its limit.
Q: Can I scale it?
A: Yes, although this will affect screw fit.
