P1/X1 Filter Box [Magnetic]

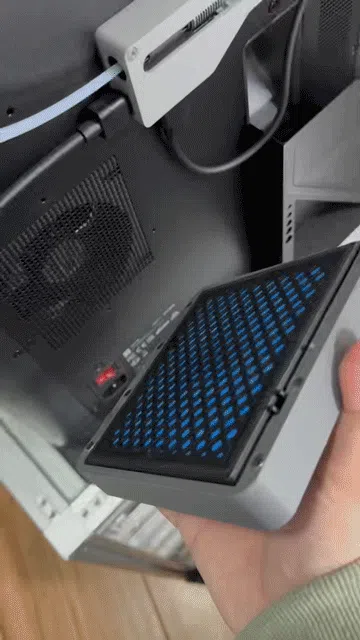

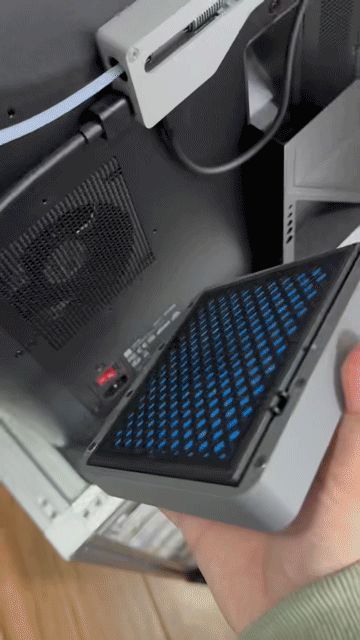

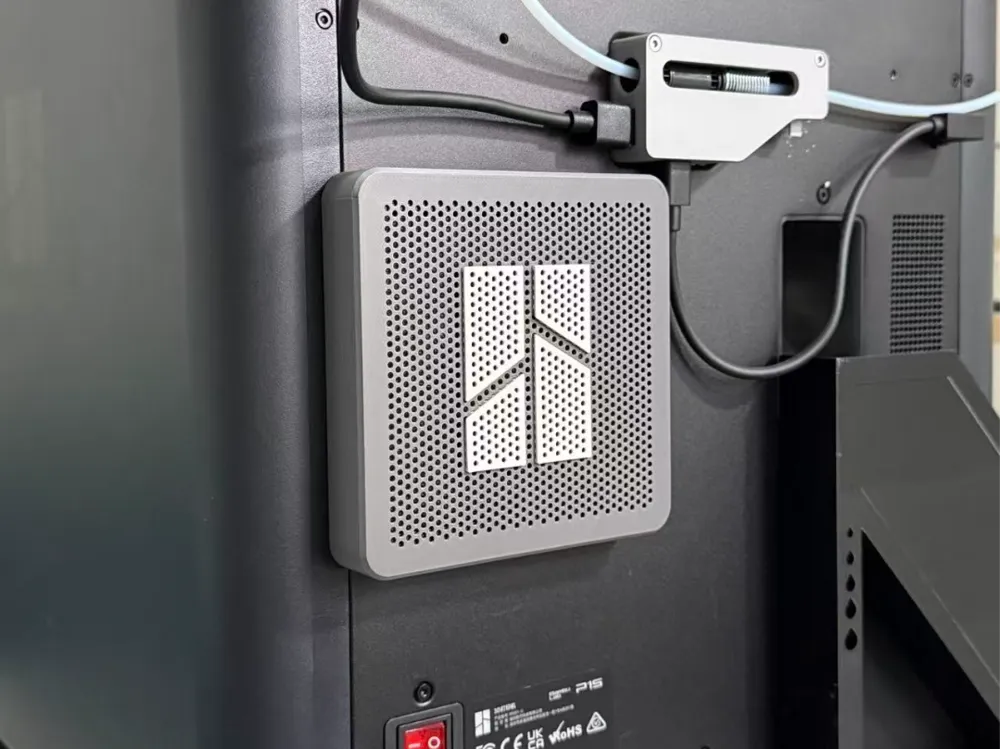

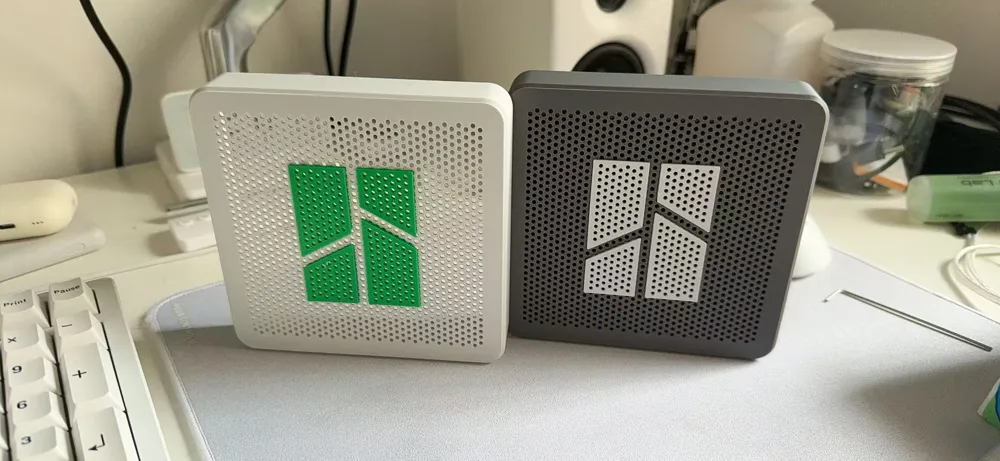

P1/X1 Filter Box, uses off-the-shelf HEPA filter cartridges, magnetically attaches to the rear exhaust port of the enclosure

• [In the main image, the blue side of the filter was incorrectly facing the machine; the model has been updated with the gray side facing inwards]



• The original activated carbon filter has poor airflow and needs to be removed (The built-in activated carbon can be seen by opening the cover next to the poop chute inside the enclosure)

  (It is essential to remove the original activated carbon filter, otherwise it will obstruct the airflow and negatively impact the filtering effect!!!!!!!!!!)

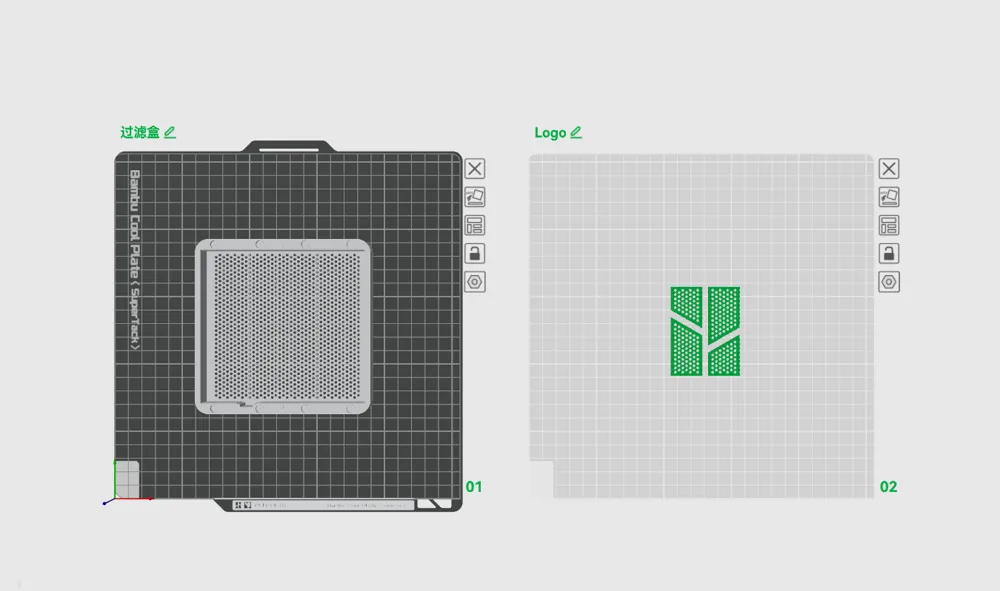

• The logo is detachable, and it is printed as a separate part (When printing the logo on plate 2, it is recommended to apply glue to prevent failure)

• Logo installation tip: place the logo flat on the table, then press the filter box against it with its back facing down to install



• If using N52 strong magnets, super glue is recommended for fixation



• It is recommended to replace the filter cartridge every three to four months. Gaps in the enclosure door can also leak particles; you can print TPU seals to block the gaps

• Bill of Materials:

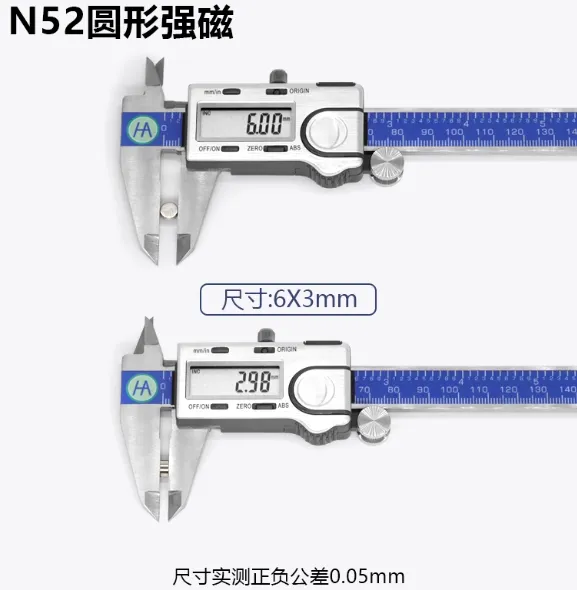

• Magnet specifications: 6mm diameter, 3mm thick cylindrical magnets * 8 pieces





• Magnet (AliExpress) link:https://www.aliexpress.com/item/1005010158237241.html?spm=a2g0o.detail.pcDetailTopMoreOtherSeller.4.1729NvKONvKO85&gps-id=pcDetailTopMoreOtherSeller&scm=1007.40050.354490.0&scm_id=1007.40050.354490.0&scm-url=1007.40050.354490.0&pvid=a894c623-9776-4727-bc95-5a3255cdb5f2&_t=gps-id%3ApcDetailTopMoreOtherSeller%2Cscm-url%3A1007.40050.354490.0%2Cpvid%3Aa894c623-9776-4727-bc95-5a3255cdb5f2%2Ctpp_buckets%3A668%232846%238114%231999&isseo=y&pdp_ext_f=%7B%22order%22%3A%224944%22%2C%22eval%22%3A%221%22%2C%22sceneId%22%3A%2230050%22%2C%22fromPage%22%3A%22recommend%22%7D&pdp_npi=6%40dis%21USD%215.95%210.99%21%21%2141.12%216.81%21%400b5dcc3017694106555815207ef846%2112000051386333425%21rec%21US%216435739057%21ABXZ%211%210%21n_tag%3A-29910%3Bd%3Abd62a635%3Bm03_new_user%3A-29895%3BpisId%3A5000000197847450&utparam-url=scene%3ApcDetailTopMoreOtherSeller%7Cquery_from%3A%7Cx_object_id%3A1005010158237241%7C_p_origin_prod%3A&gatewayAdapt=4itemAdapt



• HEPA filter cartridge (AliExpress) link:https://www.aliexpress.com/item/1005002259737790.html?spm=a2g0o.productlist.main.1.4c9fJb4FJb4FHh&algo_pvid=5119a165-7df7-4993-b5a1-01be2612c843&algo_exp_id=5119a165-7df7-4993-b5a1-01be2612c843-0&pdp_ext_f=%7B%22order%22%3A%228%22%2C%22eval%22%3A%221%22%2C%22fromPage%22%3A%22search%22%7D&pdp_npi=6%40dis%21USD%216.66%212.66%21%21%216.66%212.66%21%400b1ffcad17694099968261267e83b2%2112000019732335594%21sea%21US%216435739057%21ABX%211%210%21n_tag%3A-29910%3Bd%3Abd62a635%3Bm03_new_user%3A-29895%3BpisId%3A5000000197847450&curPageLogUid=abdkKL5DiVYn&utparam-url=scene%3Asearch%7Cquery_from%3A%7Cx_object_id%3A1005002259737790%7C_p_origin_prod%3A&gatewayAdapt=4itemAdapt

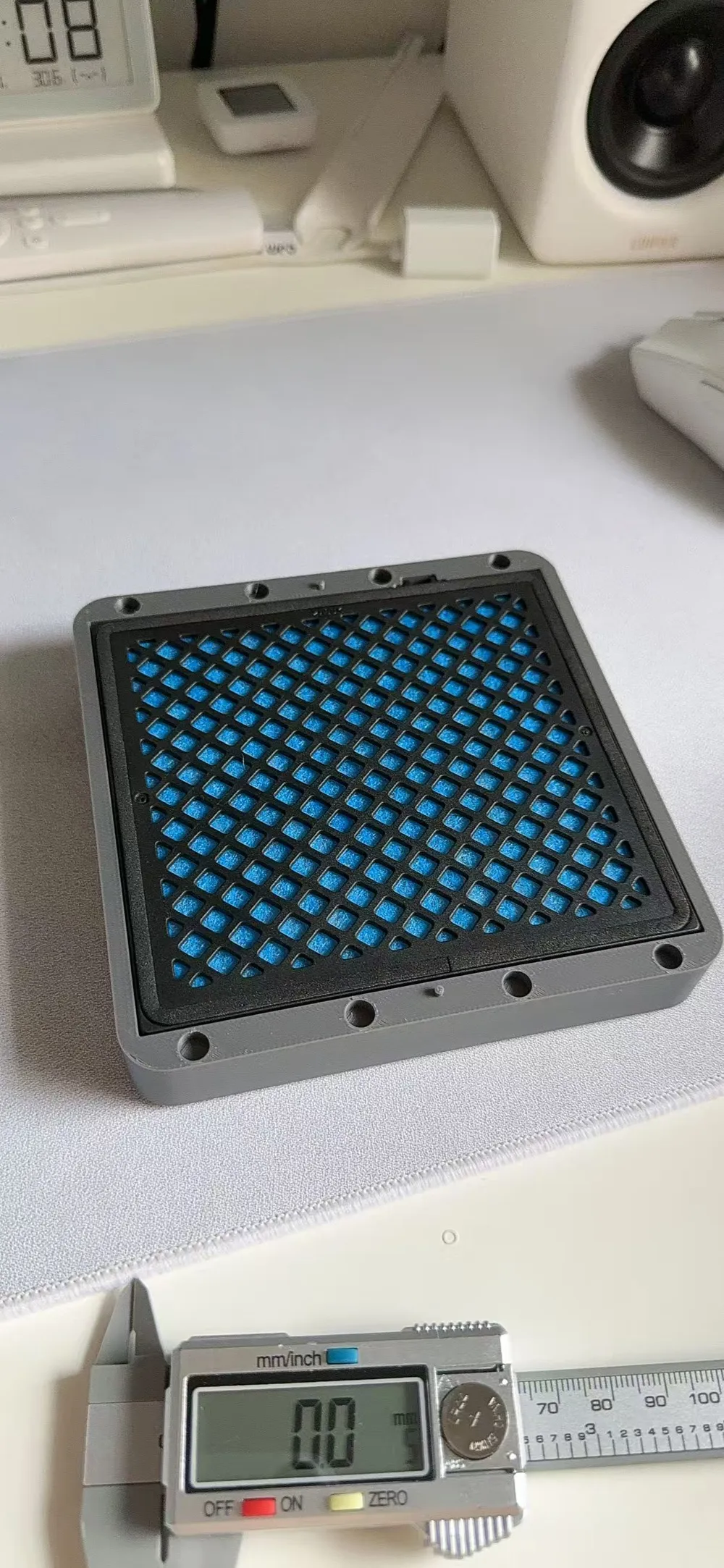

• Filter cartridge dimensions: 110mm length * 119mm width * 20mm thickness

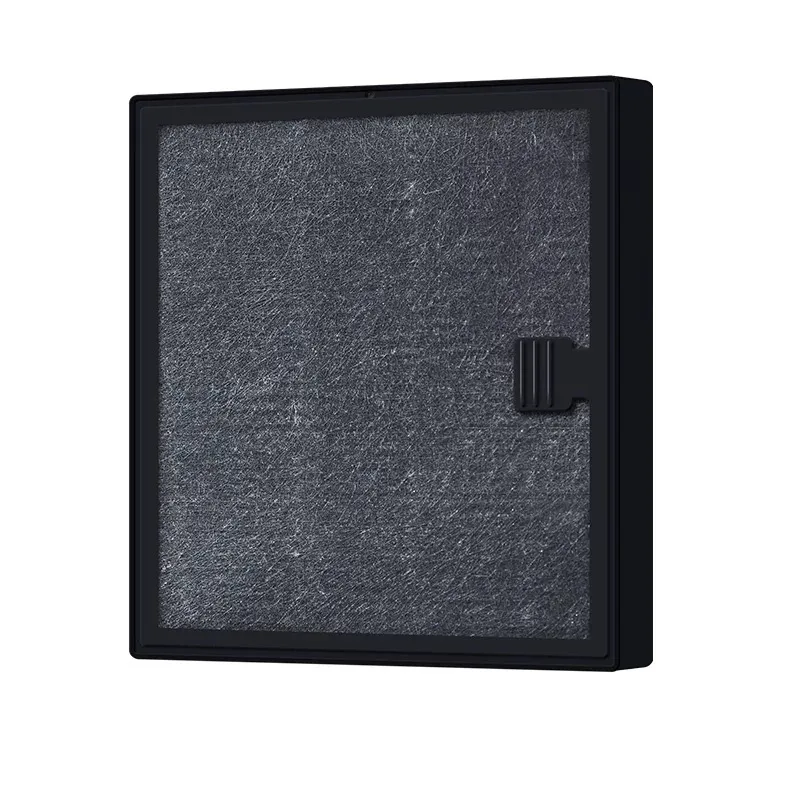

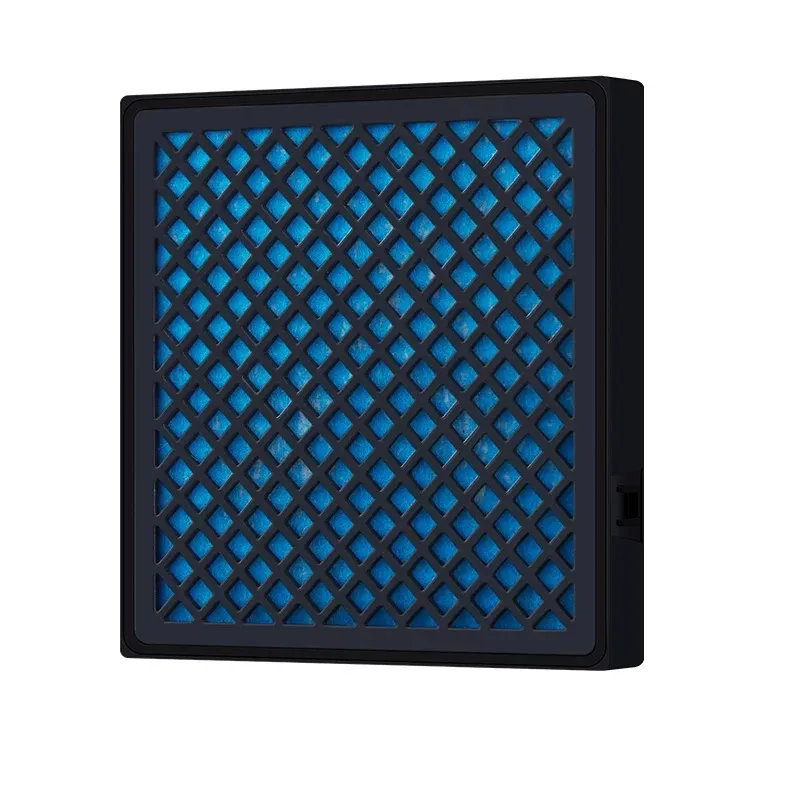

  Material: UP titanium (blue) + fiber layer + coconut shell activated carbon + HEPA + carbon cloth (gray)

• Model updated on 2025/11/20: Filter cartridge direction adjusted; the gray carbon cloth facing inwards towards the machine is the correct orientation
