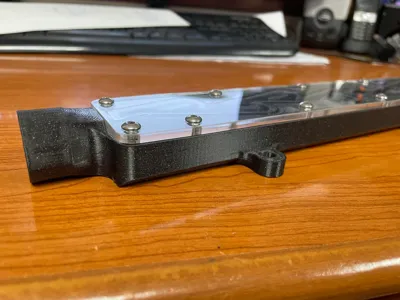

This is a Tesla valve I made for a Fluid Mechanics CFD project.
Laser cut top covers in clear PC or PMMA.
Needs 15x M3x30 screws, 15x M3 nuts and 30x nylon/tpu washers.
Print main body in PETG, 5 walls, and glue it with 2 component glue (or single part print on a bigger printer).
Print gaskets in 85-90a TPU.
