Slydr, the magnetic slider fidget NO GLUE NO PAUSE

GIF
GIF

Print Profile(3)

All
P2S
H2S
P1P
H2C
H2D Pro
A1
X1
A1 mini
X1E
X1 Carbon
P1S
H2D
X2D
A2L

D6x2mm magnets, 0.2mm layer, 2 walls, 15% infill
D6x2mm magnets, 0.2mm layer, 2 walls, 15% infill
Designer
55 min
2 plates
5.0(1)

D6x6mm magnets, 0.24mm layer, 2 walls, 15% infill
D6x6mm magnets, 0.24mm layer, 2 walls, 15% infill
Designer
52 min
2 plates

No lid (with pause on layer 34)
No lid (with pause on layer 34)
Designer
42 min
1 plate

Open in Bambu Studio
Boost
24
66
4
1
29
15
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
D6x2 mm Round Magnet (20PCS) - CA004
Bambu Filaments
Select all
Orange (10300) / Refill / 1kg
Indigo Purple (10701) / Refill / 1kg

Description

  • No more inserting pauses to insert magnets → it uses a pressure-fit lid
  • No more figuring out which glue to use → magnets are pressure-fitted
  • No more wasting magnets on failed prints → just lift the lid with a knife and recover them
  • No more gambling on the polarity of the magnets → if you get it wrong, you can redo it over and over

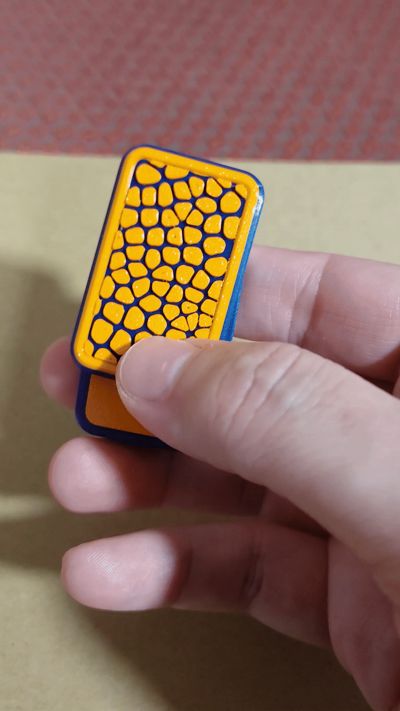

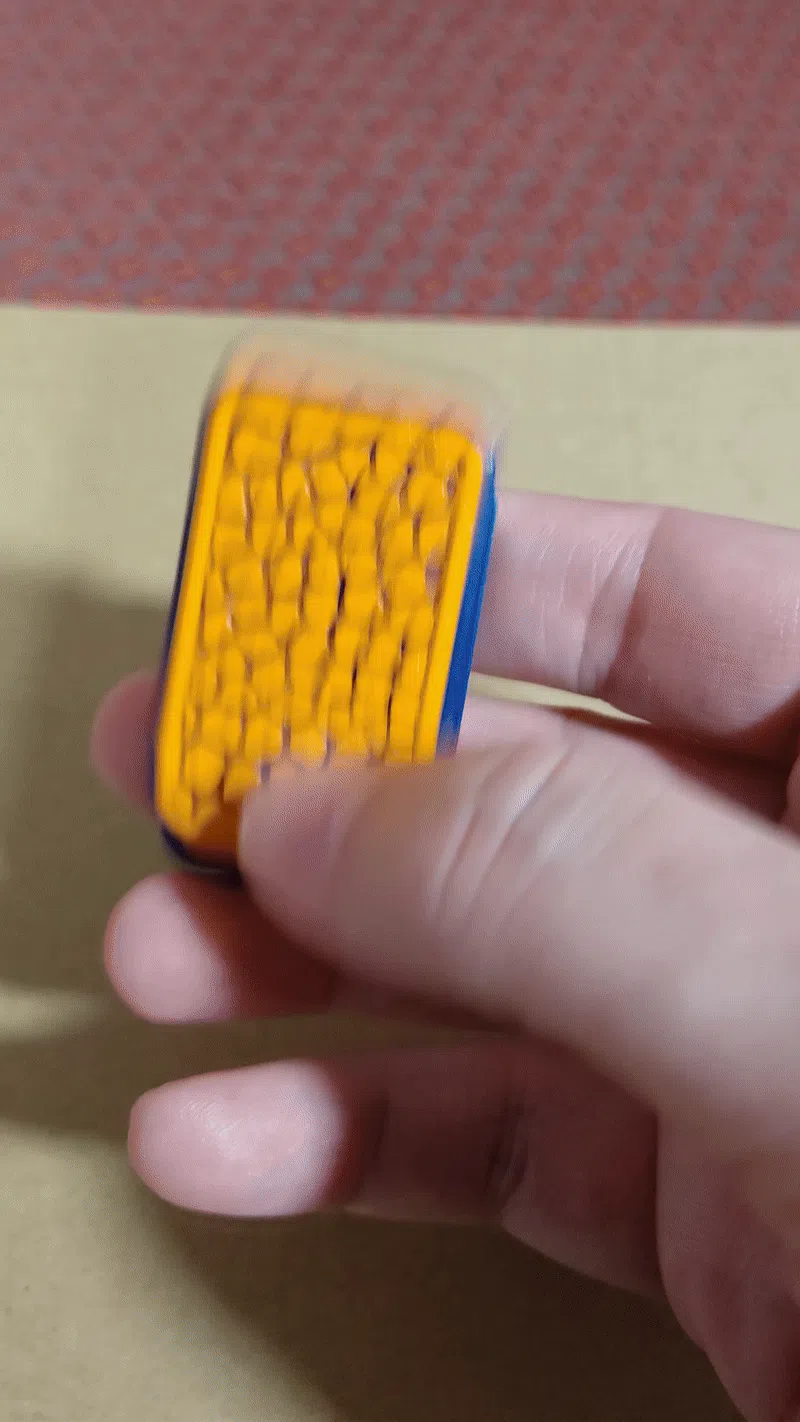

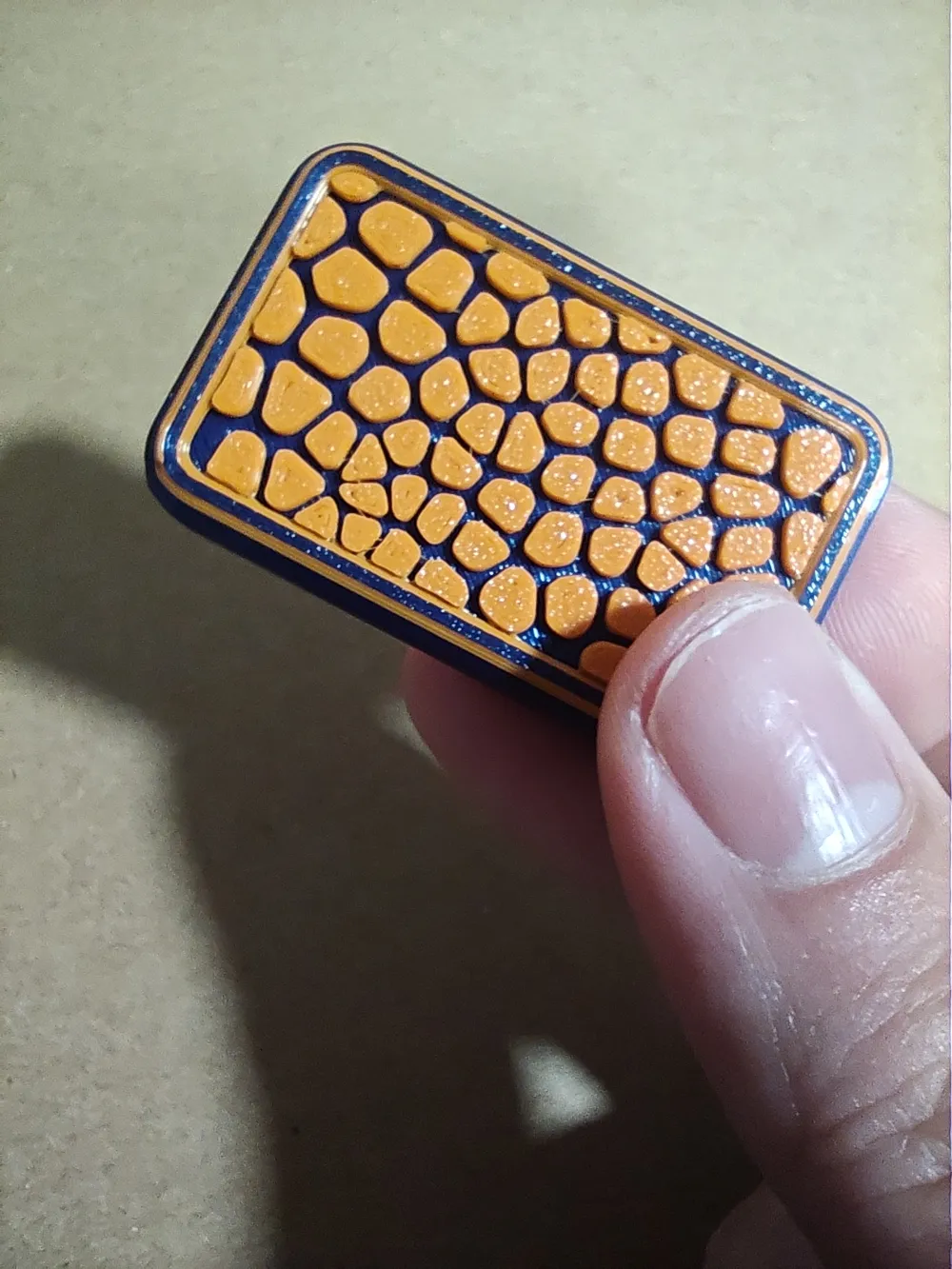

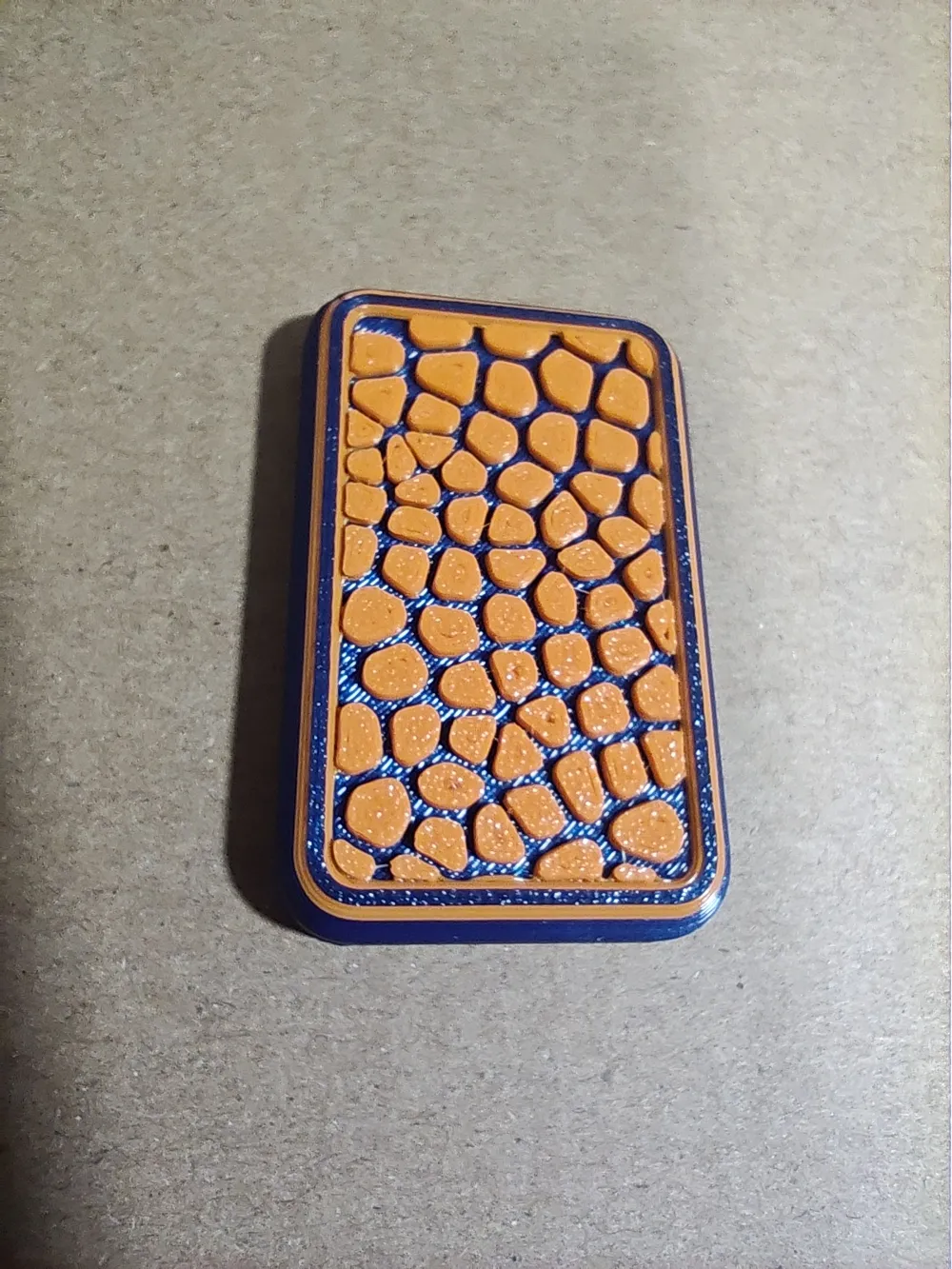

This is the first iteration of Slydr, a magnetic slider fidget toy. I expect to keep improving the design, have multiple versions for more powerful magnets and giving it different cool looks. If you have suggestions leave me a message in the comments!



Yes! I would love to see your prints! Please share your pictures.



  1. Instructions:

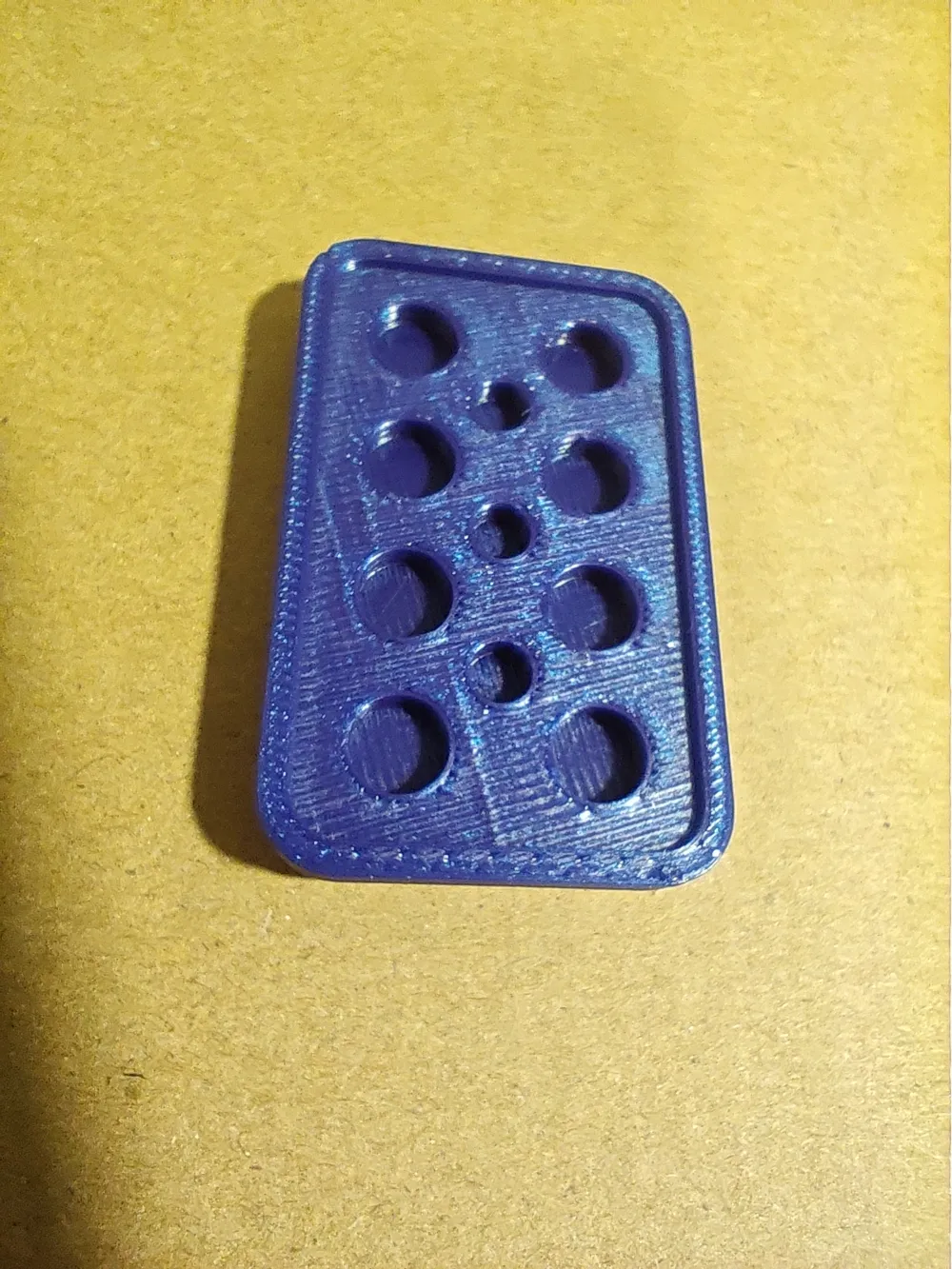

    Print 2x bases and 2x lids in your favourite colours (AMS or insert pause for single colour printers)

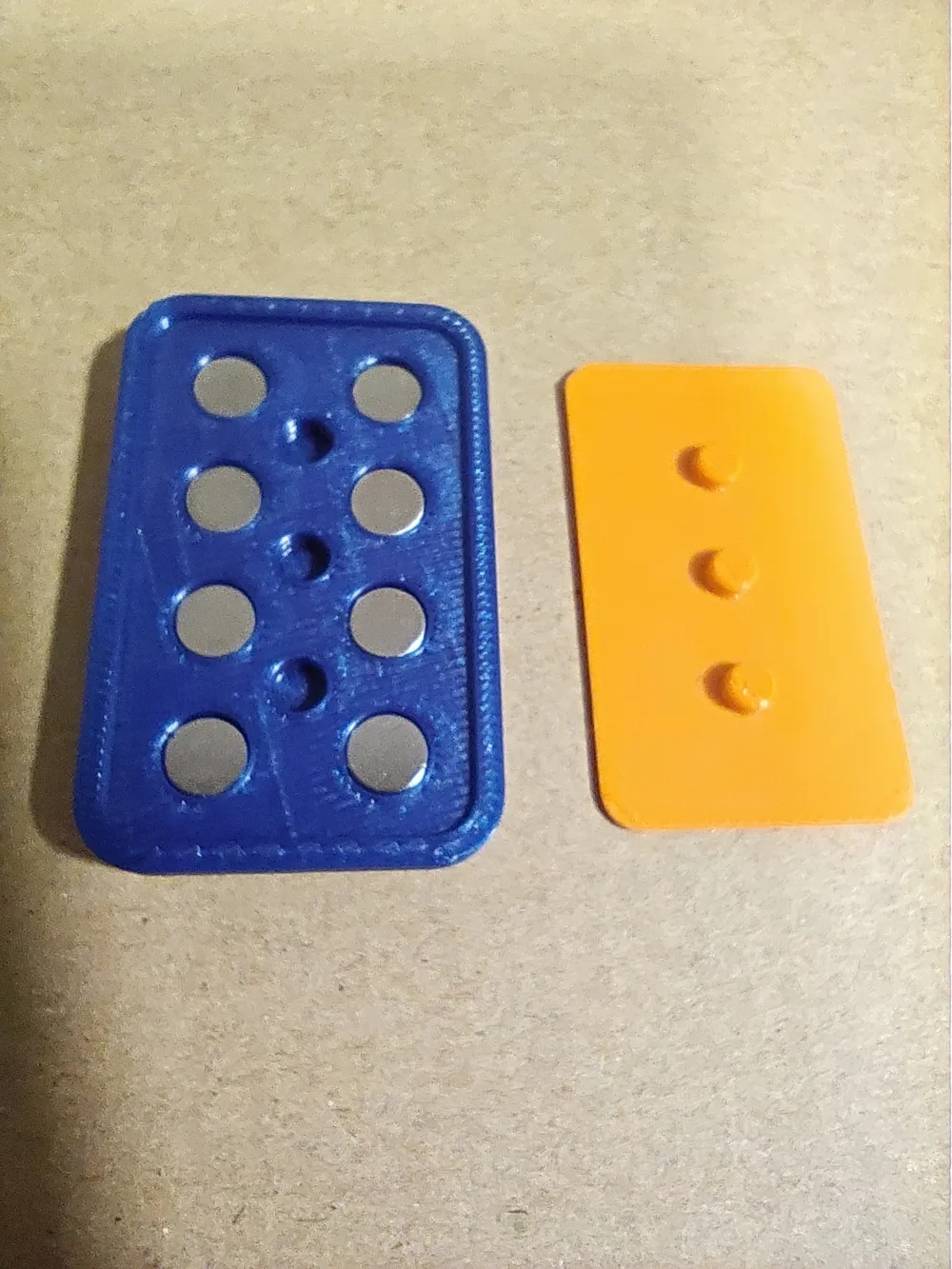

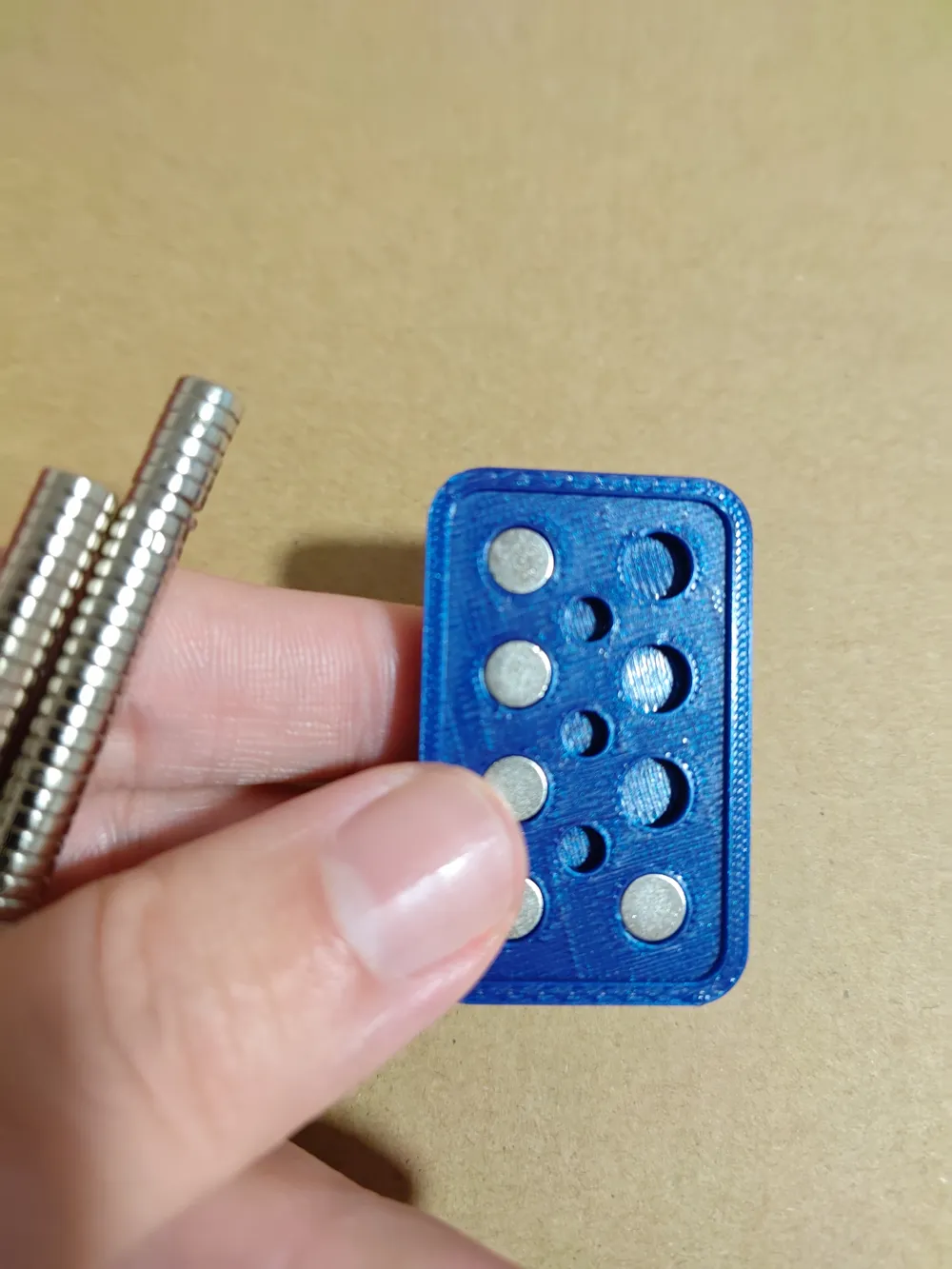

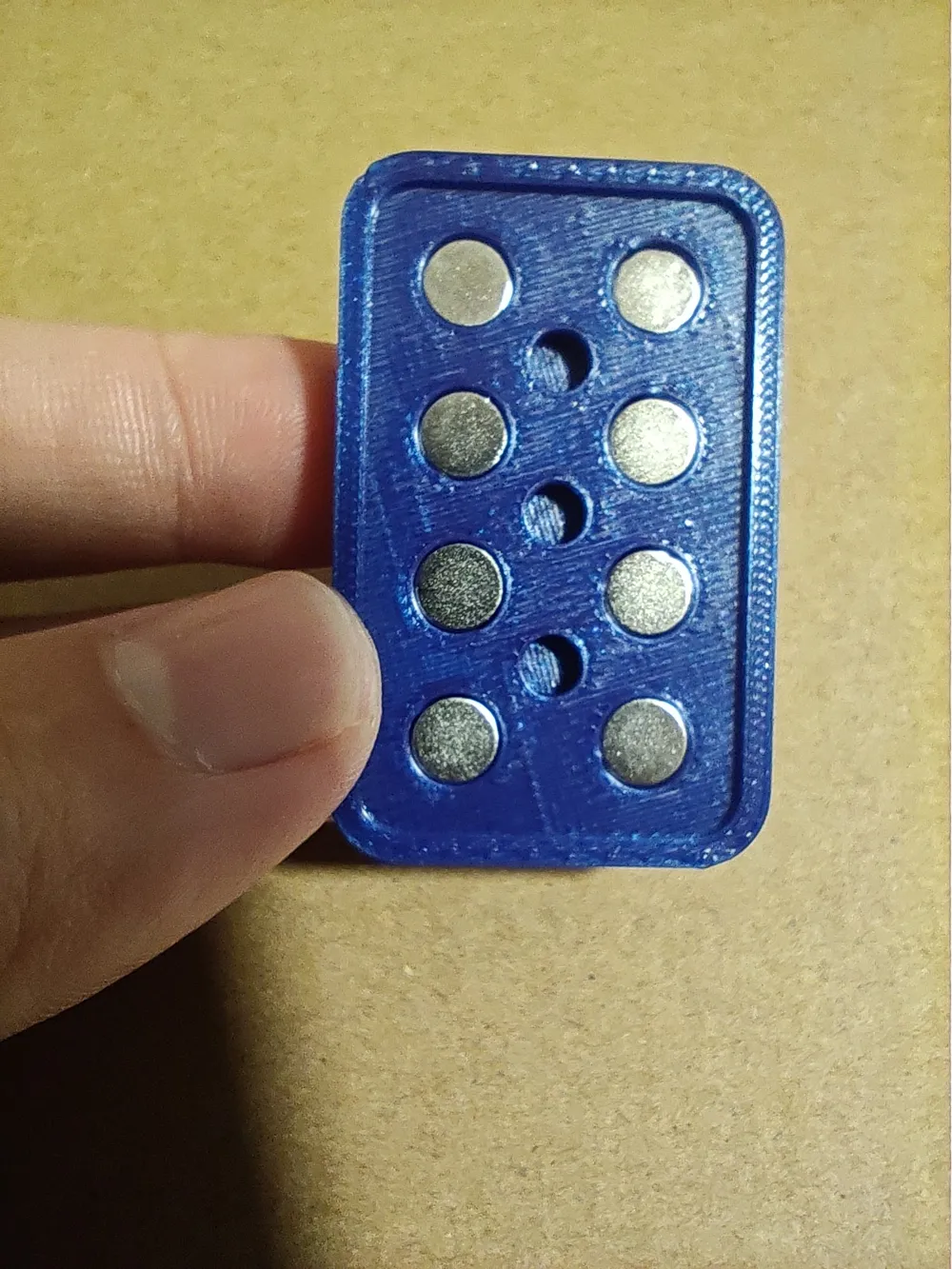

  2. Insert the magnets with the same polarity (let's say North) facing outwards (up) on the first base

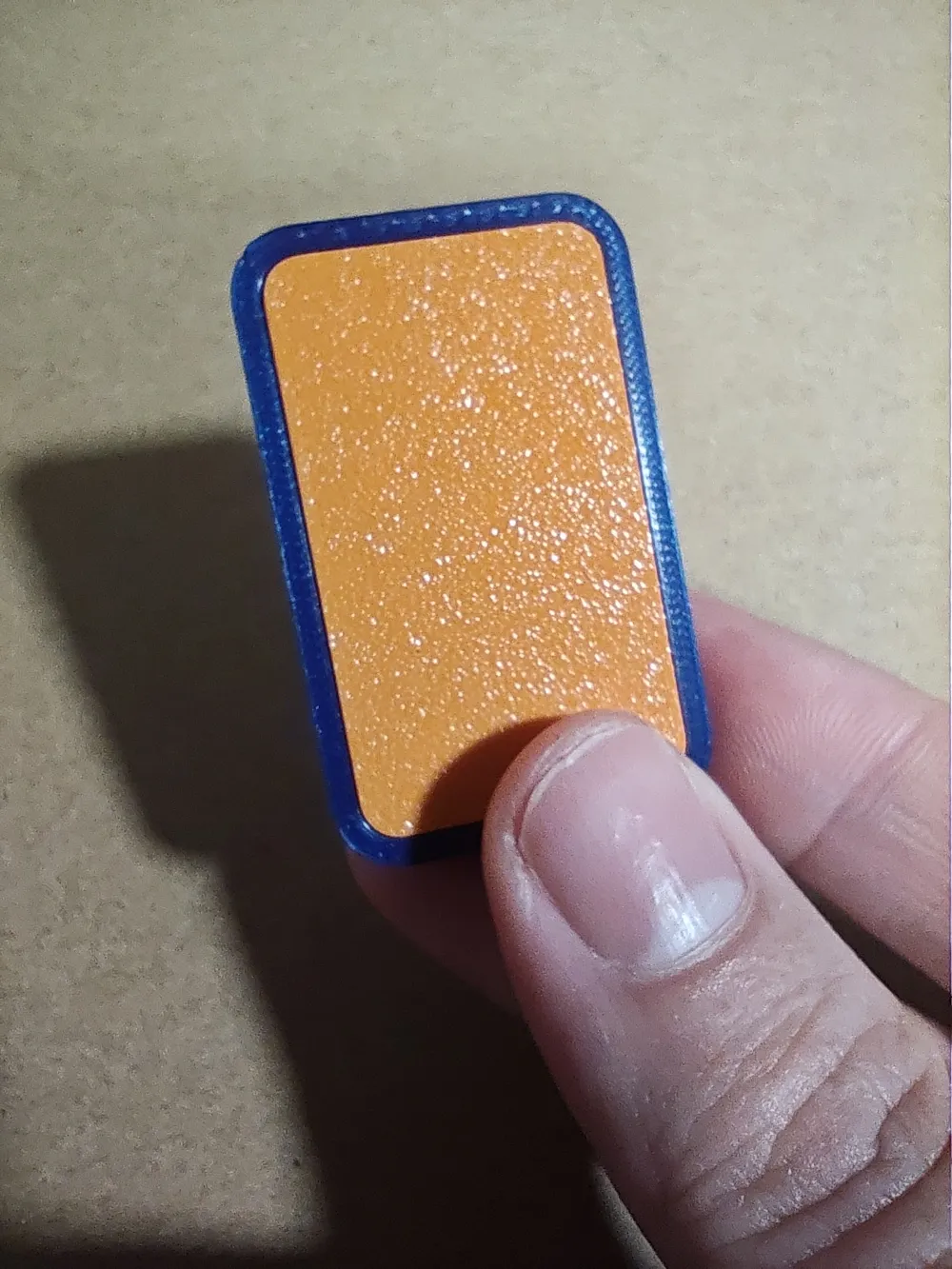

  3. Insert the lid. It should fit perfectly with a nice clicky sound

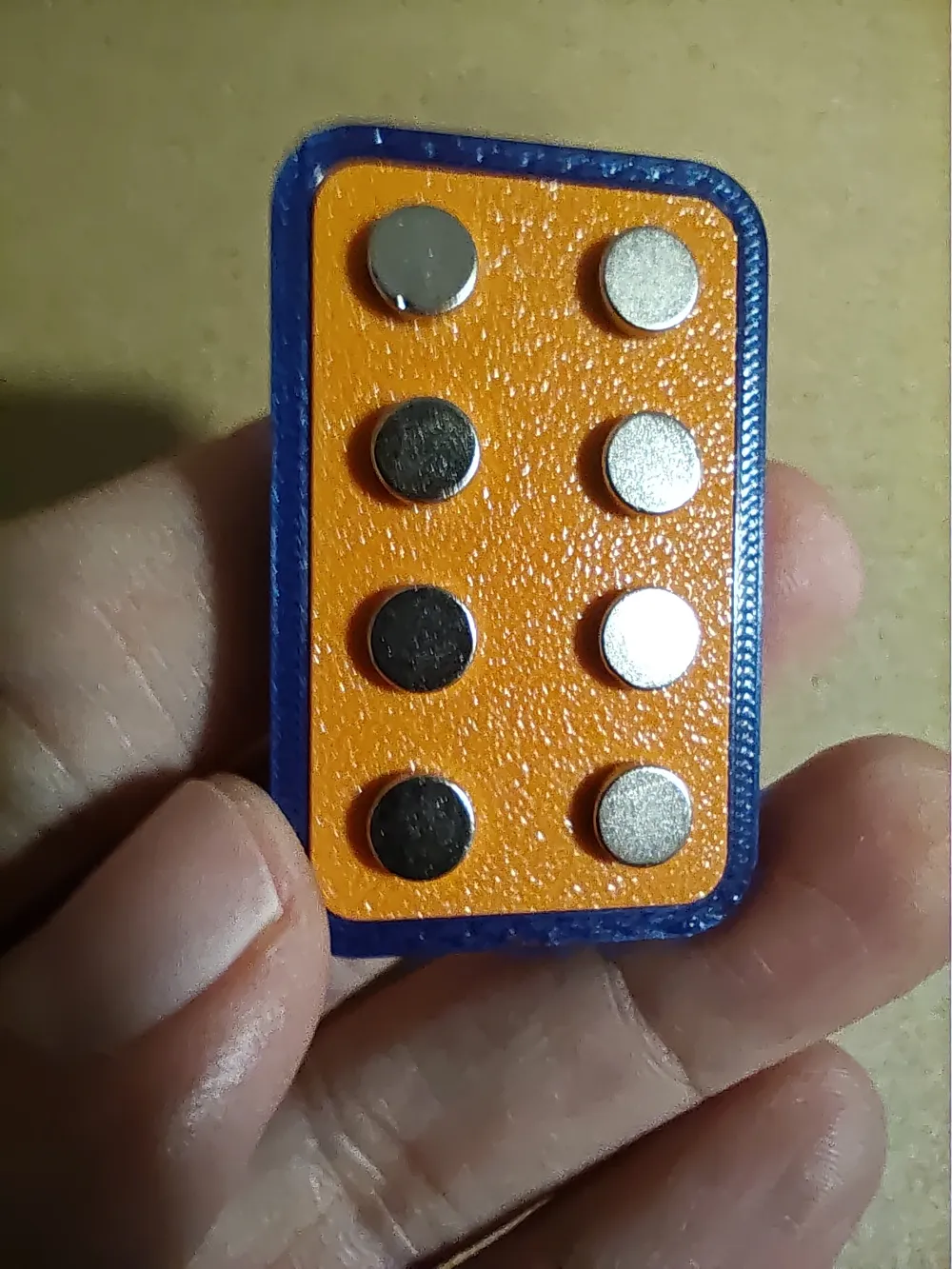

  4. Spread some magnets on top of the first finished Slydr to get the polarity correct
  5. Insert those magnets (now South polarity facing up) on the second Slydr base (the face of the magnet that was stuck to the first slydr should face upwards when fitting them)
  6. Insert the lid and click it in place
  7. Play with your new Slydr!

It is ugly to beg, but if you enjoyed this project, please consider boosting me or sending me a message. The more encouragement I get, the more new models (different sizes, shapes, magnets) I will release.
