Description:

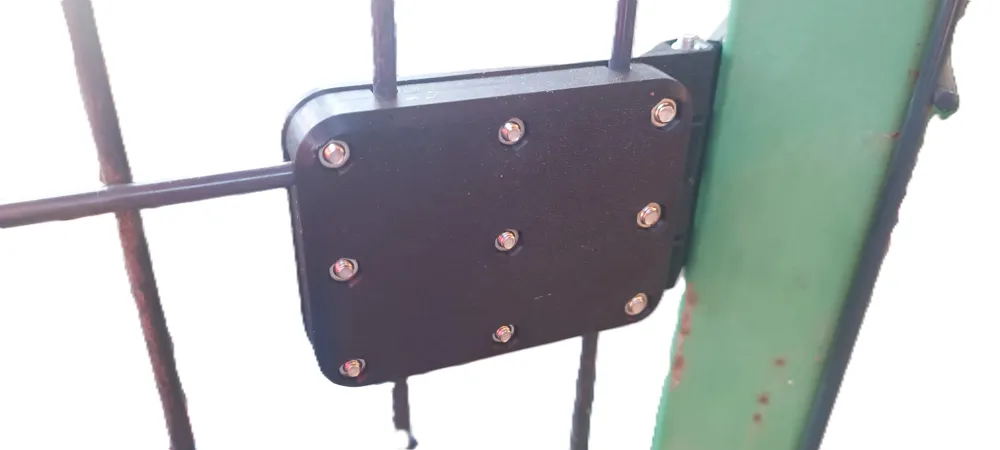

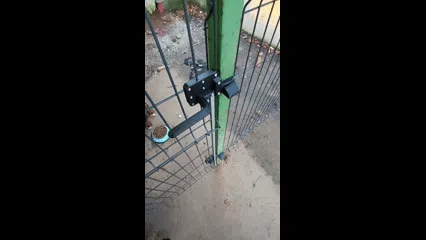

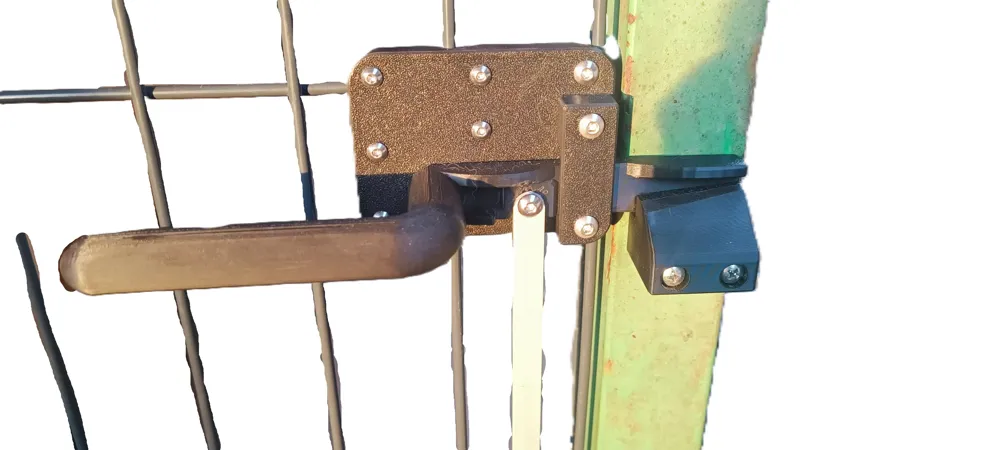

This 3D model is a simple and secure gate latch designed for mesh or garden doors.

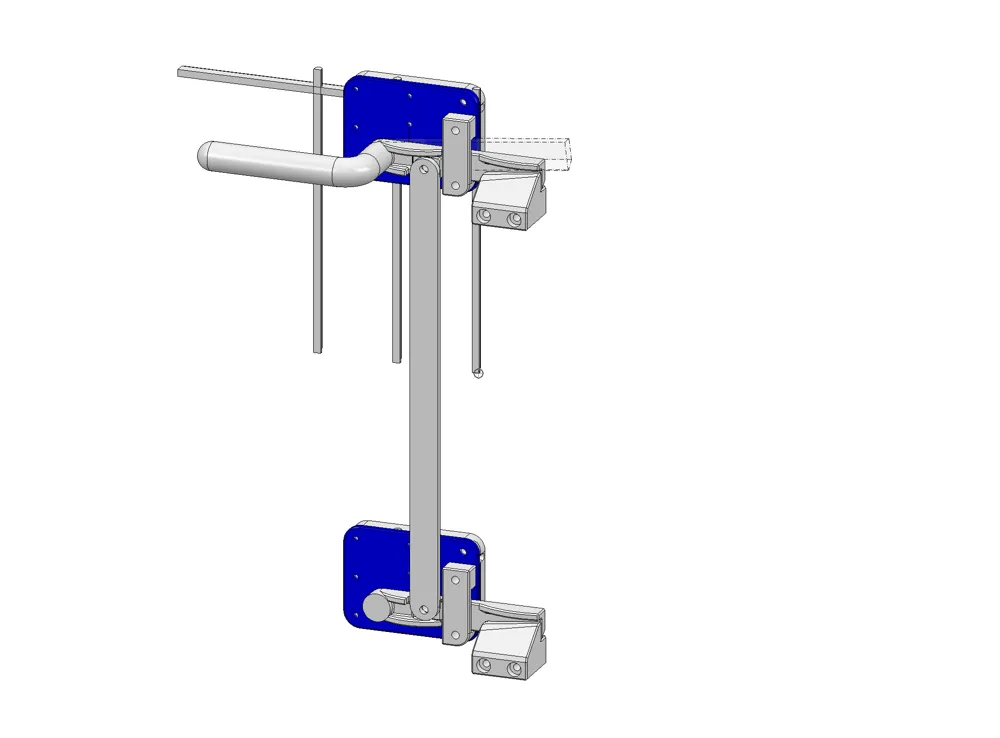

It features a pin-style locking mechanism – easy to operate, reliable, and nearly foolproof.
Perfect for lightweight gates, pet enclosures, or garden fences.
Features:
- One-hand operation (“trotlzihr” simple 😄)
- Solid design with mechanical pin lock
- Works with 5×5 / 50 mm mesh door systems
- Easy to print and assemble
- Can be combined with printed or metal hinges
Recommended print settings:
- Material: PETG or PA-CF (for strength and outdoor use)
- Wall thickness: 2–3 mm
- Infill: 40–60%
- Orientation: print flat for best strength around the hinge and pin areas
Disclaimer:
Ensure proper fit and strength before outdoor use.
The creator is not responsible for damages or failures due to improper installation or overloading.
