Unifi Dual Turret Cam G4, G5, G6 mount
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.4 h
1 plate
Open in Bambu Studio
Boost
18
89
3
0
68
34
Released
Bill of Materials
List other parts
- M3x60 60mm fastener with nut x 4: like these: https://www.amazon.nl/dp/B0DDKG7N5Z?ref=ppx_yo2ov_dt_b_fed_asin_title
Description
I created this remix for a few reasons.
- I wanted to strengthen the model so it was not easy to break the mount
- I wanted to give more room to the inner cabling
- I wanted to give it an option to have cabling exit sideways

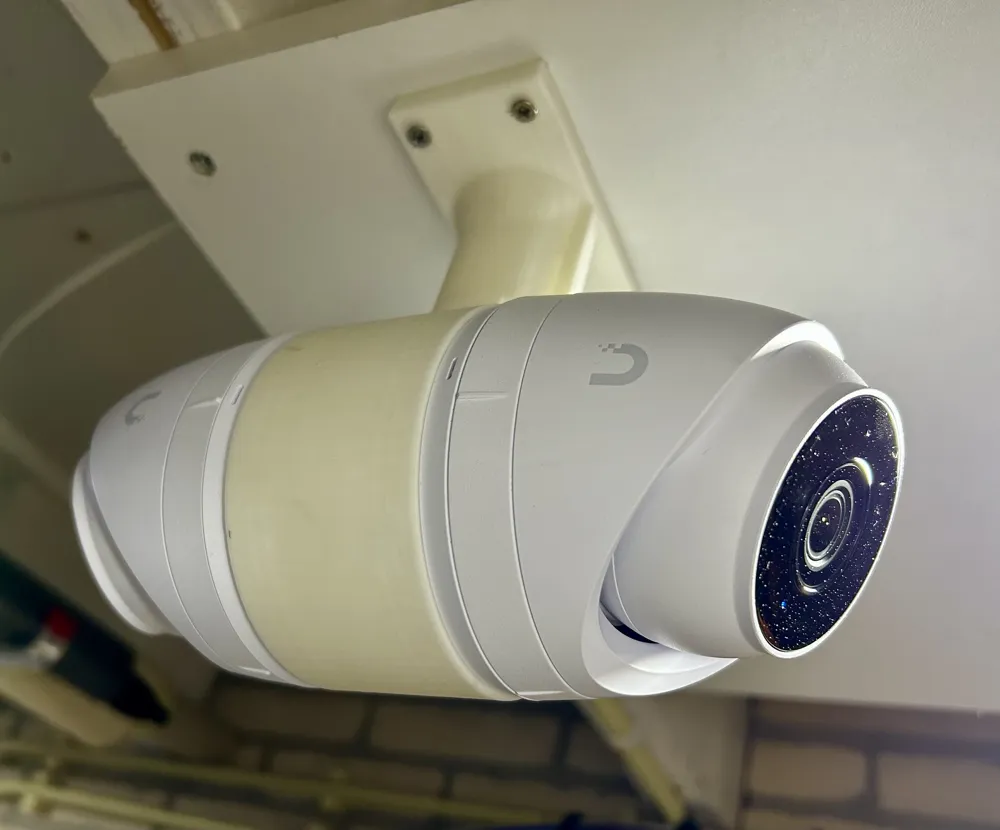

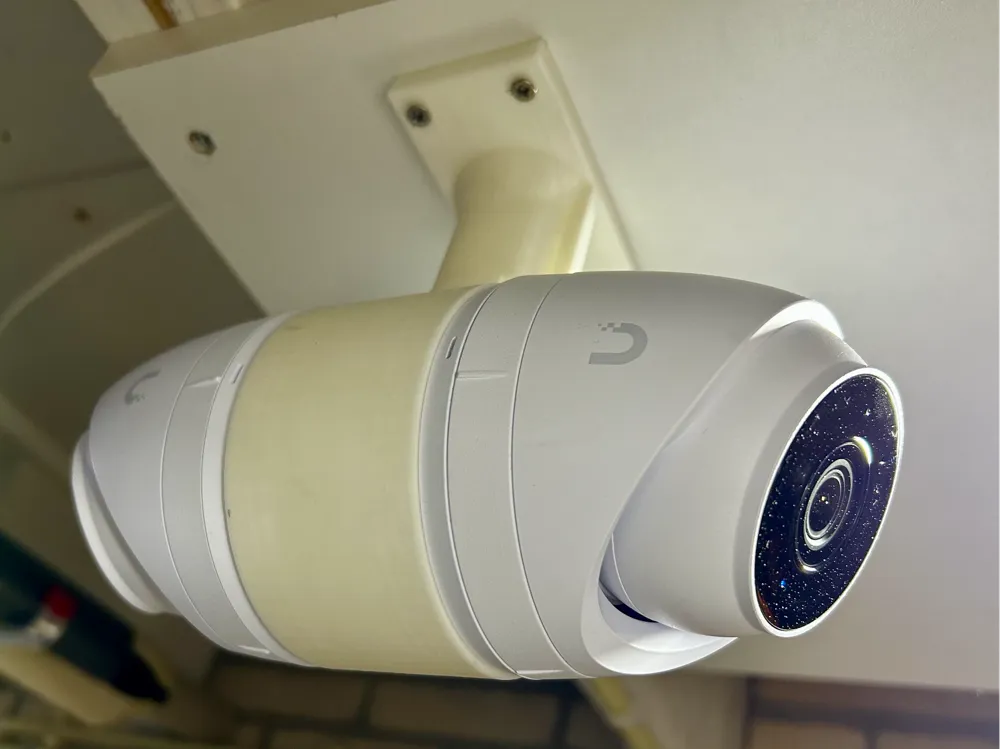

So I did and here it is. It should fit the current Unifi turret cam lineup perfectly. My picture was made with 2 G5 Turrets.

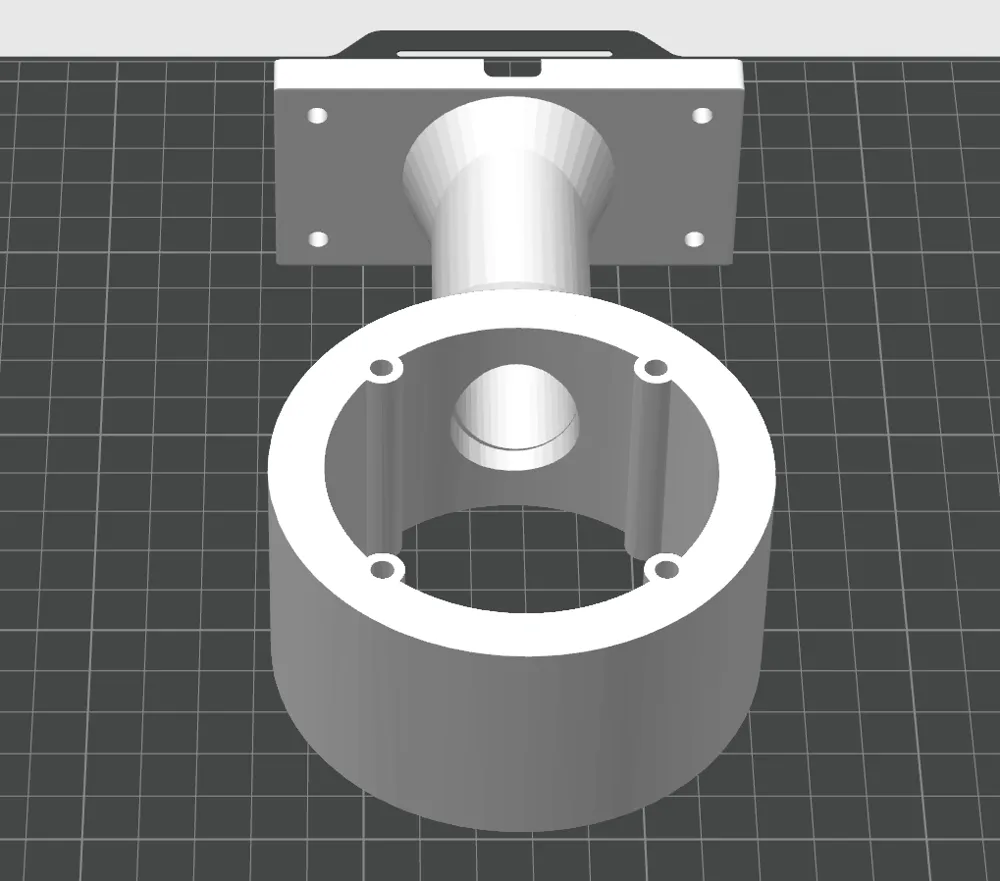

The design has 1 downside: you need 4 M3 60mm nuts and bolts to fasten the 2 cameras to eachother. The design has tunnels for the bolts, but you need to use those. When you do, you can bolt the 2 cameramounts together, making the total package rigid and firm.
Due to the print format (flat on the surface) the layerlines run throughout the model instead of building it up standing up. This means that the model is much harder to break off. You should not need any supports printing it.

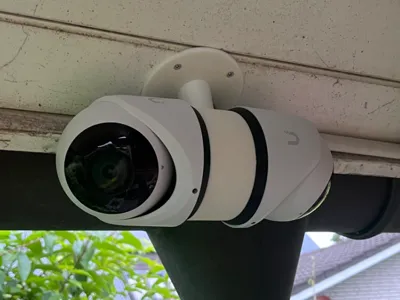

This remix is based on
