Description

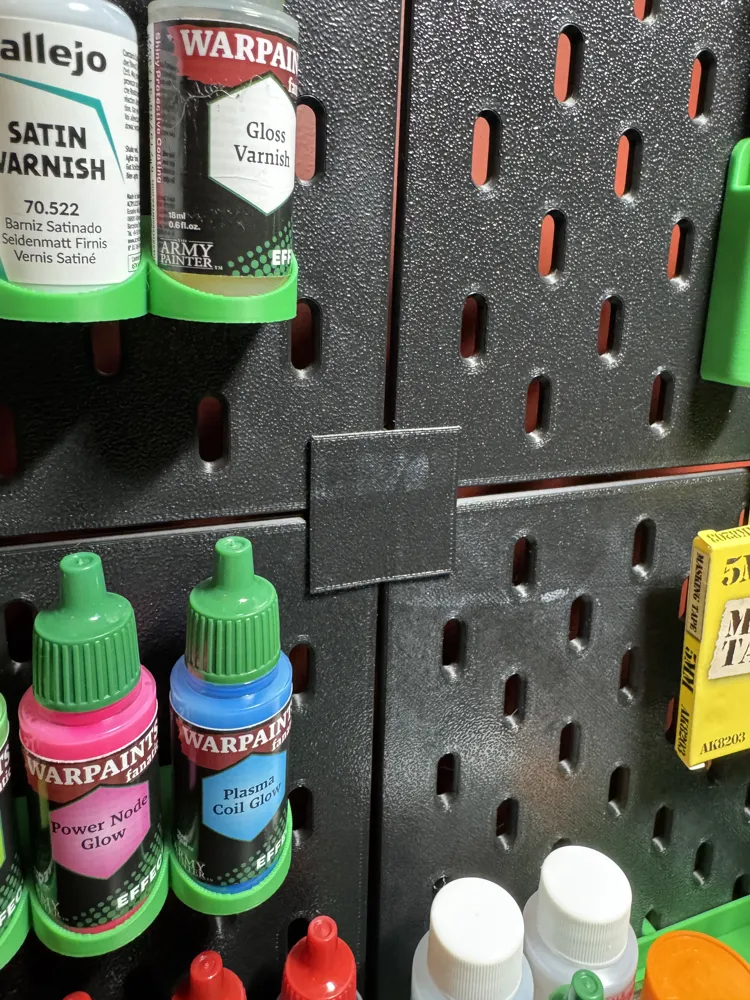

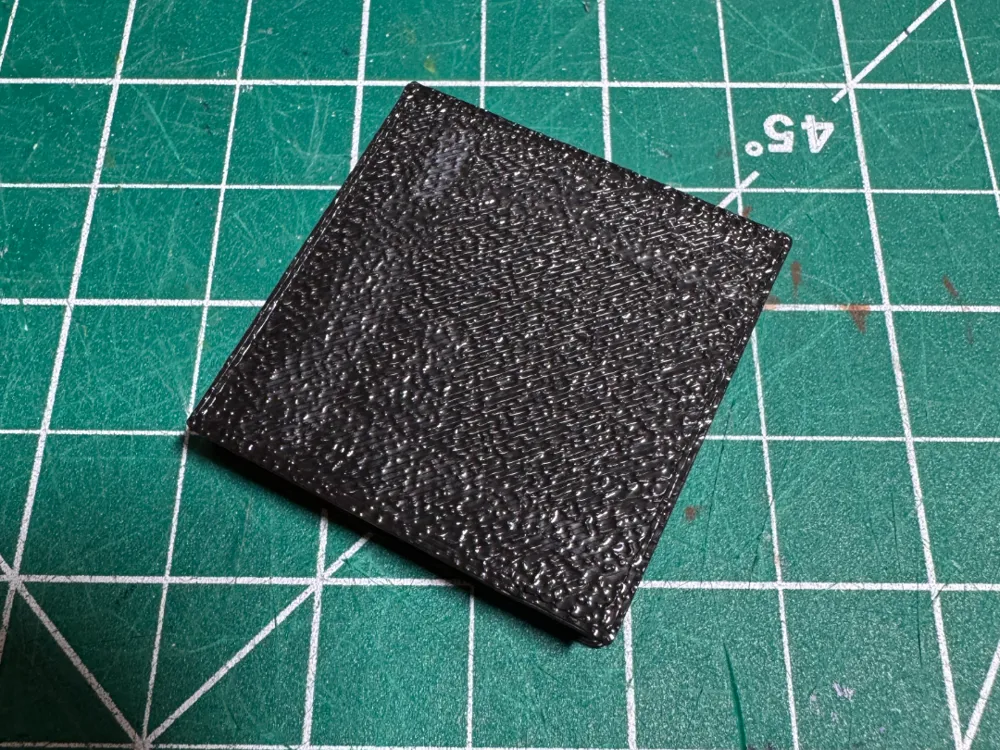

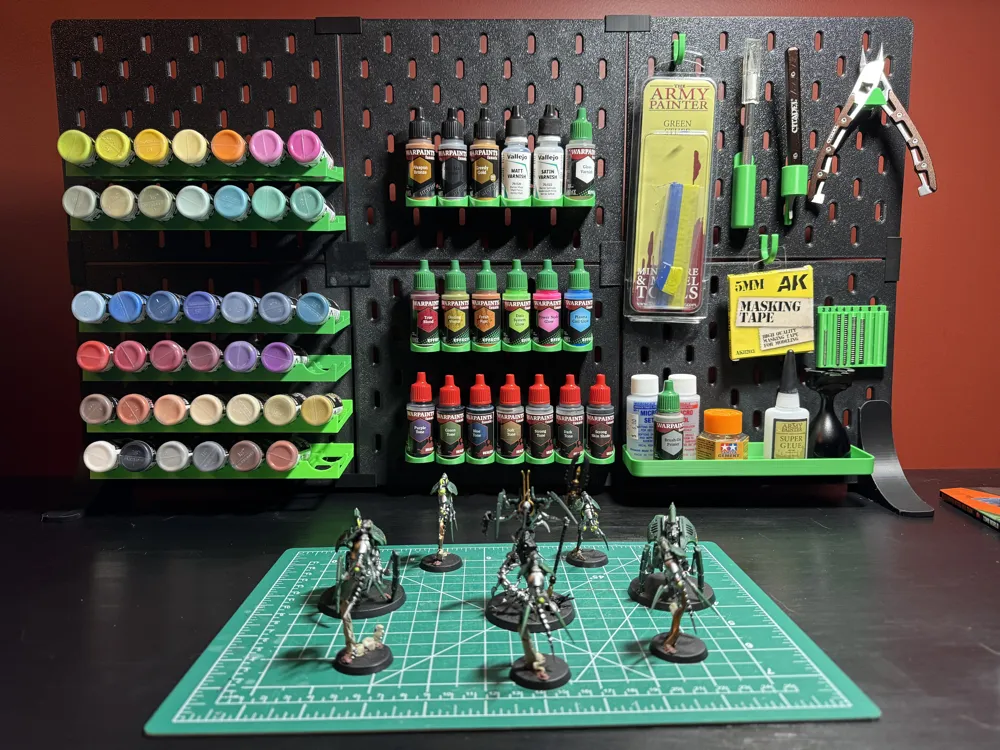

Part of an assembly suite designed to work with 3D printable Skadis boards. These simple connectors combined with the clips allow for more access to the Skadis holes compared to some other setups. Simply insert each of the four boards into its cross support slot for a tight fit. The overall assembly is a bit tricky to put together but once completed the boards are evenly spaced and able to have a good support.
Version updates
This is currently the second iteration of the connector. The first one had a rounded core support but didn't allow for a great fit. Instead I opted for the cross assembly instead.
Parts for the Assembly
Skadis 4 way connector (this)
