Catalyst Machine Works - BangGod Frame - TPU Parts

These are prototype TPU parts for the Catalyst Machine Works 6" Frame. This is under contstruction, so expect changes, nothing is perfect yet.

CRSFAntennaHolder_v20.stl:

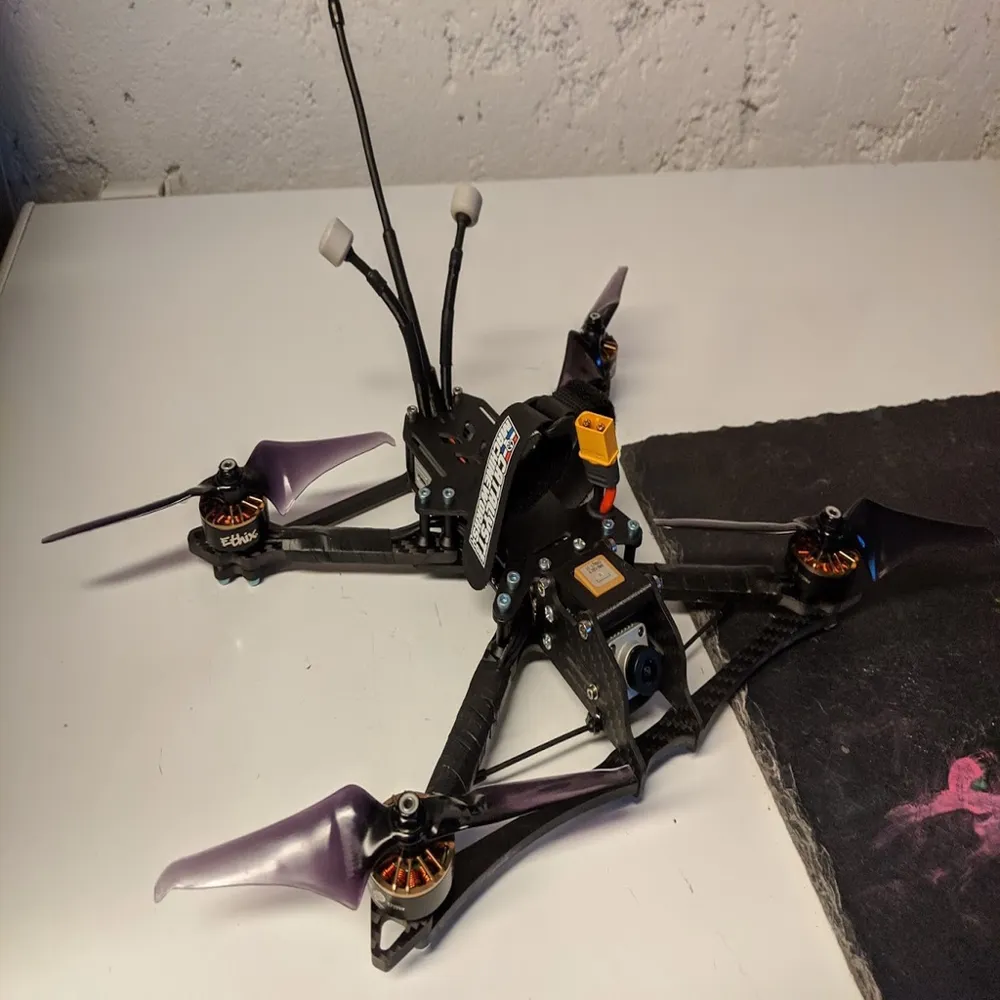

Antenna Mount for 1x TBS Hand-Tuned CRSF in the middle and 2x TBS Pro LHCP for the Air unit on the sides.

=> After printing I cut the two thin tubes along the full length on the front with an exacto knife, through this cut I then inserted the antenna-cable. I also added some shrink tube, but that is no really needed.

CRSFAntennaHolder_Mini.stl

Antenna Mount for 1x VAS Mini CRSF Antenna in the middle and 2x TBS Pro LHCP for the Air unit on the sides.

=> After printing I cut the two thin tubes along the full length on the front with an exacto knife, through this cut I then inserted the antenna-cable. I also added some shrink tube, but that is no really needed.

CRSFAntennaHolder_DjiOnly.stl

2x TBS Pro LHCP for the Air unit on the sides, no Antenna in the middle.

=> After printing I cut the two thin tubes along the full length on the front with an exacto knife, through this cut I then inserted the antenna-cable. I also added some shrink tube, but that is no really needed.

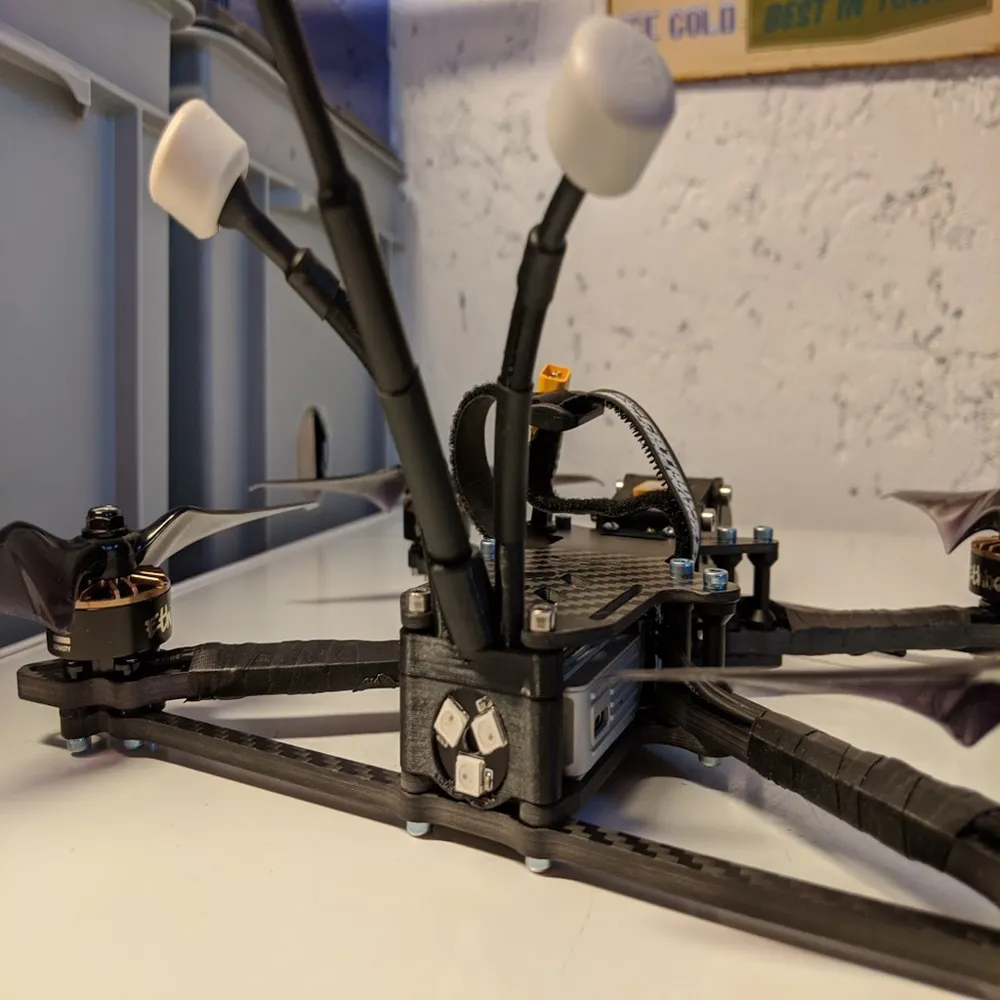

ledHolder_v3.stl:

LED Mount for this: https://www.catalystmachineworks.com/products/circular-rgb-led-board-sw316-an?_pos=10&_sid=5818da0e6&_ss=r

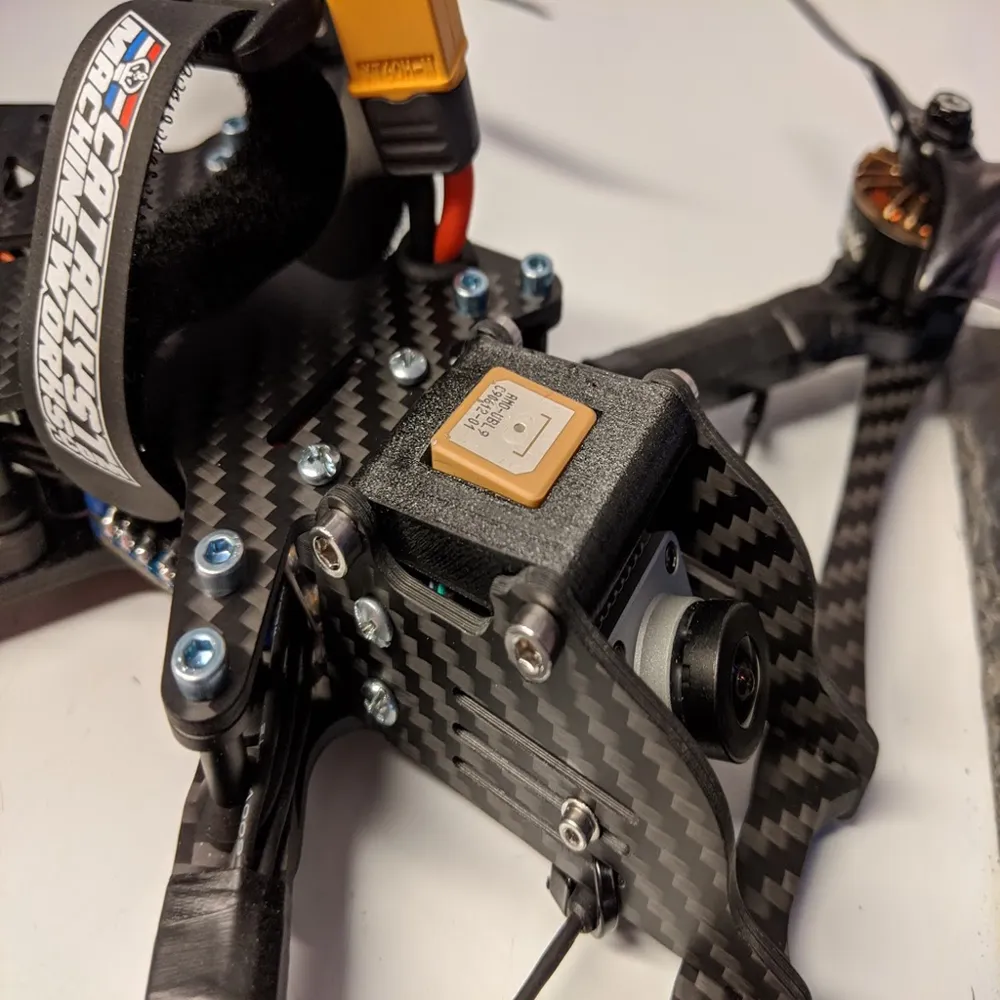

GPS_Mount_v4.stl:

Is only if you don't use a GoPro for this part: https://www.aliexpress.com/item/32917782967.html?spm=a2g0s.9042311.0.0.5e084c4dUY4j20

Print in TPU.
