Description
Content has been automatically translated.

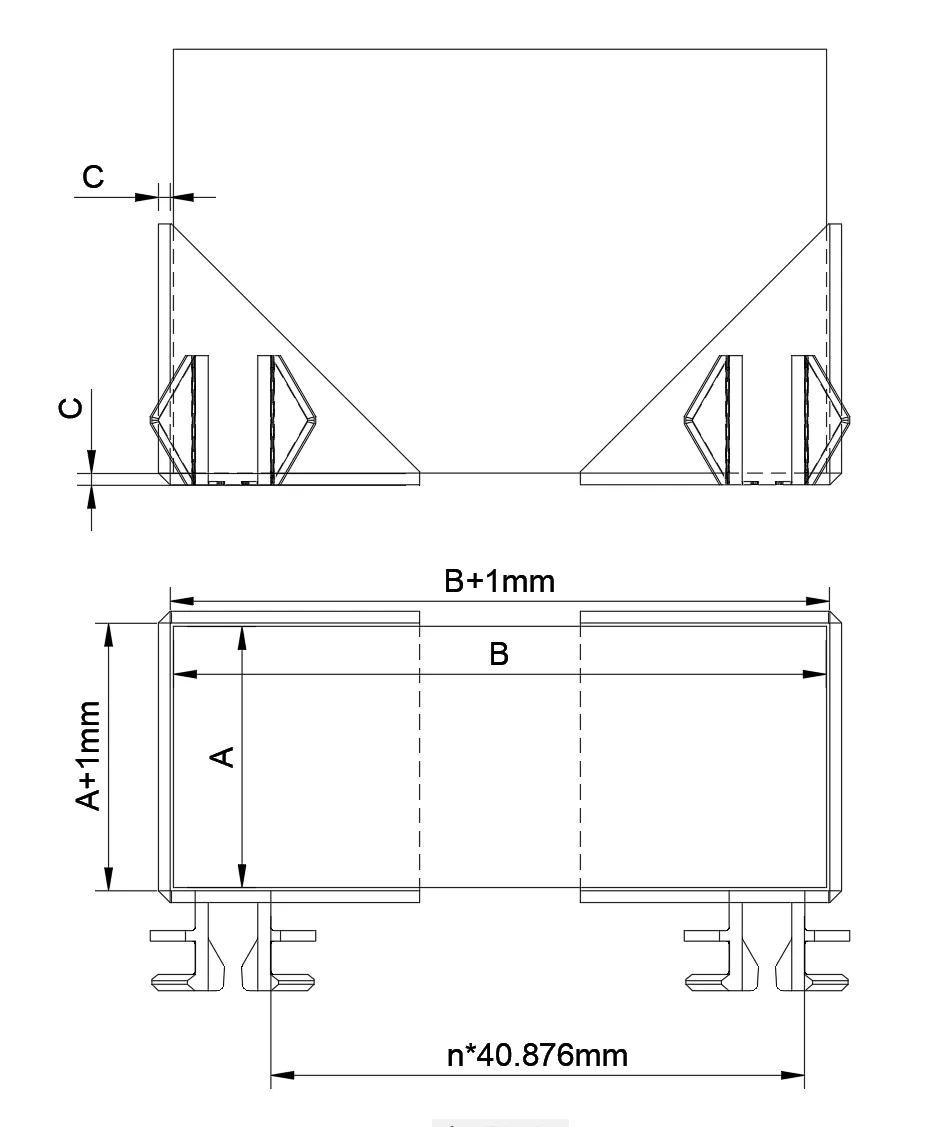

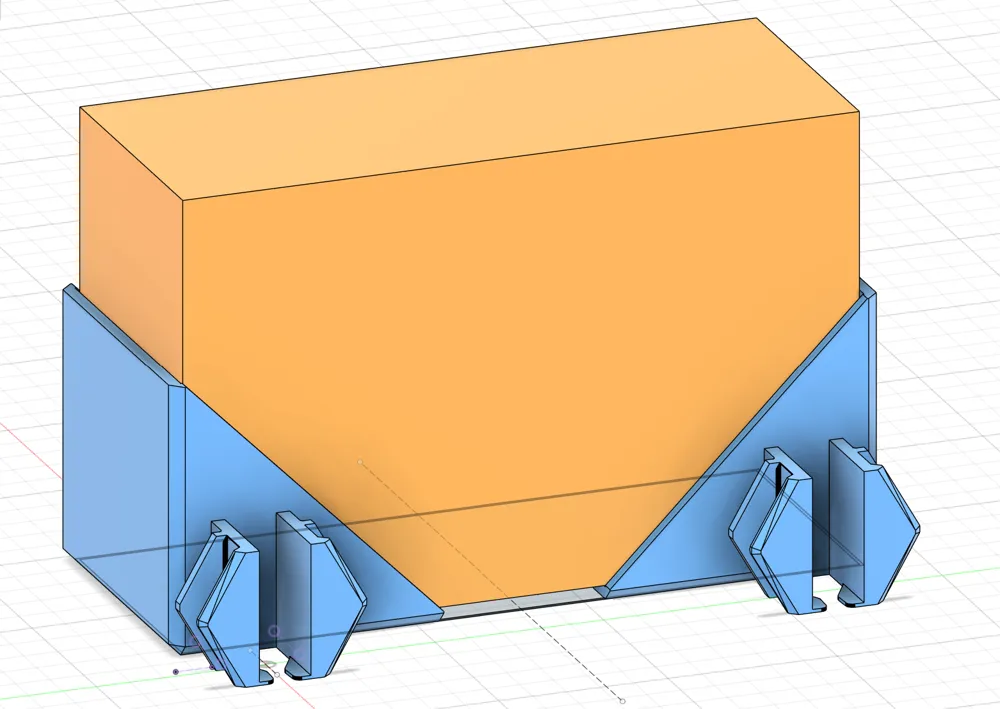

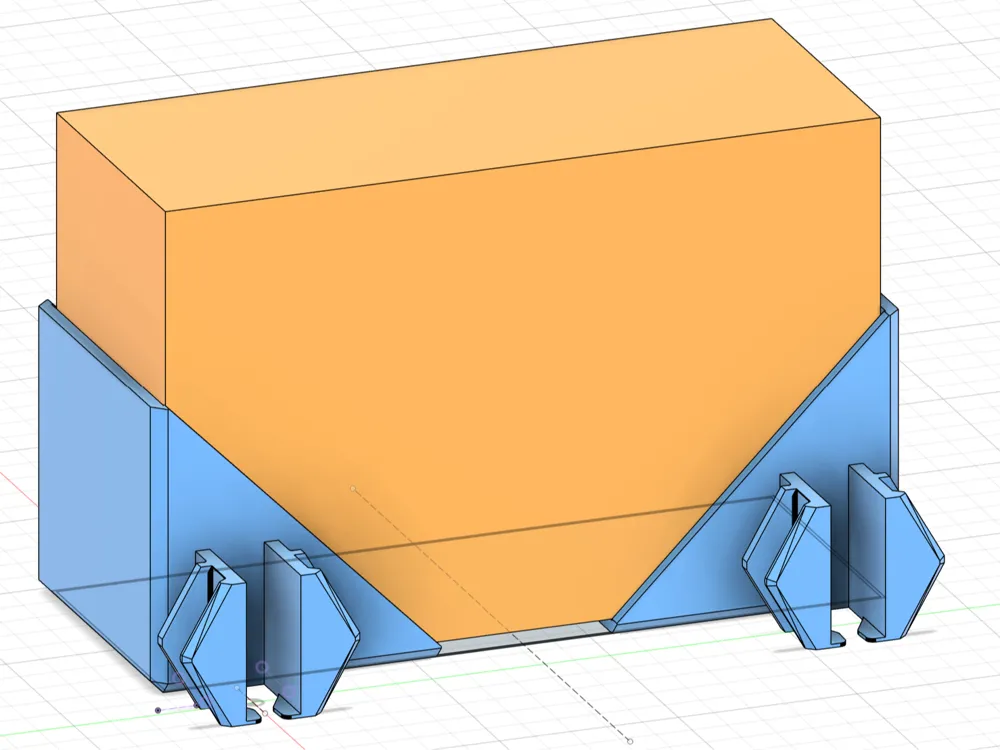

This customizable model can universally generate HSW inserts for storing box-shaped objects, and currently, 3 parameters can be customized:
- A: Thickness of object to be stored: Any value
- B: Length of object to be stored: Greater than or equal to 80
- C: Insert wall thickness: Recommended value: 1.8
The model's formula will automatically calculate the appropriate position of the HSW buckle relative to the HSW insert based on the above parameters
Documentation (1)
Other Files (1)
参数化-hsw插入件-盒状收纳 工程图 v1.pdf
