Under-desk Tool Drawer – Adhesive/Screw-on Rails

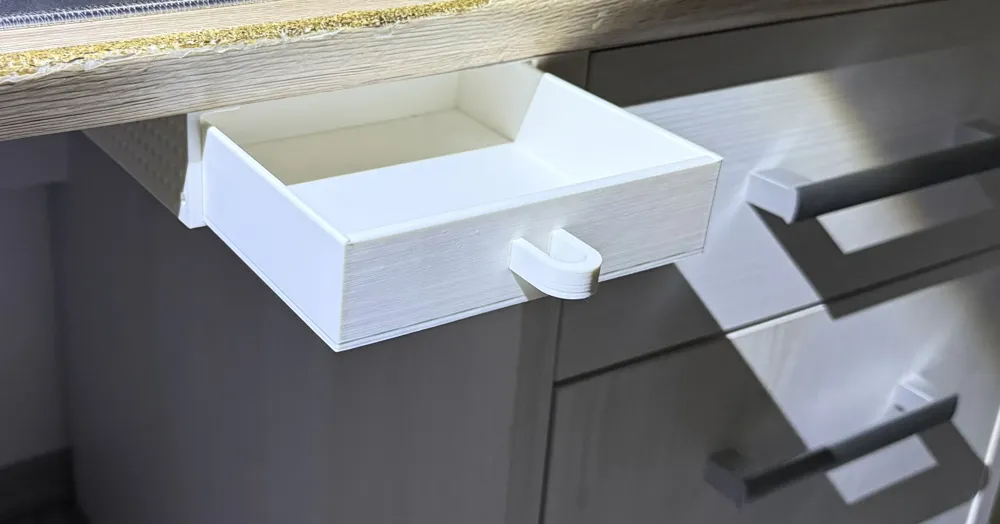

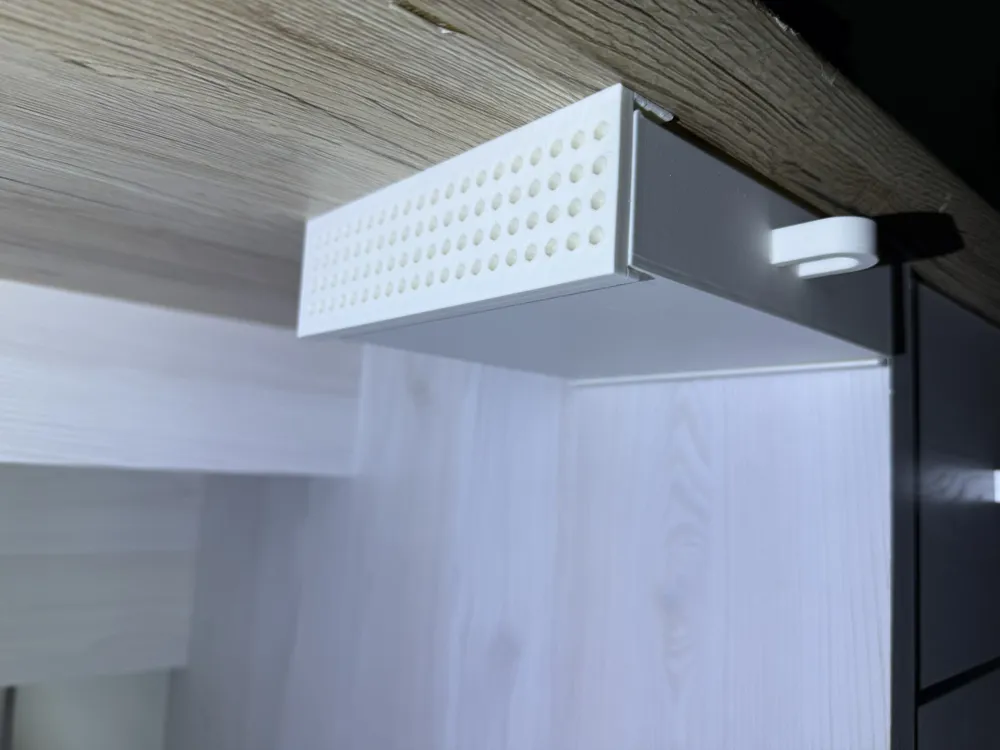

A compact under-desk drawer to keep your tools within reach. The perforated honeycomb structure reduces material and weight, and the running edges are designed for smooth, play-free movement. Installation optionally Drill-free (adhesive) or classic with screws (holes in the design: M4 countersunk screw DIN EN ISO 2009)
Recommended Materials & Orientation
- PLA works perfectly

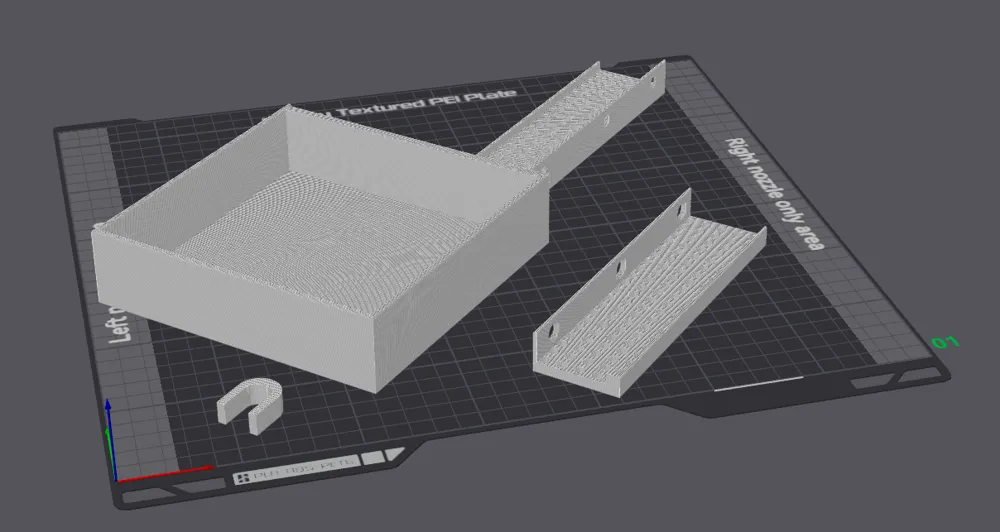

- Box with bottom on the bed; rails with opening upwards; clip lying flat
Print Settings (0.4 mm) (Already included in the 3MF file)
- Layer Height: 0.20 mm (sliding surfaces optionally 0.16 mm)
- Walls: Box 3–4 lines; Rails 4–5 lines; Clip 4 lines
- Top/Bottom: Box 8/8; Rails 6/6; Clip 6/6
- Infill: Box 12% Gyroid; Rails 25% Grid/Cubic; Clip 35–40% Gyroid
- Seam: "Aligned" to back/bottom

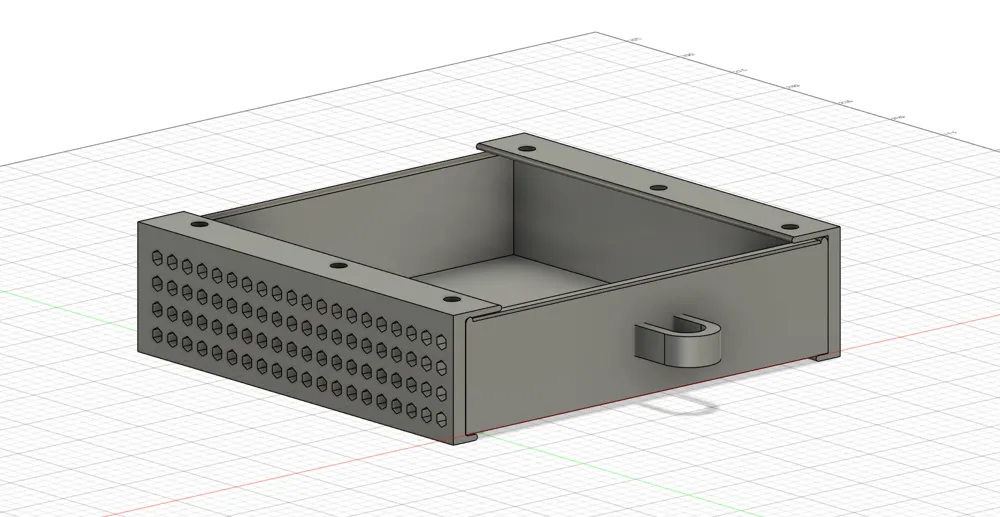

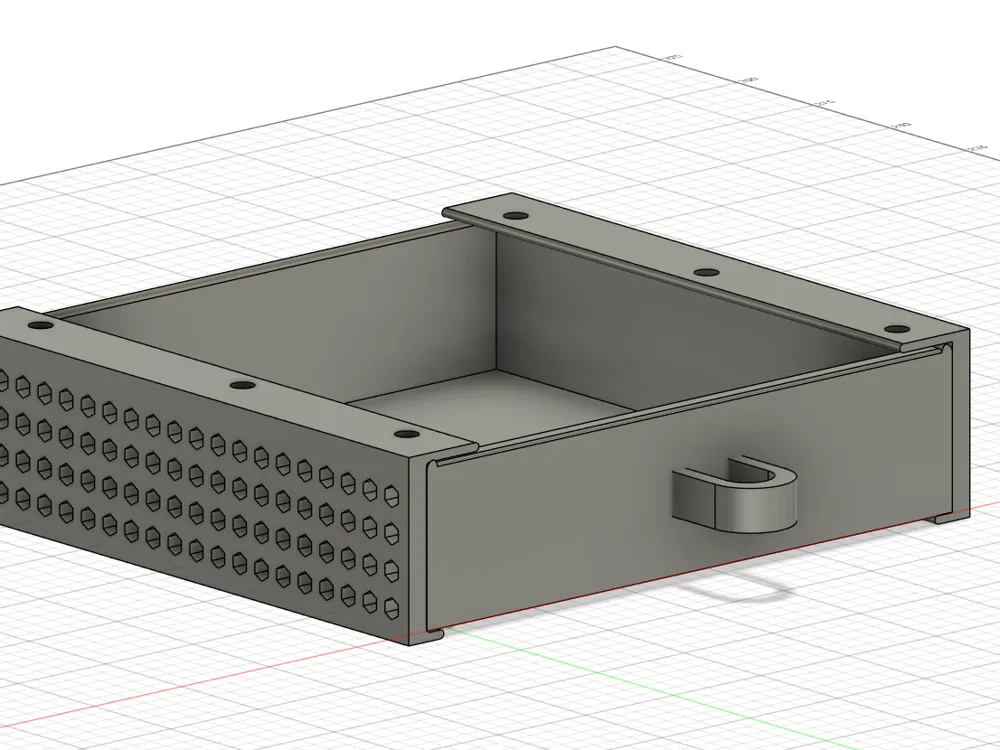

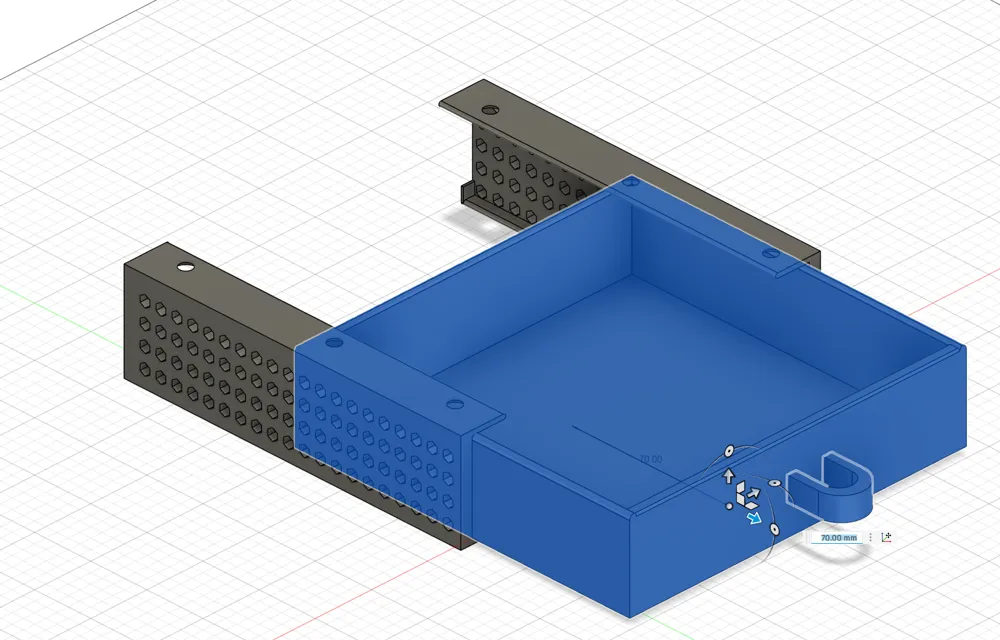

Design & CAD: designed by me.
Happy printing – feel free to show photos of your setup! 🙌
