Kelly - LED Name Lamp

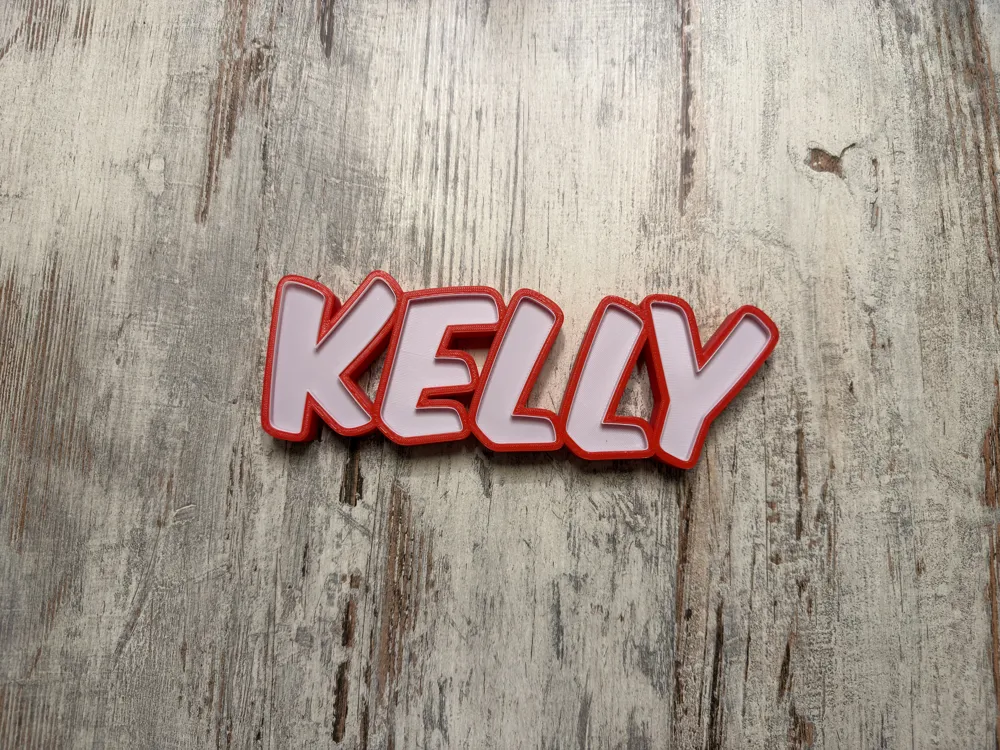

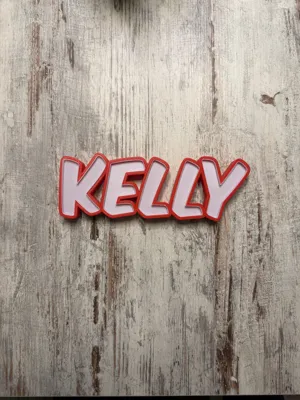

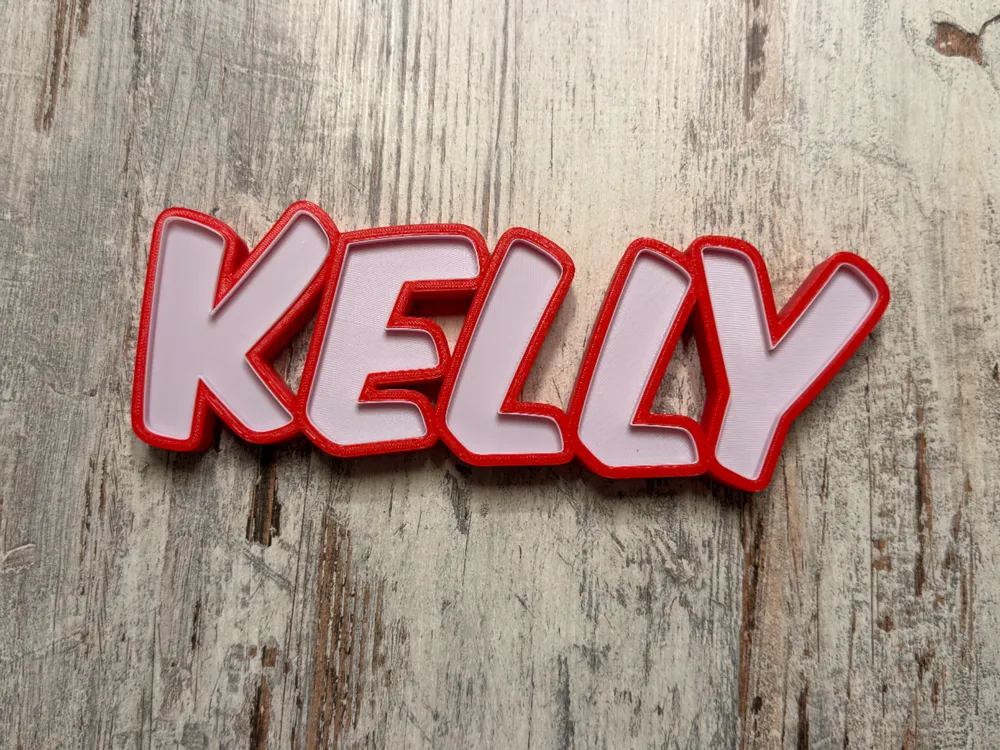

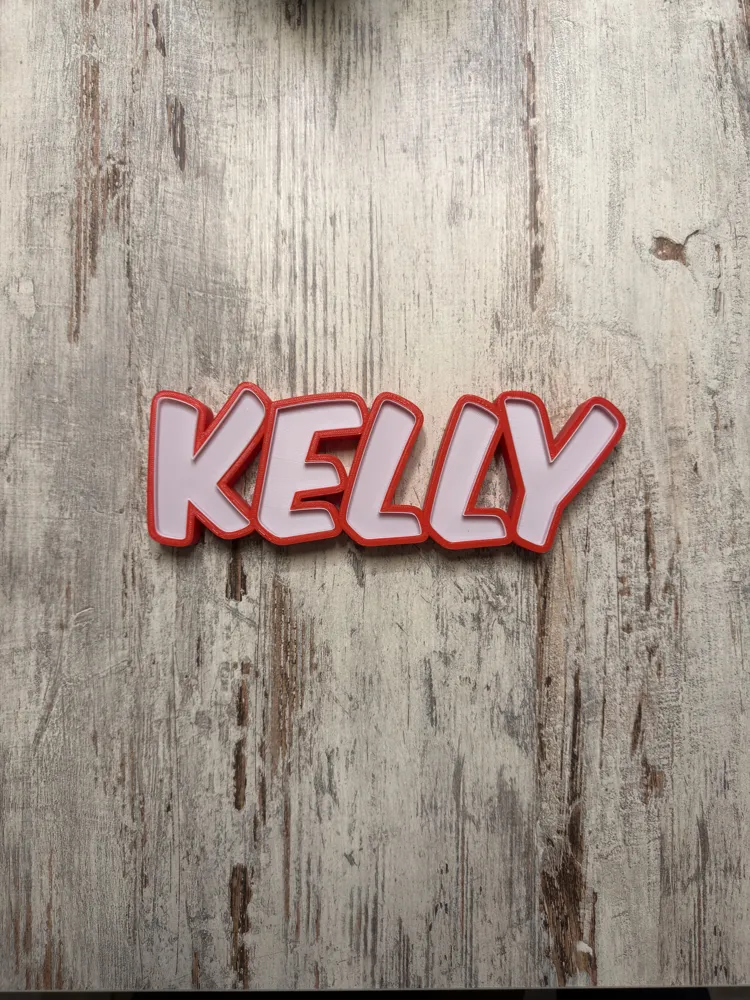

"KELLY" as a printable LED name lamp


ATTENTION:
The finished name is included as an STL file  All letters are pre-arranged If the print surface is large enough, you can pull several letters together onto a plate and print them connected Please do not forget to "merge the letters" Be careful not to let the letters slip, otherwise the openings will no longer fit and the geometry of the entire name will be altered


Print settings: 0.2mm with 8% infill is sufficient
For the bodies, I would use "seamless" support for the LED channels

Please do not scale much smaller. Otherwise, the covers may no longer fit.
ATTENTION: If scaled too small, the letter openings for the LED will also become smaller (Make a test print beforehand) - And don't forget to scale the covers as well



I recommend NOT scaling the X and Y axes smaller than 60%

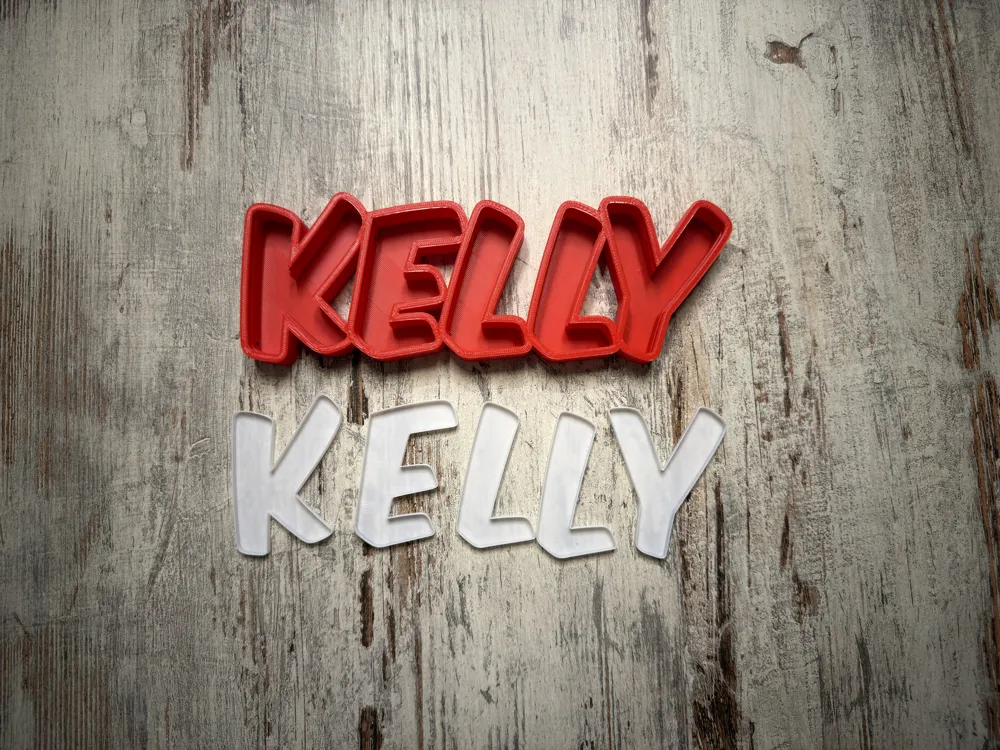

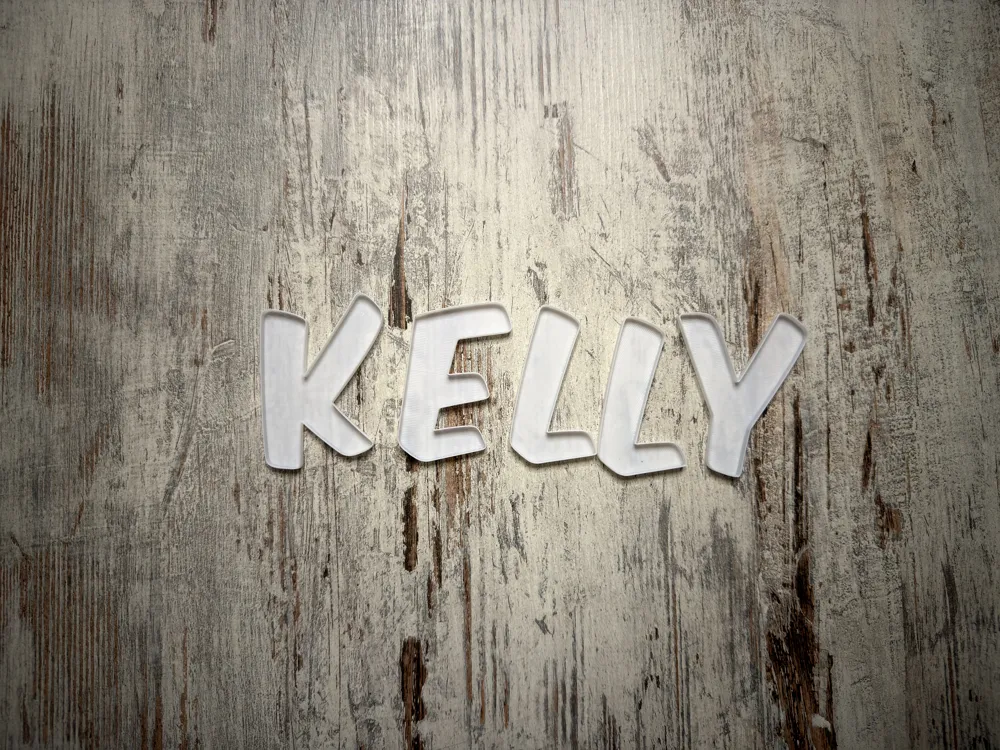

The covers can also be printed mirrored on the X-axis This way, the covers close flush at the front The disadvantage, however, is that the covers are not quite as easy to remove I recommend printing a mirrored cover as a test beforehand

The letter pairs must be glued together Please ensure that the LED channels are flush with each other A special adhesive for PLA/PETG is best suited for this

For LEDs, I recommend inexpensive 1-5m RGB LED strips for 8-12€ or better COB-LEDs  Higher quality RGBIC LEDs also allow for individually controllable letters, depending on skill

For this name length, it is better to take 5m

If you have any questions, I am happy to help


I am happy to create additional custom LED names upon request and a small donation.
