Pegboard Monitor/Laptop/Phone Riser Stand with Drawer

If you have different size requirements, please leave a comment: length, width, and height are all adjustable (length and width increase/decrease in multiples of 30mm, height can be arbitrary), accessories can be added, such as pen holders, coffee cup holders, etc

Leave your needs in the comments, and I will design and implement them

Features:

1, Pegboard structure, highly expandable

①The main body comes in different sizes (currently available in 248*218*90mm and 128*218*90mm), can be used individually, or several main bodies can be joined together, theoretically allowing for infinite assembly

②Accessories can be extended, currently including laptop stands and phone stands. Future expansions may include pen holders, coffee cup holders, etc

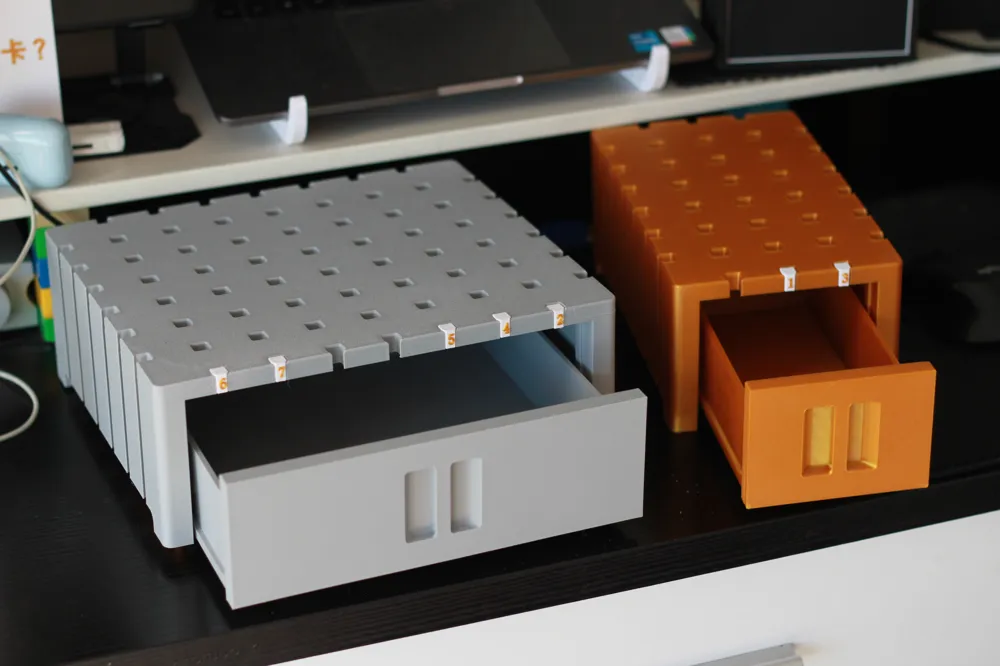

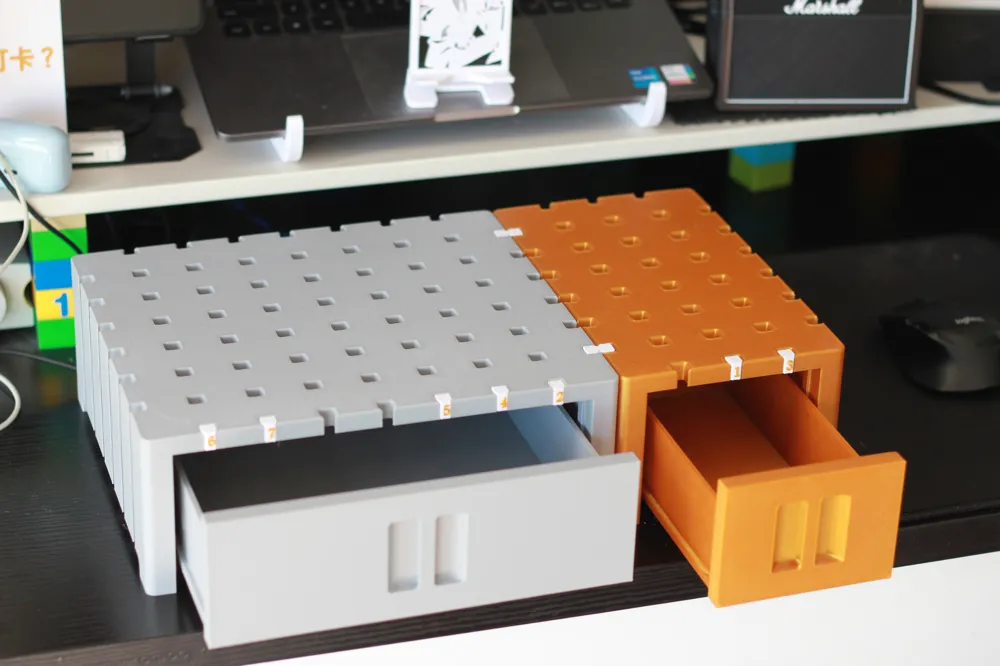

2, Drawers for storage

3, Easy printing, no supports

4, PLA/PETG (For large parts, PLA is recommended for printing; if using PETG for large parts, please prevent warping)

5, No parts other than filament are needed

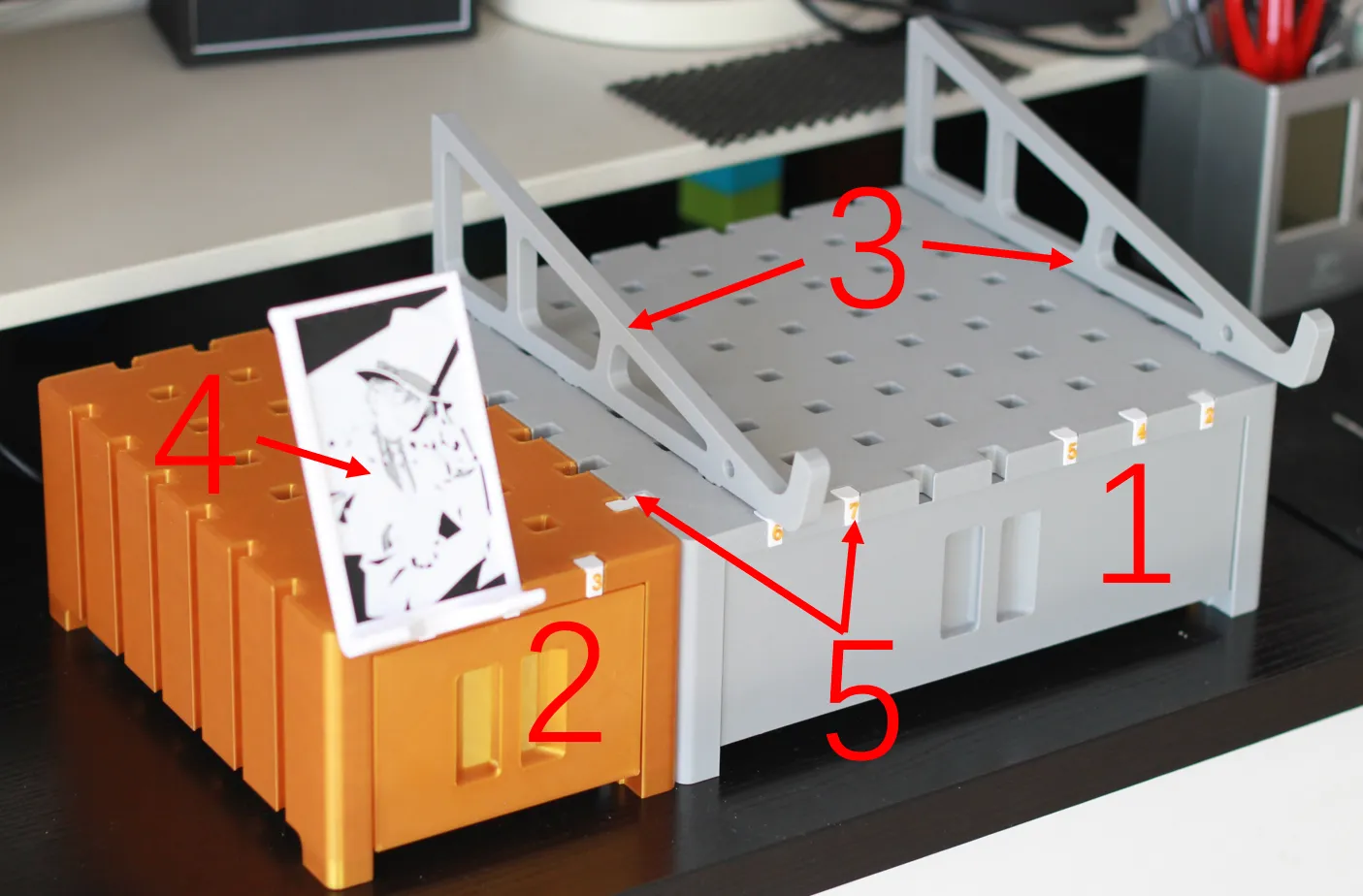

Introduction to five print profiles:

1, Main body/monitor riser with drawer: 248*218*90mm

2, Widened main body with drawer: 128*218*90mm

3, Laptop tilt stand

4, Phone stand (with a separate base; this base can be omitted from printing)

5, Connectors + decorative parts between main bodies (text can be added to this part in the slicer software)

Due to different materials and different flow rate settings, the fit dimensions may vary, potentially leading to difficulty in assembly/insertion or being too loose after assembly

Solution:

As shown below, adjust the Z-axis dimension of certain parts according to actual conditions, being careful not to change the XY-axis dimensions

Can be reduced/increased by 0.2mm or more
