Philippe - LED Name Lamp

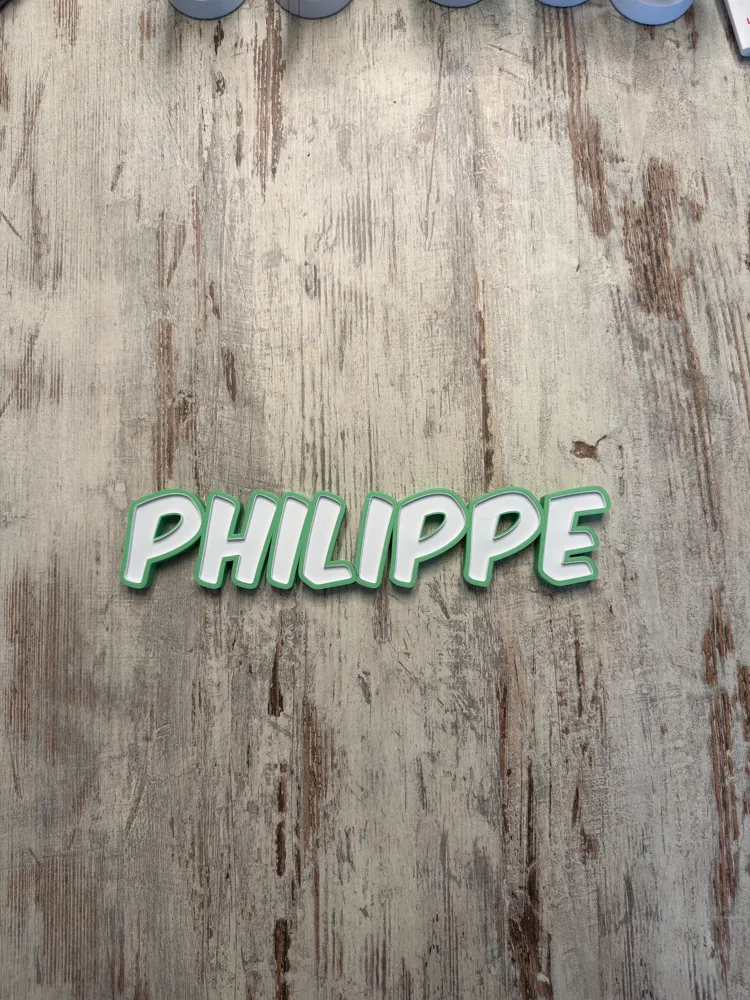

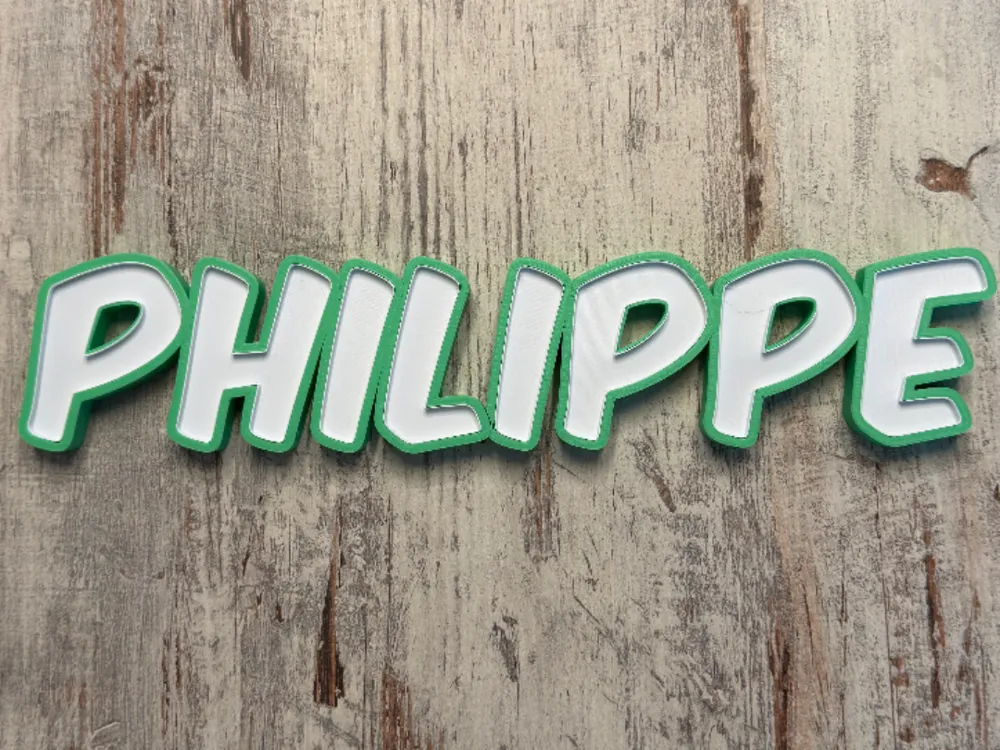

"Philippe" as a printable LED name lamp


ATTENTION:
The finished name has been included as an STL The letters are all pre-arranged If the print area is large enough, you can drag several letters together onto one build plate and print them continuously Please do not forget to "merge the letters" Be careful that the letters do not shift, otherwise the LED channels will no longer fit and the geometry of the entire name will be altered


Print settings: 0.2mm with 8% infill is sufficient
For the bodies, I would use "seamless" support for the LED channels

Please do not scale down too much Otherwise, the covers might not fit anymore
ATTENTION: If scaled too small, the channels for the LEDs within the letters will also become smaller (Perform a test print beforehand) - And do not forget to scale the covers as well



I recommend NOT scaling the X and Y axes smaller than 60%

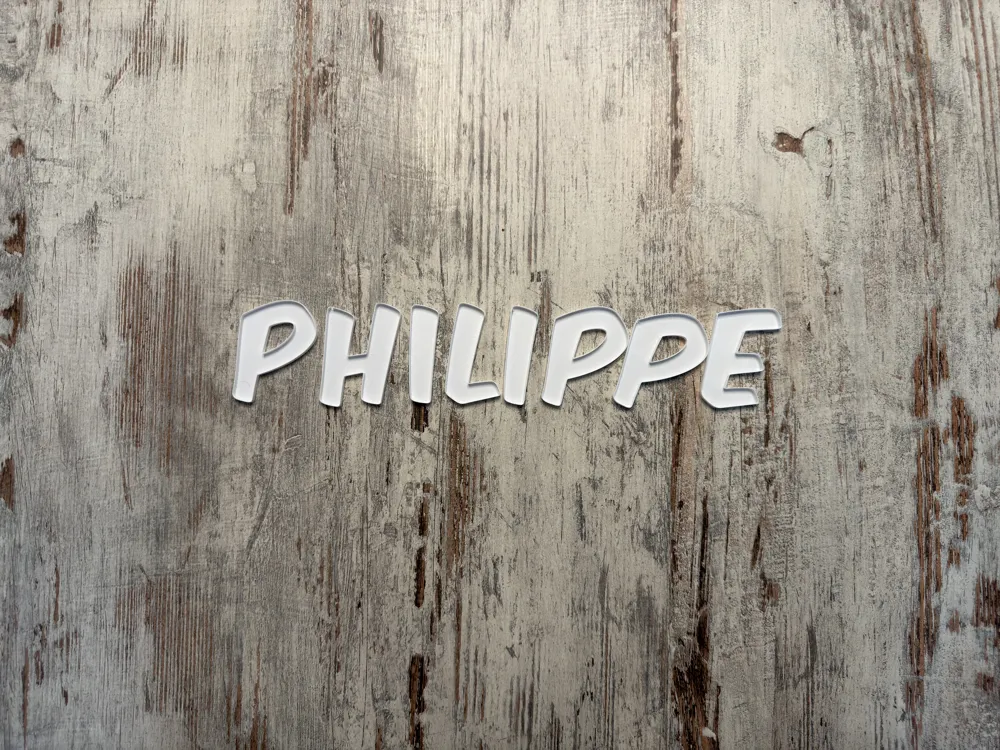

The covers can also be printed mirrored on the X-axis This way, the covers will close flush at the front The disadvantage, however, is that the covers are not quite as easy to remove I recommend printing a mirrored cover as a test beforehand

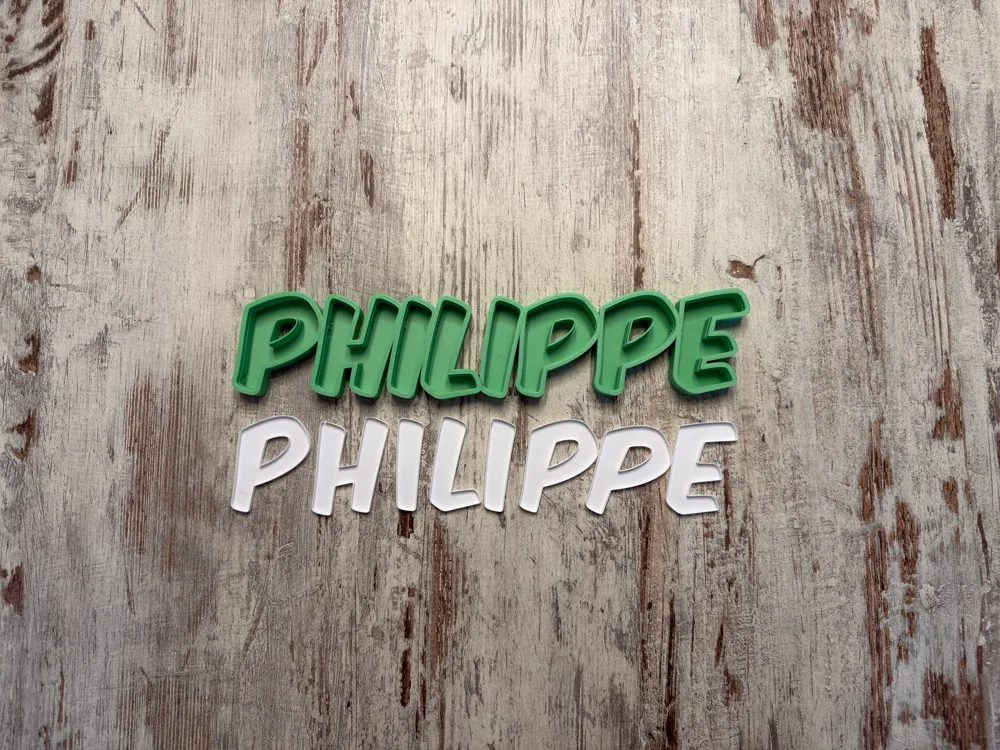

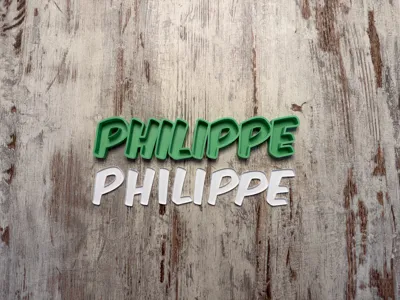

The letter pairs must be glued together Please ensure that the LED channels align flush with each other A special adhesive for PLA/PETG is best suited for this

For LEDs, I recommend inexpensive 1-5m RGB LED strips for 8-12€ or, even better, COB-LEDs Higher-quality RGBIC LEDs also allow for individually controllable letters, depending on your skill

For this name length, it's better to use 5m

If you have any questions, I am happy to assist


I am happy to create additional custom LED names upon request and with a small donation
