lithophane LED Backboard Kit DIY Replacement
Print Profile(1)
Description

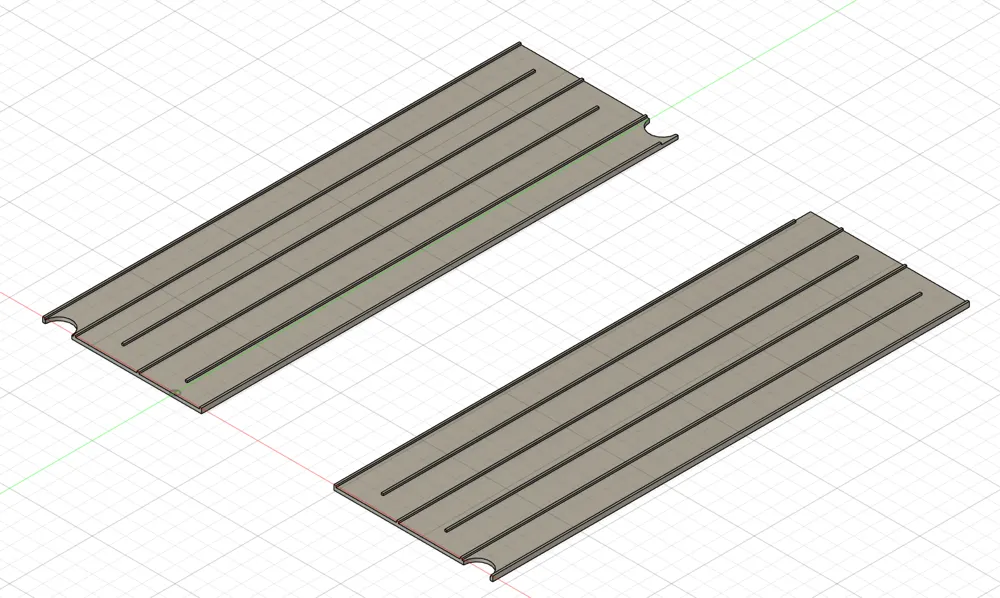

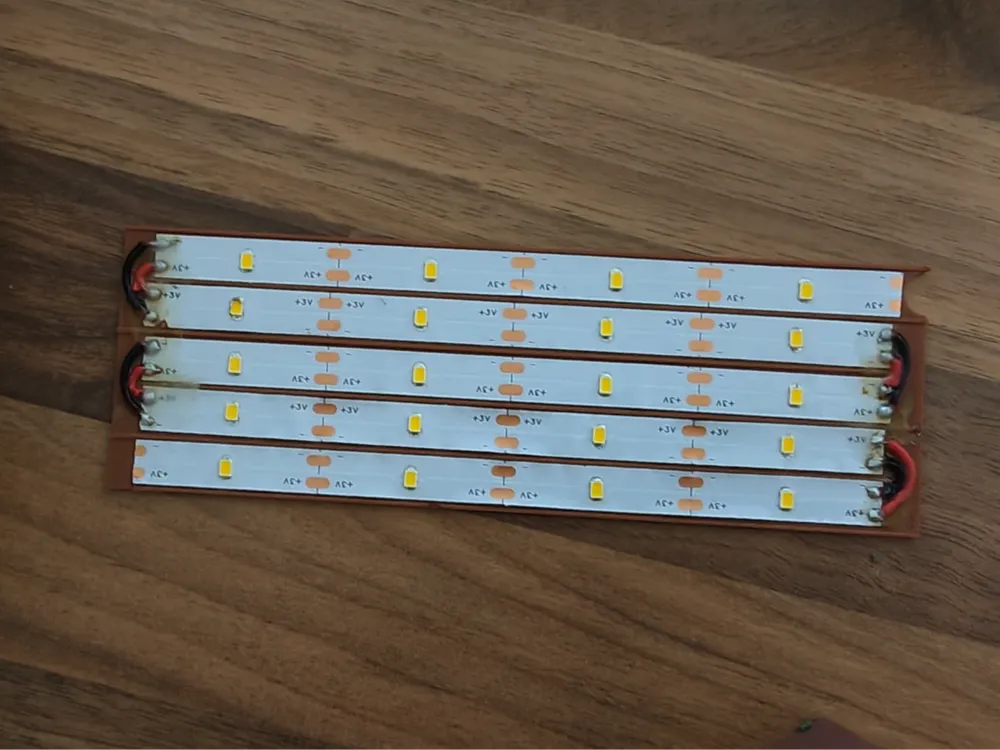

I designed two small plates suitable for LED strips up to 8.5 mm wide. The LED strips can be cut to size, glued onto the plates, and then carefully soldered together to replace an LED backlight kit.
In my case, I also wanted to create an LED backlight with a battery compartment. There is a start plate and an end plate:
The start plate has two cutouts – one for the cable (e.g., to the battery compartment) and another for connecting to an additional plate.
The plates each measure 48 mm x 144 mm.
All parts were printed from PLA.
In the image above, the setup was used with the following model:
