Under Desk Drawer - Dividers
Remixed by
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
2
3
0
0
6
2
Released
Description

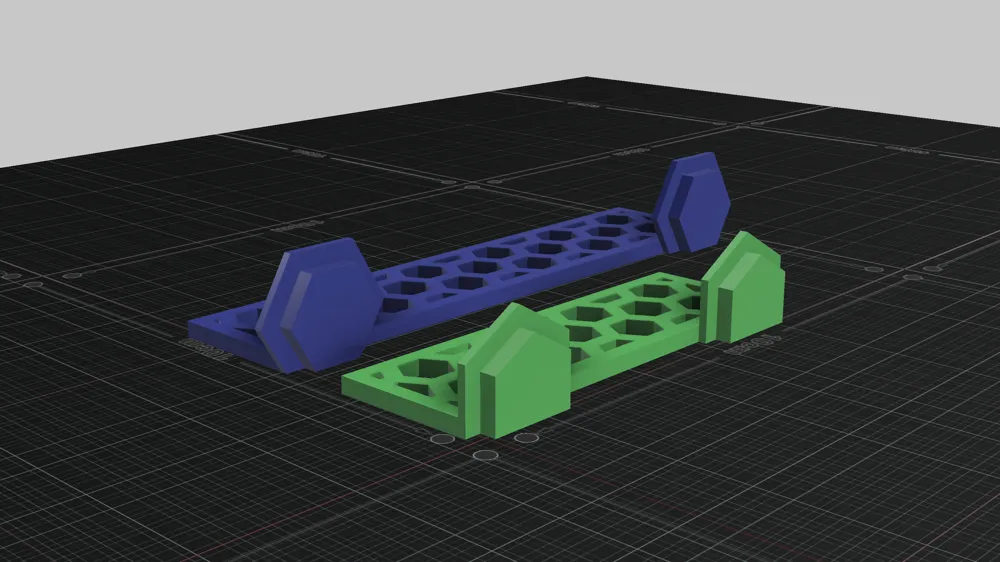

Created Click In Dividers for the Under Desk Drawer.
The dividers are designed
- to firmly click in the hex grid and no glue needs to be used
- to not require any supports

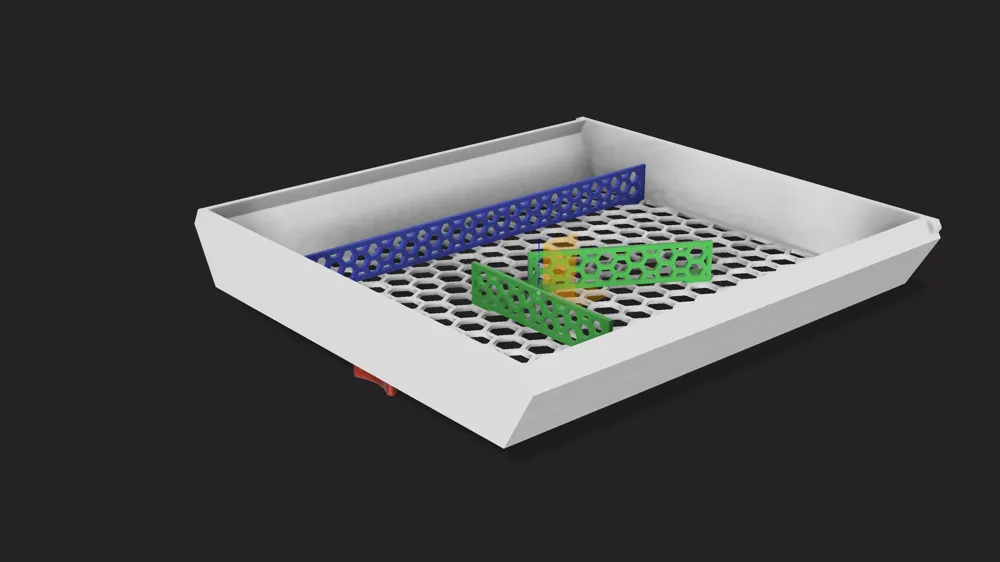

Note that the dividers can also be used in a diagonally.
Print Settings
Paul designed the drawer with a grid with strength 1.8mm. Therefore I recommend to use Line Width = 0.3 .
Additional Information

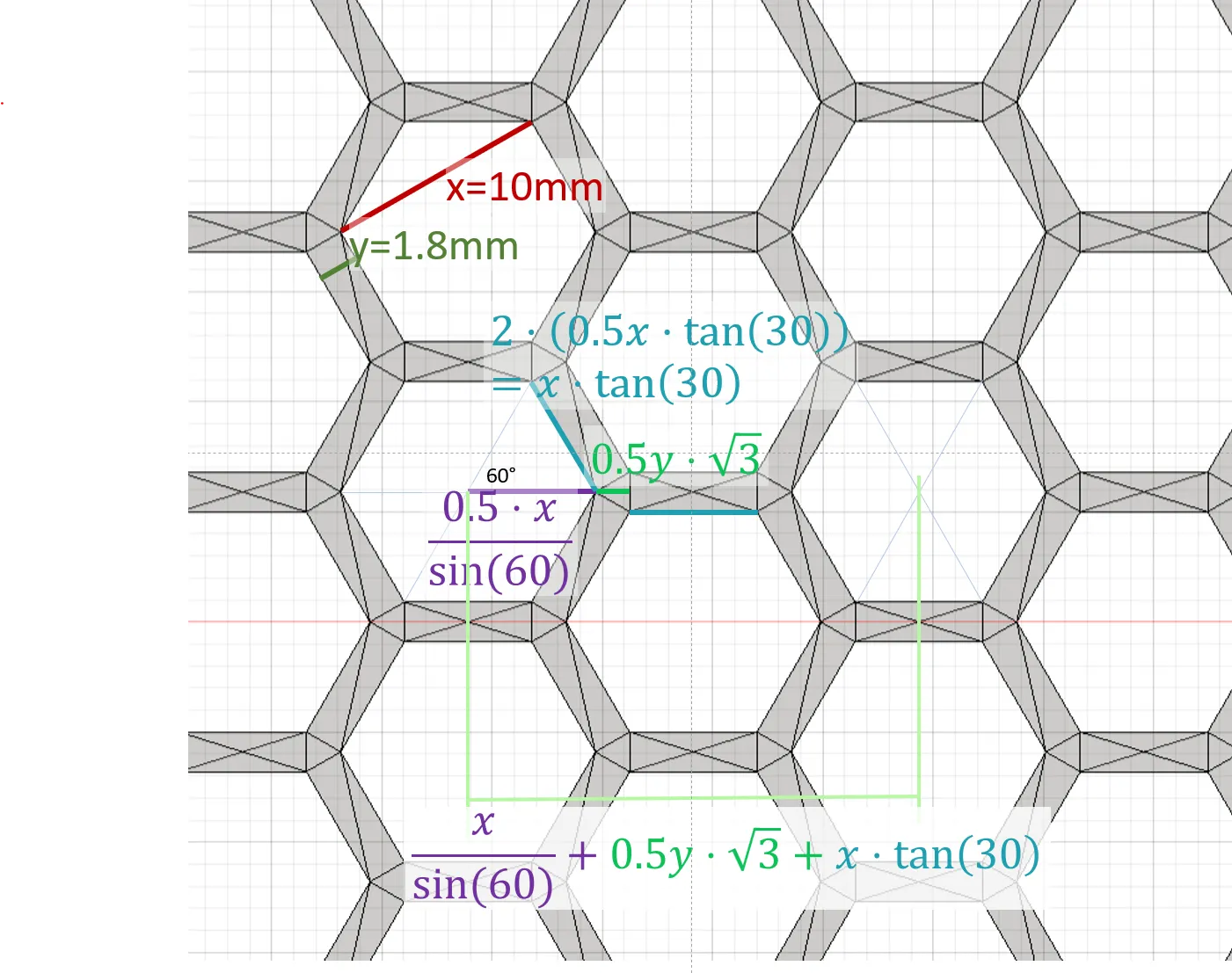

In case anyone wants to do some other cool stuff → here's the math for distances in a hex grid.
Longer Drawers

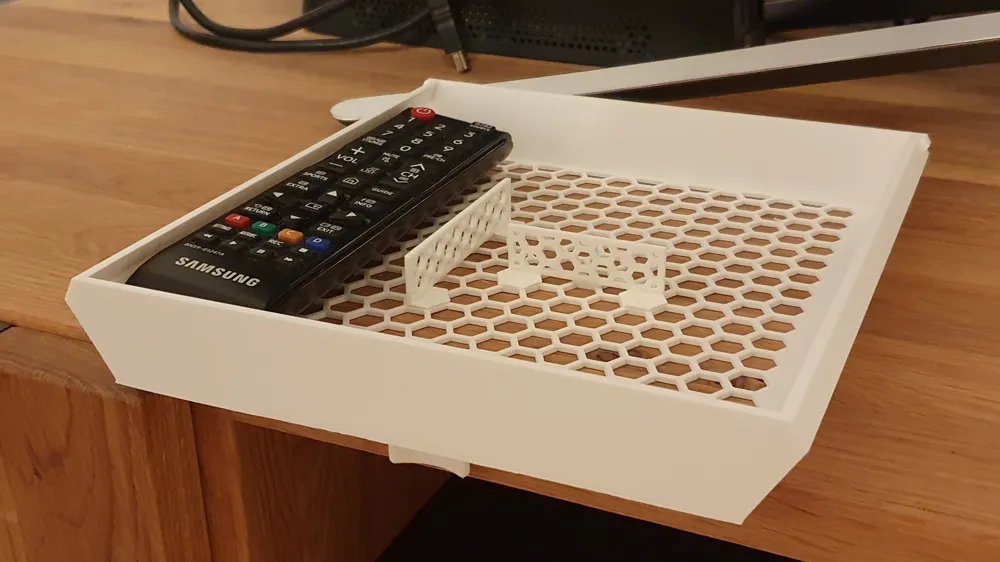

In the pictures one can see a longer version of the drawer to fit a TV-Remote. See my other remix https://www.printables.com/model/774004-elongated-under-desk-drawer-with-bottom-handle.
Differences of the remix compared to the original
Designed dividers from scratch for the drawer from Paul.
