A1 Mini MMS with desiccant on Z-axis
Print Profile(3)
Description

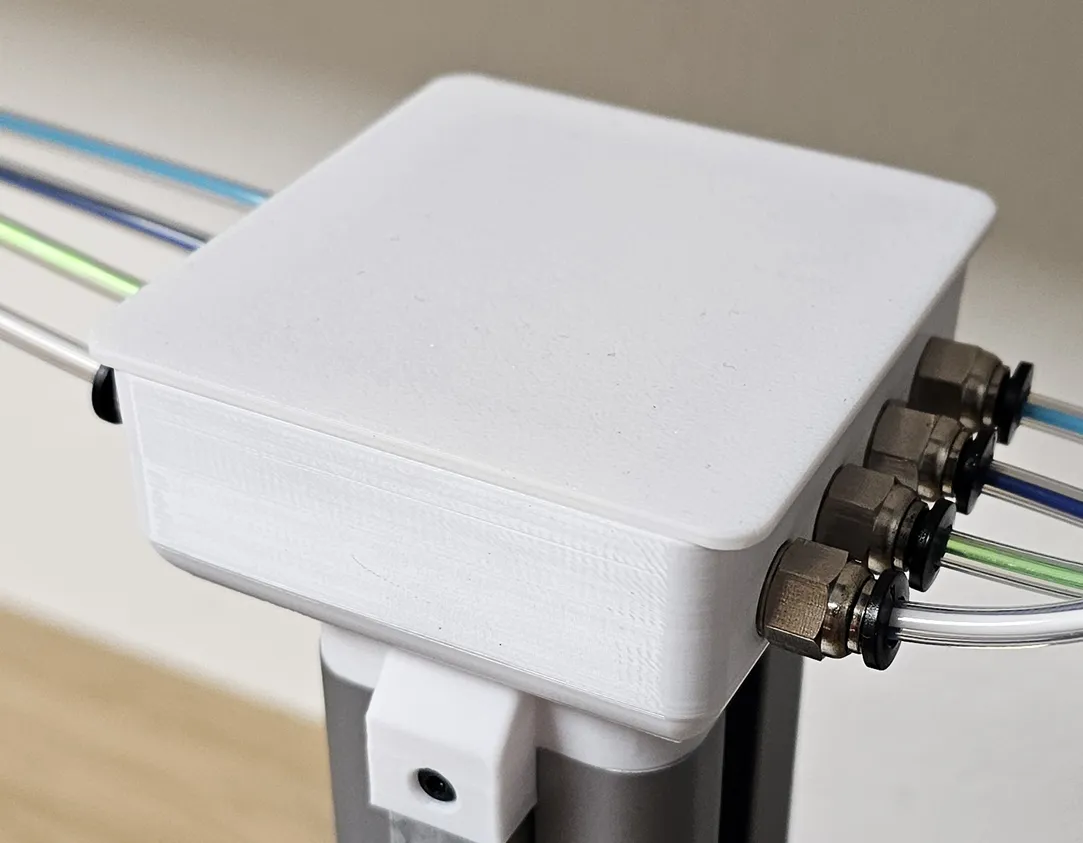

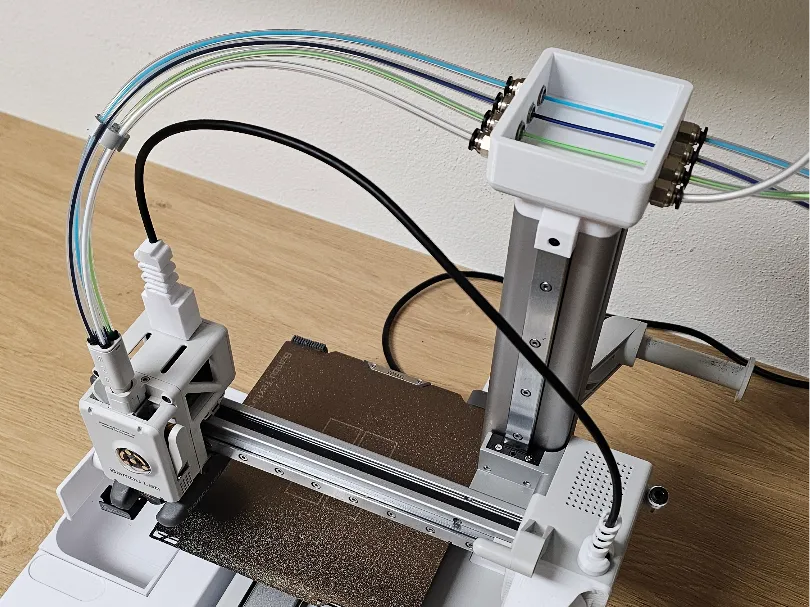

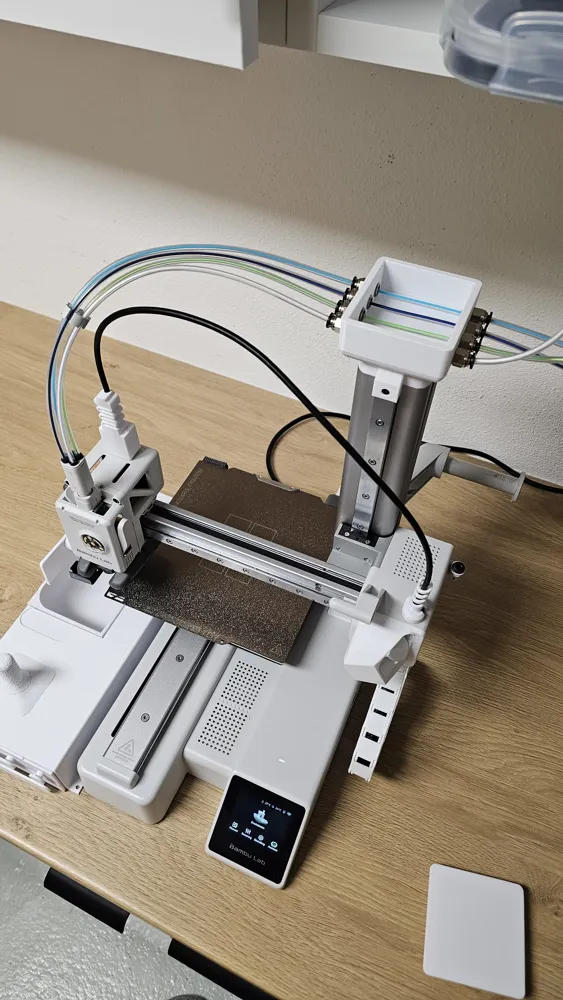

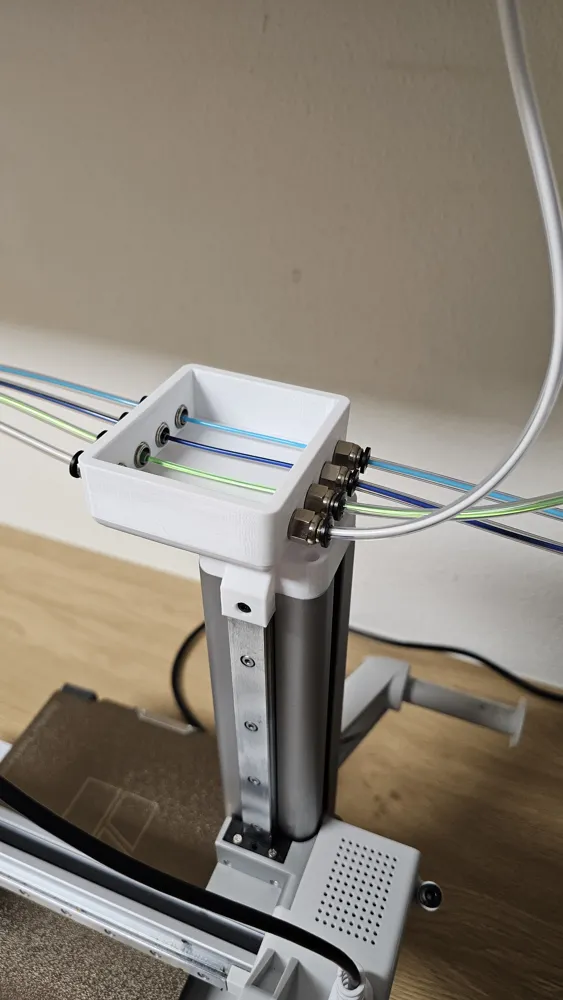

MMS Box with desiccant for mounting on the Z-axis of the A1 mini
The original Z-axis cover must be unscrewed and replaced with the one from the model, all screws are reused for this

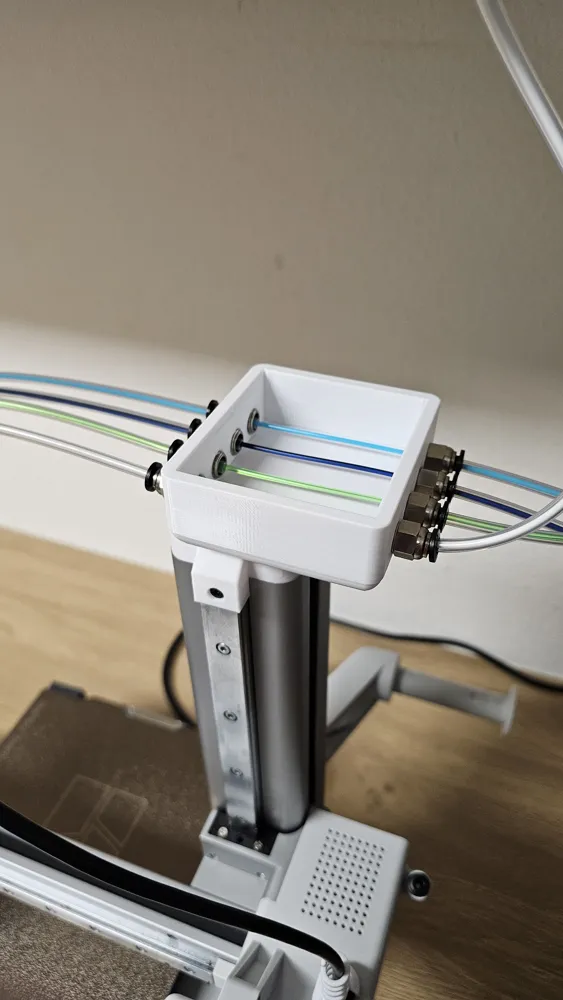

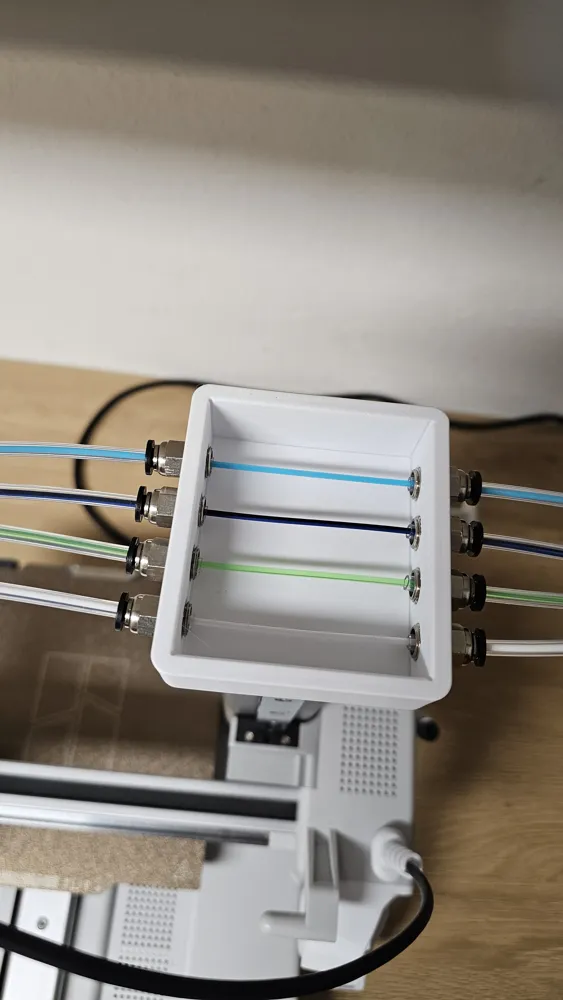

8x M10 PTFE adapters are needed, these can be easily screwed into the box

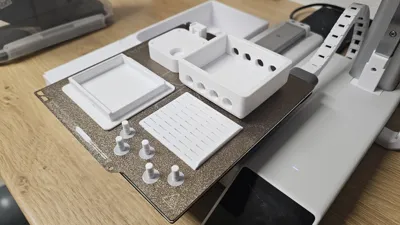

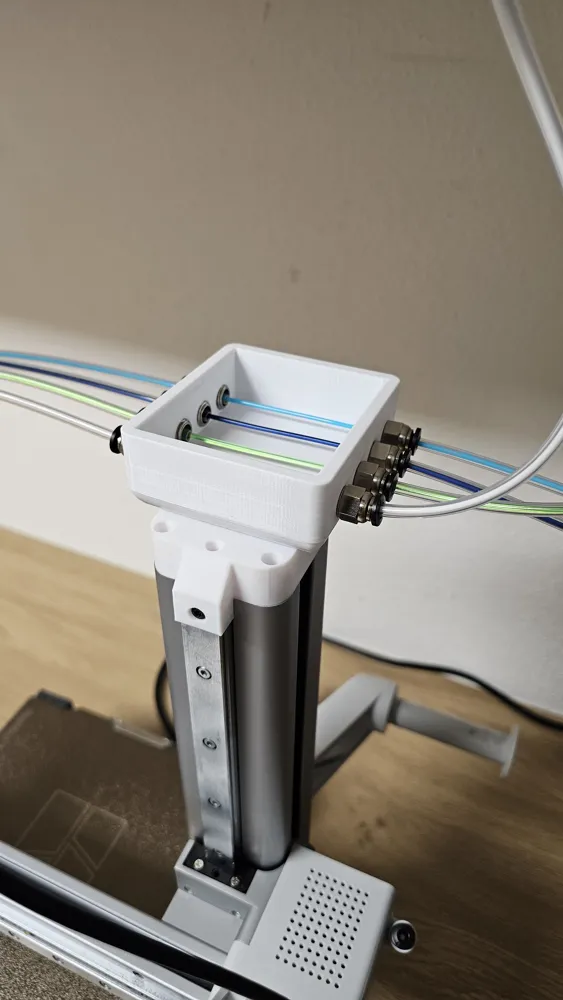

The box is mounted on the cover with pins/dowels and should fit snugly
Depending on the filament used, the pins/dowels can also be scaled slightly larger or smaller if they do not fit with my standard settings

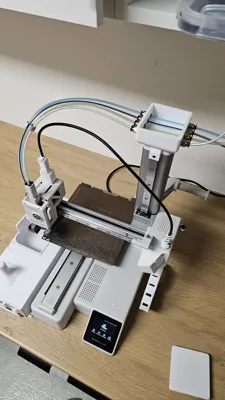

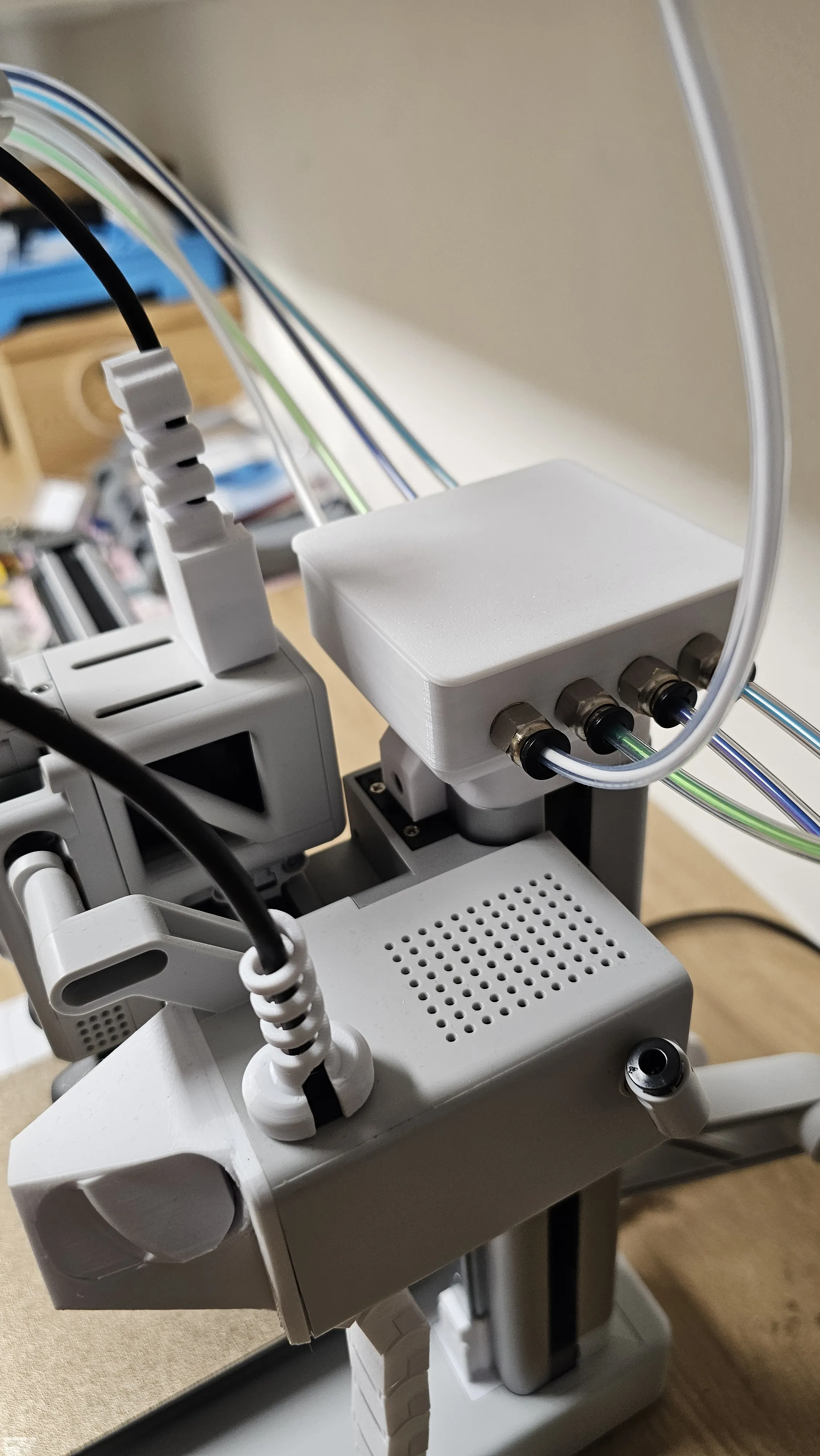

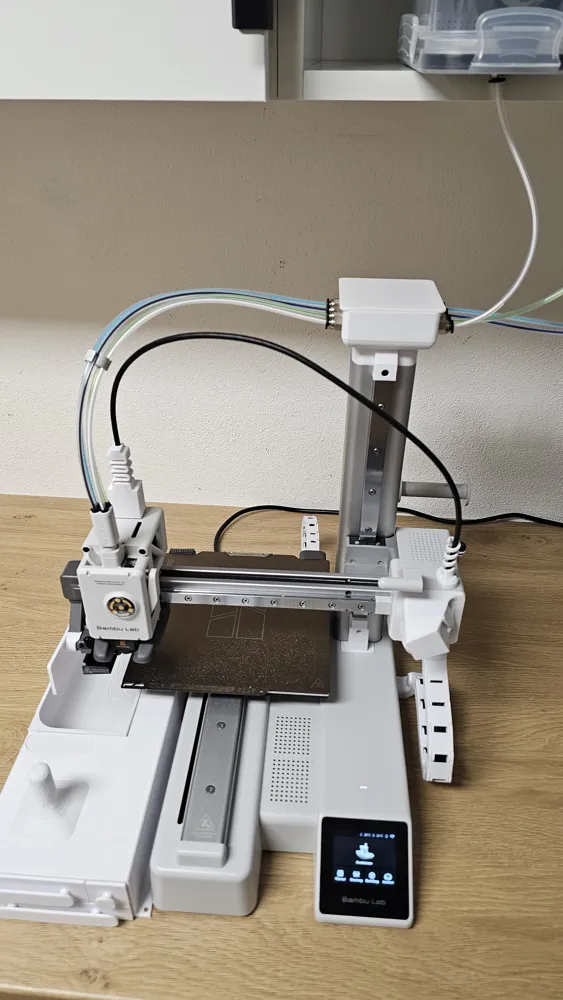

The MMS Box can be attached in various positions:
Centrally, left, right, offset to the back
Caution: if offset to the front, the print head will collide!
Please always check for any interfering contours:

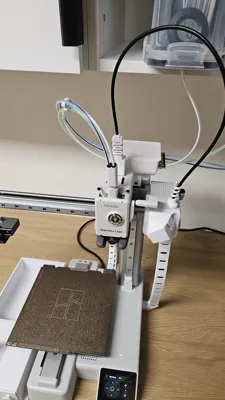

manually move the Z-axis up and the X-axis all the way to the right

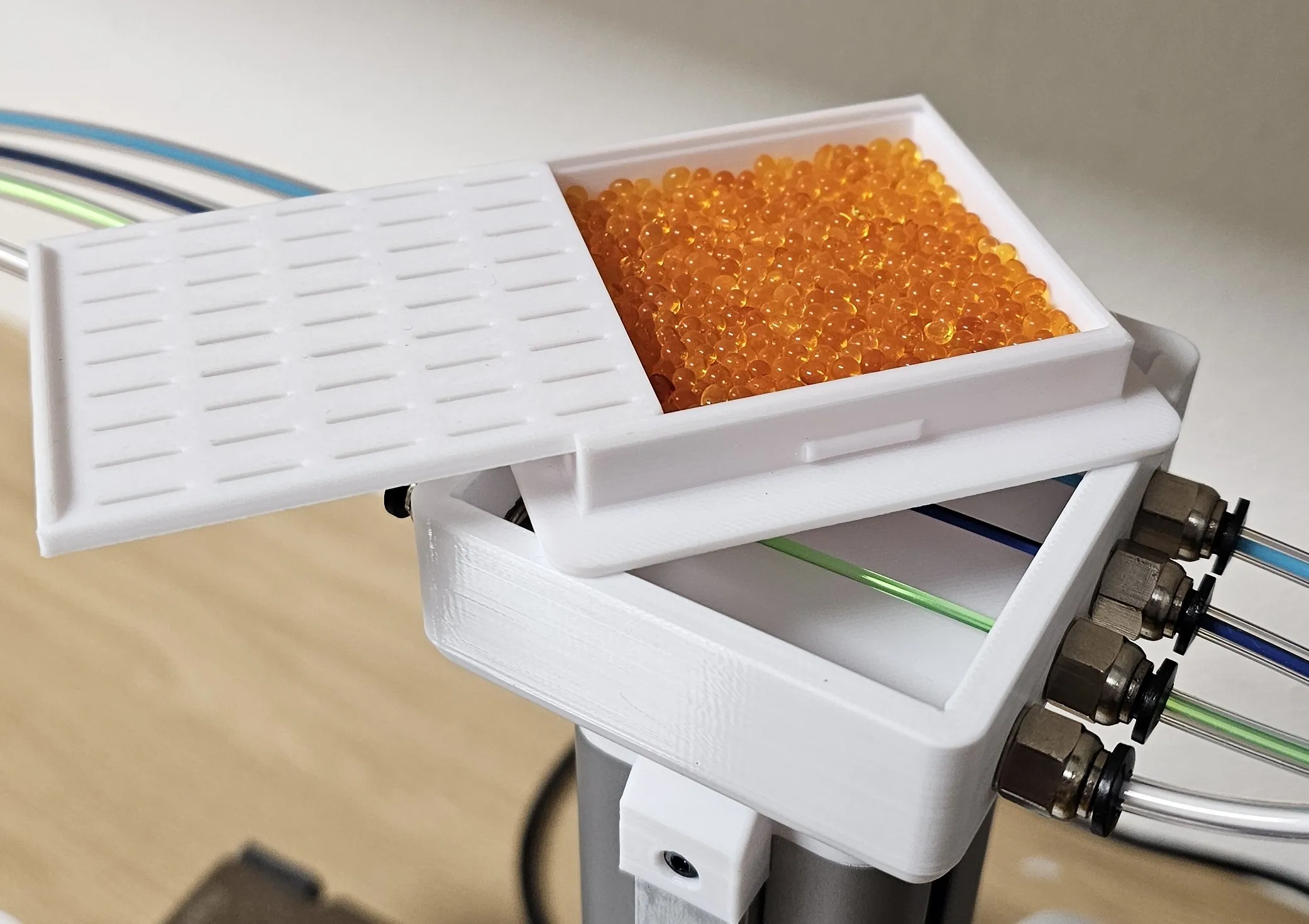

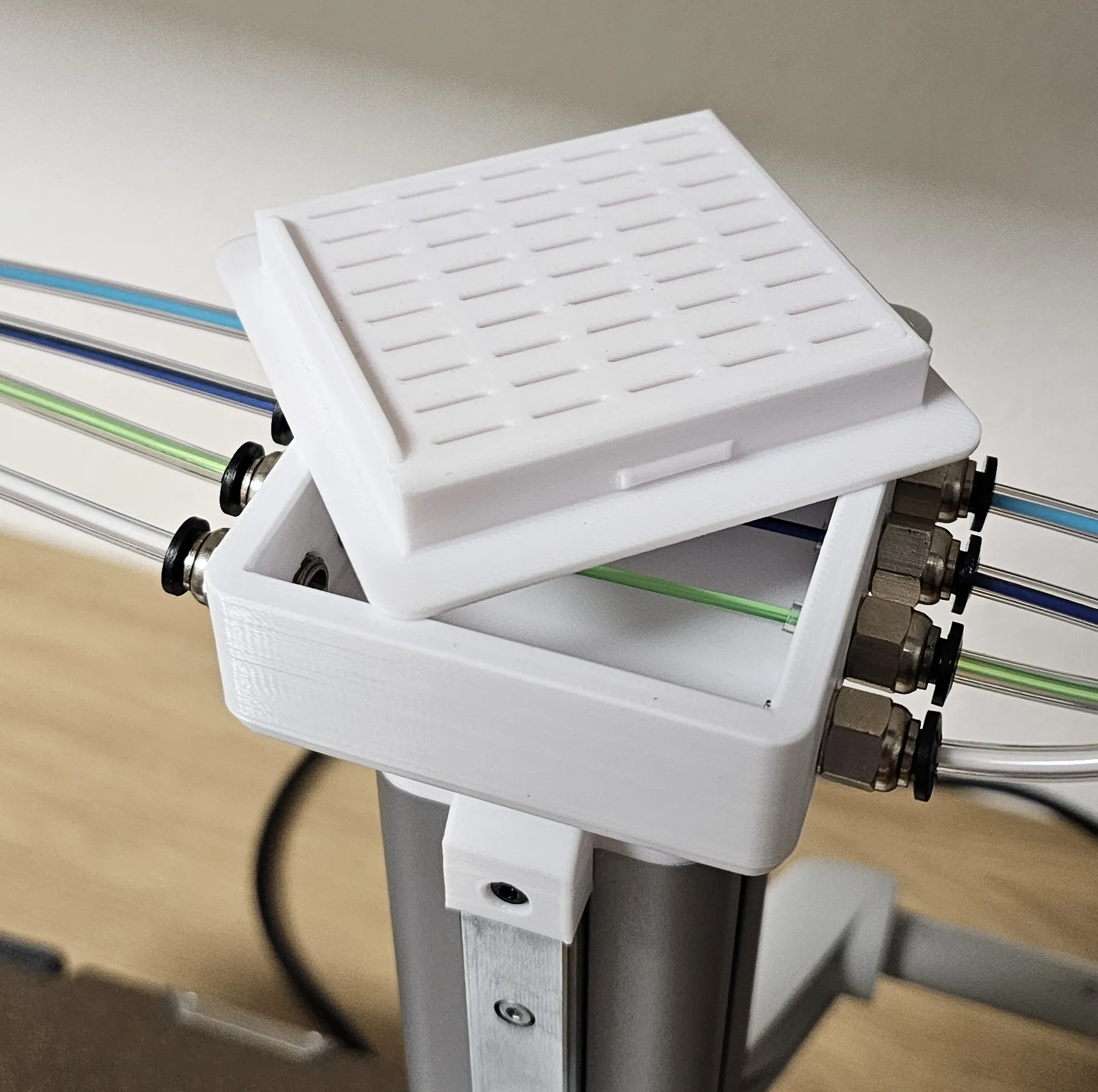

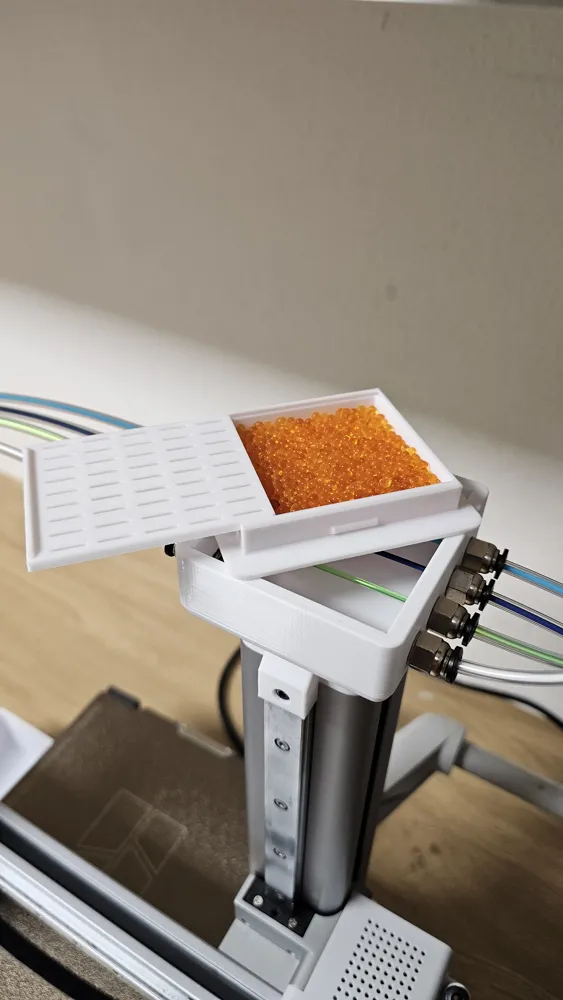

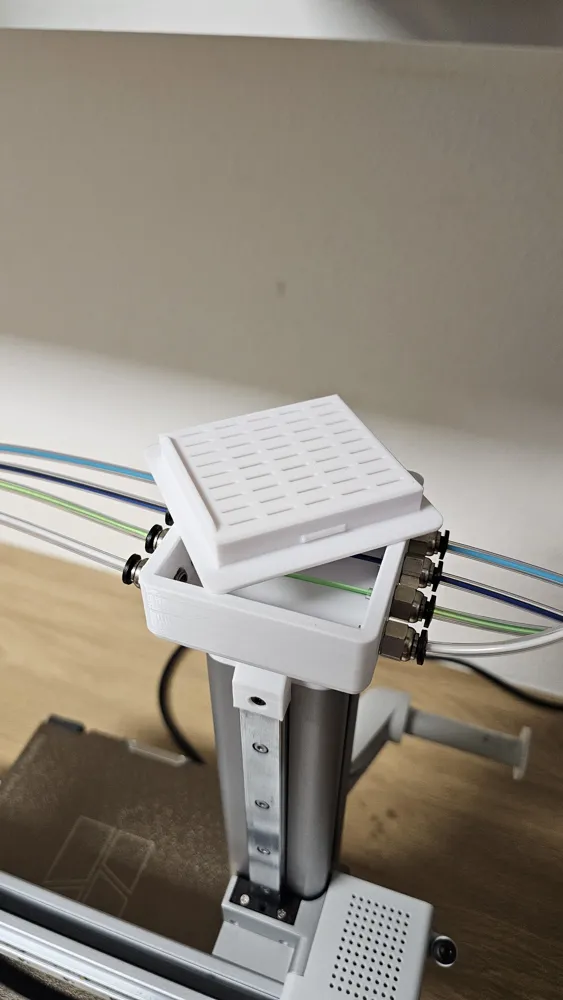

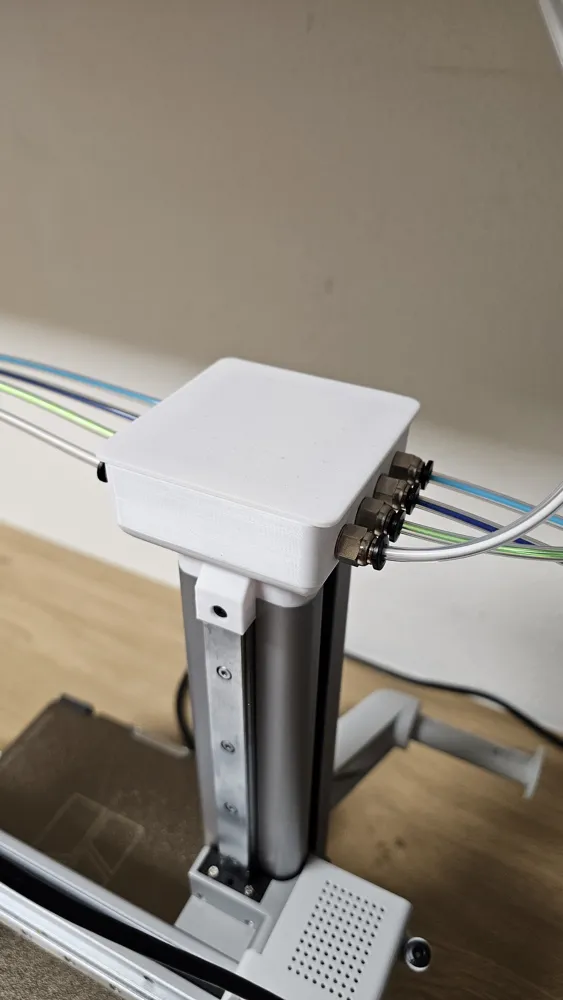

The lid snaps into the box, as does the slider on the lid that contains the desiccant
