DJI AVATA2 Tail Fin Battery Anti-ejection Cover Back Protection Plate Three-in-One
Print Profile(1)
Description
I recently got an Avata 2, so I took the opportunity to research the protective accessories on the market. I found that various accessories like tail fins, anti-dislodgment clips, and protection plates were incompatible due to the two screw holes on the back, making them extremely troublesome and expensive to assemble.

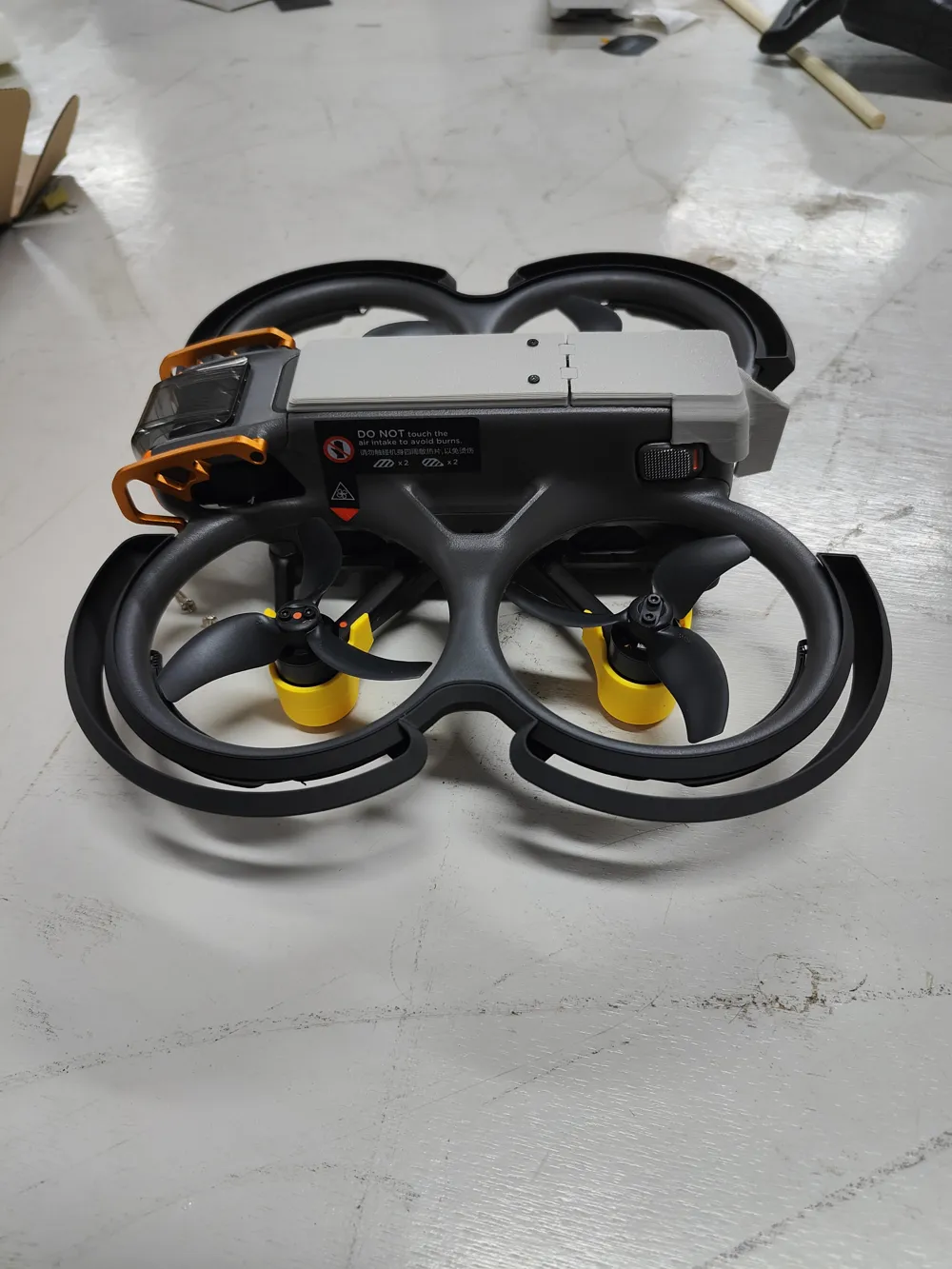

Therefore, I decided to hand-make a three-in-one accessory to solve the above functional needs at once, while only occupying two screw holes
This is currently the first version; the modeling and testing of the main functions have been completed. Next, I will continue to optimize the appearance and reduce weight

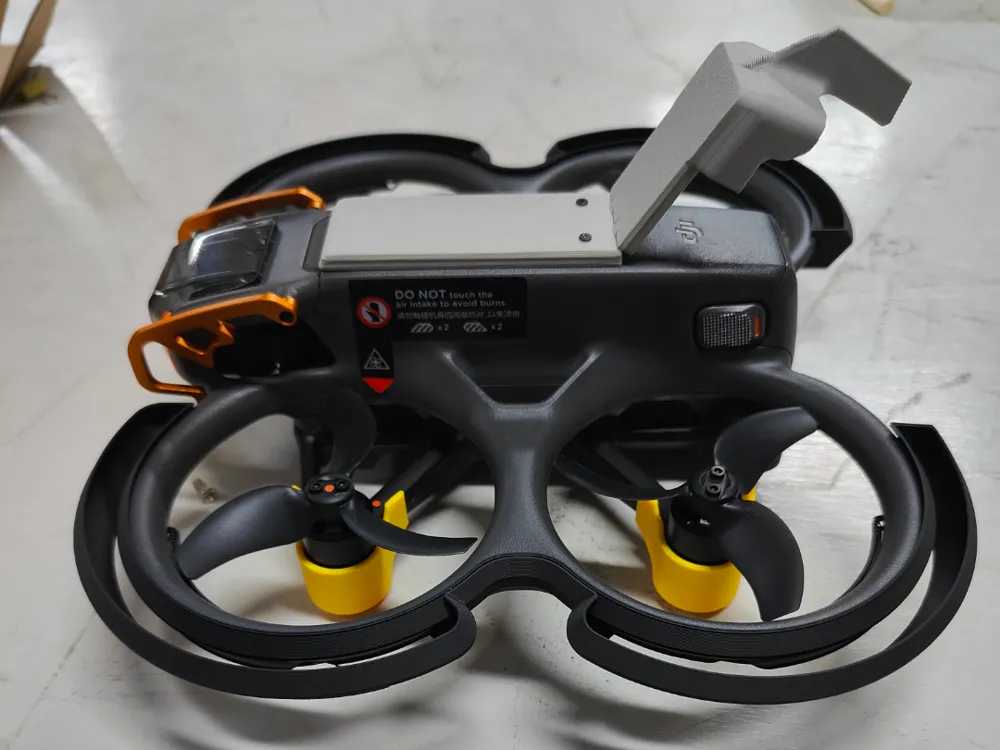

The thinnest part of the entire plate is 3mm thick, and the hinge has a maximum opening of 70 degrees. It does not affect battery removal or power on/off. Actual tests show it can still maintain hover after 300 violent open/close cycles
————————————————
The screw size officially provided by DJI is m1.6. If you're worried about it not being secure, you can buy longer screws yourself, but don't make them too long. The bottom of the screw holes on the top cover are empty, and applying too much force will damage the battery
Friends who have printed and used it, could you please share photos or your user experience I tried my best to make the tail fin part resemble DJI's previous official kit, but how effective it truly is still requires a larger sample size for verification
