Sci-fi Model Rocket
IP Report
Print Profile(2)

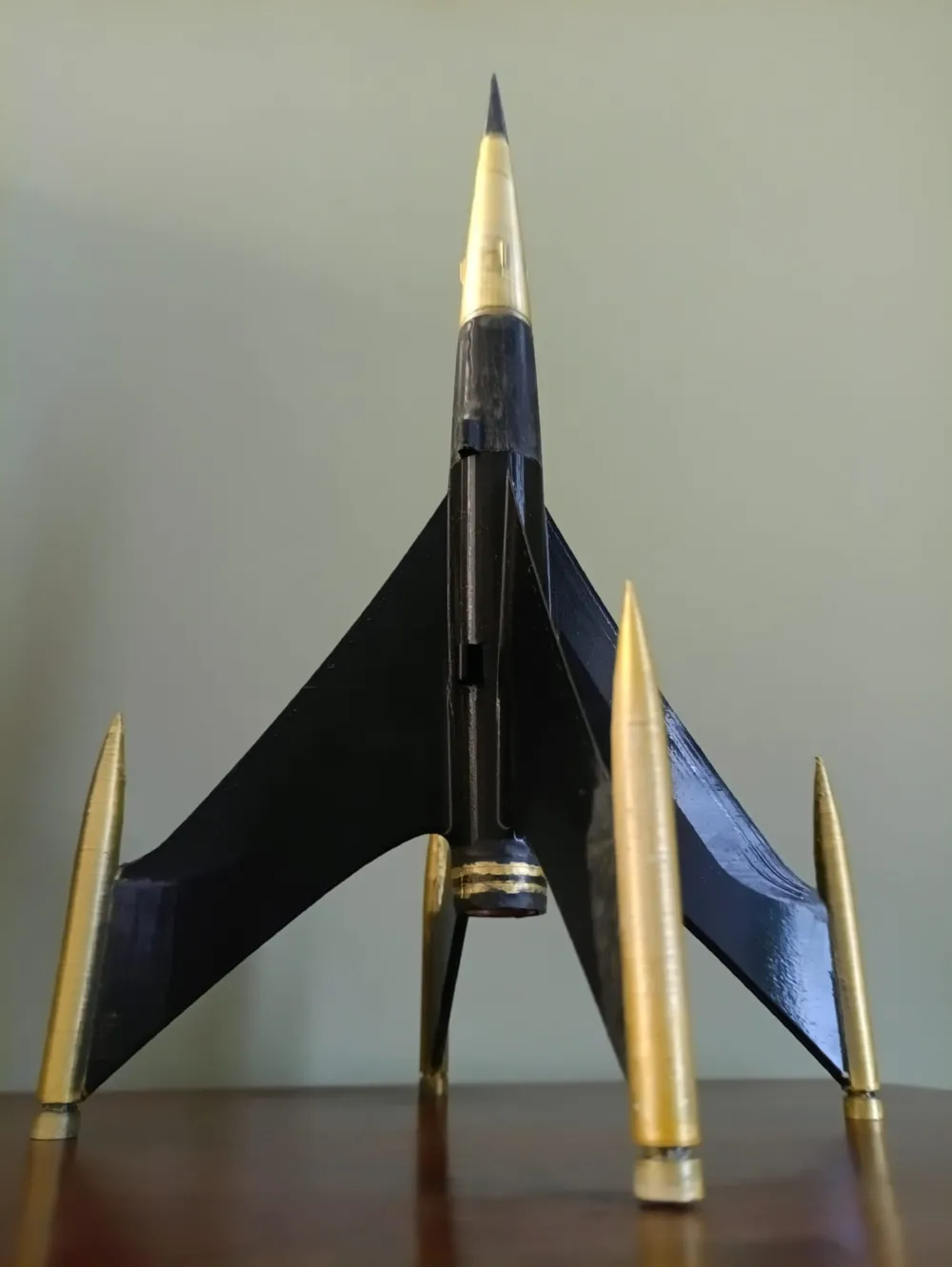

Display rocket (non functional)
Designer
7.8 h
2 plates
Functional Rocket
Designer
15 h
3 plates
Open in Bambu Studio
Boost
42
88
6
1
54
21
Released
Description
Valigursky rocket (Have a look at my other rockets here)
specs:
- total length: 360mm
- weight (without motor): 144g
- body diameter: 30mm
- launch lug diameter: 4mm
- max motor diameter: 20.5mm
- max motor length: 87mm
- Recommended motor class: C or D class
- max parachute length (folded): 99mm
- inside diameter for parachute: 22mm to 14mm (cone shape)
- max parachute volume: 25.62 cm³
- stability: 1.9 cal

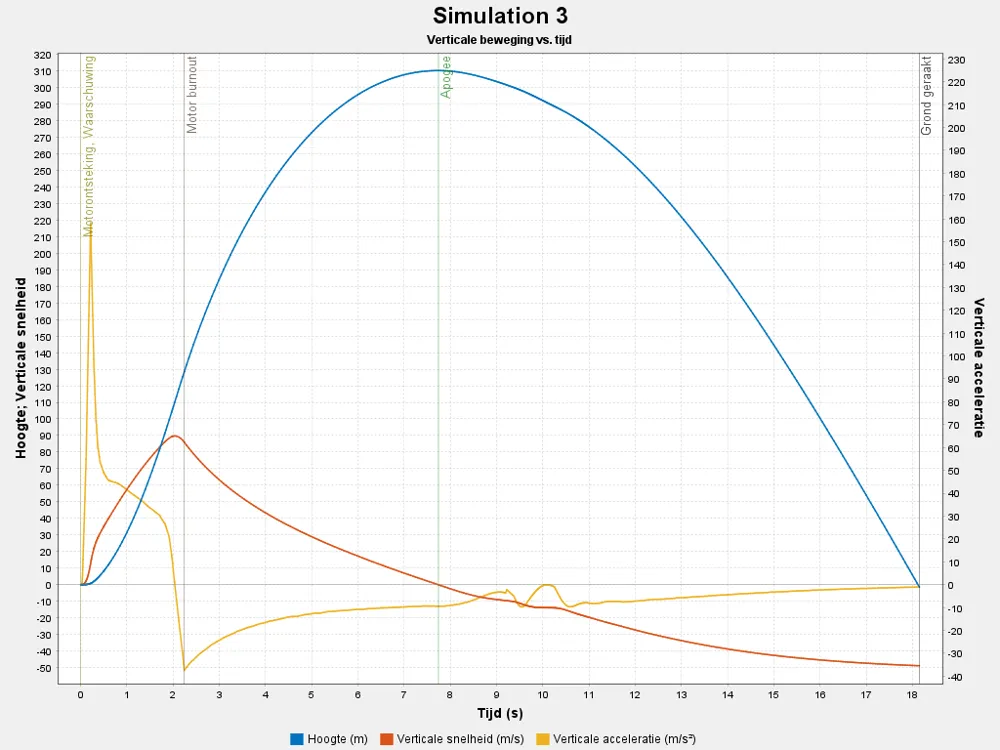

- apogee: 290m (using 20Ns engine)
Assembly tips:
- Use tape for a snug fit of the motor
- Use an elastic material for the shock cord

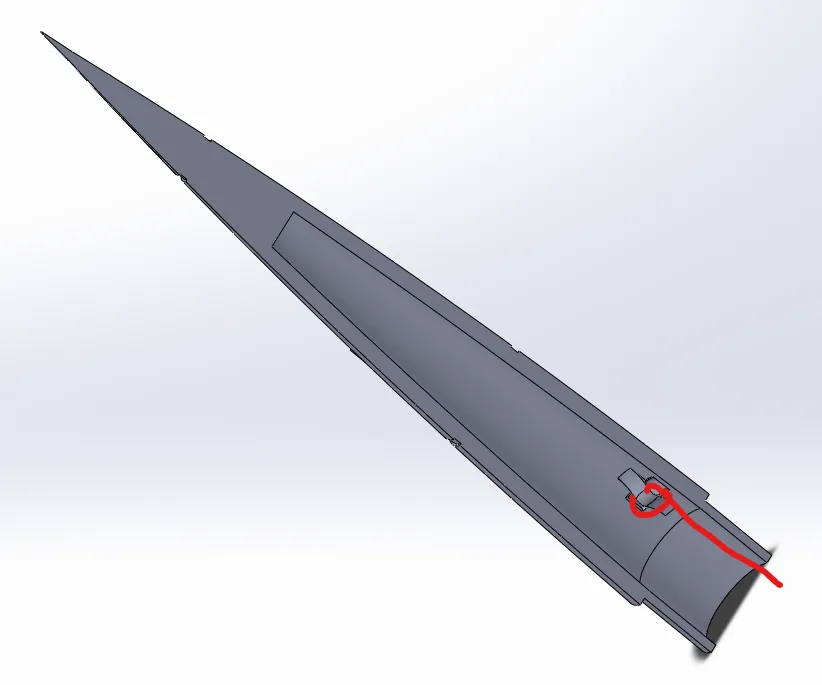

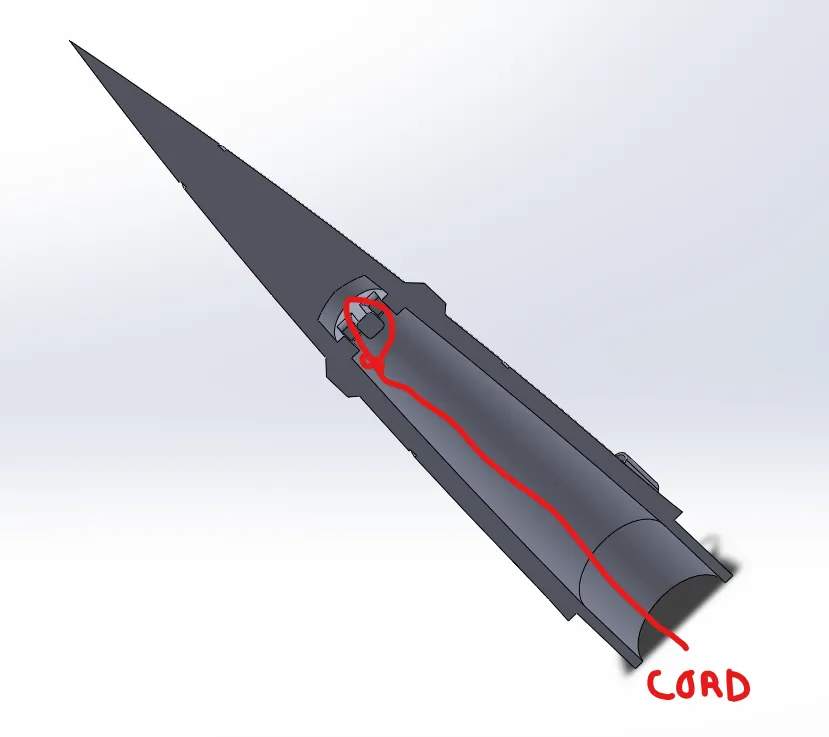

- Use a thin metal wire to route the cord
design: based on Sci-fi illustration by Edward Valigursky
- Choose nose cone option one for strength
- Choose nose cone option two for easy installation
| nose cone option 1 | nose cone option 2 |
 |  |
Printable on the A1 mini
