Taktische Zeichen Modul-Euro-Box

Summary

Tactical Signs Module Euro-Box

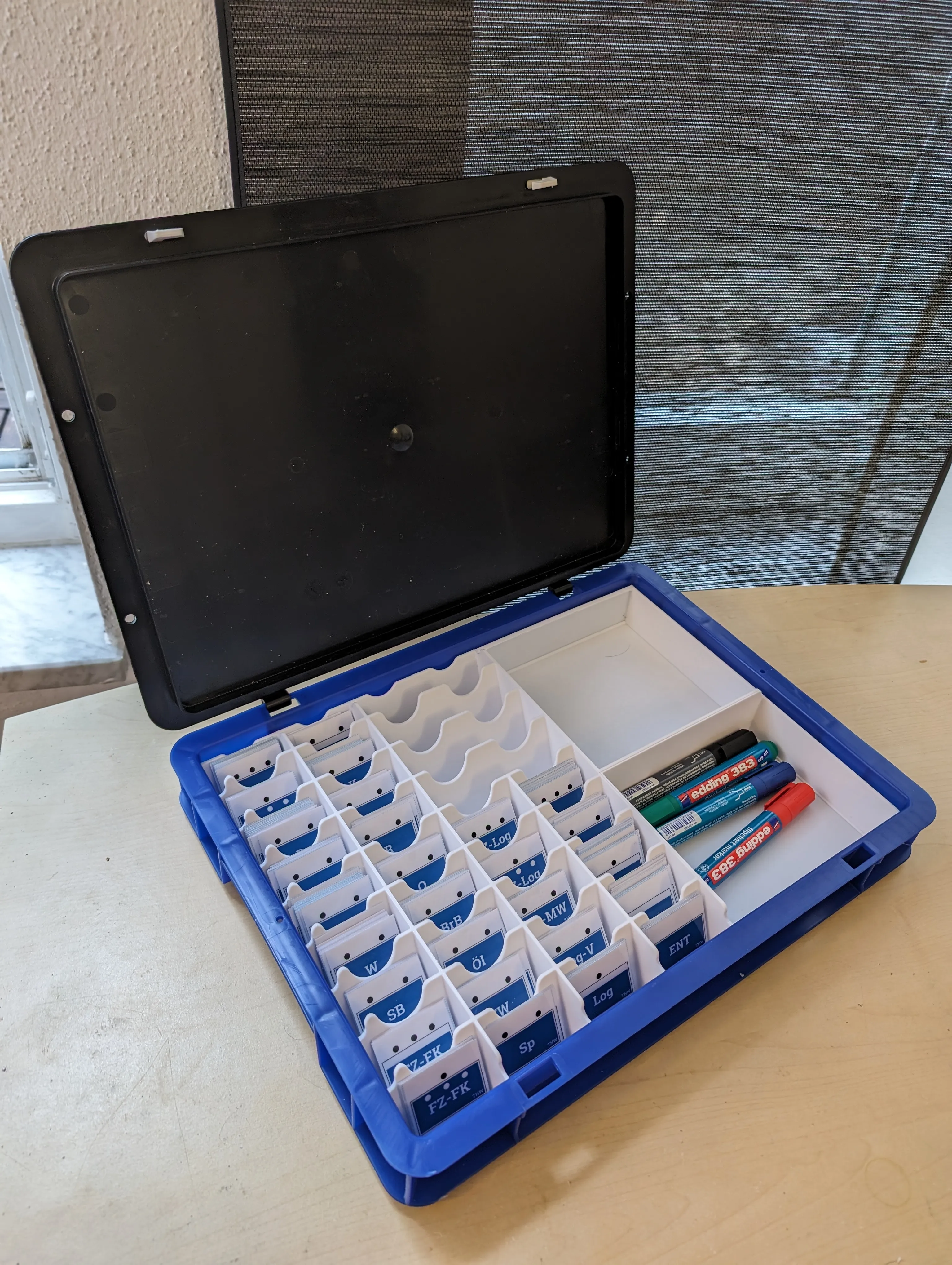

For the cost-effective storage of tactical signs and accessories in a flat Euro-box. The dimensions of the Euro-box must correspond to 40x30x5cm.

The total cost of a box is about 20 euros (depending on the cost of the filament and the Euro-box).

The STLs are divided into 4 parts. Parts with the same position can be exchanged.
In the names of the STL files you can see which of the 4 parts it is:
ol = Top left
or = Top right
ul = Bottom left
ur = Bottom right

Signs = Compartments for tactical signs of sizes 4.4 x 4.6 cm this corresponds to the standard sizes of the FK in the THW (5cm C-profiles)
SignsXXXDouble = Compartments for double tactical signs (8.4 x 4.6 cm)

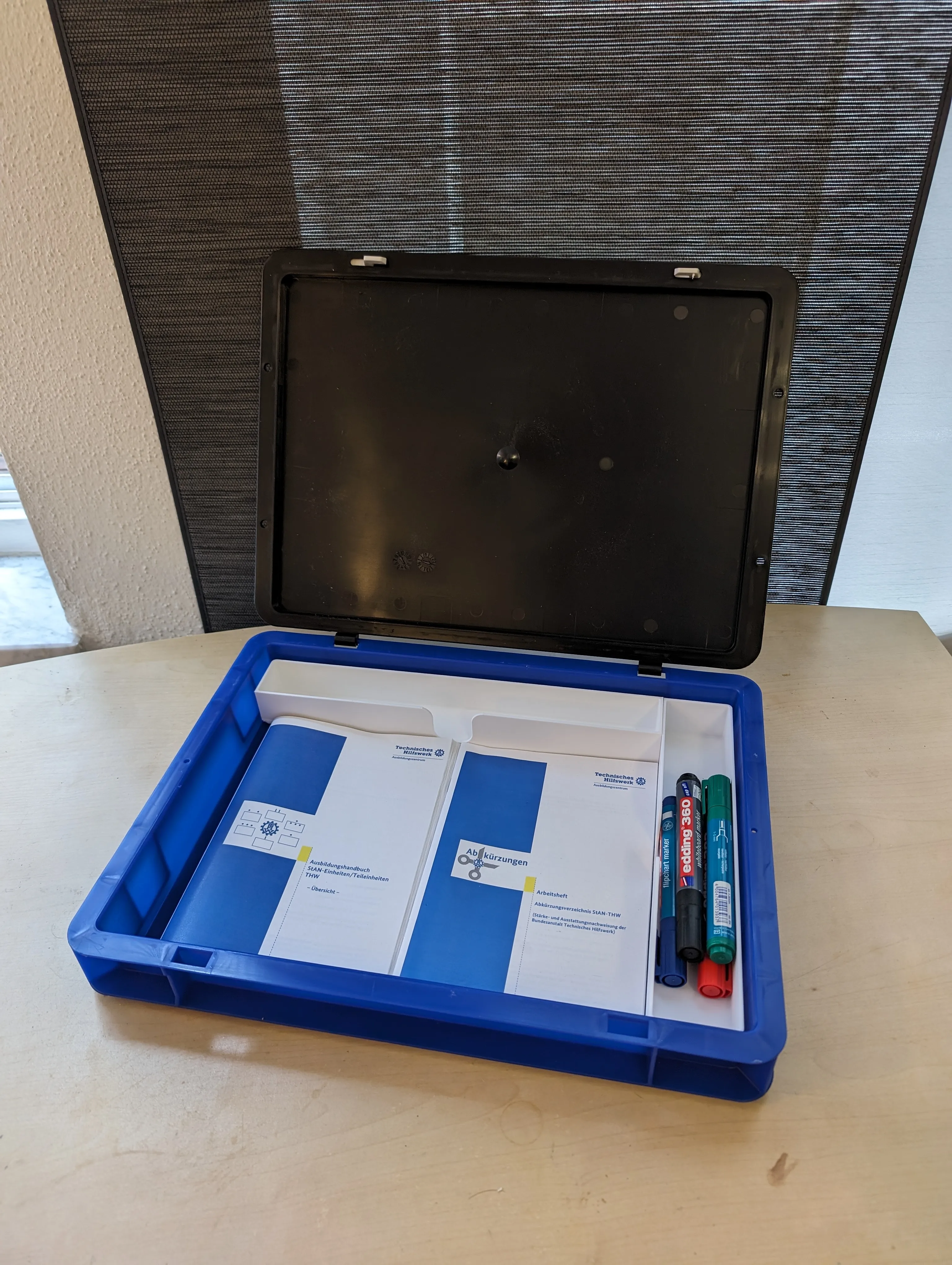

Open = Open compartments for accessories, pens and C-profiles.

A4 = Open compartments that leave an area in A4 size open. Damage accounts, reporting blocks or similar can be stored there.

tested with:
PLA PETG and ASA

Required print area:
All parts can be printed with a print area of 25x25cm
(Without the A4 parts, 21x15 is also sufficient)

Update:

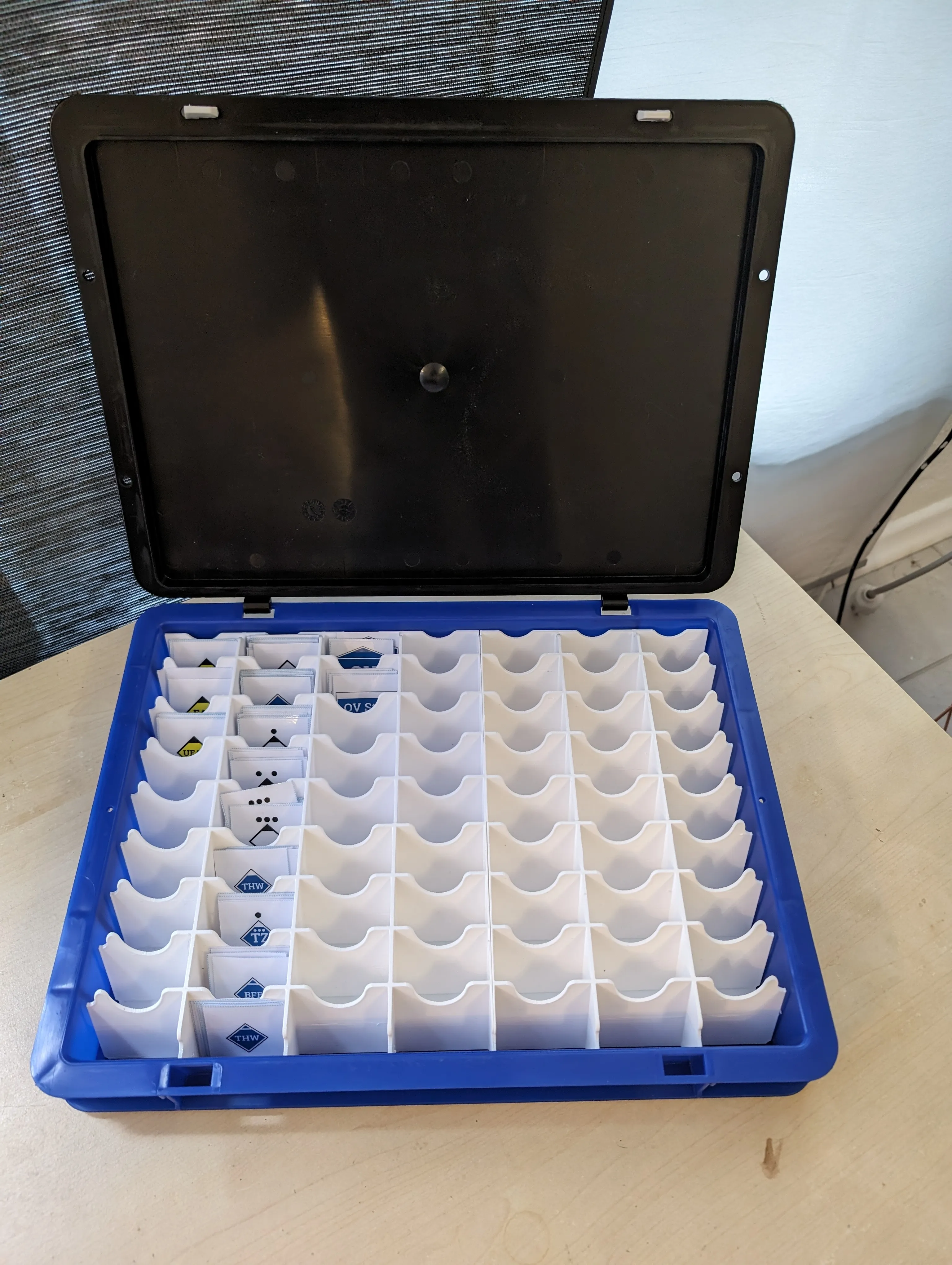

Added STLs for all 4 parts where (almost) all compartments are double compartments.

Update:
Version 1.2 Adjustments in width. v1.2 is not compatible with the old versions.

Custom Section
