10 Inch Mini Rack, STEP Model

Mini 10, Open Source Mini Rack with STEP Model

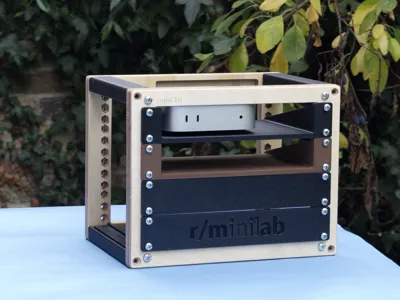

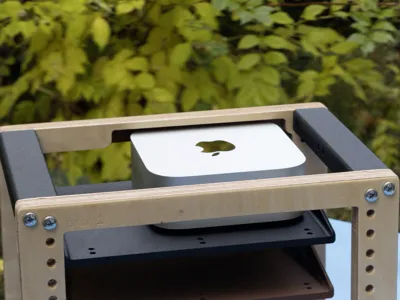

The Mini 10 is made from two CNC machined plywood frames connected by 3D printed beams. The printed beams have zip-tie holes for cable management and slots for adding your own printed side panels.

I sell full kits at minirack.samhillier.com or DIY your own mini rack with the public files.

(to print the large flat frames you need a printer larger than 281mm wide)

Full STEP model of the entire case (non-commercial use, personal only)

Simply import it to the CAD software of your choice and you can start creating new mods right away.

Sharing the STEP model gives makers the best experience for creating new parts for this mini rack. It's a bit scary because it makes ripping off your design much easier (hence why most people choose to not share the STEP model. But I was inspired by cooler masters recent PC case releases to share the STEP model.

Details:

• 16 M5x30mm screws to assemble core frame
• Mounting holes for racks use #10 ¾ inch screws
• Plywood parts from me are Birch plywood varnished with OSMO oil.
