Description
Congratulations on finally discovering FunOrNothing :)

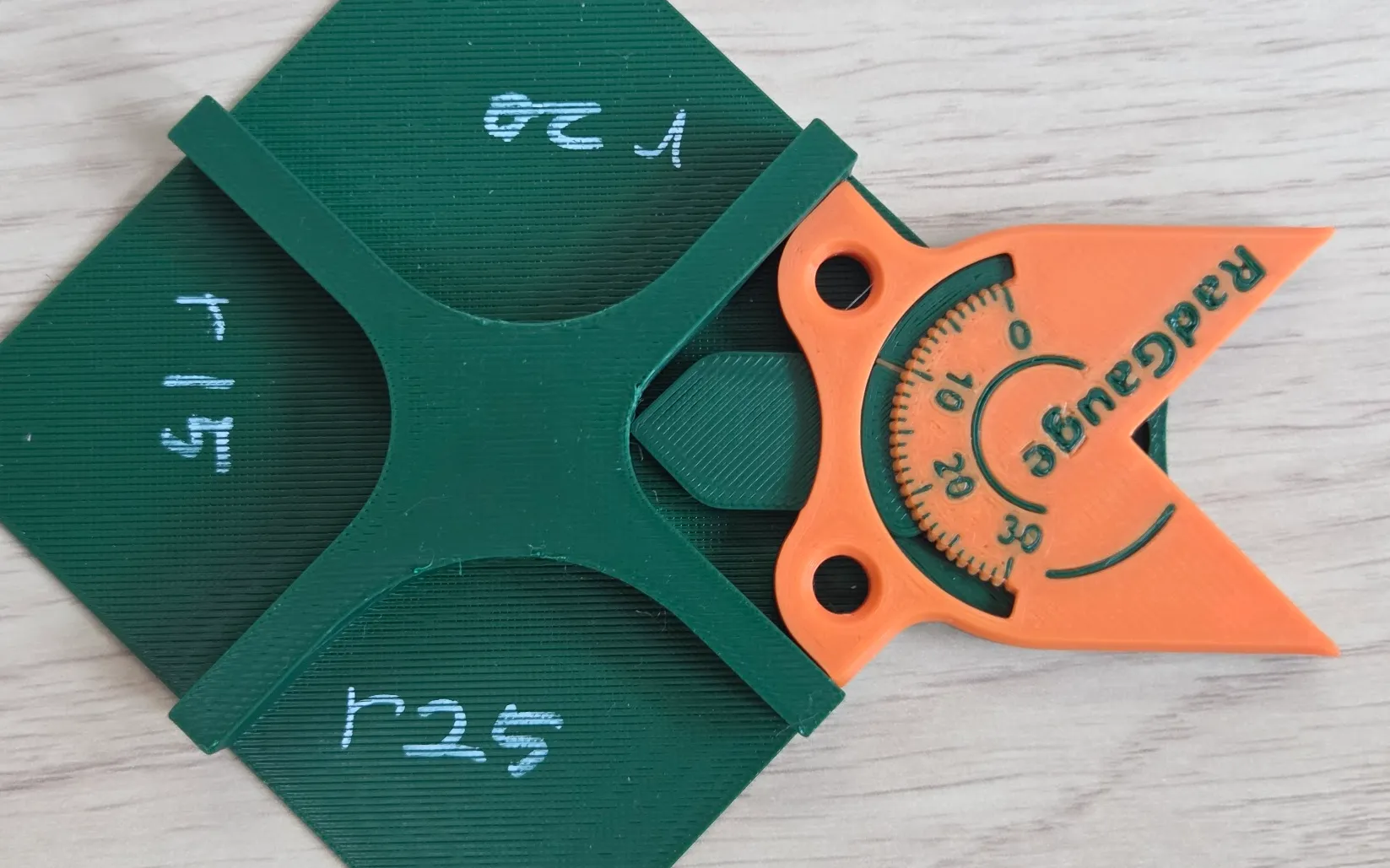

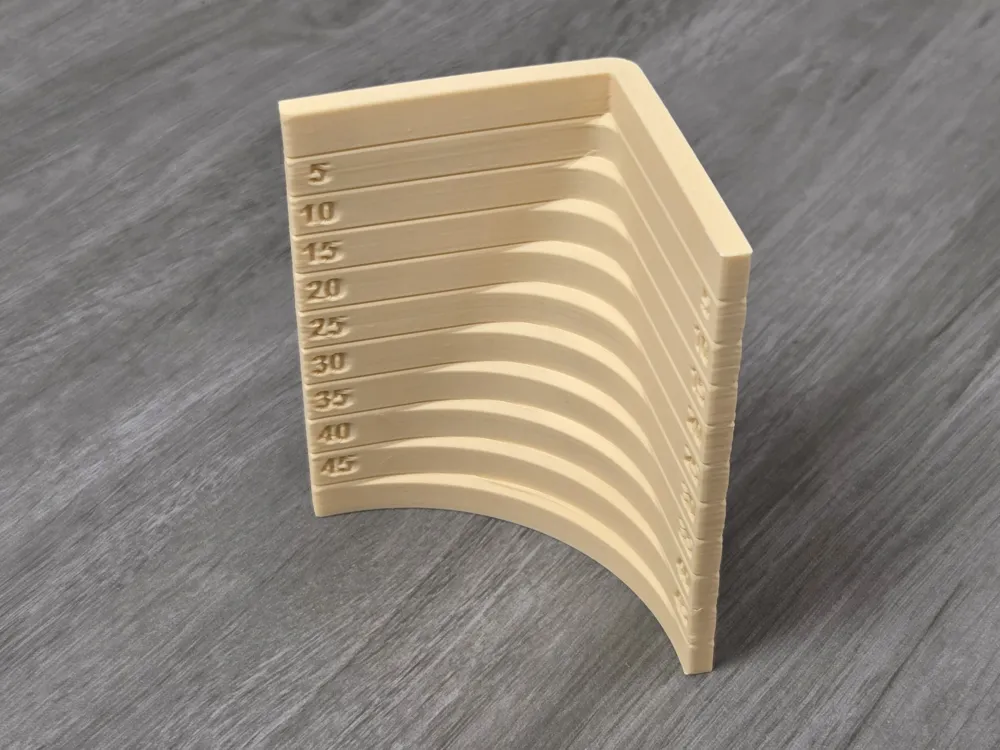

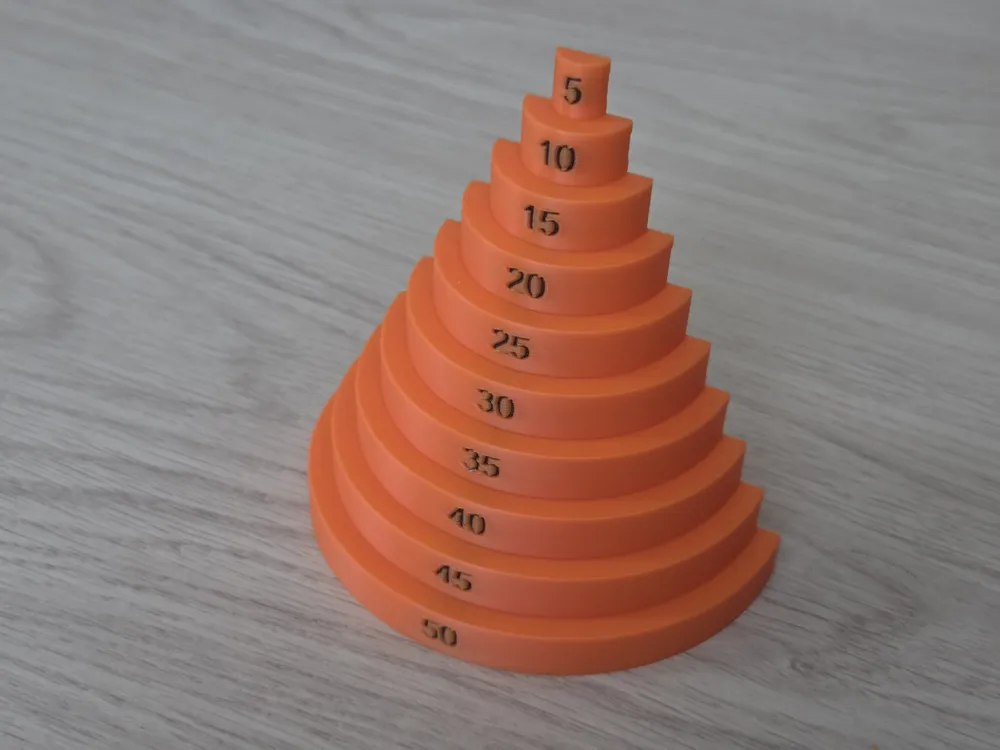

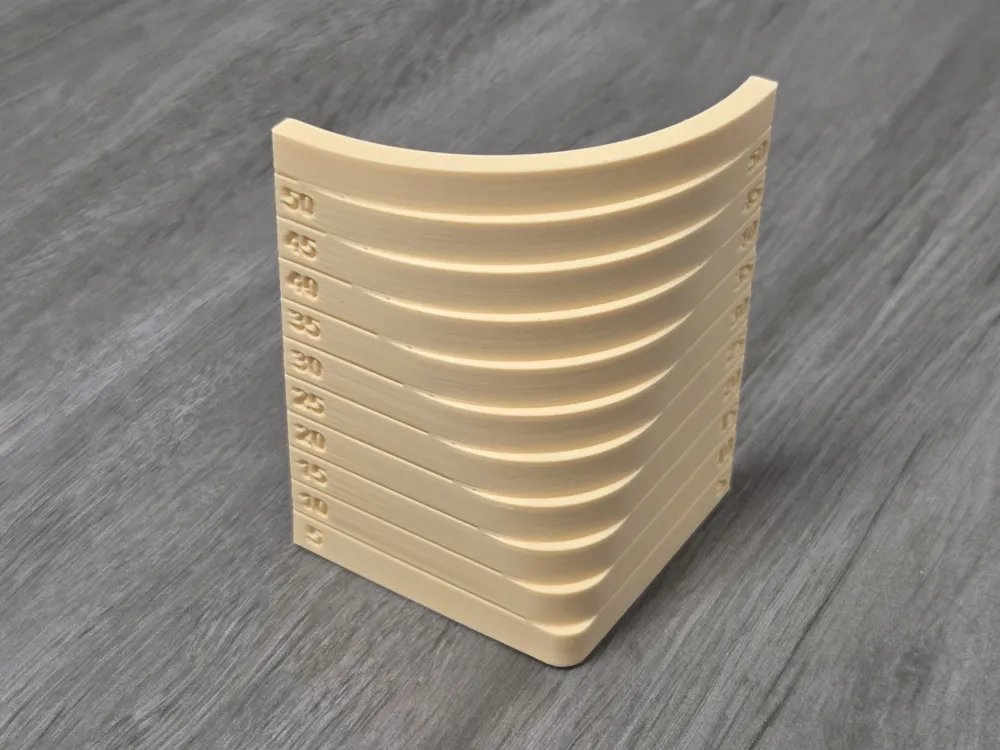

This is the model I used for testing while designing the RadGauge series.

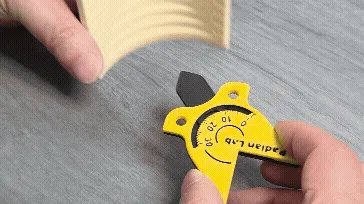

Test the accuracy of your RadGauge model.
Boost Me (for free)
Your boost helps me spend more time creating better designs.
And don’t forget to check my other models — you might discover something useful! 😊
Still unfamiliar with RadGauge?

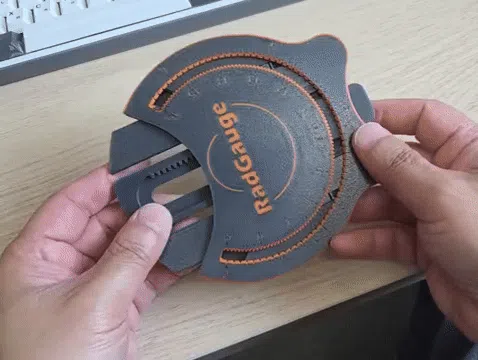

🌀 RadGauge – Radius Measurement Tool
Radgauge is an innovative device designed to quickly and accurately measure the radius of a curved surface. Currently, four designs are available depending on the measurement range and function, and the characteristics of each design can be checked in the table below.
(Click on the letters in the table to go to the page where you can print the design.)

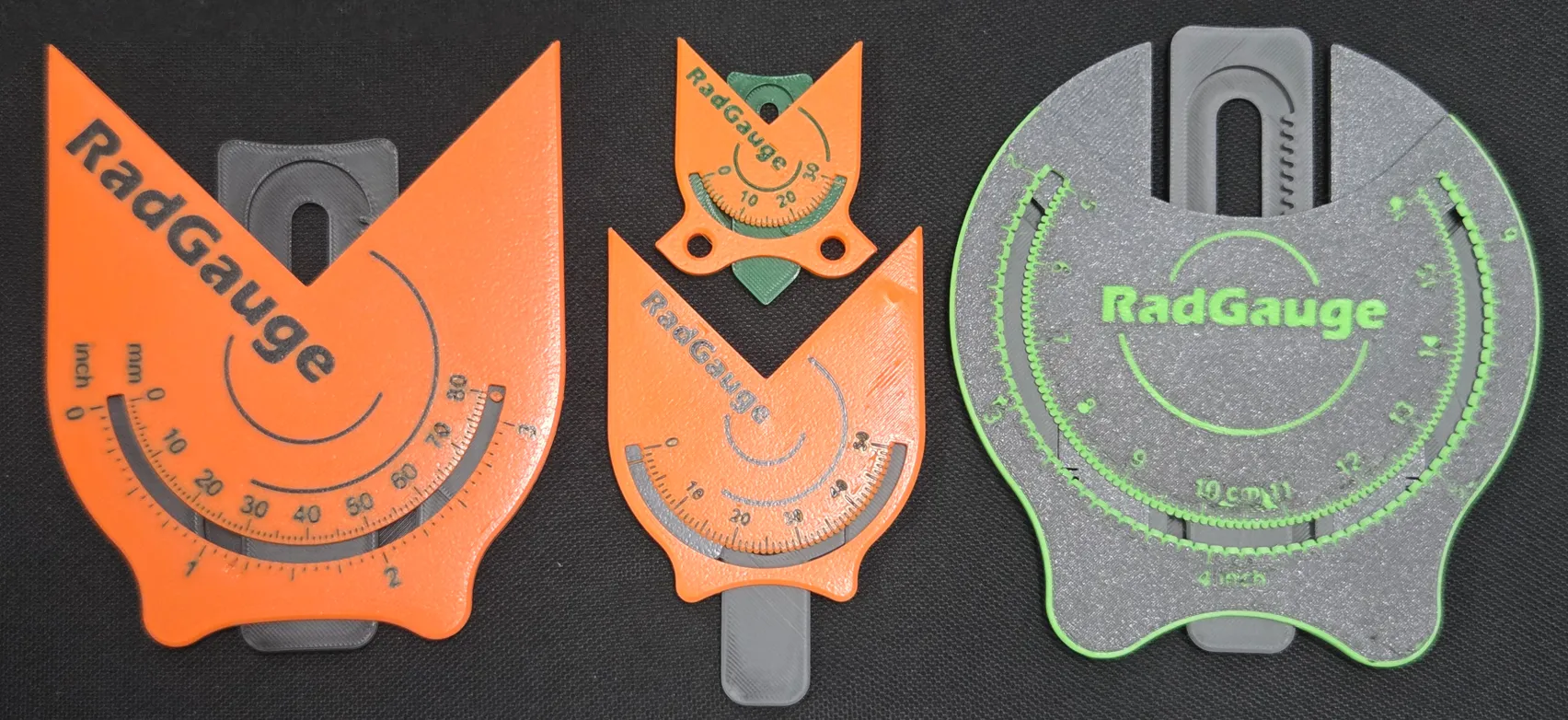

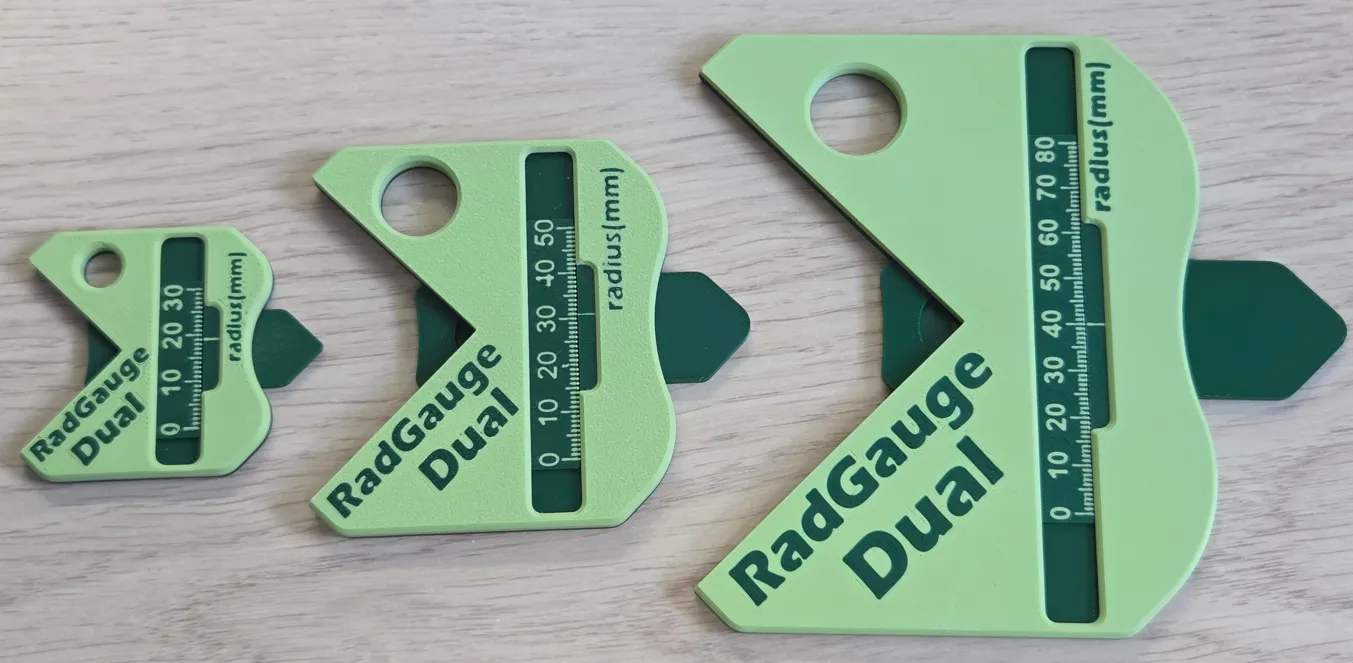

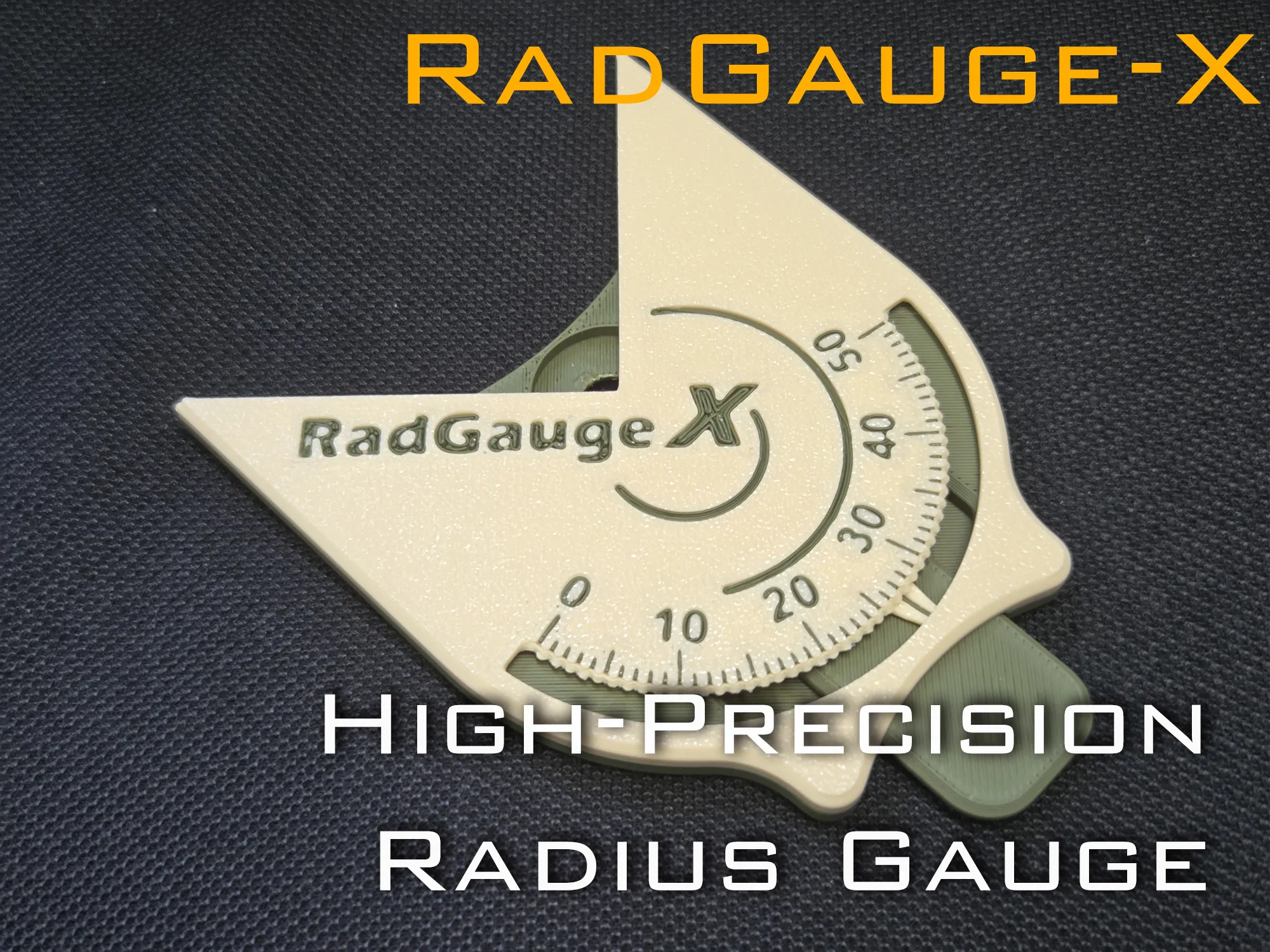

RadGauge Family
| Name | Measure Range (Radius) | Scale Unit | Measure Location | Size (mm) | Scale Type |
| 1~50mm | metric | Outter Round | 81.3 x 70.7 x 6.4 | ||
| 1~80mm | metric & imperial | Outter Round | 136.4 x 113.1 x 7.0 | ||
| 1~30mm | metric | 62.5 x 50.7 x 5.8 | |||

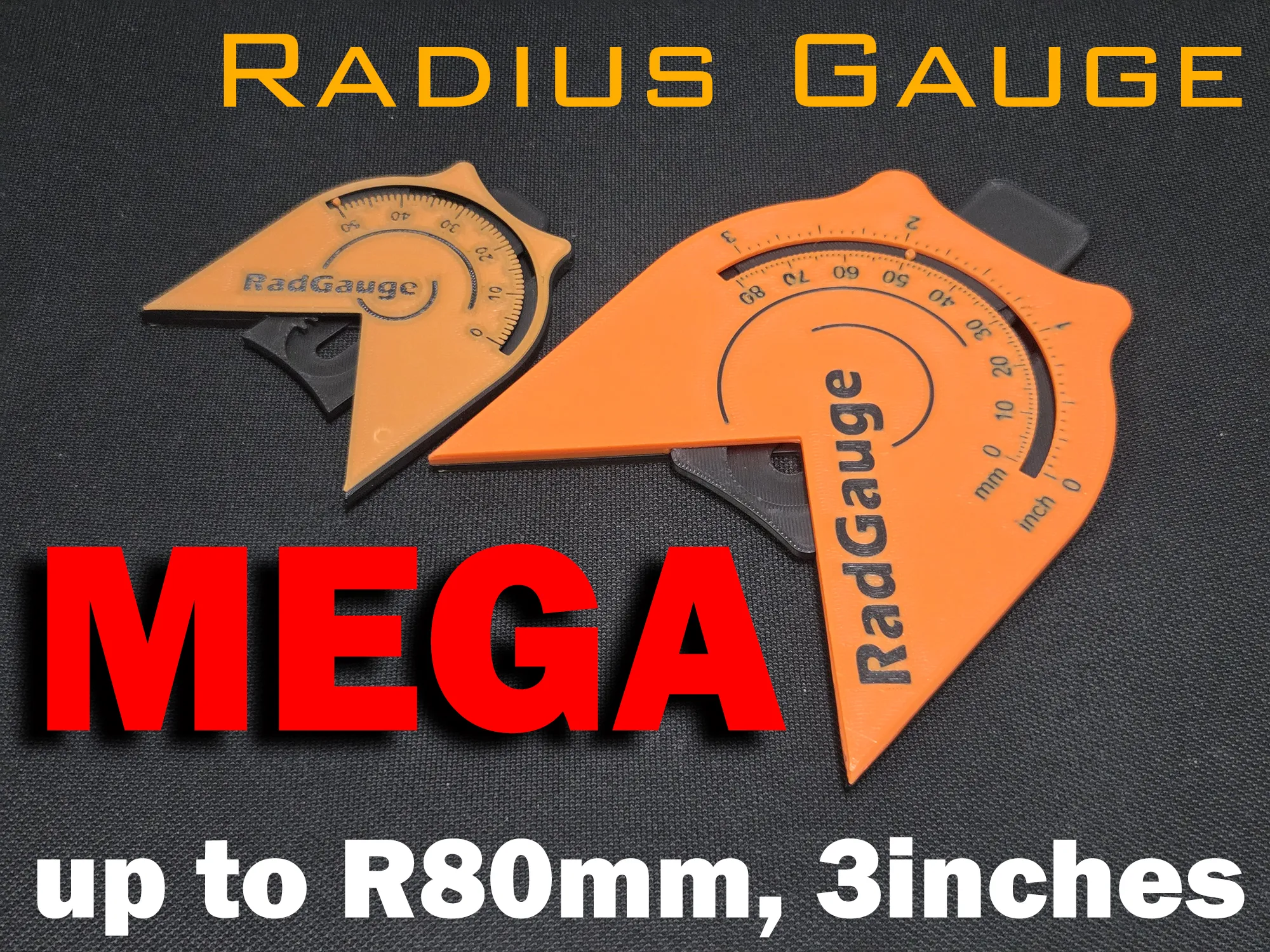

RadGauge MEGA is ready for those who need to measure larger radius.
RadGauge GIGA is ready for those who need to measure even larger radius.
Hope you Enjoy this model.
As always, I welcome your feedback.
