Anycubic i3 Mega Top Spoolholder
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
12
13
0
0
23
5
Released
Description

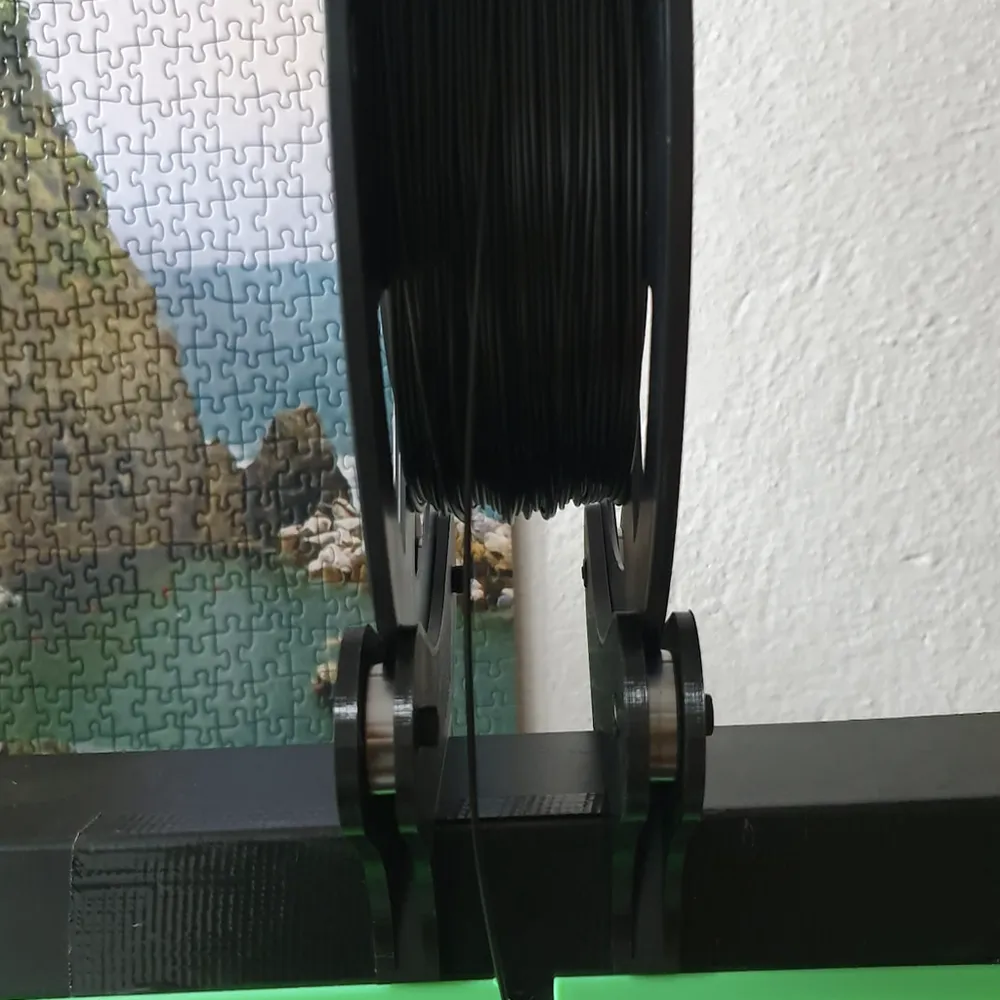

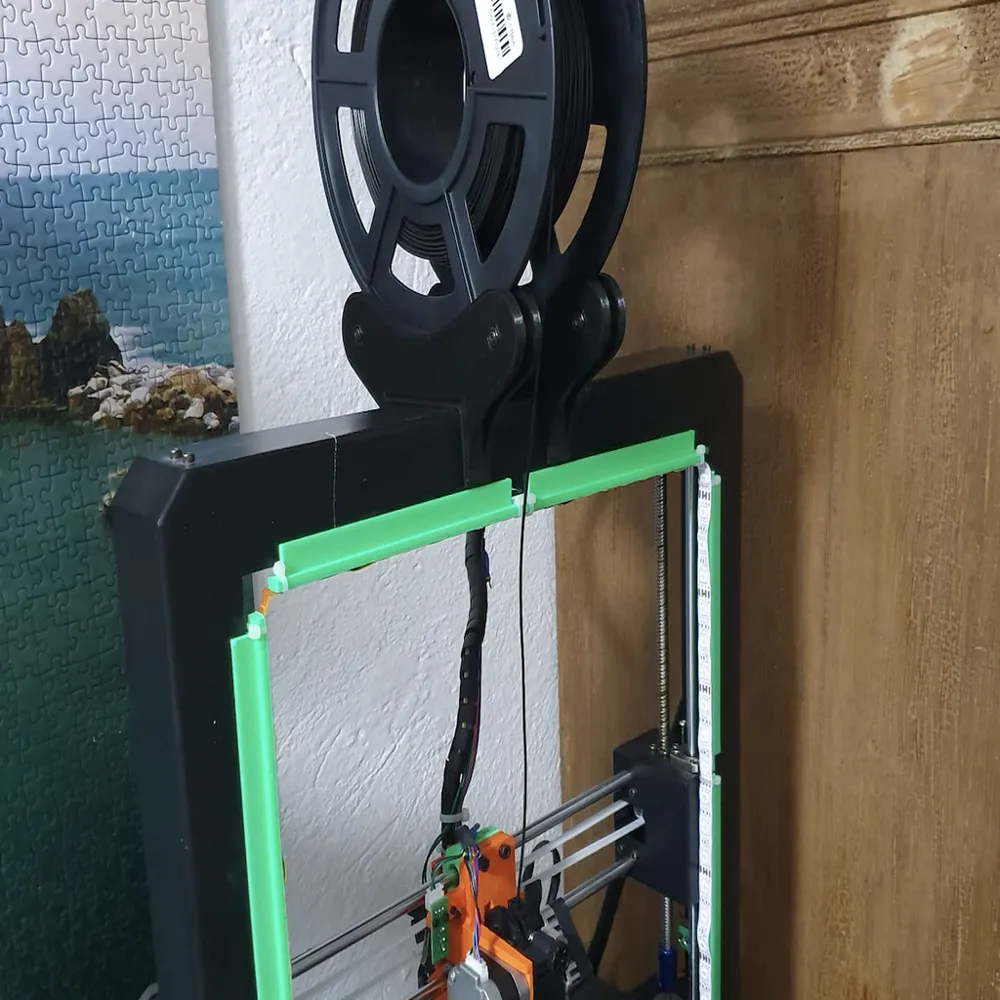

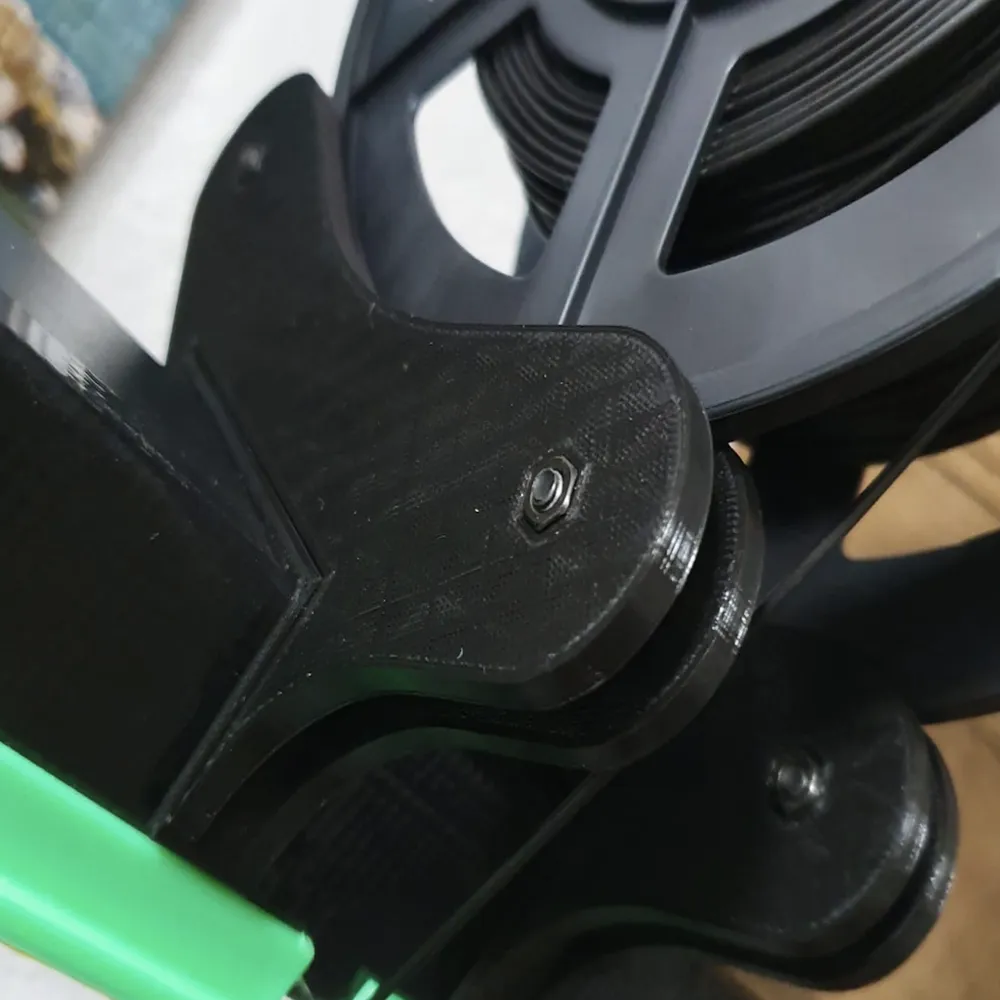

I did upgrade my i3 Mega to Titan Aero some time ago and thought i would need a new Spool Holder, so i temporary mounted it on some wire on the wall. But now time has come and i finished my own spool holder and i think it works great, as you can also switch filament very very easy!
The mounting is also quite simple and the 6 parts are printed in about 4h (depends on your settings)
Hope you enjoy it!
Part List:
- 4x 608ZZ Bearings
- 6x M4 Screws
- 6x M4 Nuts
- 2x v2_holder.stl
- 2x v2_top.stl
- 2x v2_bottom.stl
I printed all parts with 20% infill.
Print Settings
Printer Brand:
Anycubic
Printer:
All-metal Mega
Rafts:
No
Supports:
No
Resolution:
0.16mm
Infill:
20%
Filament:Anycubic PLA Black
Category: 3D Printer AccessoriesBoost Me (for free)
Membership
Join
License
If you want to use this model commercially, please join my membership.
Join Now
This user content is licensed under a
Creative Commons Attribution
