DJI Neo Airdropper
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
2.2 h
2 plates
Open in Bambu Studio
Boost
20
41
2
0
8
3
Released
Description
Content has been automatically translated.

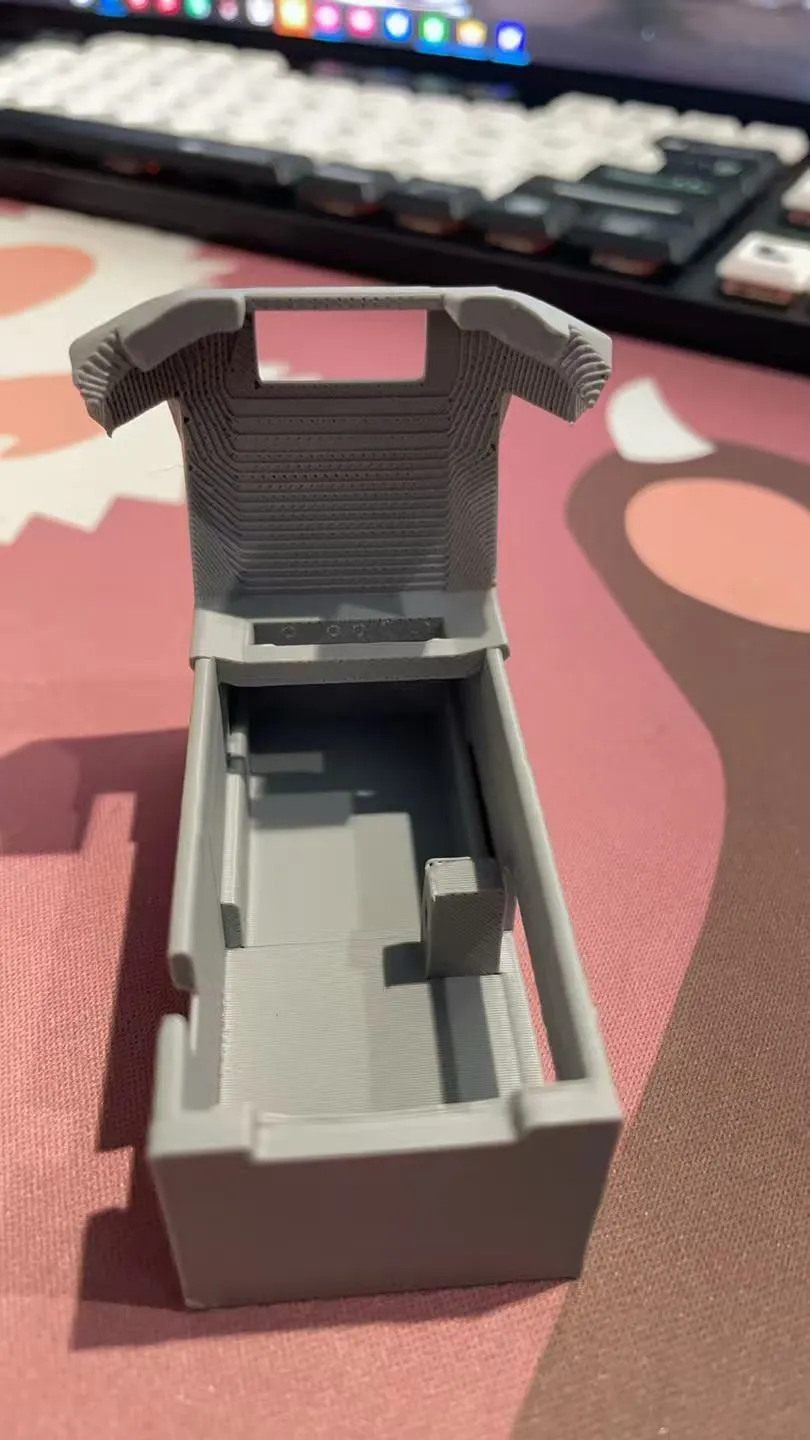

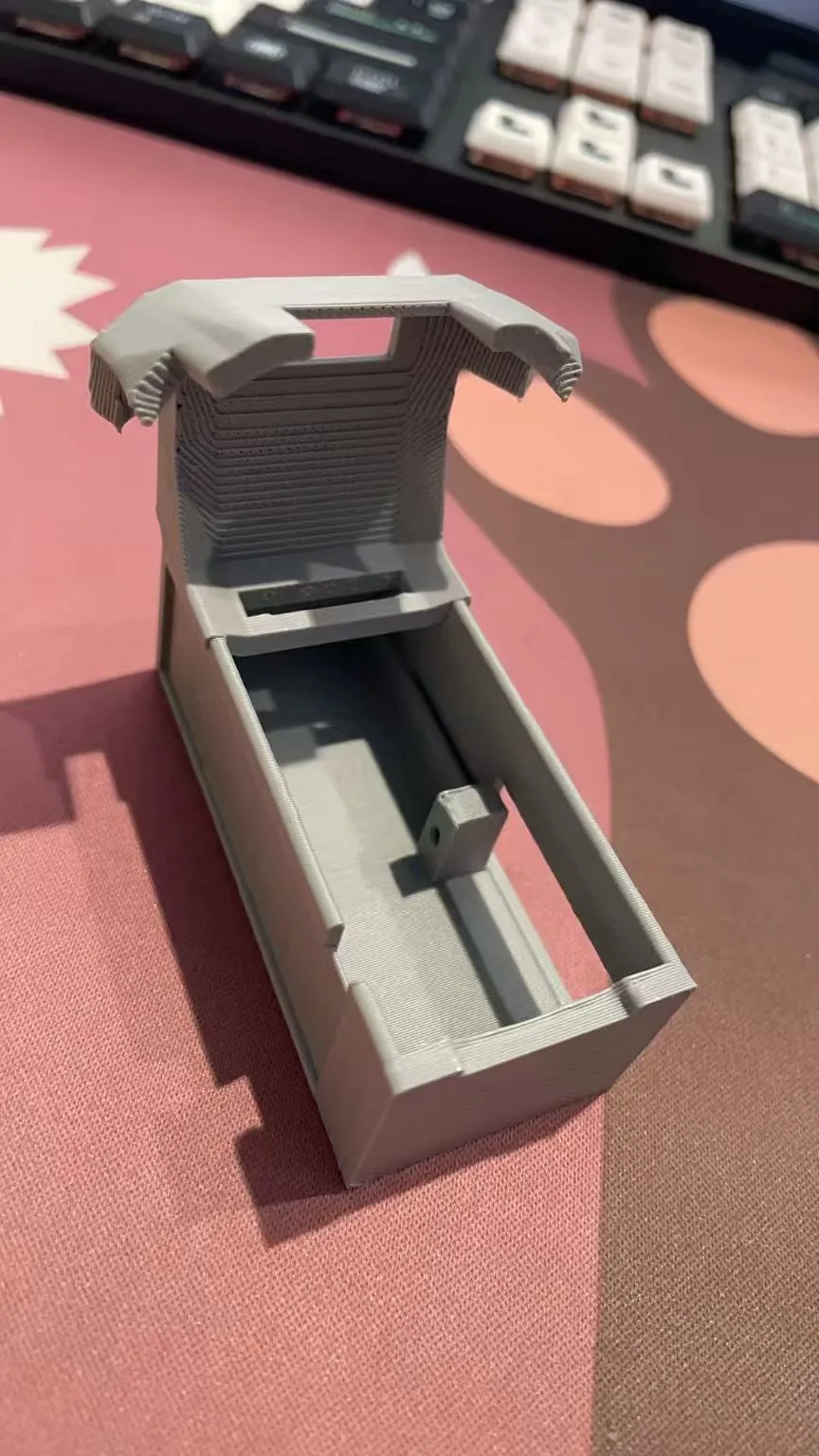

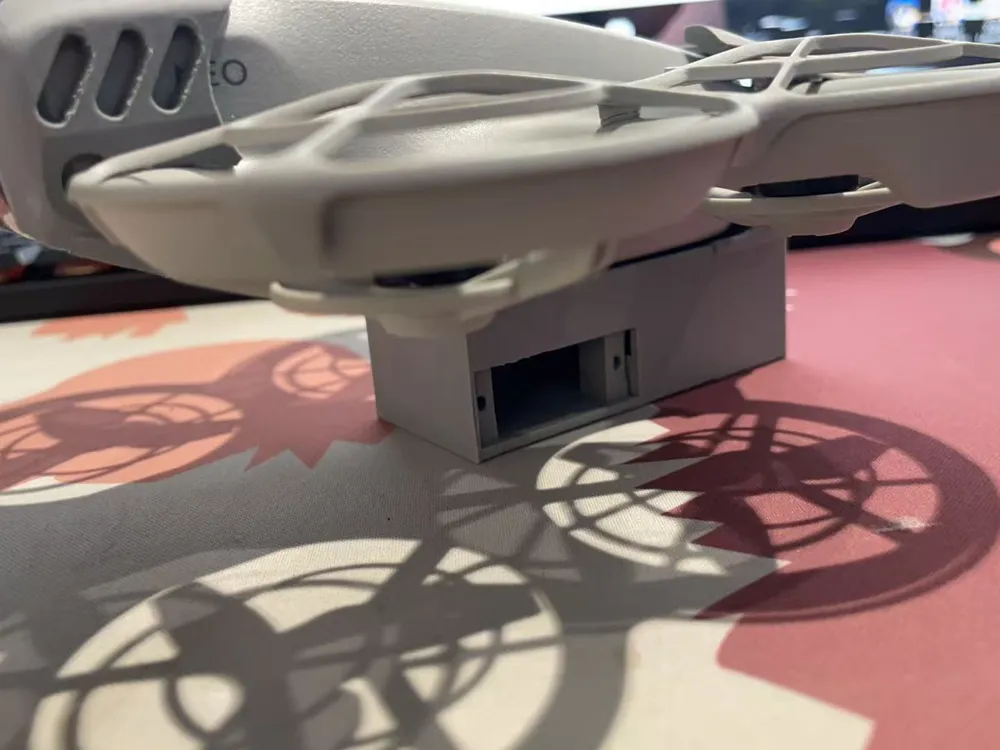

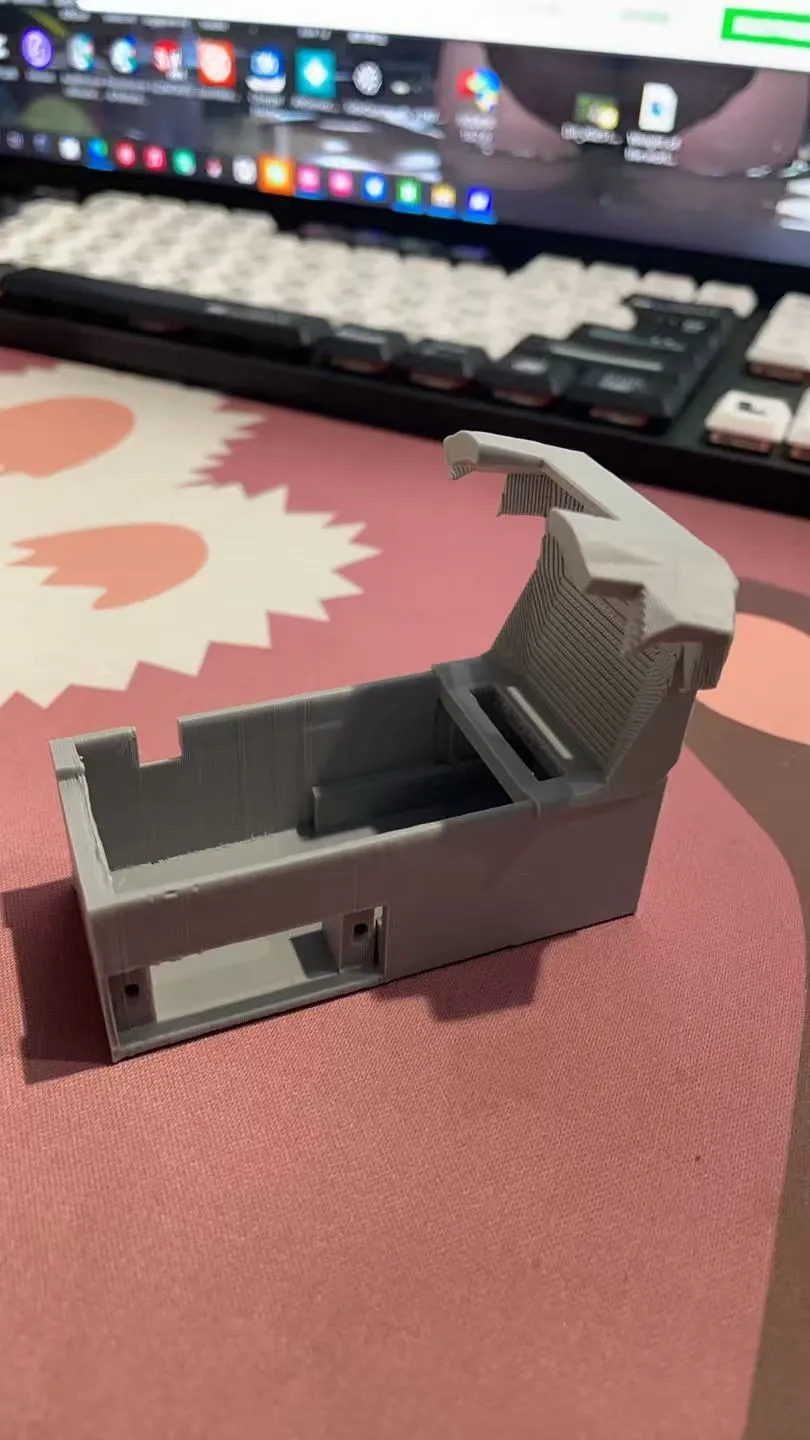

This is an airdropper for the DJI Neo drone

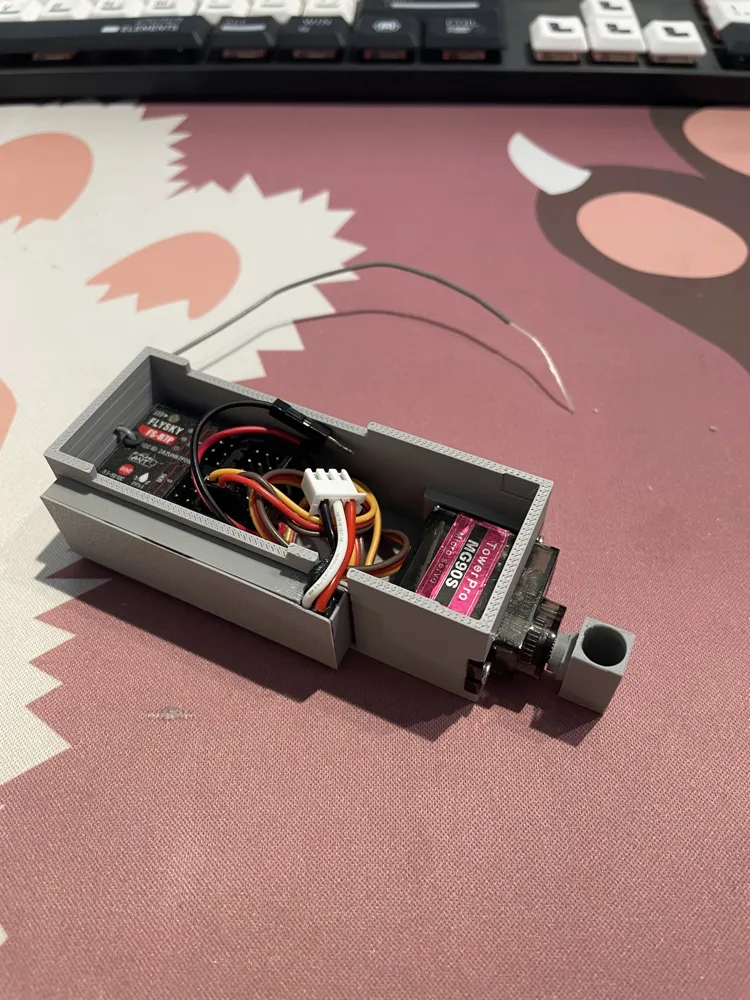

This airdropper uses RC model servos, remote control, and receiver as core components and needs to be fixed to the fuselage with straps. The receiver I use is the Flysky R7P; if replicating, do not choose a receiver larger than it. If purchasing, please choose the R4D, as its smaller size allows the internal space to accommodate more battery sizes. Please use a 9g servo; the one I used is the SG90, which is inexpensive. The battery compartment is large enough for a 2s1p200mah battery. Please make or customize it yourself. Use a 7.4V battery, and ensure the battery size does not exceed 28*28*10.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
