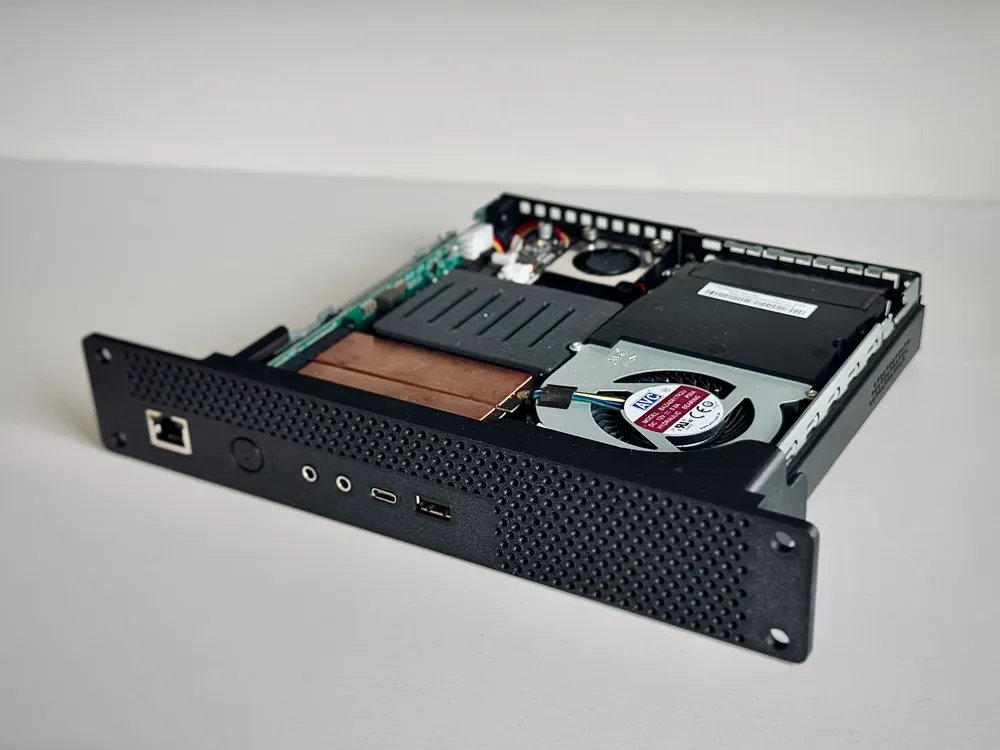

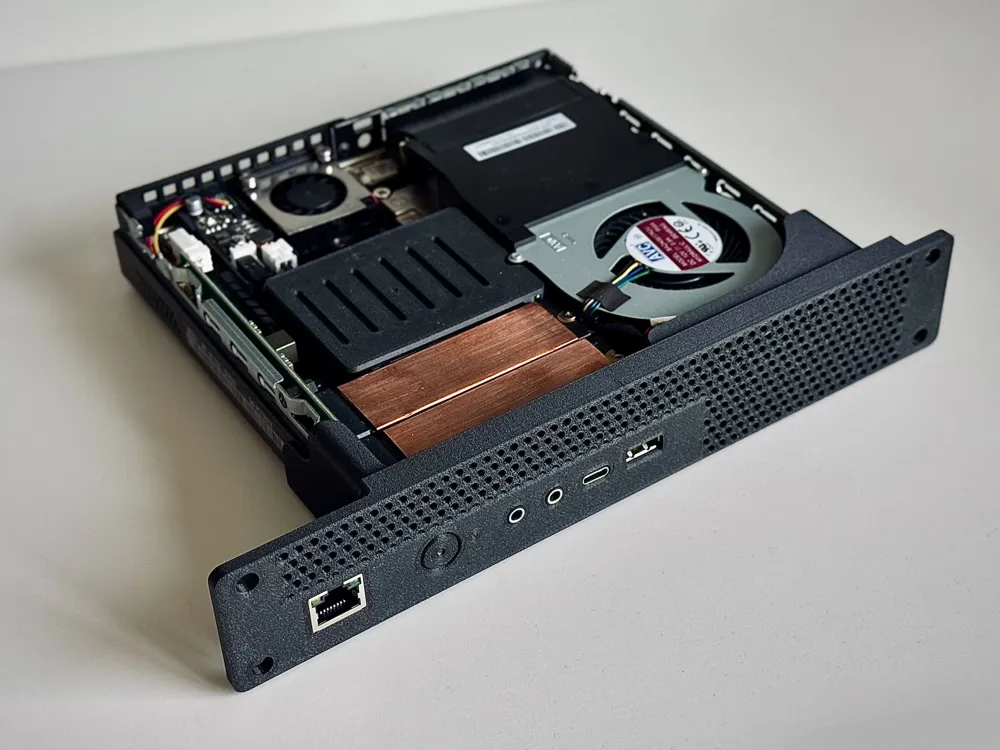

10" Rack Front Panel for Lenovo ThinkCentre Tiny 5 (M920x / M920q)

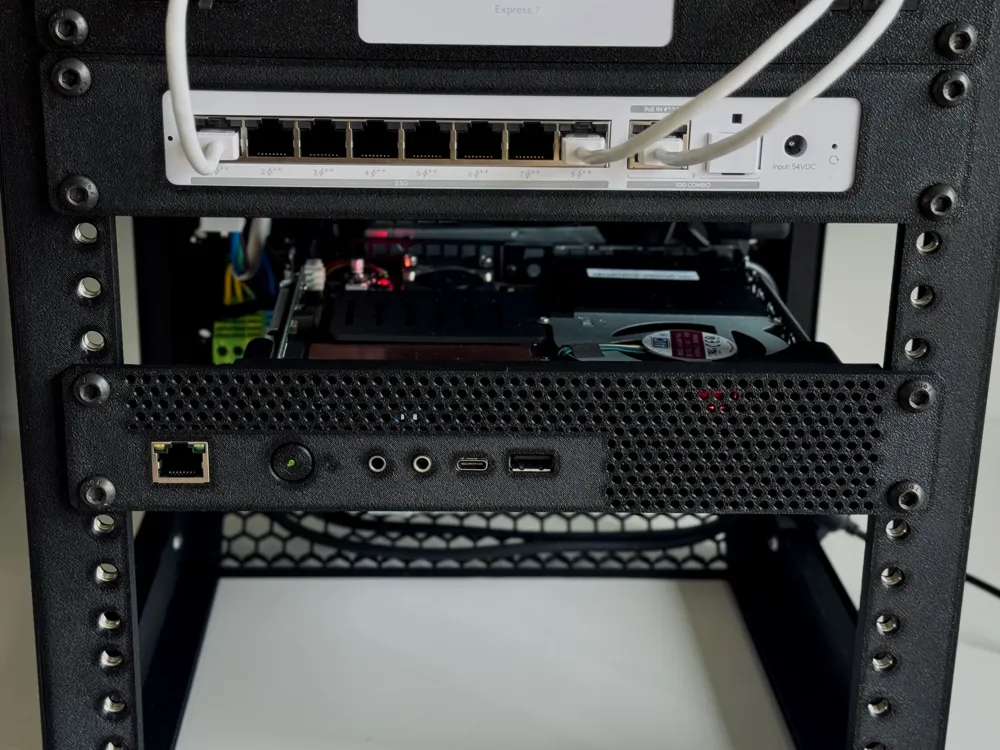

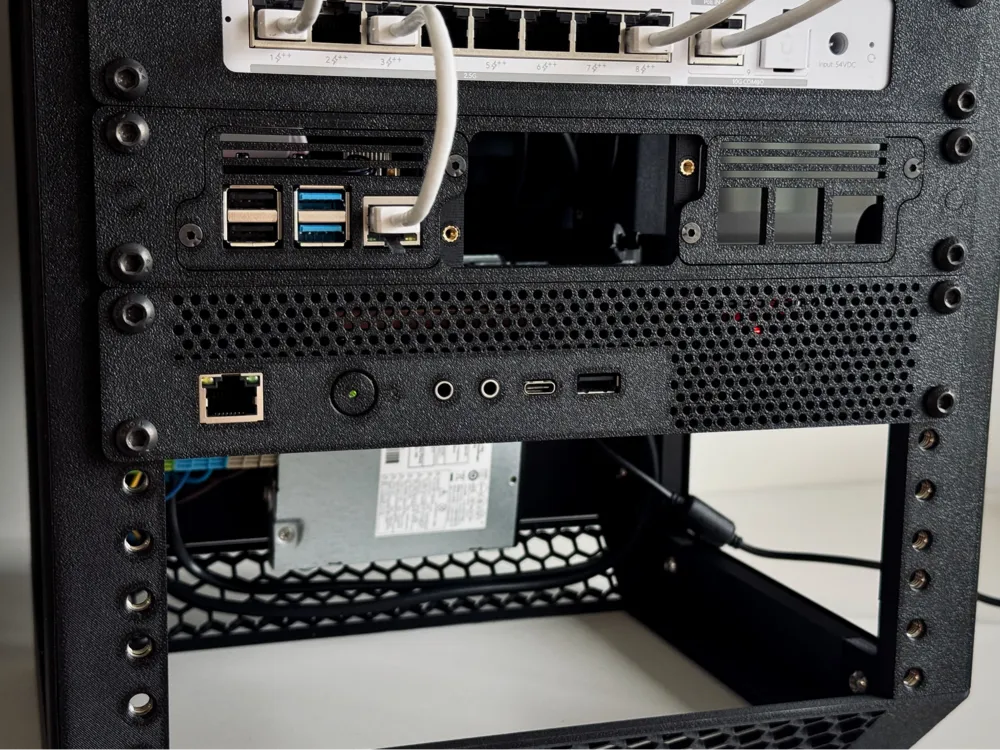

This panel replaces the original top cover and front bezel on the Lenovo Tiny 5, giving you a clean, flush fit in a 10" rack. It keeps the stock front I/O layout and vent style, but opens things up for better airflow and a more finished, rack-ready look.
Features:
- Smooth, seamless front with plenty of ventilation

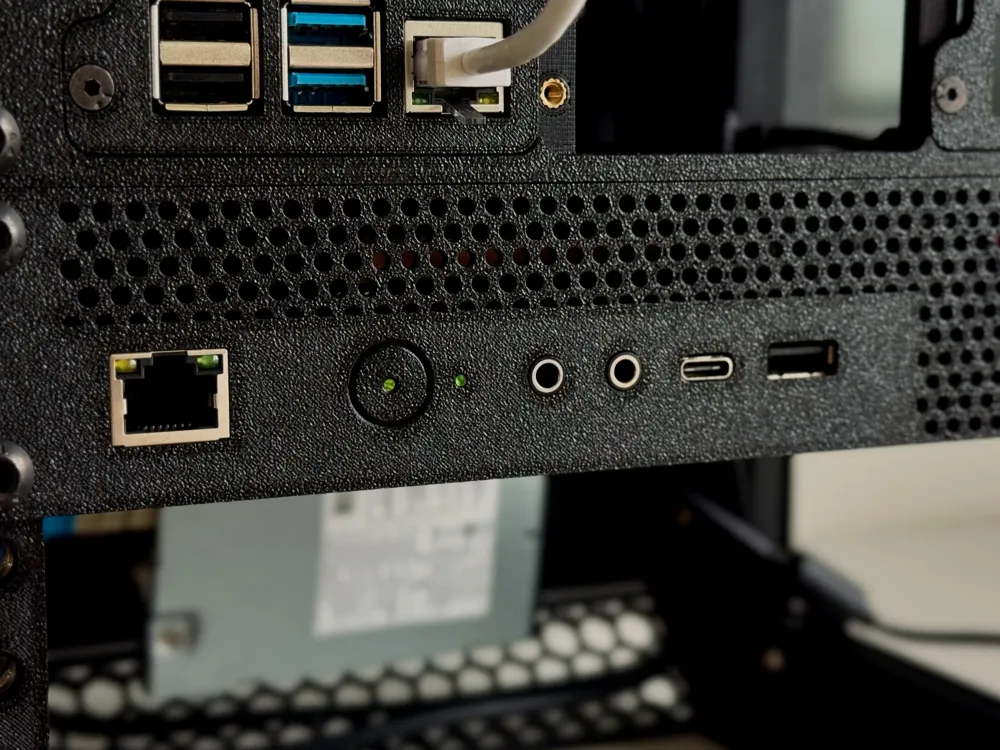

- Power/HDD LEDs still visible (just add a clear filament into the holes to guide the light)
- Space for an extra NIC, such as a 2.5G Intel card or Keystone jack

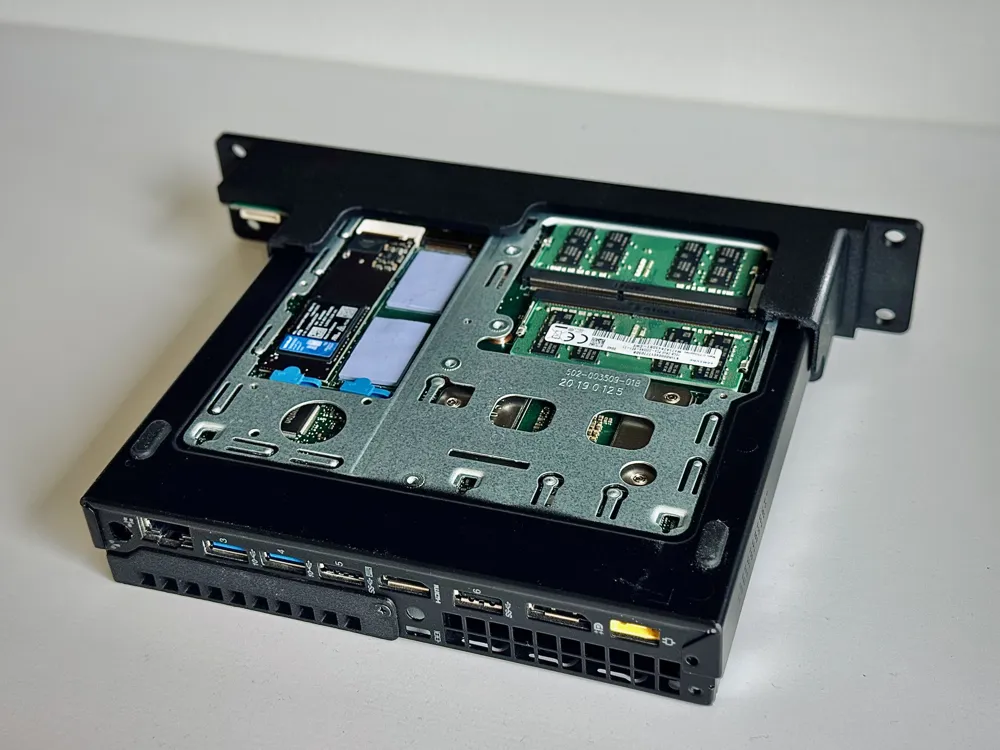

- Works with or without the lower RAM/NVMe cover installed
Mounting:Â
Push-in fit + M3x4 insert with M3x4 countersunk screw on the side.Â

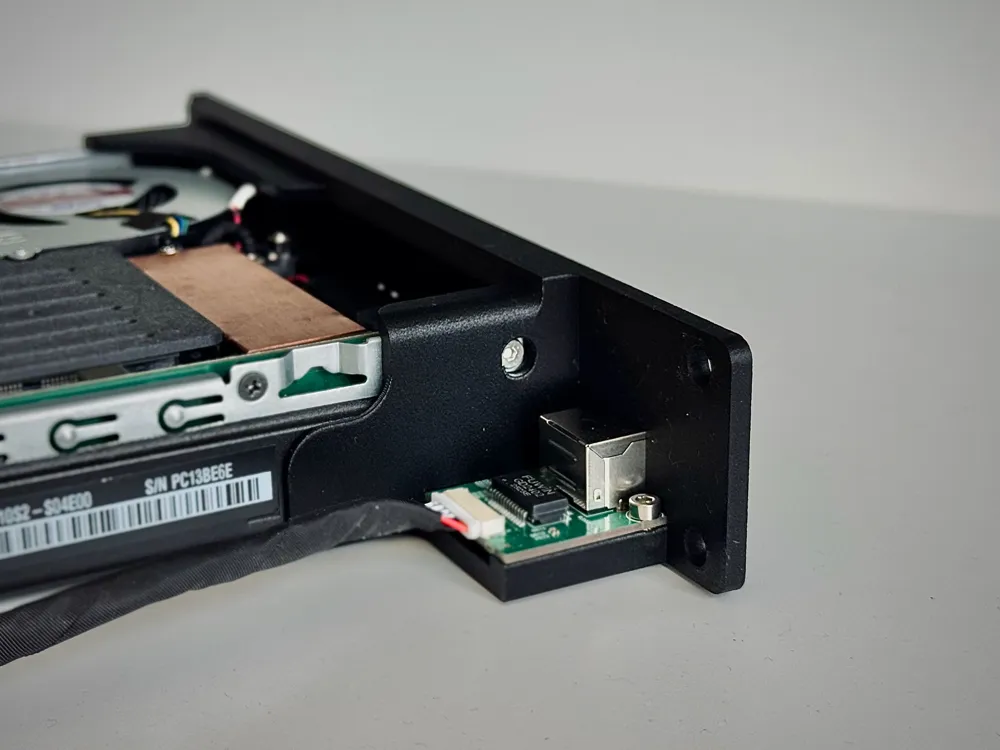

NIC version requires two more M3 inserts and screws to mount the RJ-45 PCB
Print Notes: PETG recommended, 3 perimeters.
Great for a 1U NAS, homelab server, or a compact storage setupâlets your Tiny 5 breathe better and sit nicely in the rack without looking hacked together.
