Ball Head Camera Door Mount
Print Profile(1)
Description

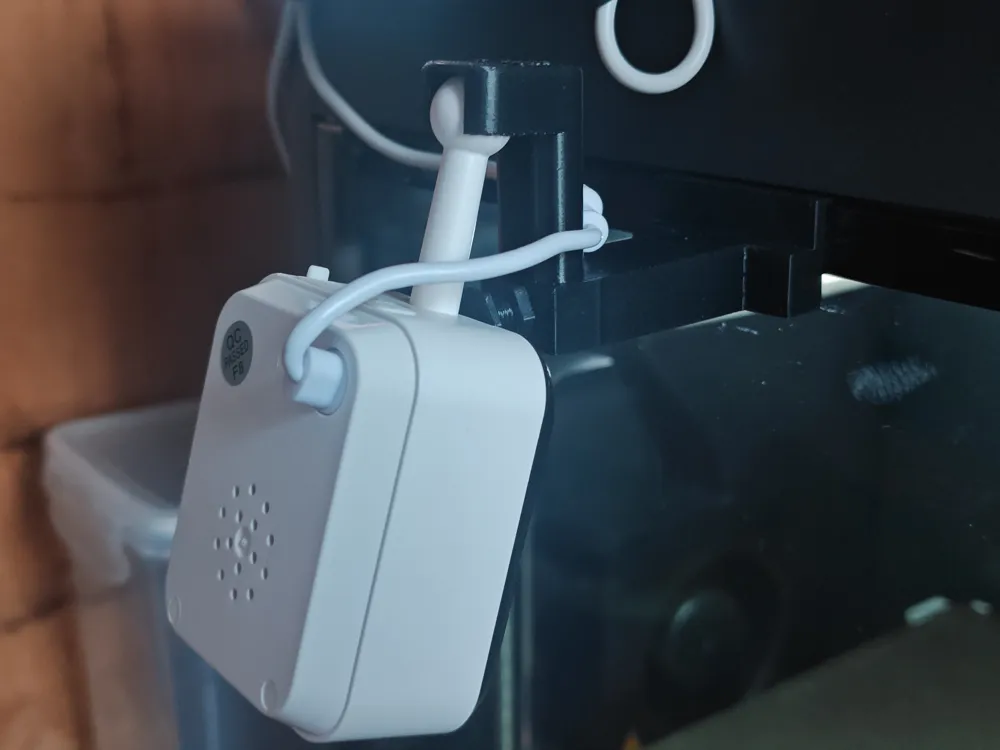

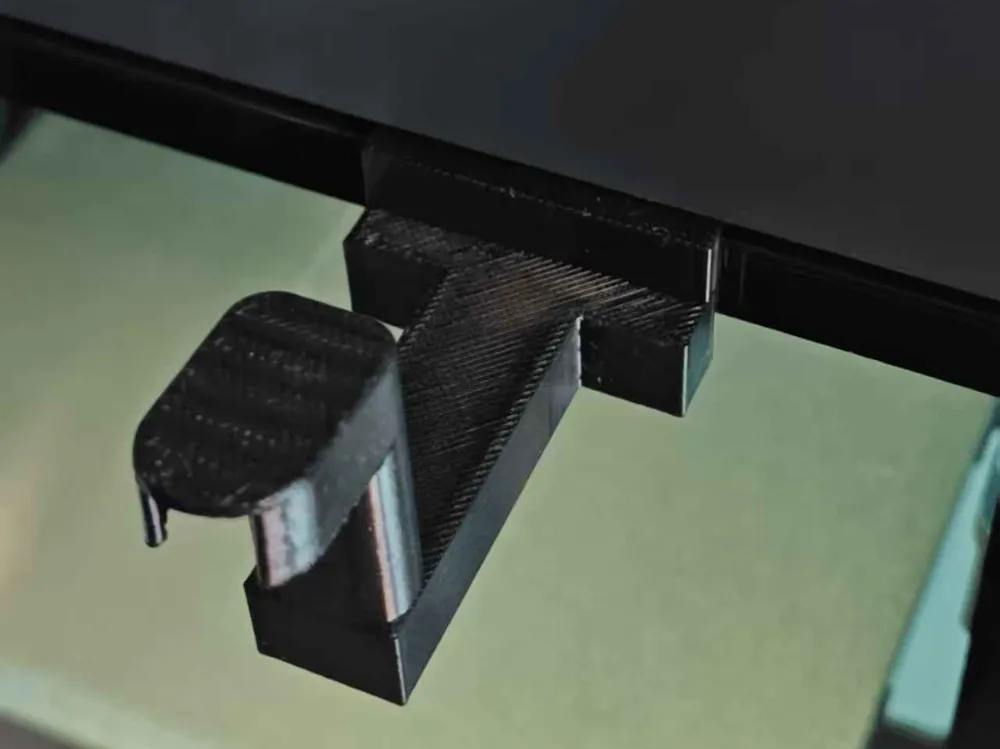

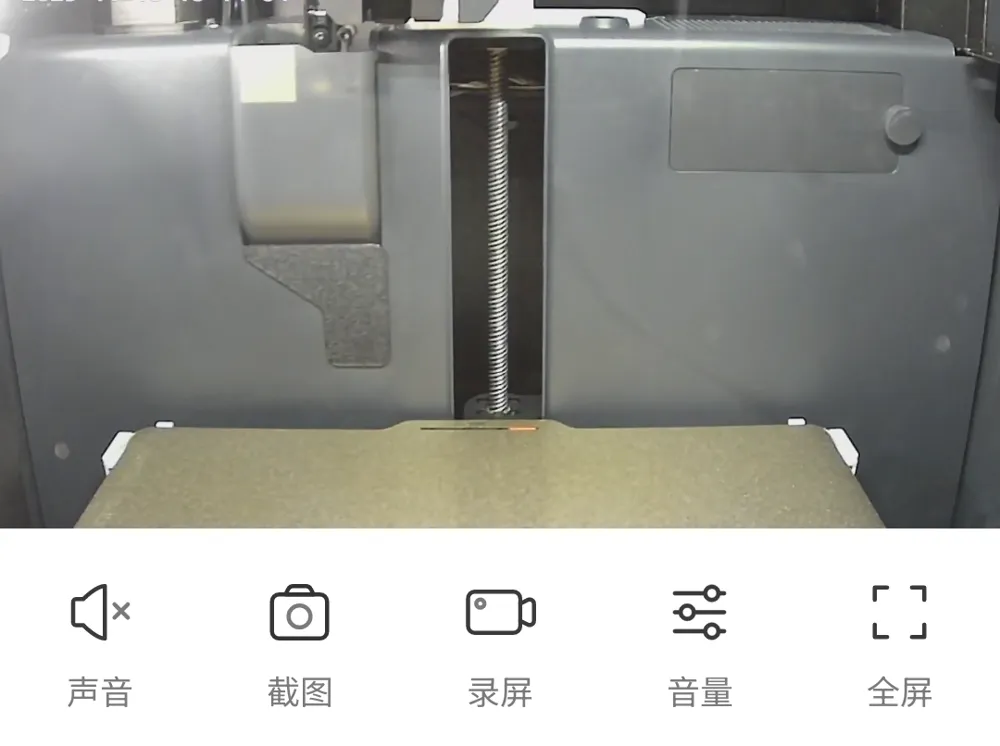

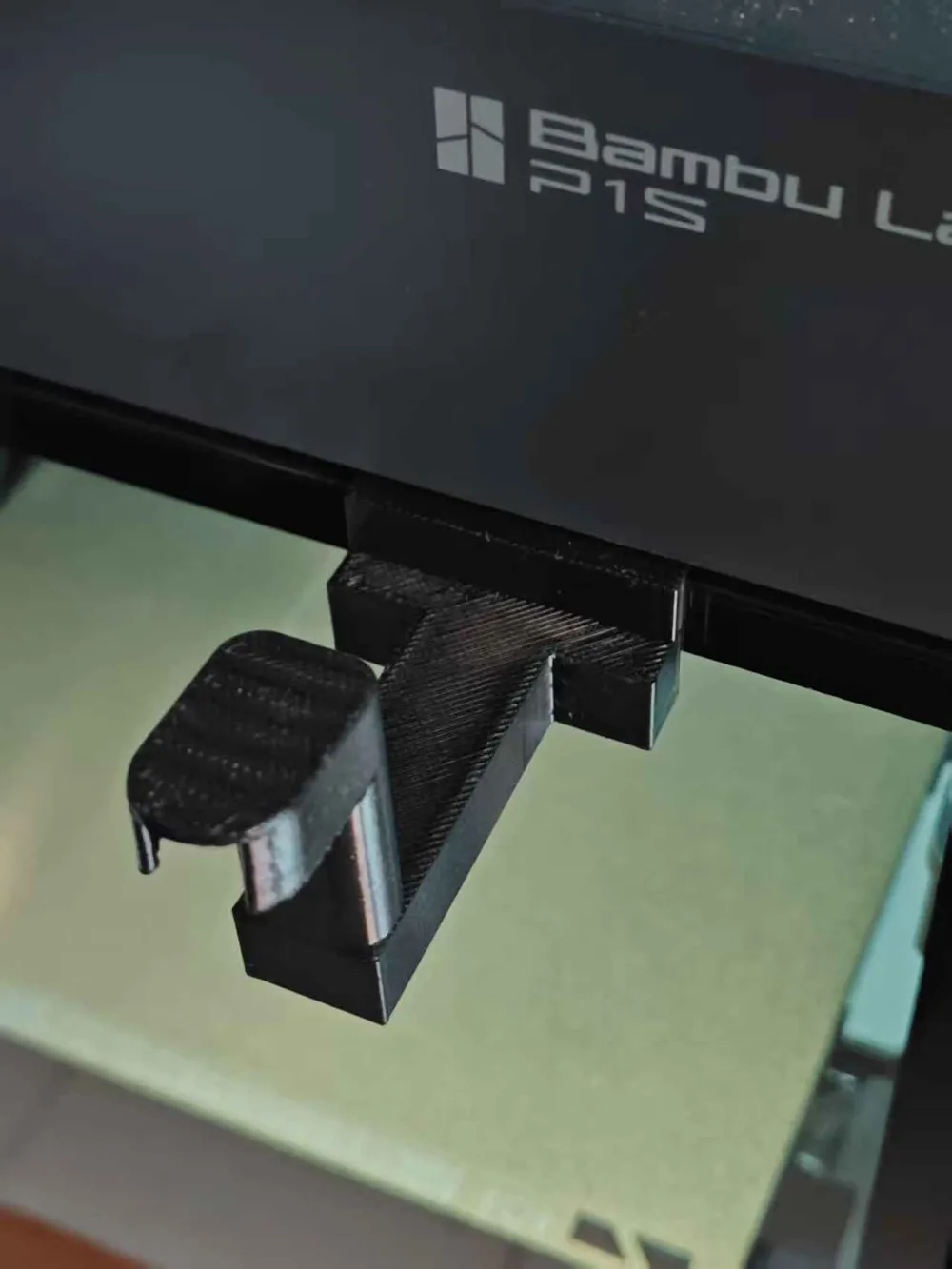

The camera can be directly hung on the P1S door without affecting its opening and closing, and the position can be adjusted freely without screws. It is suitable for cameras with a ball head diameter of about 13mm. The bracket raises the ball head position to prevent some cameras from hanging too low and being unable to observe the upper part of the screen.
Precautions:

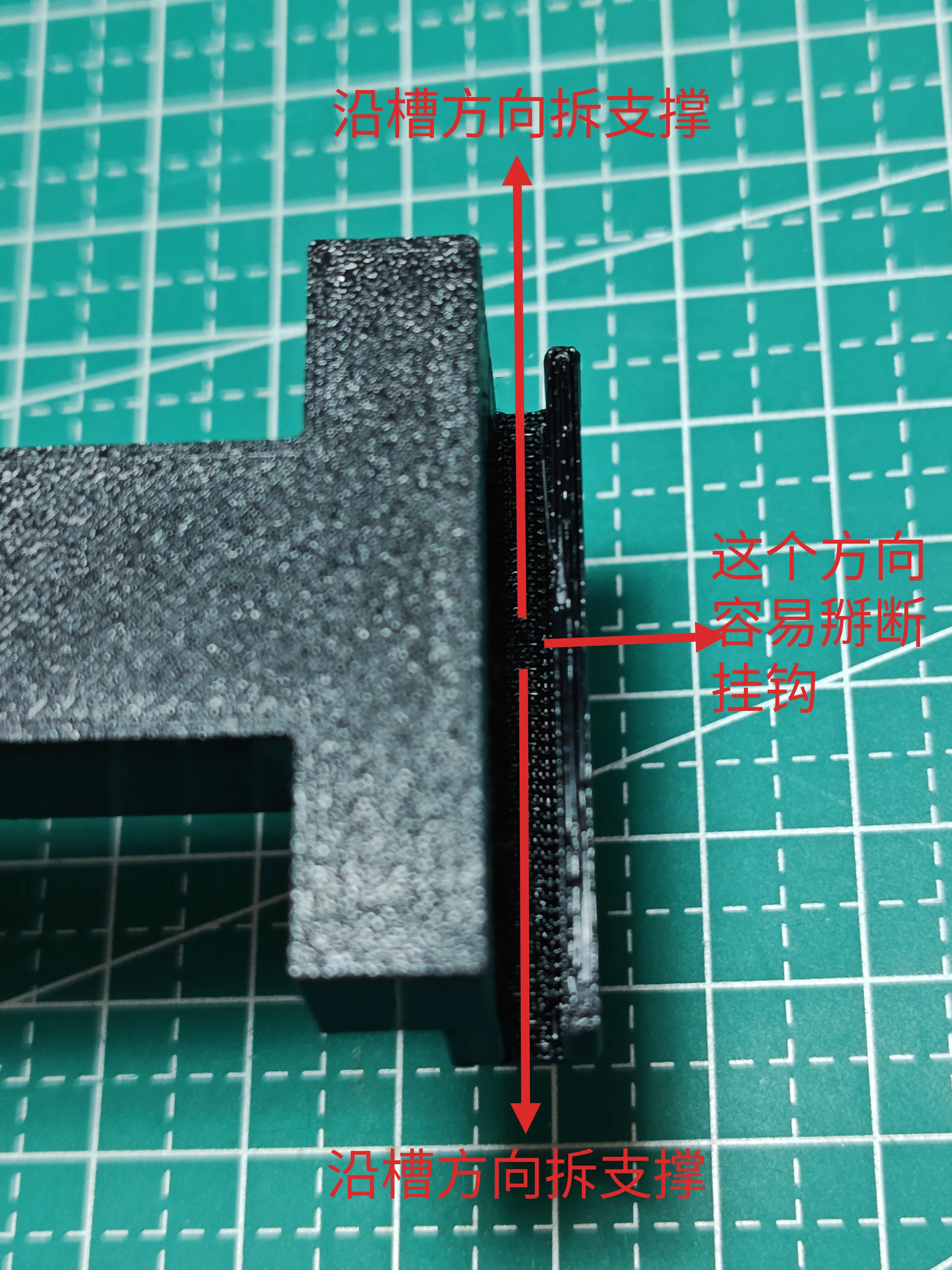

The top of the hook is relatively thin. PETG printing is recommended for greater strength. Be careful not to break the hook when removing supports; it is relatively easy to remove along the grooves. If the door cannot open and close normally after installation, please check if the supports have been cleaned thoroughly.
Some cameras may require adjustment of the up and down tilt angle. A nut can be glued to the bottom of the bracket for fine adjustment or as a fixed support. Install this yourself according to your specific situation.
Boost Me (for free)
First attempt, any advice is appreciated
