Sonoff in the Box

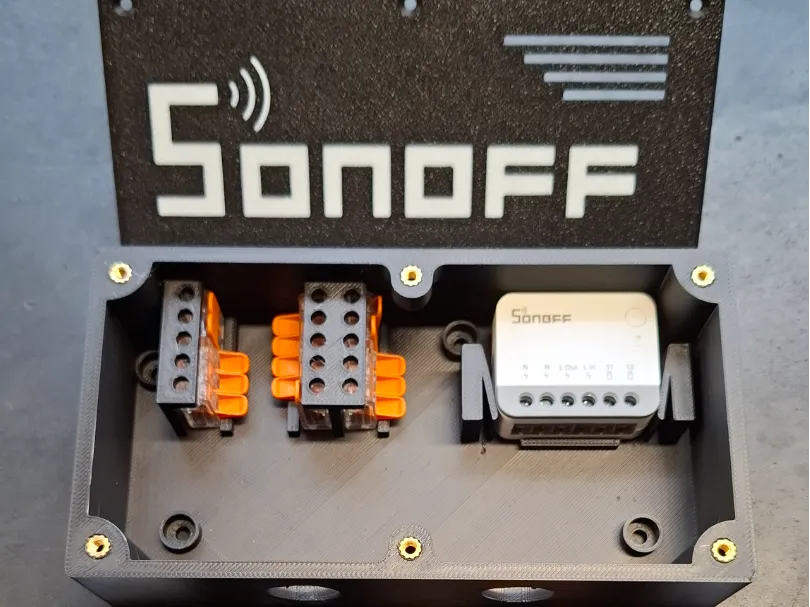

This is a box that can accommodate the following Sonoff modules

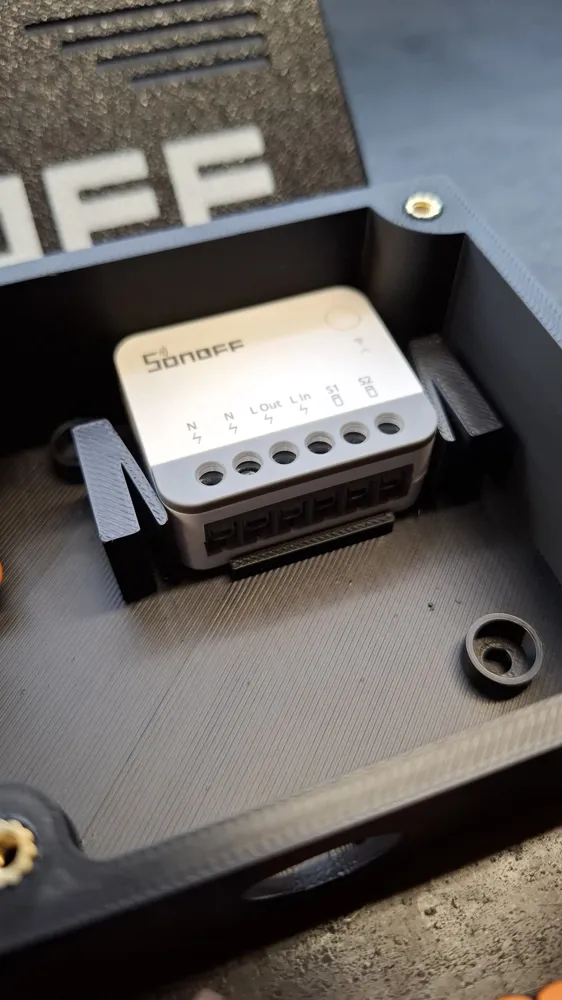

• ZBMINIR2 - tested
• ZBMINIL2 - not tested but according to the internet, same dimensions
• MiniR4M - not tested but according to the internet, same dimensions

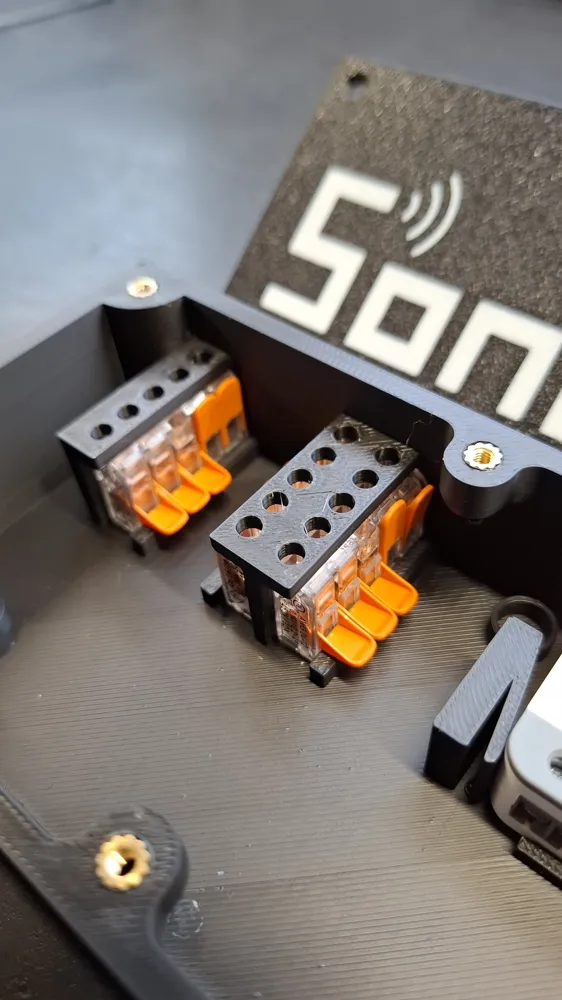

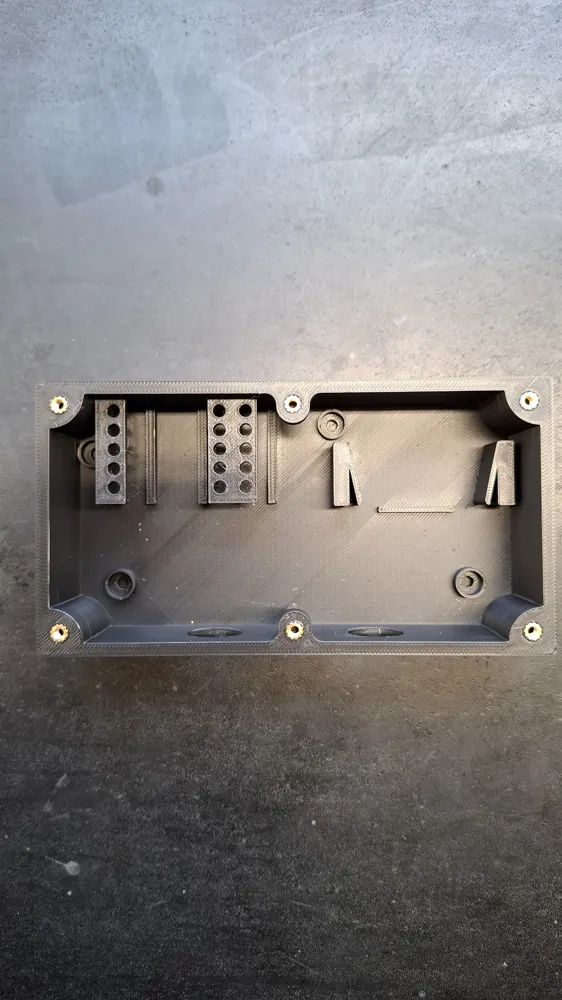

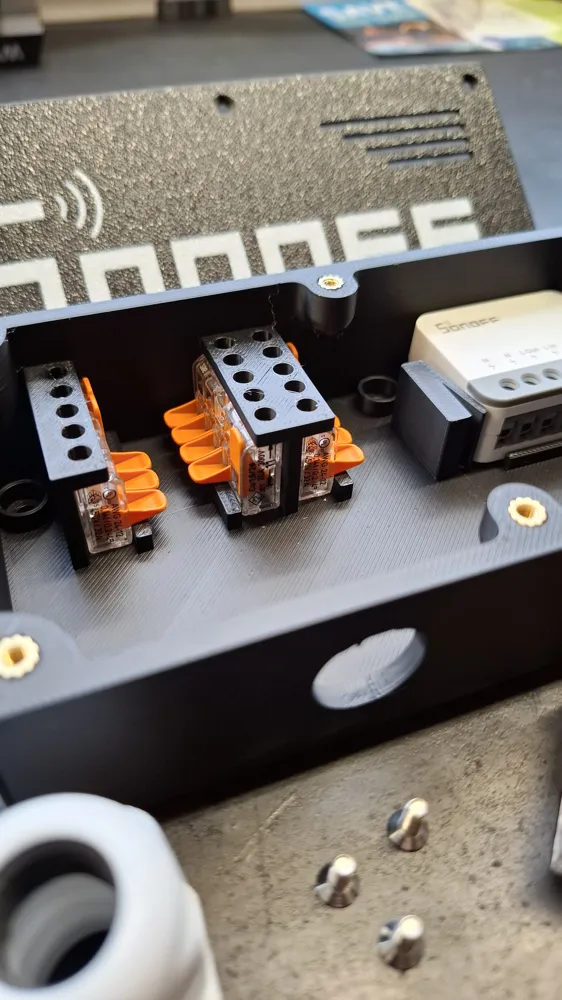

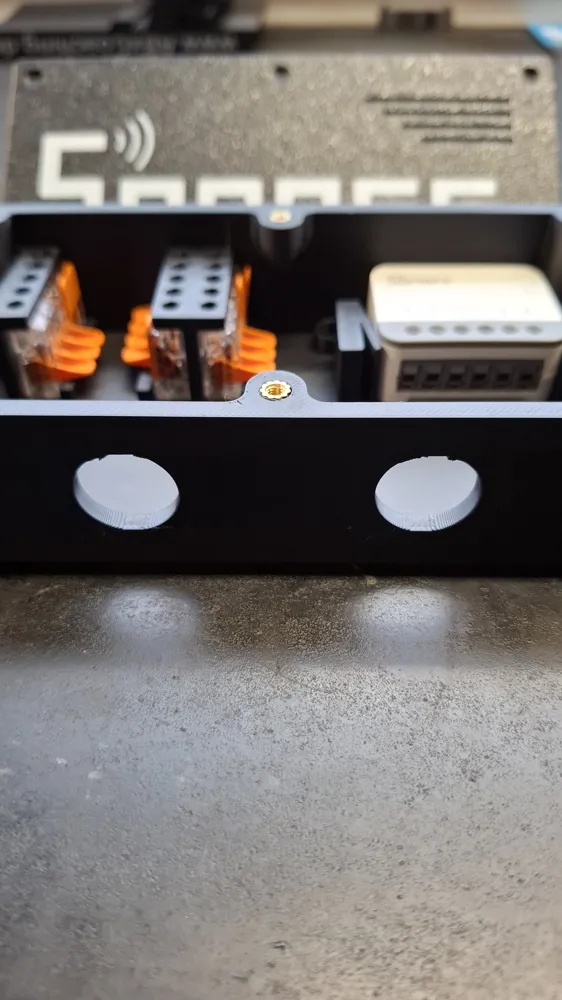

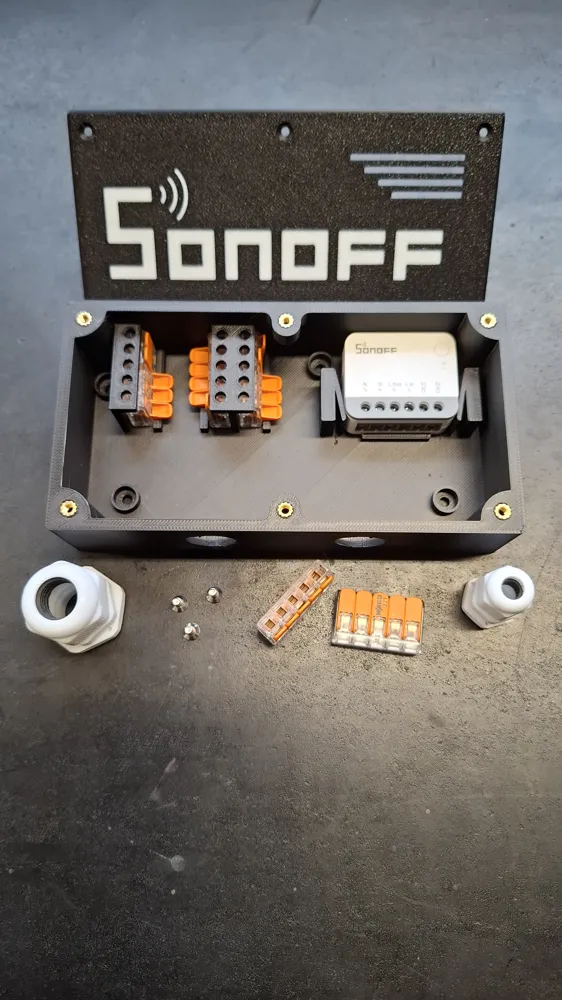

Furthermore, slots are available for three 5-way Wago terminals (221). Currently, there are also 2 holes each for strain reliefs with DN12, DN16, and DN20. Upon request, I can, of course, create further variants for strain reliefs

As another print profile, a universal box is also available, where the access holes can then be created independently in BambuStudio using modifiers

For optimal sealing, a 0.5mm thick lid gasket is available, which should preferably be printed in TPU

The following lid variants are available

• closed

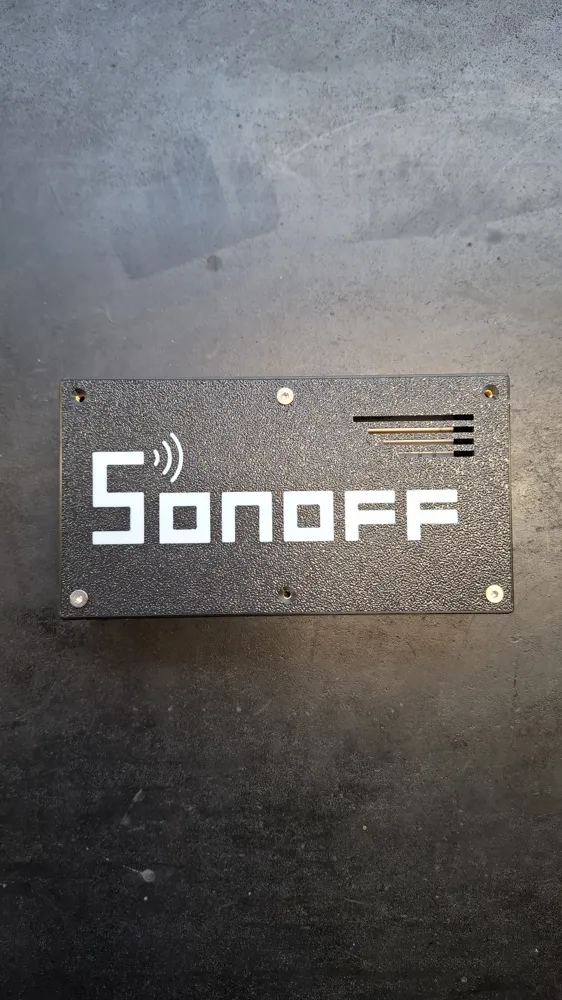

• closed with original logo recessed in the lid (best printed upside down for a good result)
• closed with original logo raised on the lid
• slotted
• slotted with original logo recessed in the lid (best printed upside down for a good result)
• slotted with original logo raised on the lid

For screwing the lid, 6 M3 heat-set inserts and 6 M3 countersunk screws are required

I derived this box from my previously uploaded “Shelly in the Box” https://makerworld.com/en/models/1208113-shelly-in-the-box#profileId-1222379

I would be very happy about a Like/Boost etc for this work. If something doesn't fit, please report it, and I will, of course, adjust it
