Tuning Airbox Simson Schwalbe
Print Profile(2)
Bill of Materials
- Luftfiltermatte x 1: Malossi Red Sponge
- 3D Druck Gewindeeinsatz M6 x 2: Größe M6
- 3D Druck Gewindeeinsatz M4 x 1: Größe M4
- Linsenkopfschraube M6x20 x 1: M6x20
- ISK Schraube M4x15 x 1: M4x15
Description
This tuning air filter, specially developed for performance-optimized Simson engine conversions, offers significantly increased airflow and is ideal for cylinders that require a much larger intake air volume due to enlarged valve timings, expanded port cross-sections, or increased RPMs
The flow-optimized geometry reduces intake resistance throughout the entire system, enabling uniform and efficient air supply. This allows the engine to operate more freely and significantly better exploit the performance potential of tuning cylinders
Features
- Increased Airflow: Optimized filter surface and flow guidance for engines with increased air demand
- More Direct Response: Minimized intake resistance for better throttle response and more dynamic power delivery
- Designed for Tuning Setups: Ideal for cylinders with significantly increased air demand compared to stock
- Print-Optimized Design: Robust wall thicknesses and vibration-resistant shape for 3D printing
- Easy Installation: Precisely fitting for the Simson Schwalbe without major structural modifications
Material Notes

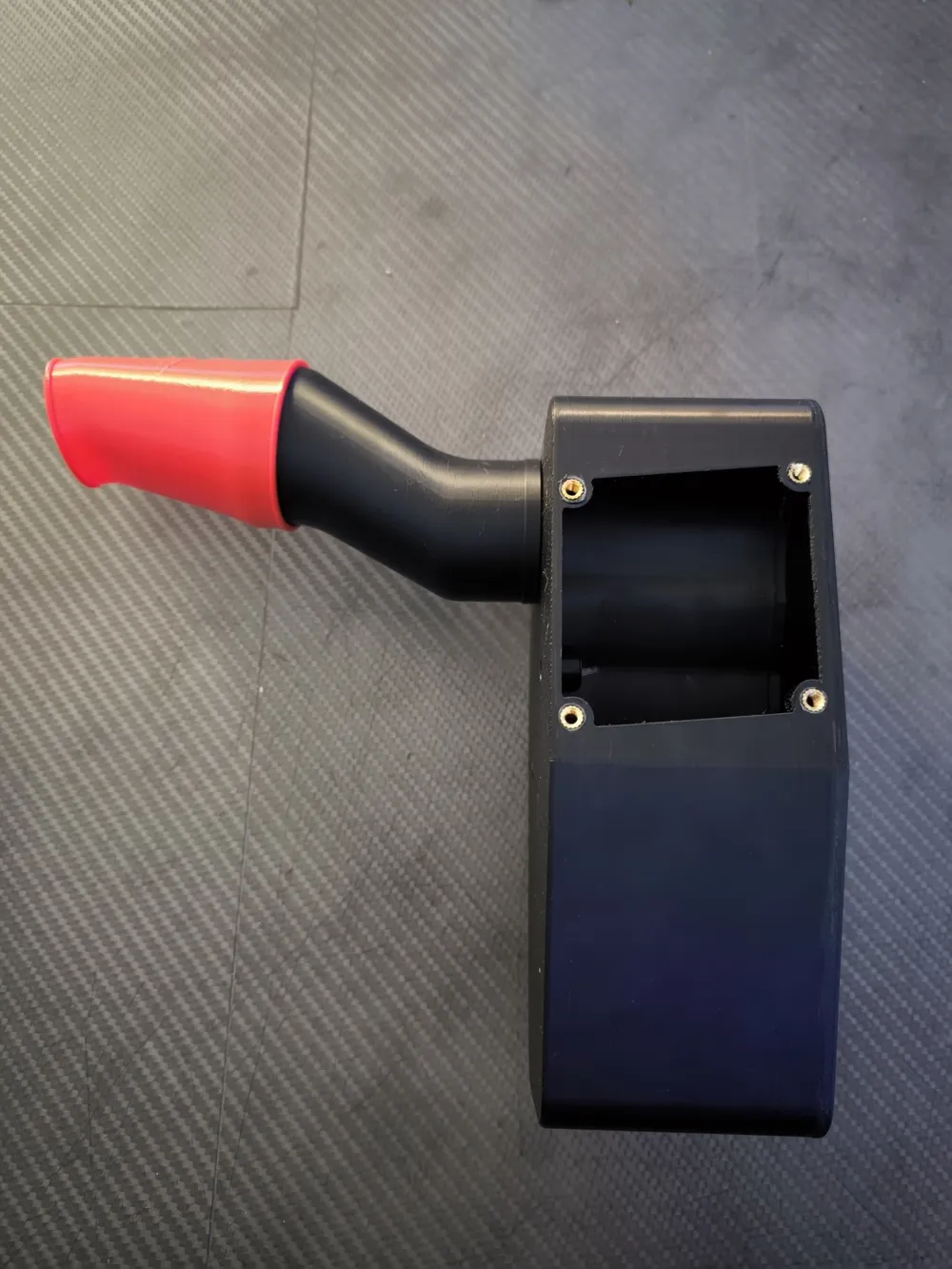

- Carburetor Connector (BVF and VM): Must be printed from TPU to ensure a flexible, tight, and vibration-resistant connection

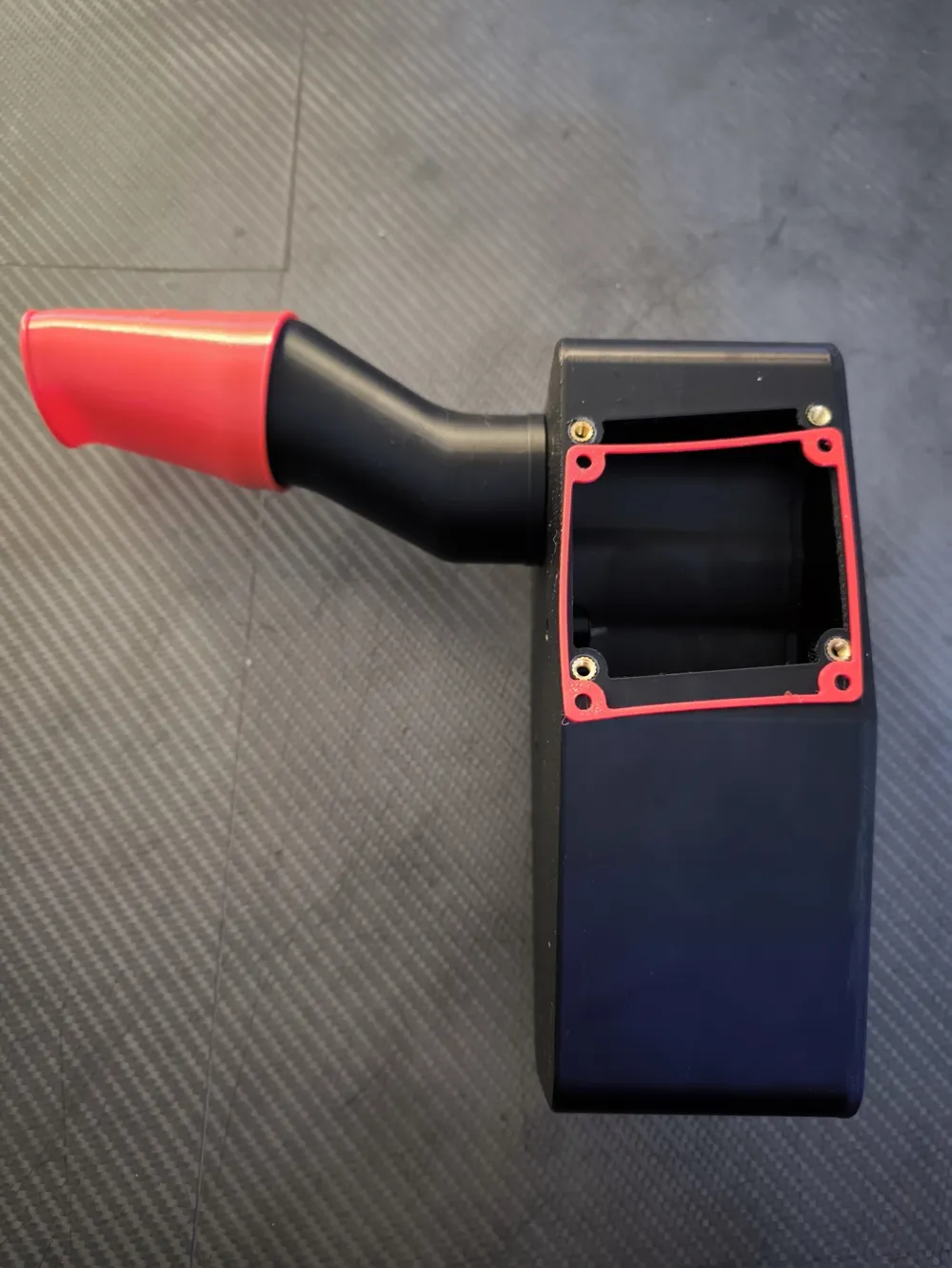

- Gasket for the Filter Housing: Also to be made from TPU so that it seals elastically and can reliably compensate for vibrations and minor deformations
- Remaining Components: Should be printed from PETG at a minimum to provide sufficient temperature resistance, strength, and dimensional stability
