Exhaust Adapter Xtool SafetyPro IF2
Print Profile(1)
Description

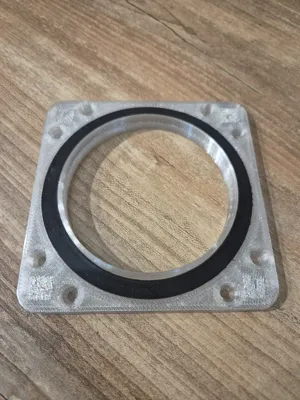

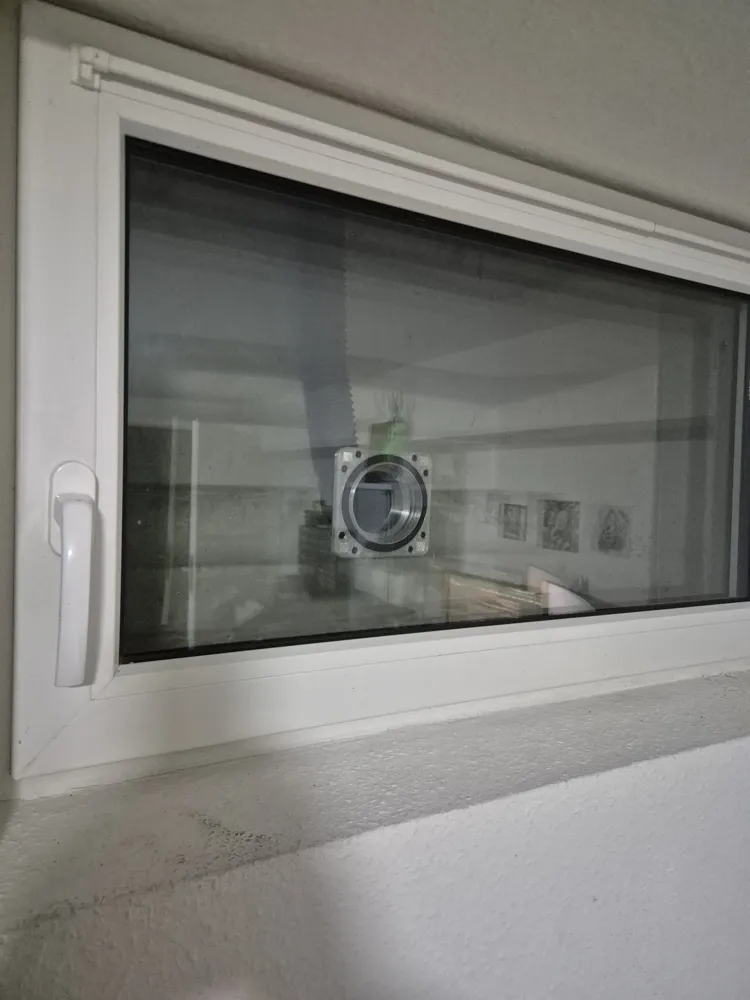

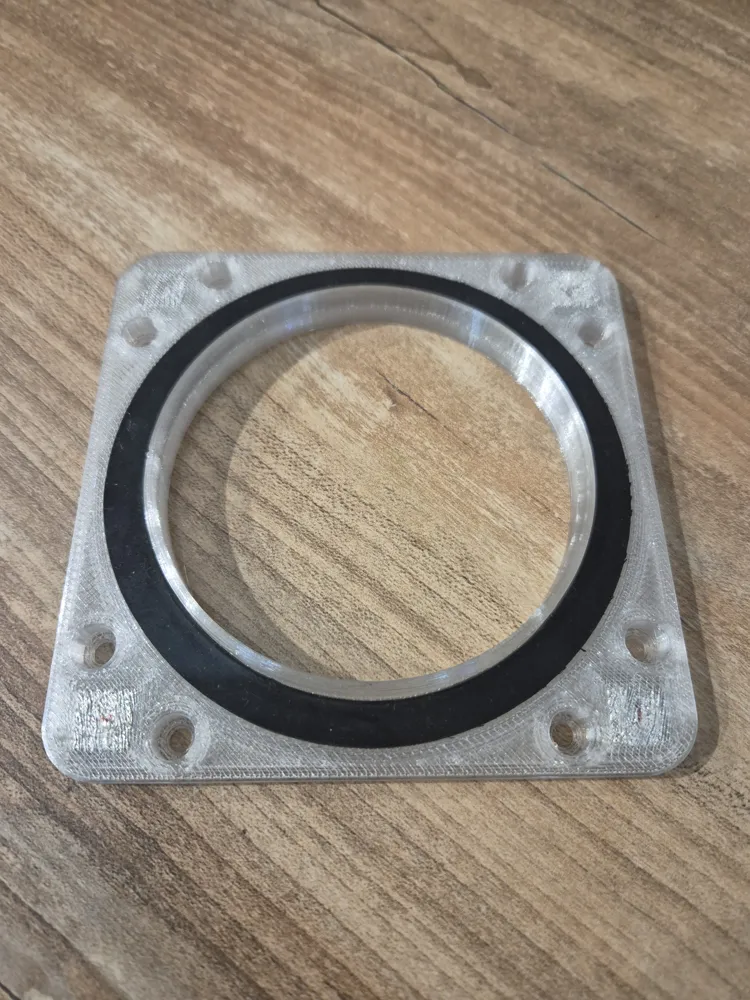

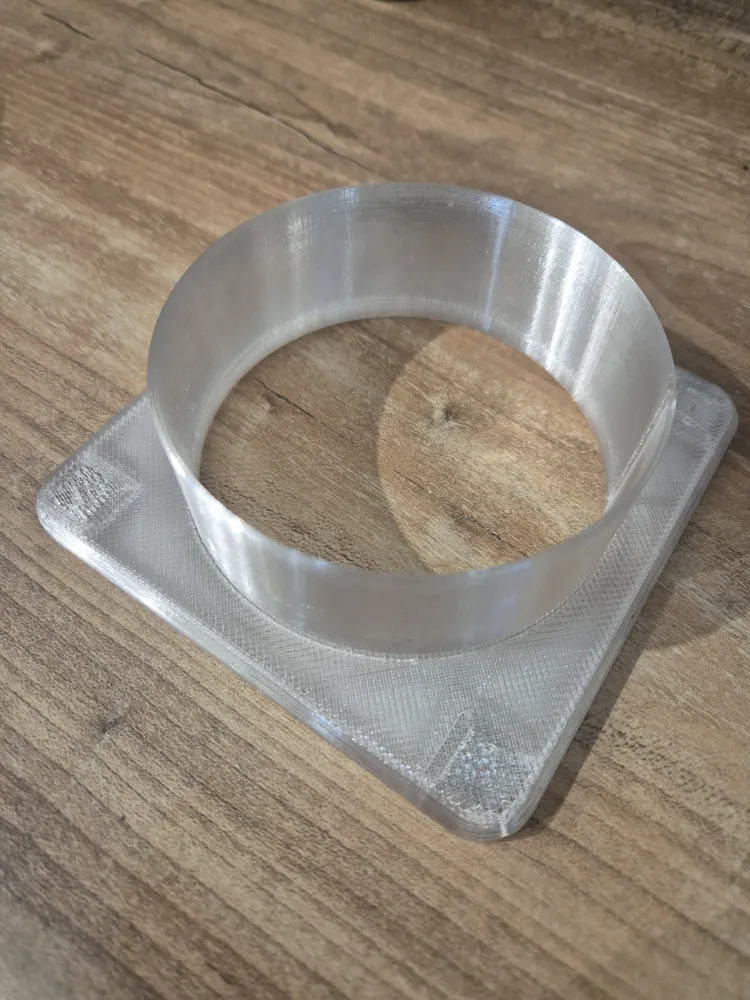

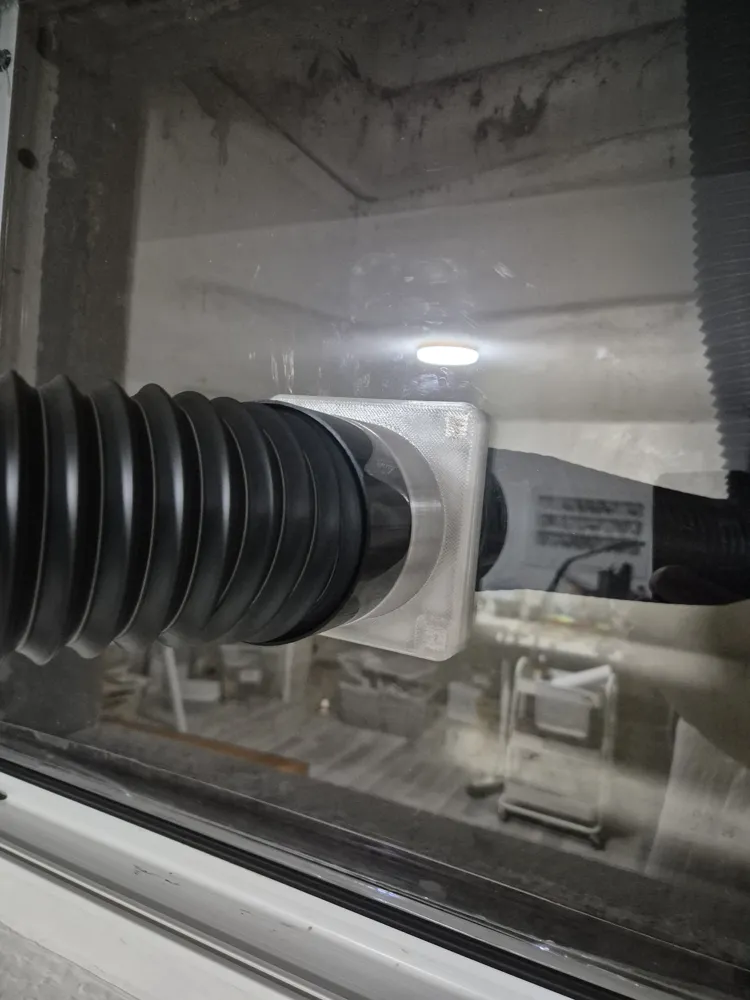

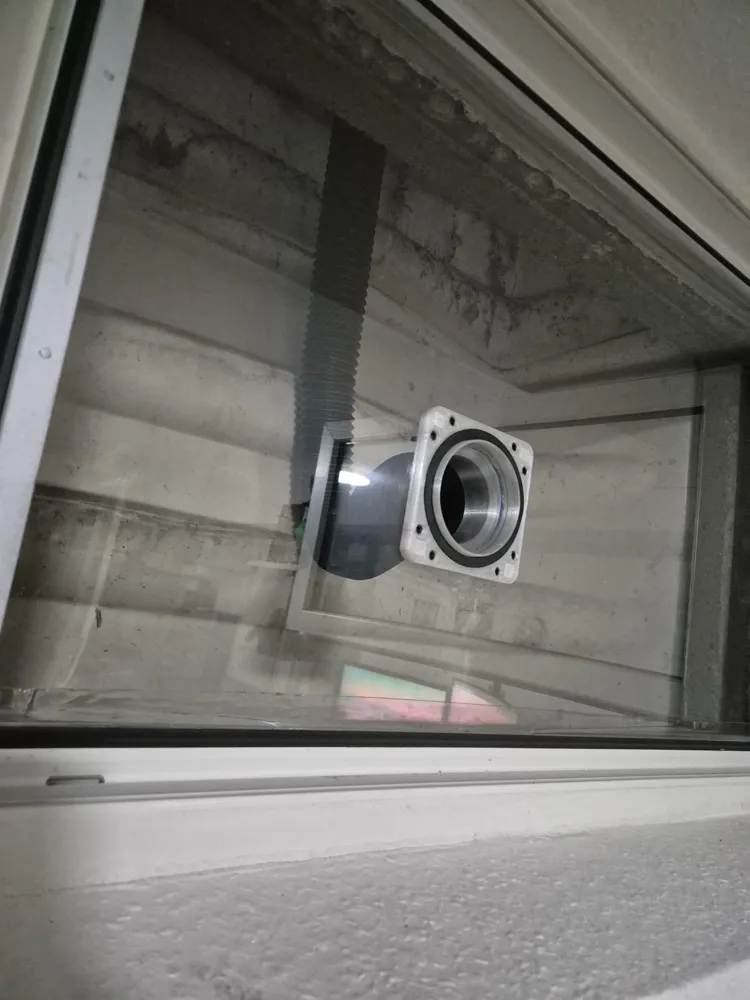

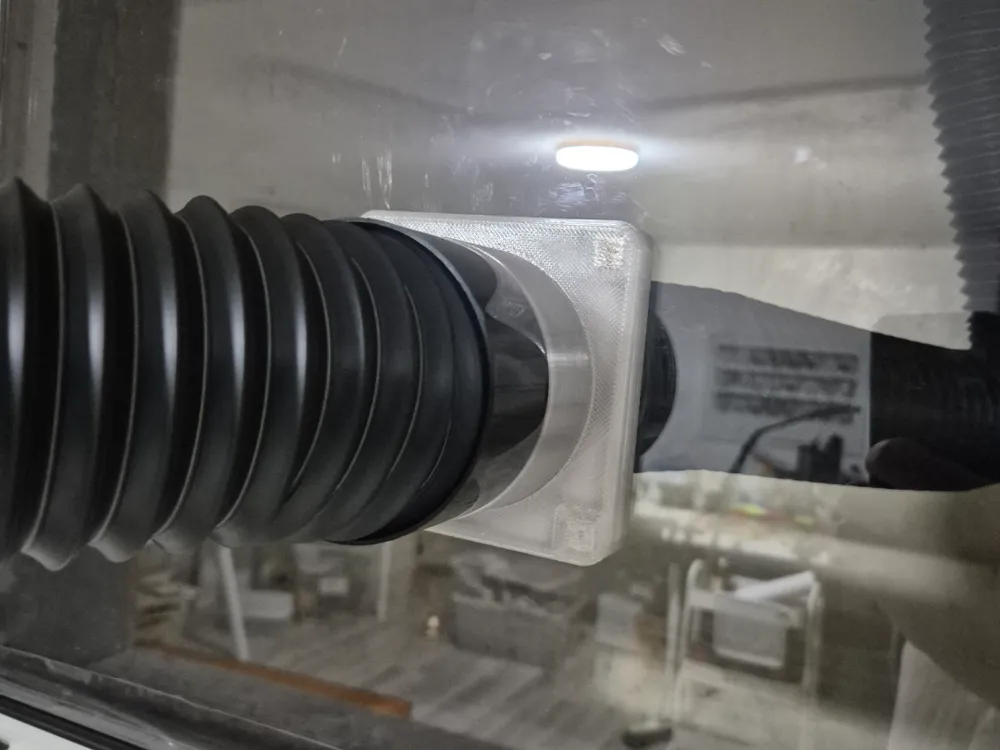

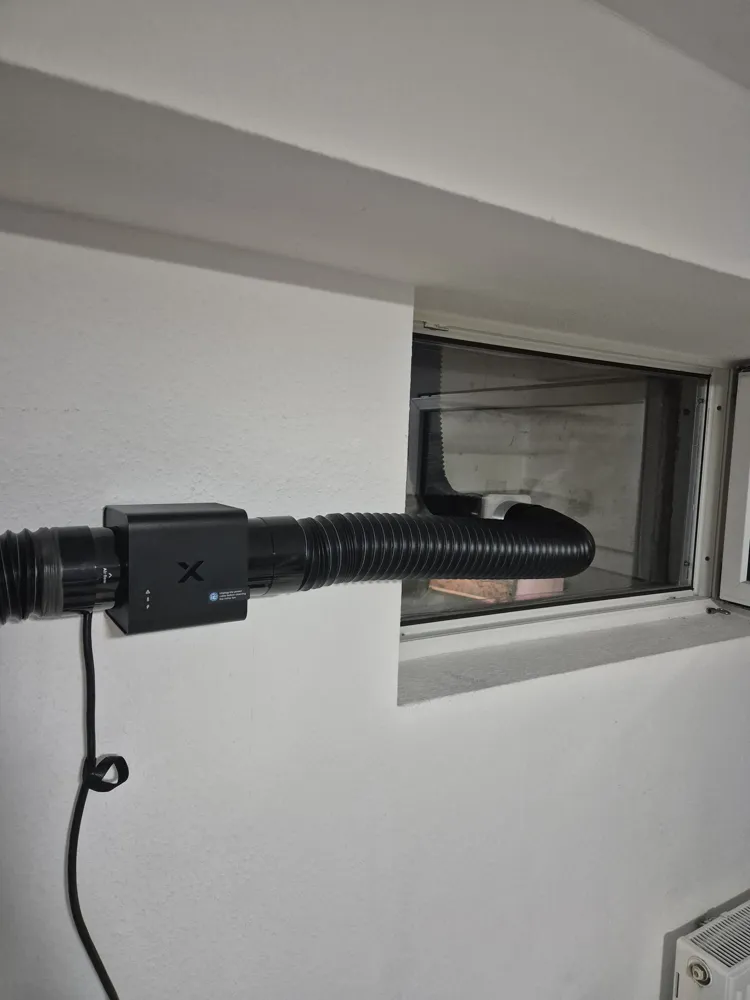

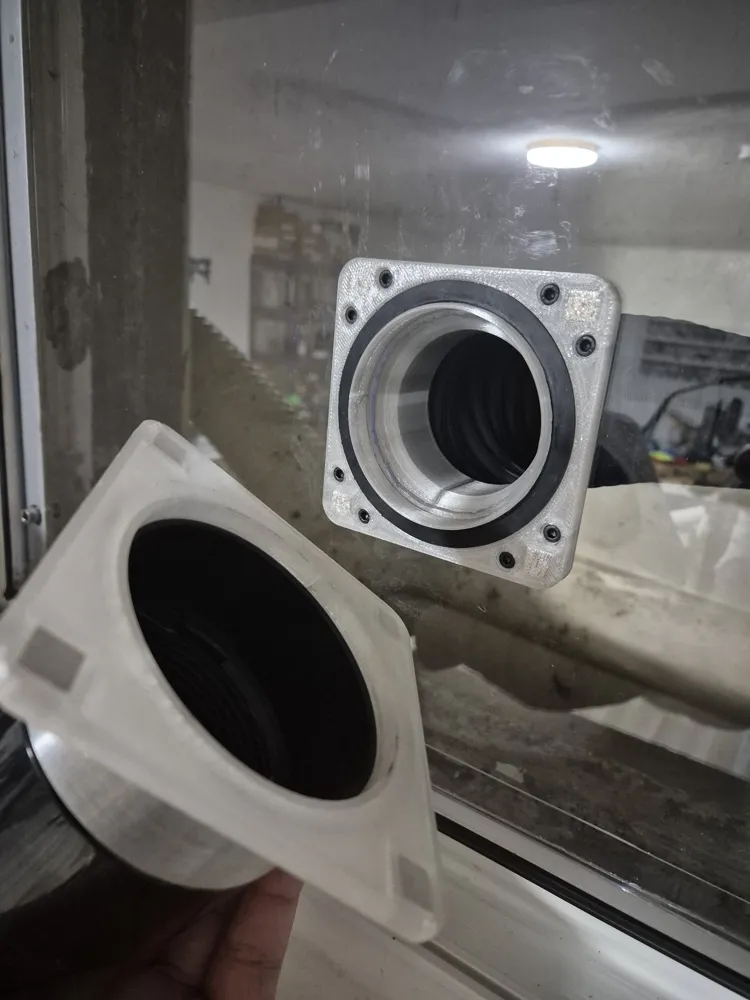

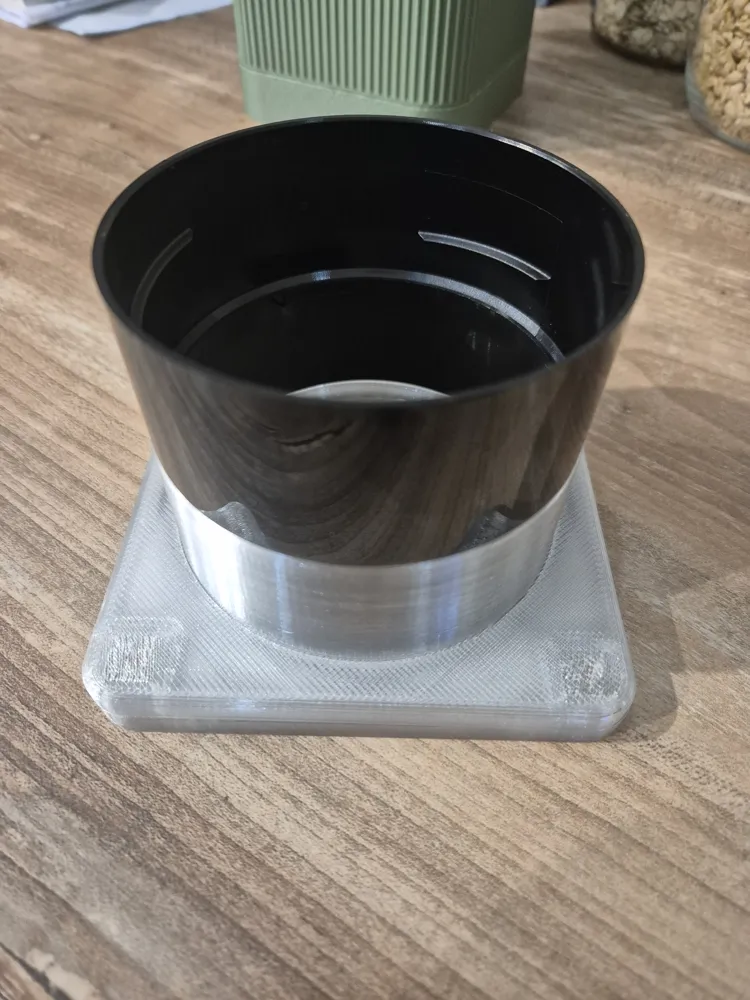

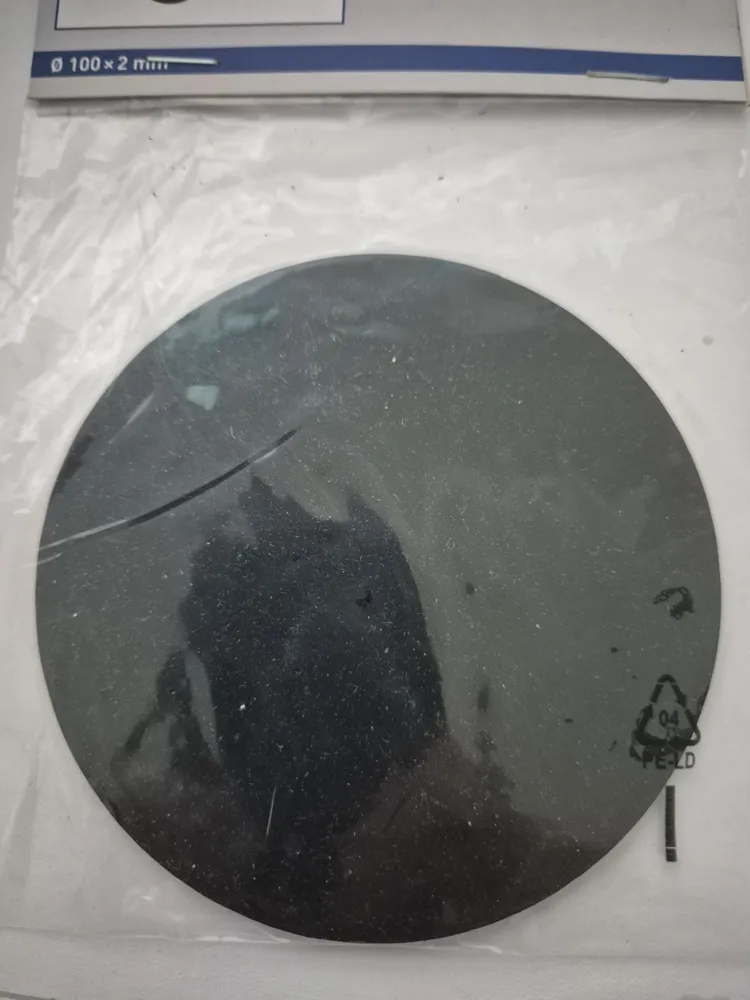

I bought the SafetyPro IF2 inline fan for my Xtool S1. Since I only have a small window in the basement room, which I have to close again and again after working with the laser, I cut an acrylic pane to size and installed it in the window. The exhaust pipe naturally has to be removed repeatedly, so I inserted four magnets 10mmx10mmx4mm into the adapter on the pane and on the exhaust pipe. A pause is specially inserted during printing to insert the magnets. It is IMPORTANT to pay attention to the poles of the magnets when inserting them so that the adapters do not repel each other. As a seal, I cut out a sealing disc with a 100mm diameter and 2mm thickness. You will need
8 magnets 10mmx10mmx4mm, 8x M4 screws, 8x 4-count washers and 8 M4 nuts
