Camera Junction Box - (Annke Compatible)
Print Profile(1)
Description
Clean up your security setup!
This junction box is designed for Annke security cameras.
It is compatible with the latest Bullet or Turret models.
It allows you to hide connectors and excess cables for a professional and weatherproof installation.

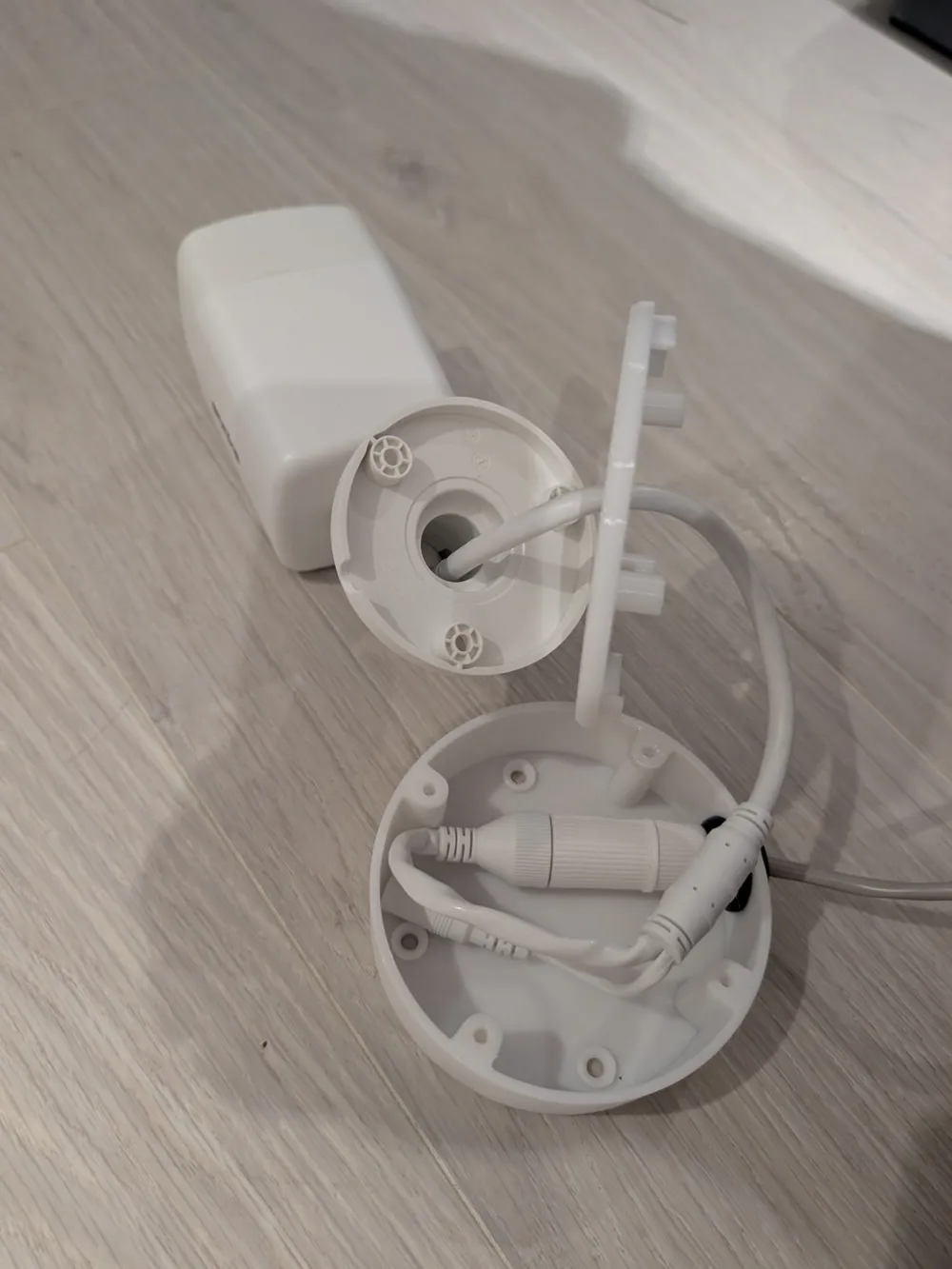

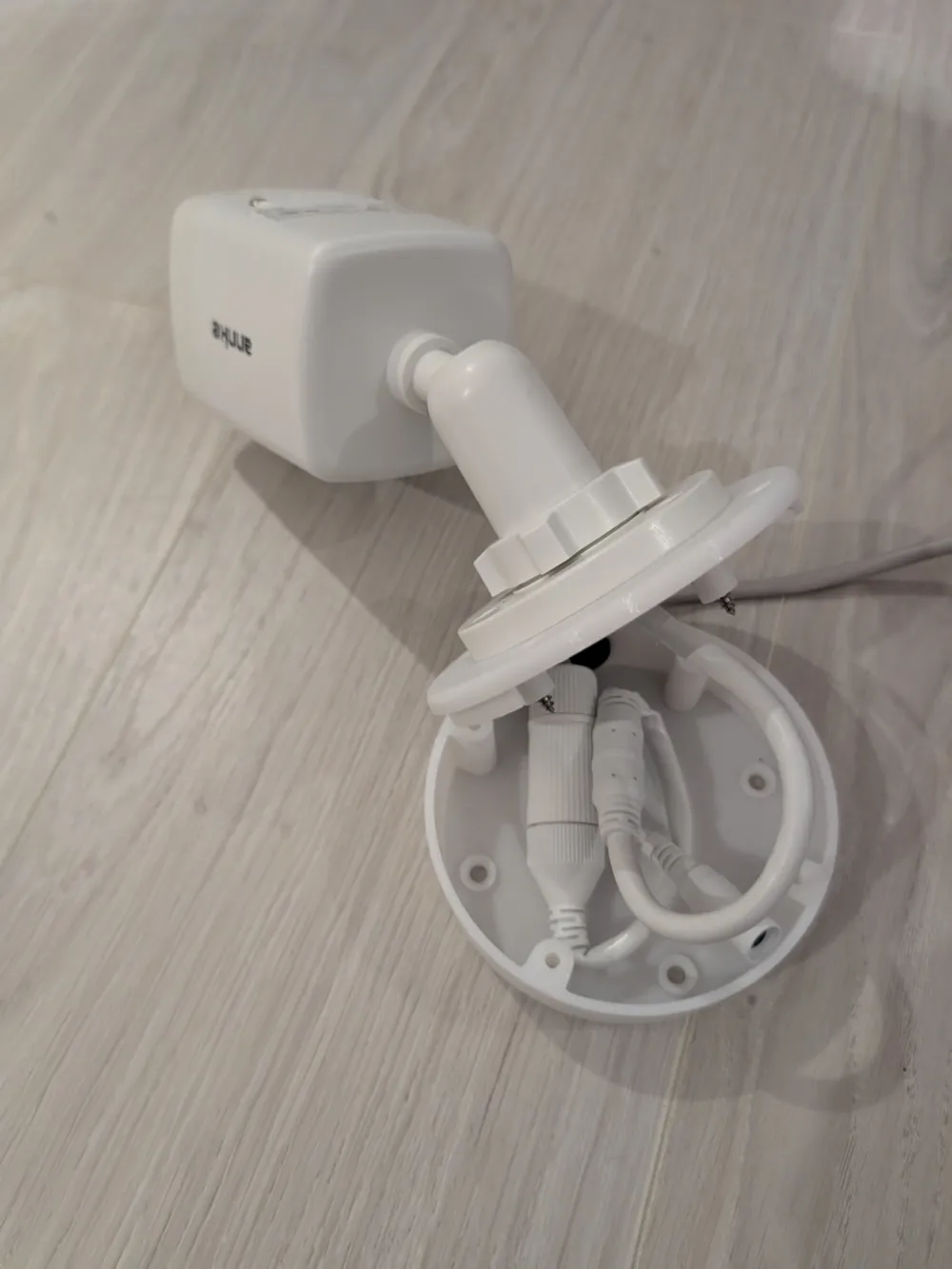

Cable Management : Hides messy wires inside the base.
Easy Mounting : screw holes positioned for standard camera bases.
Protection : Protects connectors from direct exposure to elements.
Print Settings :
Material: PETG or ASA recommended for outdoor use (PLA might deform in the sun).

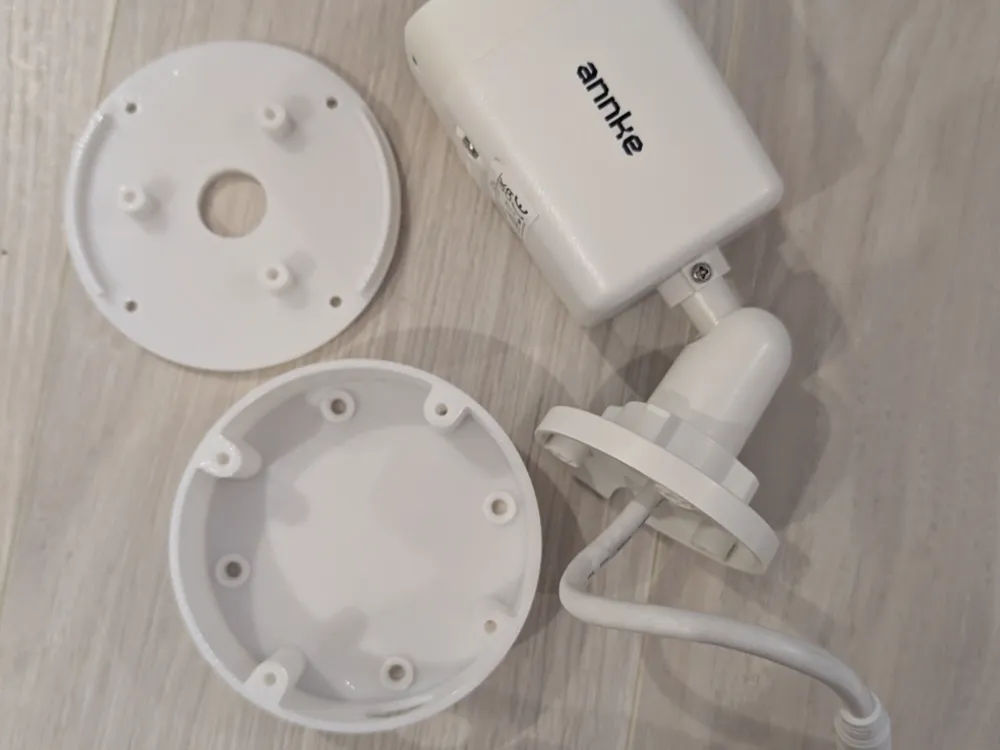

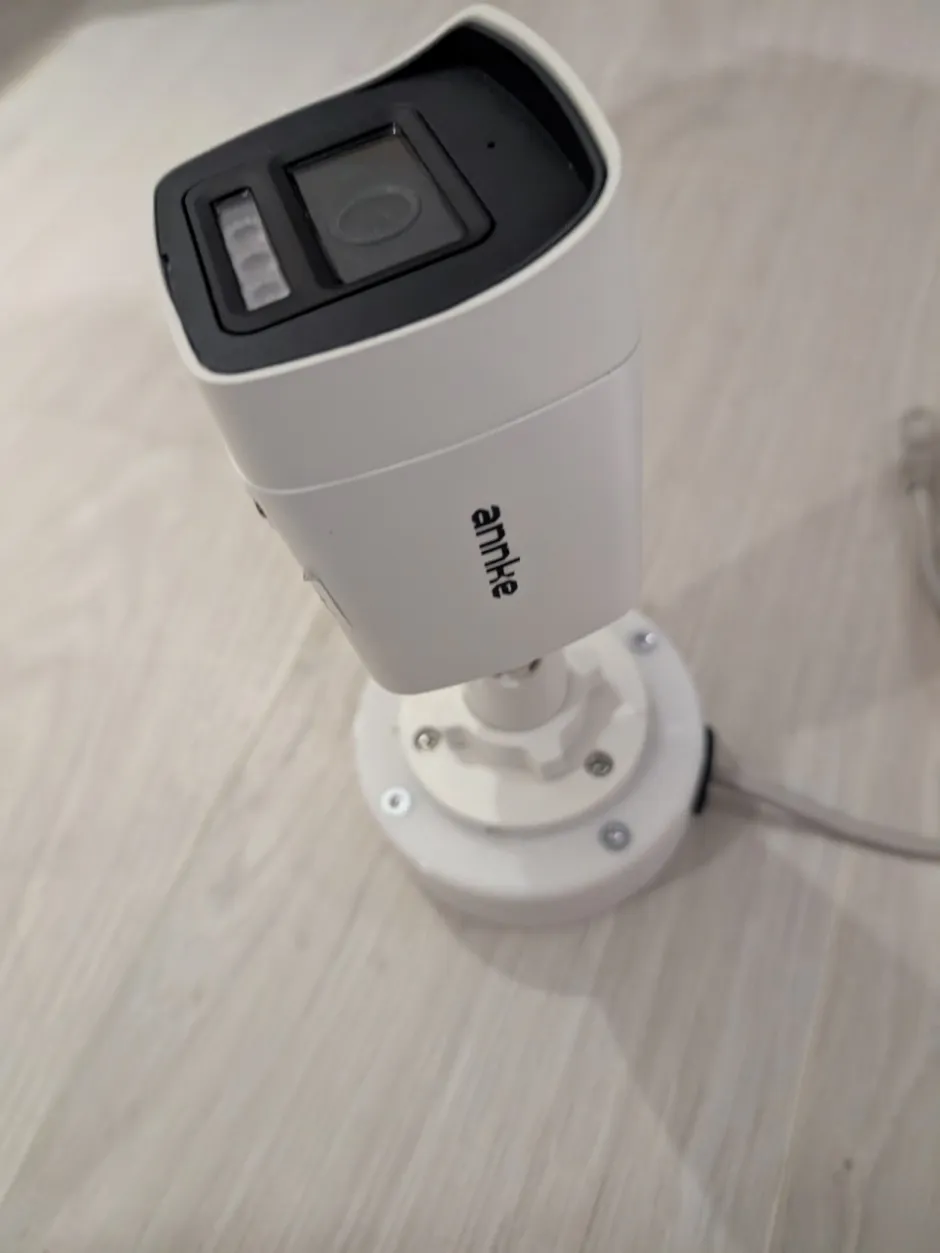

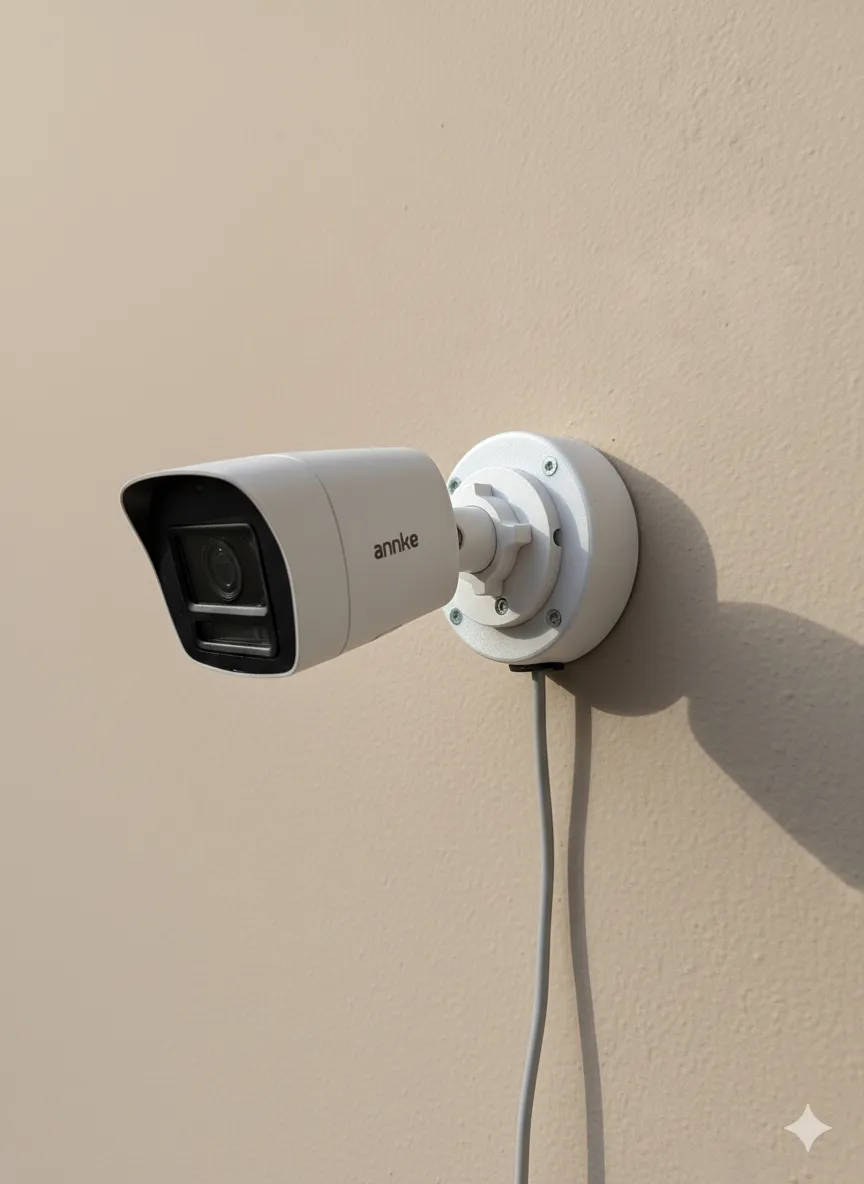

The box serves as a mount for the camera and houses the RJ45 connector. Ideal for surface mounting on a wall or ceiling.
It was when I was trying to install my cameras that I noticed the problem, and that this box was sold as an optional extra. (ref. JXH001)

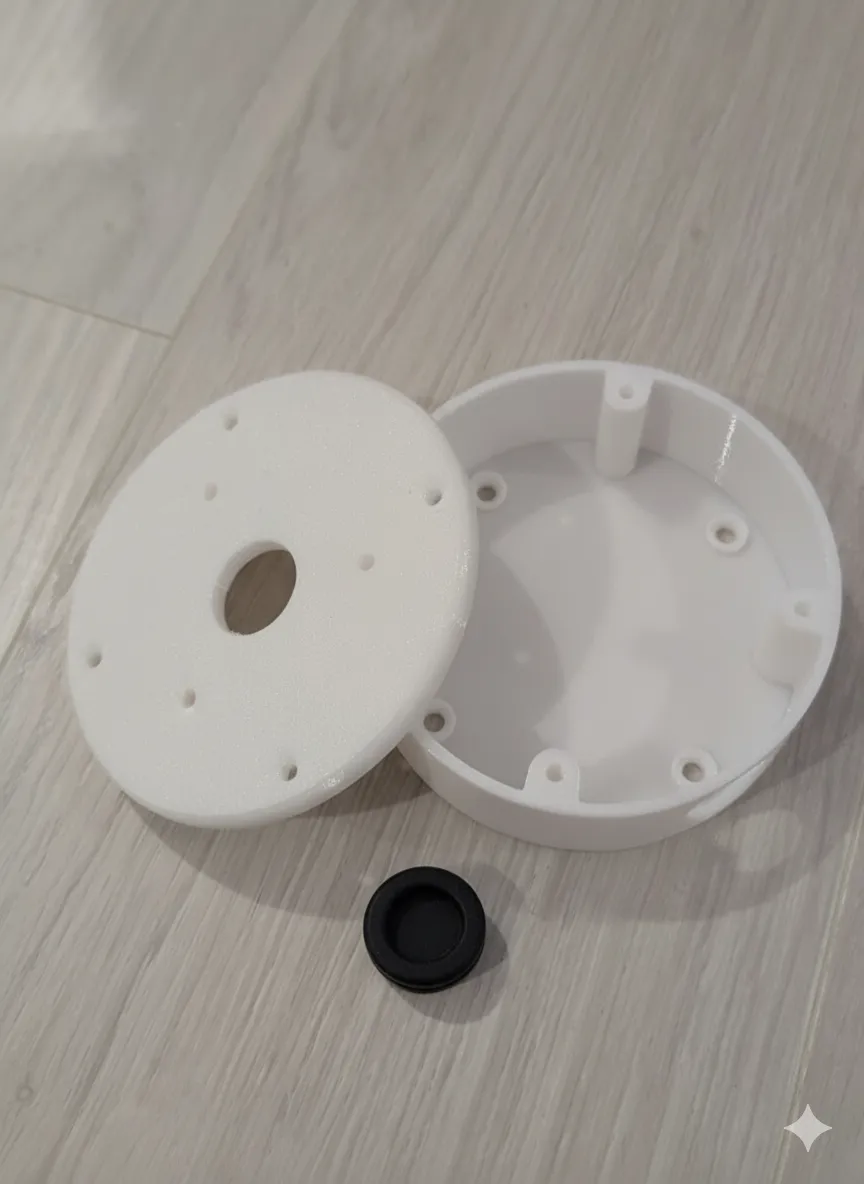

There are two files for the housing: one without a hole and the other with a hole for a 21mm diameter rubber cable gland.
Model without insert and without seal (the RJ connector is already waterproof).
To attach the camera: use the screws provided; to attach the cover: use screws that are at least 4x20.
-------------------------------------------
