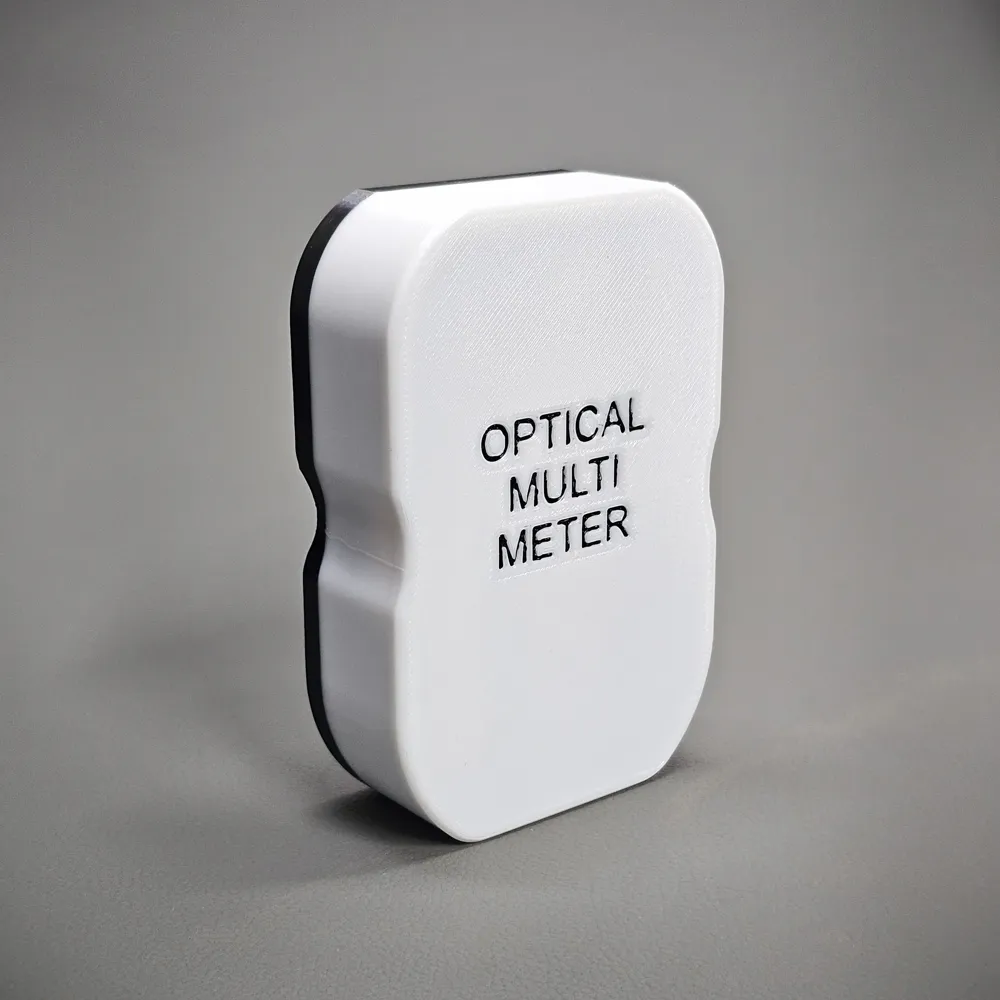

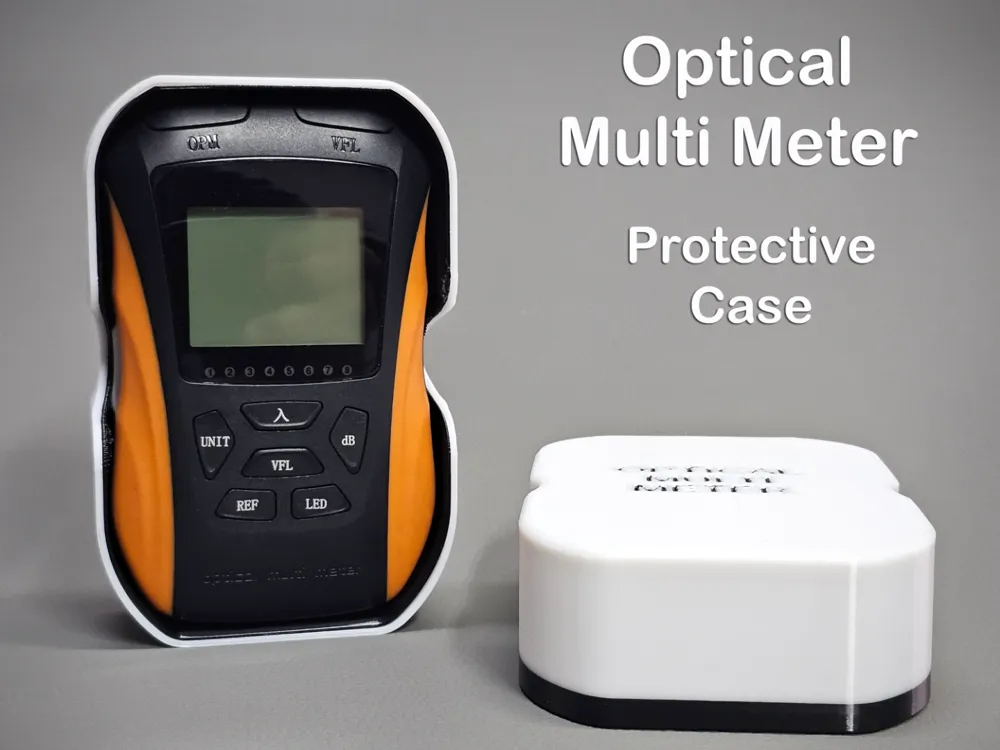

Optical Multi Meter Protective Case

Design Concept

I have this little Guangyan/UltraLan pocket tester in my tool bag. It does not come with any kind of protective casing, so I made a simple one just to keep it a bit safer.  Links to the tester can be found at the bottom of this page.

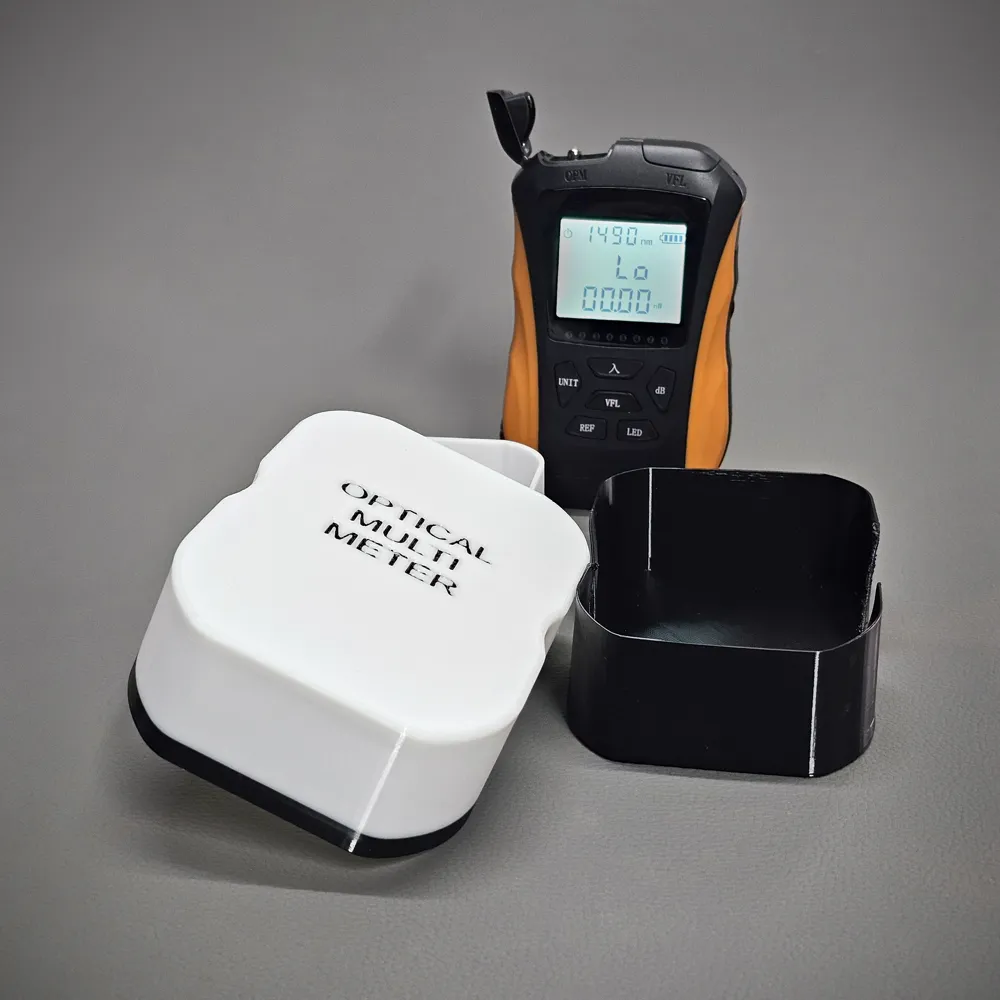

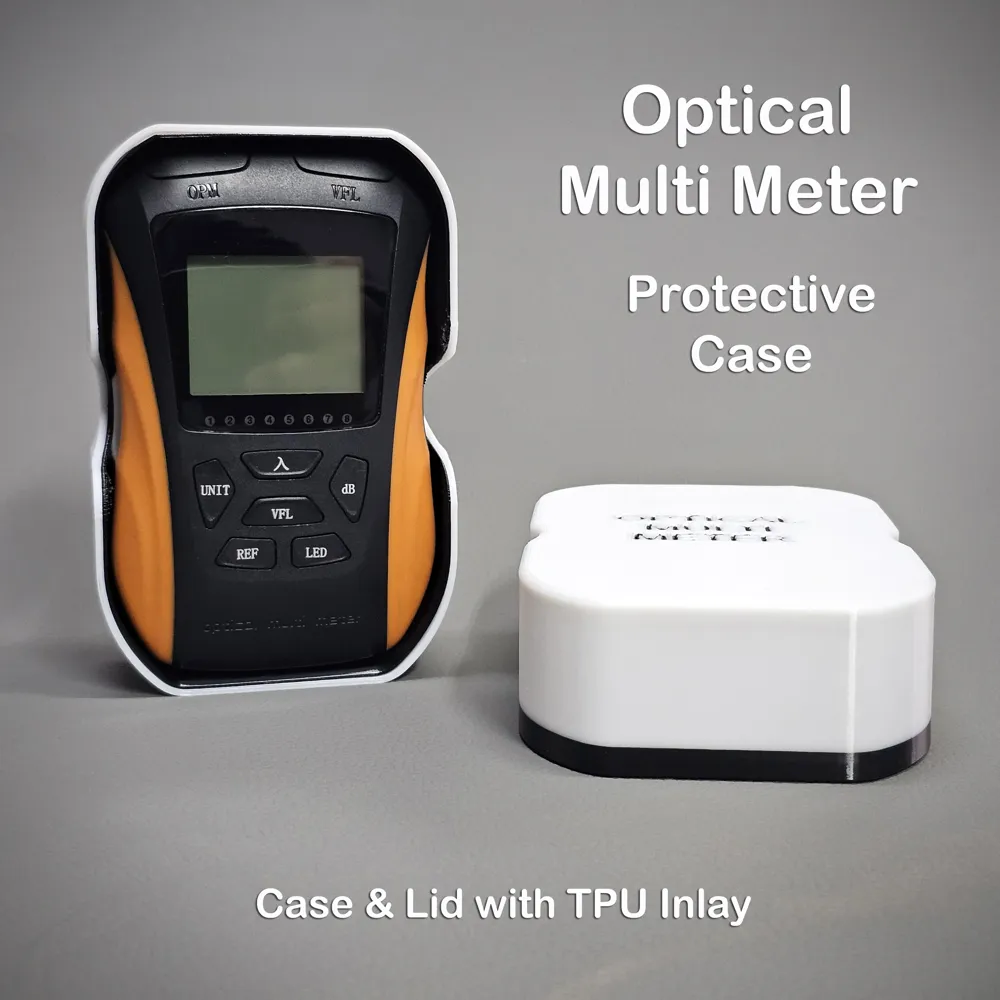

The protective case is designed with durability and flexibility in mind, using a TPU inlay for shock absorption and additional protection for the optical multi meter.

Use

Made to protect from bumps, drops, and scratches during transport and use.

Printing

I printed my Case and Lid with PETG:

0.20 Layer Height

2 Walls

15% Rectilinear Infill

The optional Inlay was printed with TPU:

0.20 Layer Height

2 Walls

100% Rectilinear Infill

Speeds not exceeding 80mm/s

Instructions

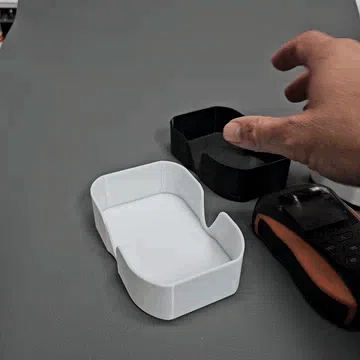

Insert the optical multi meter into the case, ensuring it is well seated in the TPU inlay, for maximum protection. If you find this case useful in any way - Please leave a LIKE!

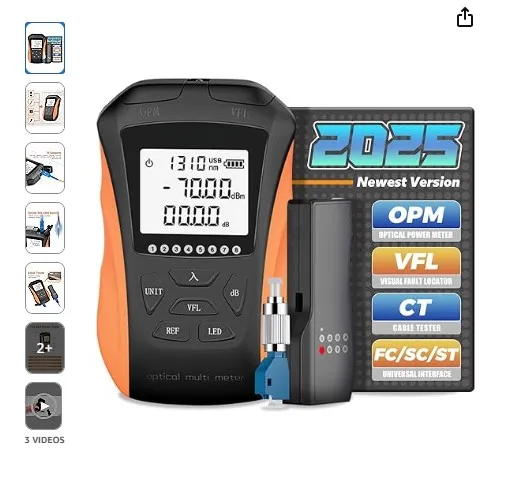

The tool be purchased here:

https://www.amazon.com/YGGYM-Optical-Function-Universal-Interface/dp/B0974V66PT/ref=sr_1_8?crid=1JE3QFV37I4IH&dib=eyJ2IjoiMSJ9.2mhjBnYKOgJYTKfEDcuFC8JQr4m2C0S6YBS8fouL8234u3ieM68uAiWvdrpWMd_fHIn5uSQQKkHdVZRWCPOoIyvU_AutqbPTWGG-oQCrk2tRcokhUId-NTgedTqygxgdr7csATqHsjpxf9a2H5MXINhknztVsoVgFnDfO2v6EFHN94XdrRpWQHl_vmGBgNW2EJQVq_-vmrA7NxpOmqFn2vtKE71Wn3dSQ65Kpga_qF0.A2BRbhqbf1w3in2FYrugUKJEcfx6-n6hlxlOm74rJEA&dib_tag=se&keywords=optical+multi+meter&qid=1763300667&sprefix=optical+multi+met%2Caps%2C382&sr=8-8
