This has the biggest, most excessive U-bolt piece.  Most normal people will not need this, but my house has some large gaps between cabinets.  This print profile is in PETG for added strength and includes the original 8-inch U-bolt (the bigger one from the creator) as an option in PETG, too.  This uses 4 wall loops, 15% infill, and a 0.2 mm layer height.  There are three plates, and you will always print two of them.  The one plate contains the casing, and by separating it you can choose a wild color for it to contrast the other hardware.  Of course you could print everything the same color.  You do you. Option 1:  Big latch - Print Plate 1 and Plate 2 Option 2:  Extremely big, unnecessary size latch - Print Plate 2 and Plate 3Print all 3?  Not recommended, unless you print the second one twice.

Excessively Extra Long U, 0.2mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

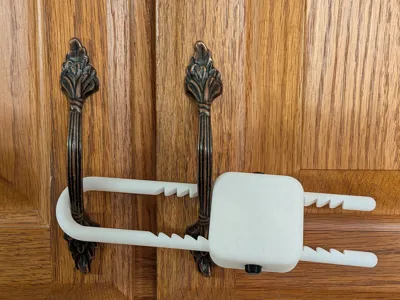

This is an variable width cabinet latch and it&#39;s easy to assemble. Stronger materials will make for a stronger latch. I printed this with PLA, but would use something stronger such as PETG or ABS if strength was a concern.
