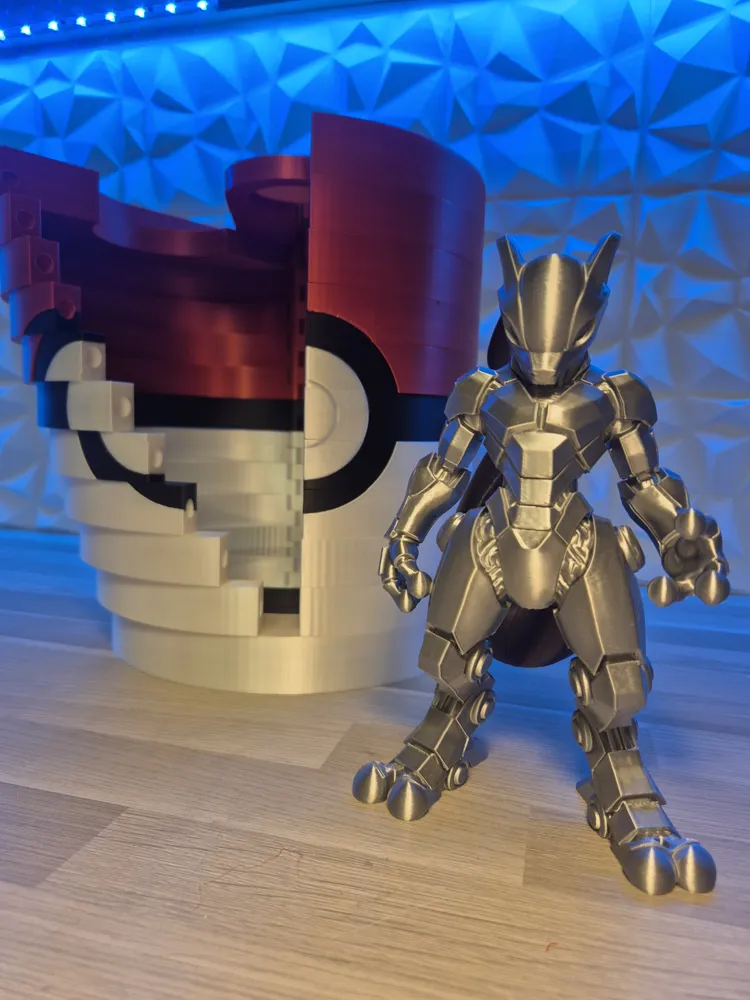

Pokémon Display Box – Modular Light-Up Rotating Capsule
This display box is inspired by classic Poké Ball colors and uses the same folding/stacking mechanics as my barrel box. It’s designed to show off a Pokémon collectables or cards in a clean, premium way.

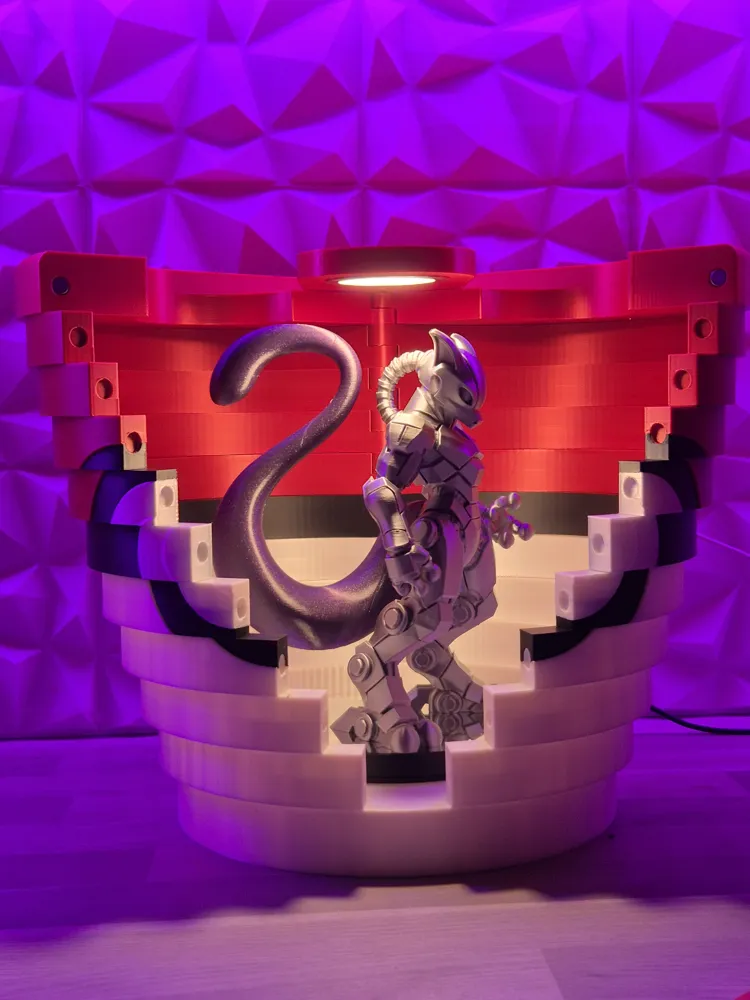

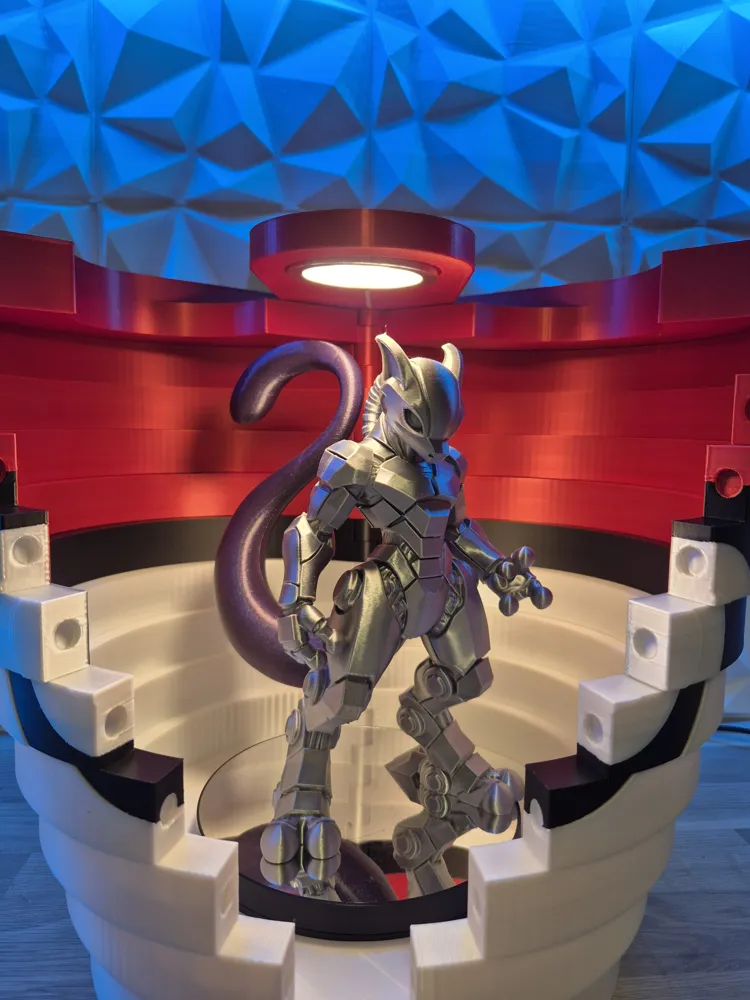

- LED-Ready Top: A built-in slot in the upper section lets you install an LED light to illuminate the pokemon from above.
- Turntable Base: The bottom section includes a dedicated space for a small turntable, allowing the model or card to rotate smoothly while on display.

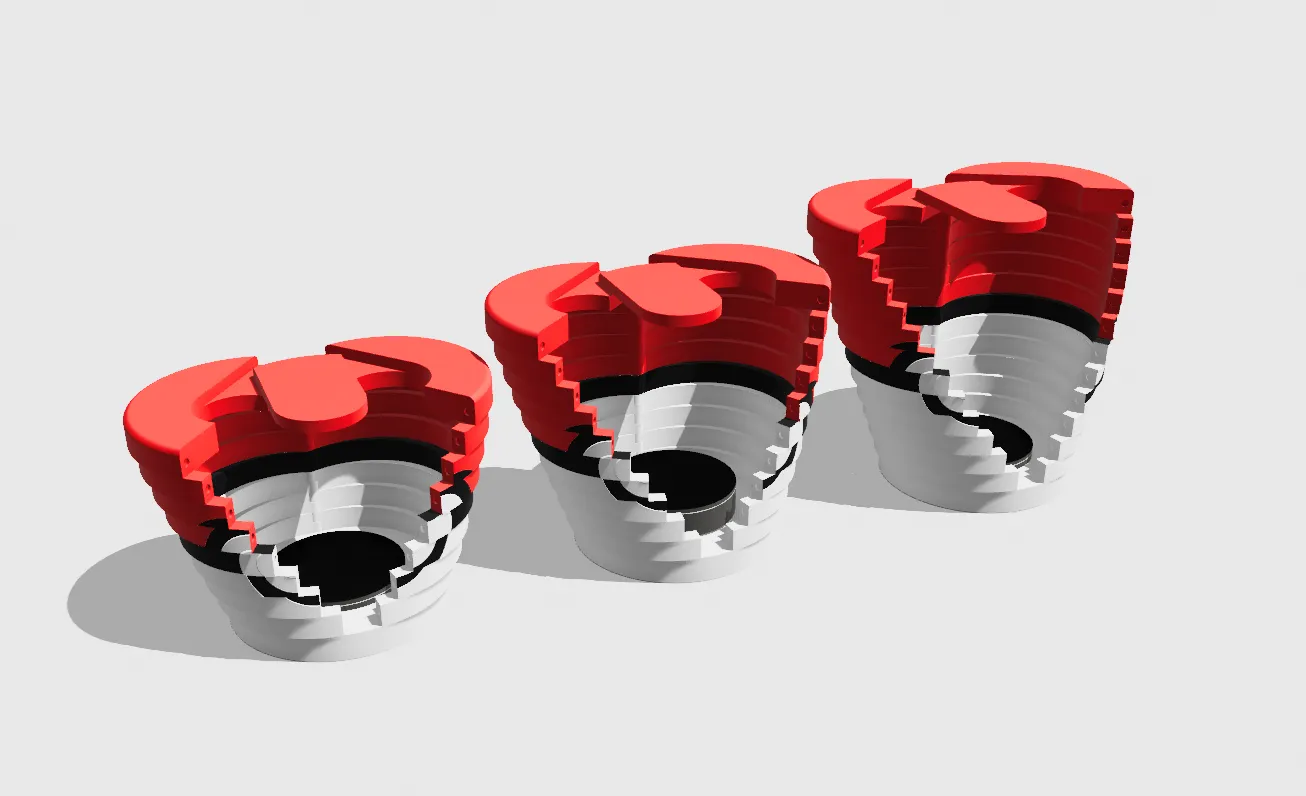

- Modular Height: The box is partly modular. Add or remove segmented rings to adjust the height depending on the item you want to showcase.

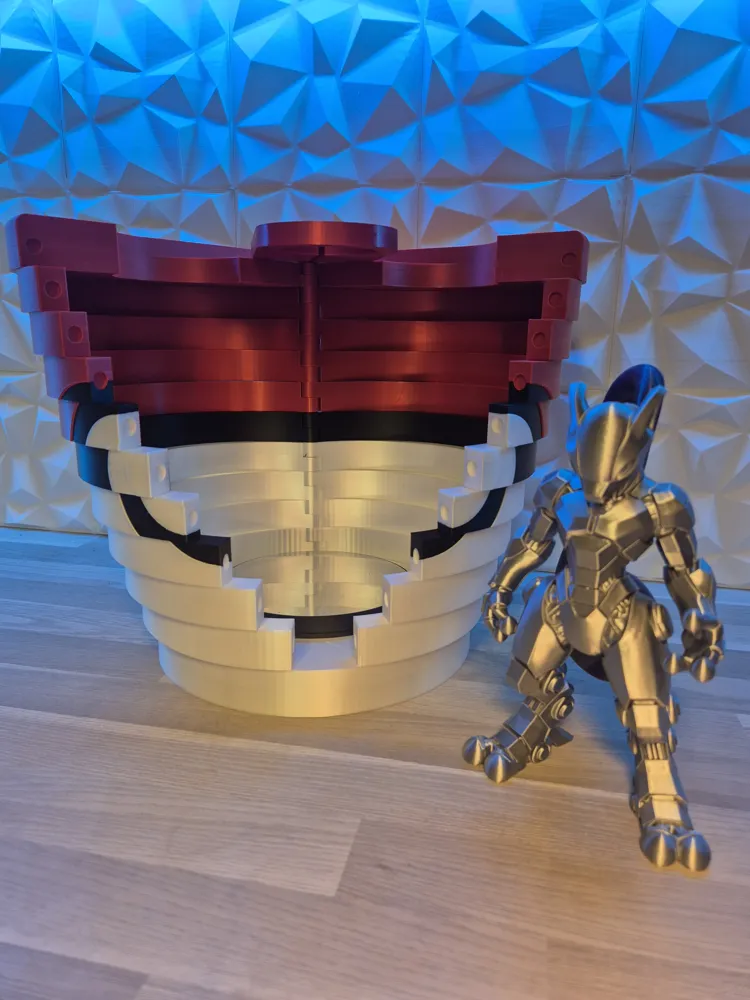

- Smooth Folding Mechanism: The layers interlock just like the barrel box, creating a seamless motion when collapsing or expanding the display.

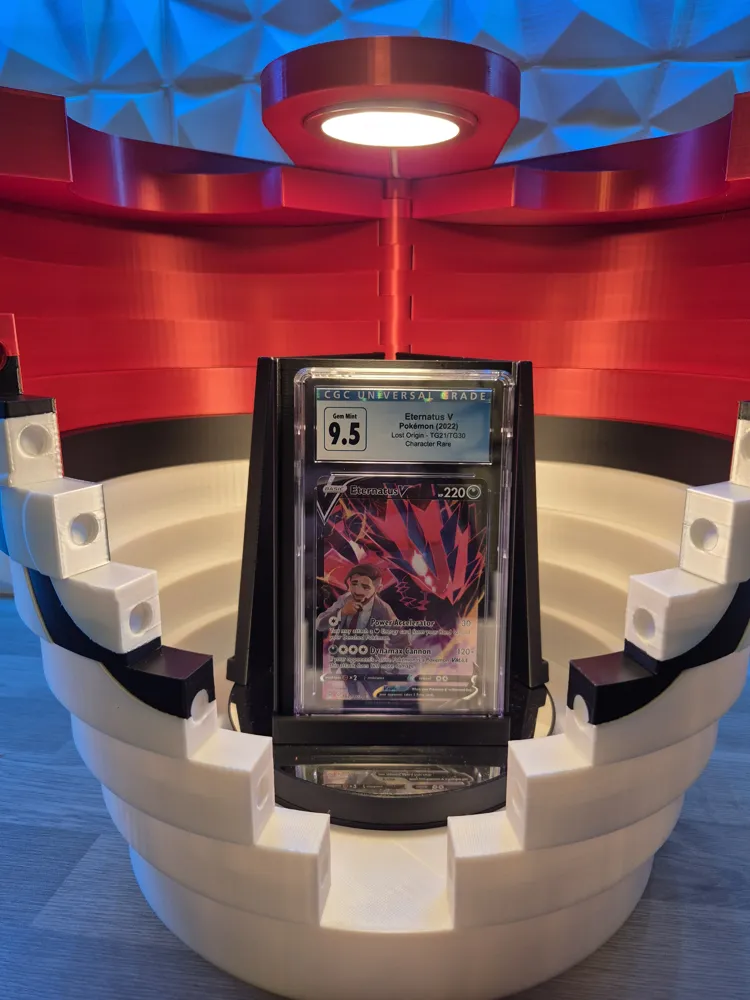

- Perfect for collectibles, 3d printed Pokemon or Cards: Works with both 3D Pokémon figures and upright card stands.
A fun, functional display piece for collectors who want something more unique than a standard case.

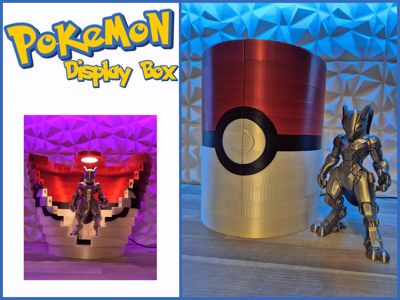

The model in the photos are printed in Polymaker PLA silk. Link in BIO.
3D printed parts :
- 22 to 30 printed parts (Depending on size of the box)
- 2 alternative tops for LED

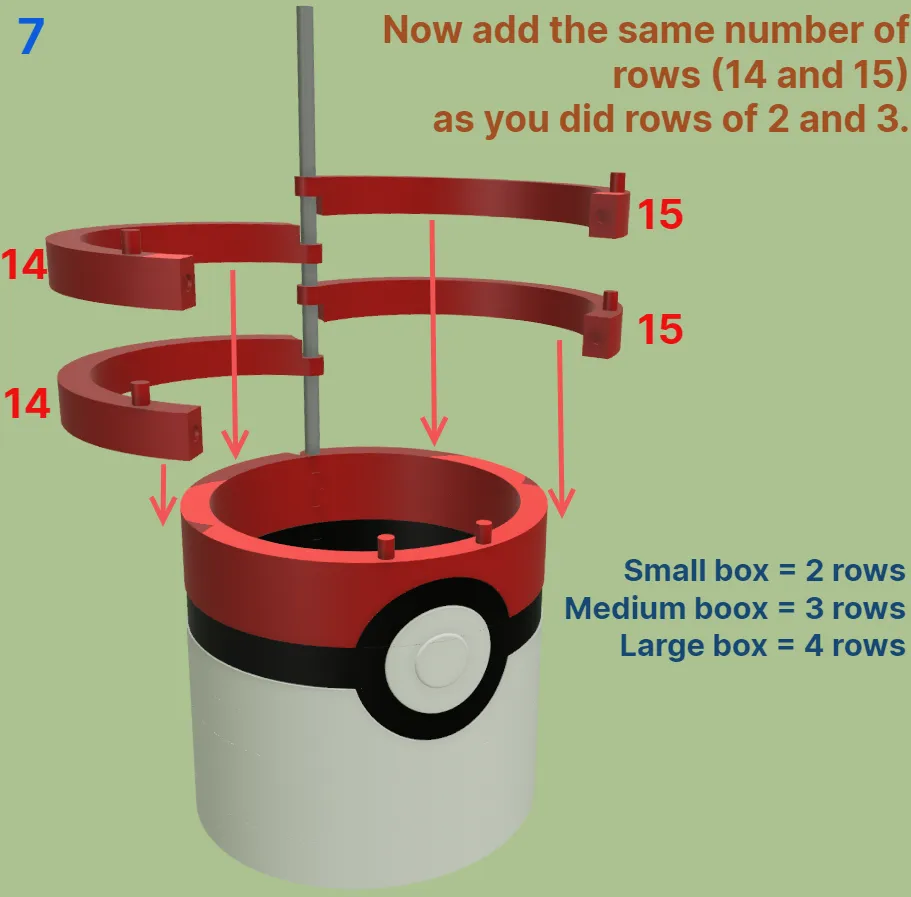

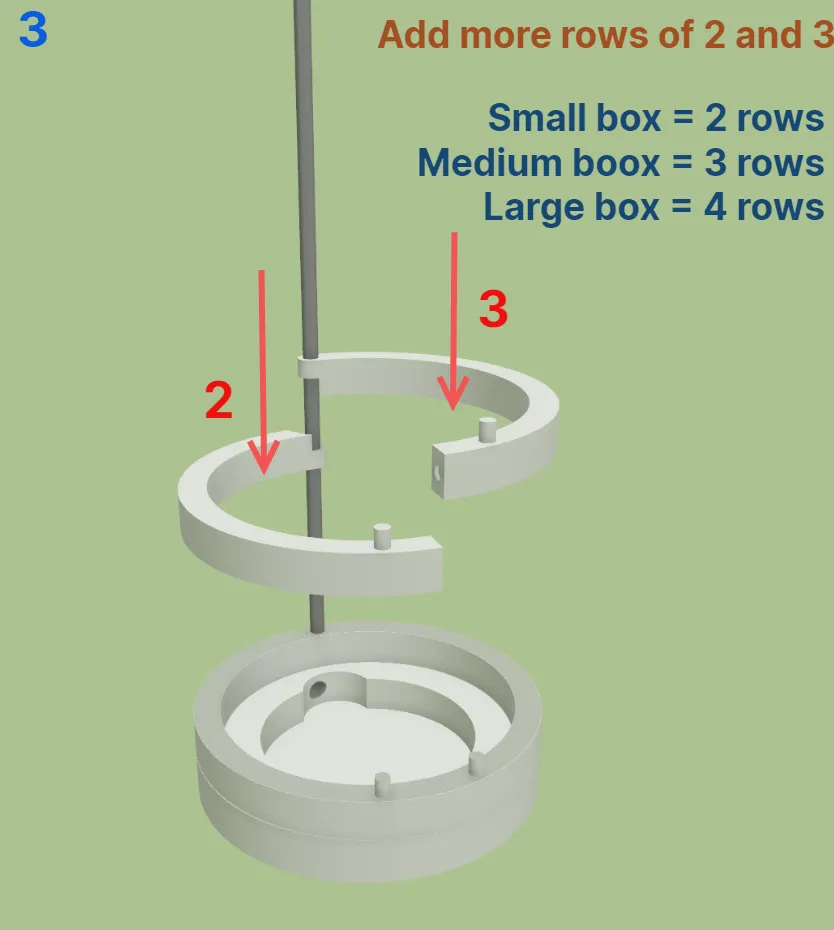

- Parts 2, 3, 14 and 15 gets printed multiple times. Small box x2 - Medium box x3 - Large box x4
Other parts required :

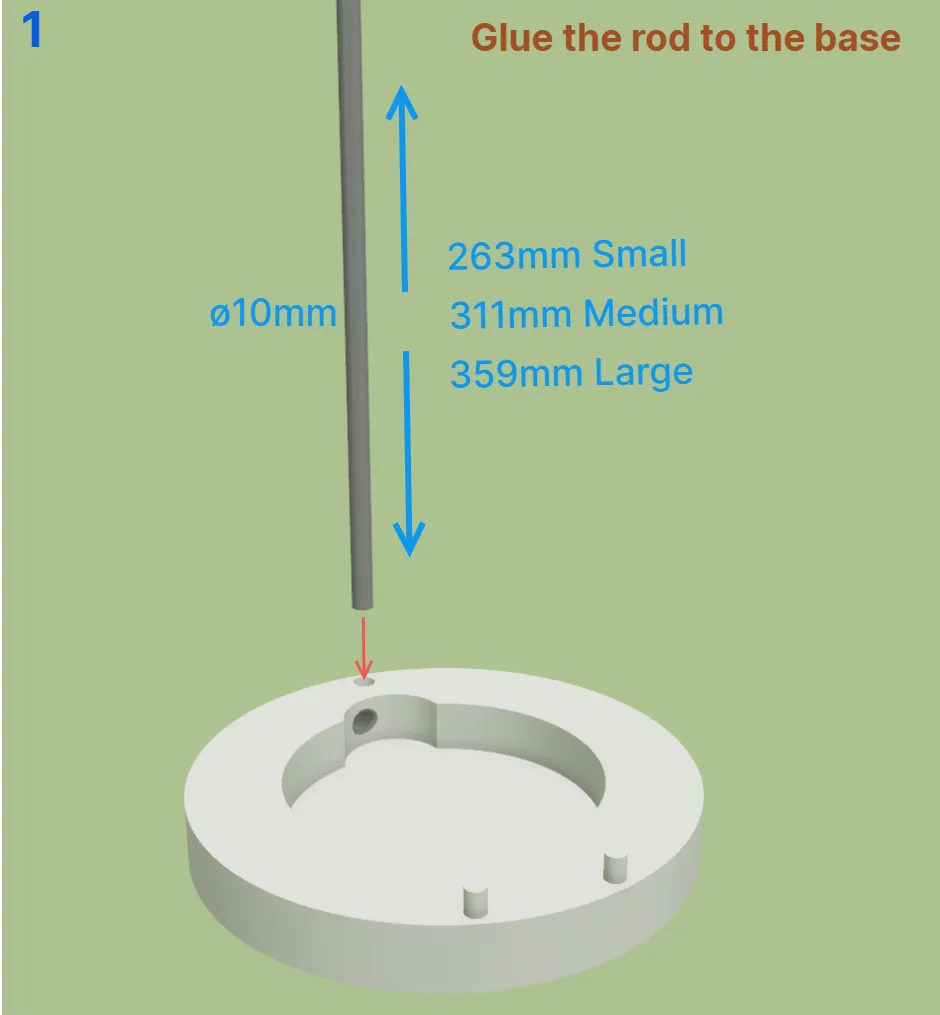

- ø10mm steel rod - Length = Small box 263mm - Medium box 311mm - Large box 359mm

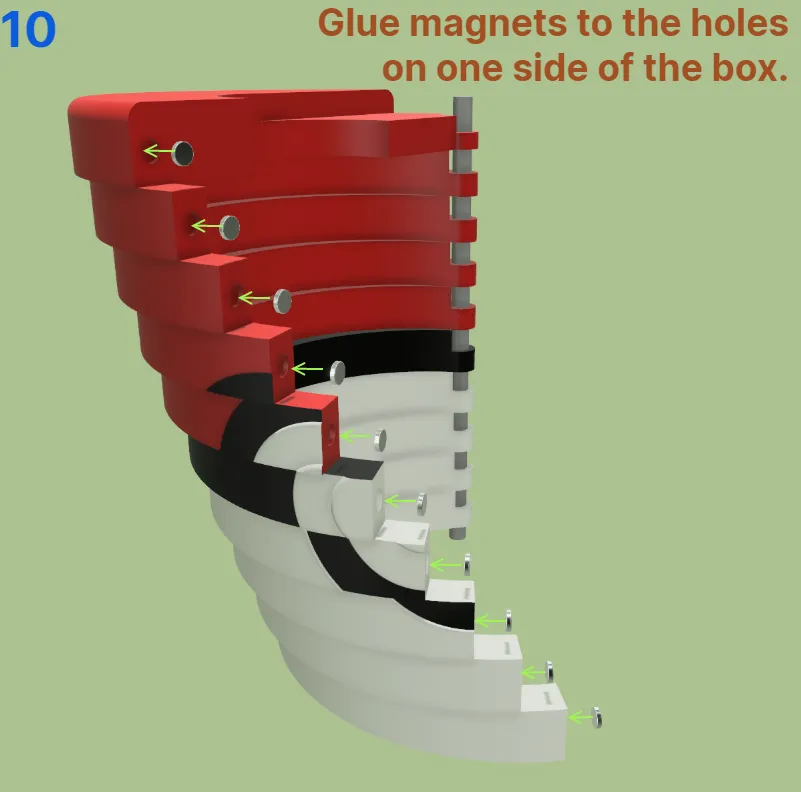

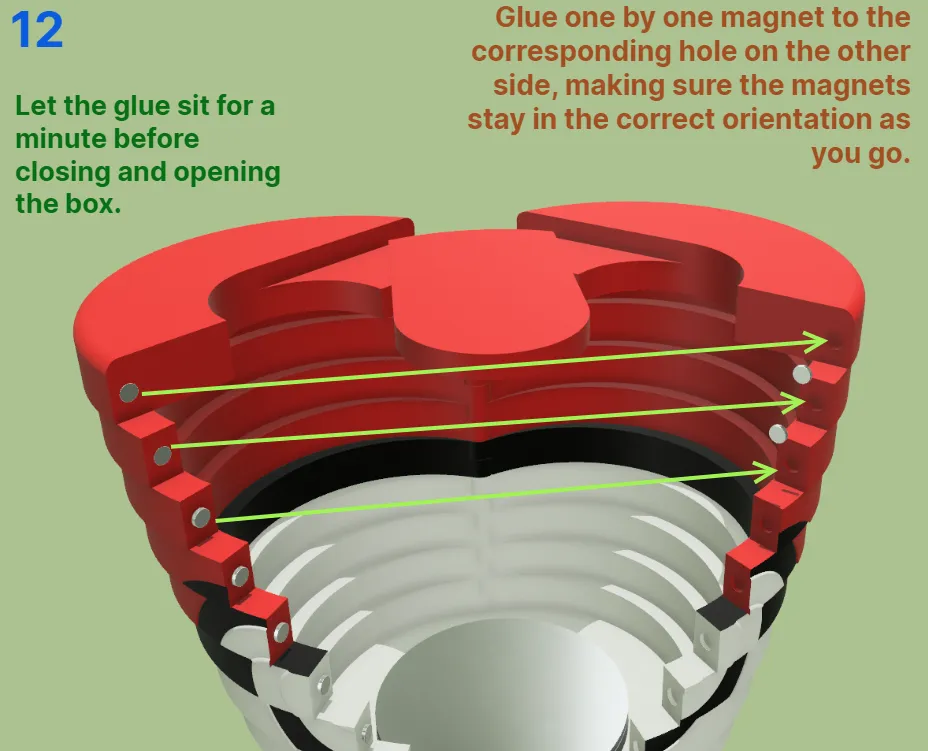

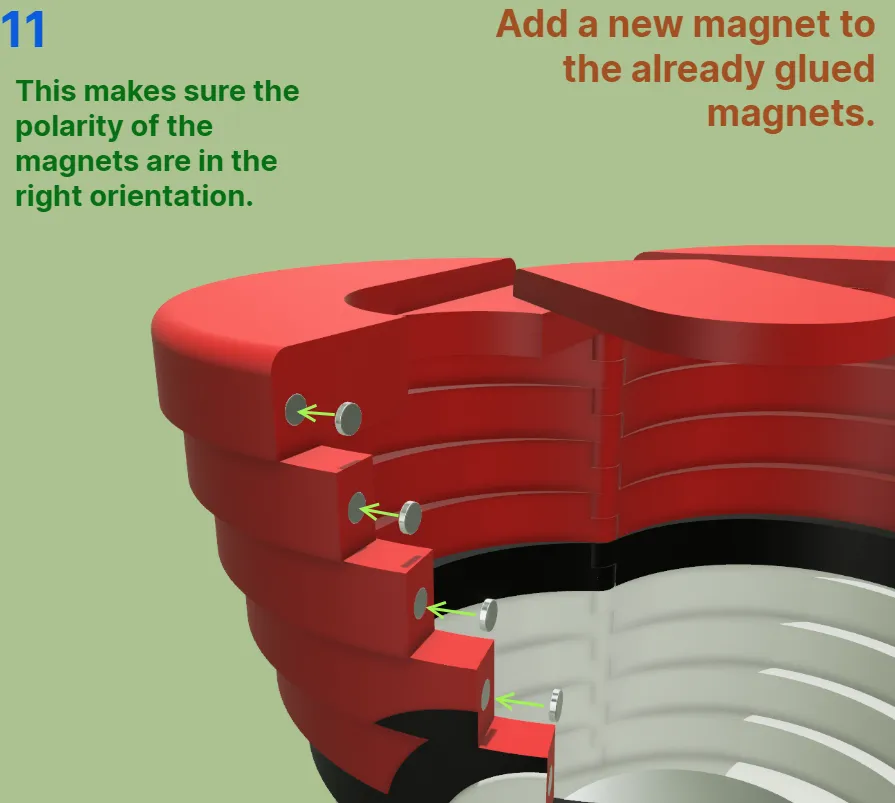

- 20-28 pcs Round Magnets 8x2mm

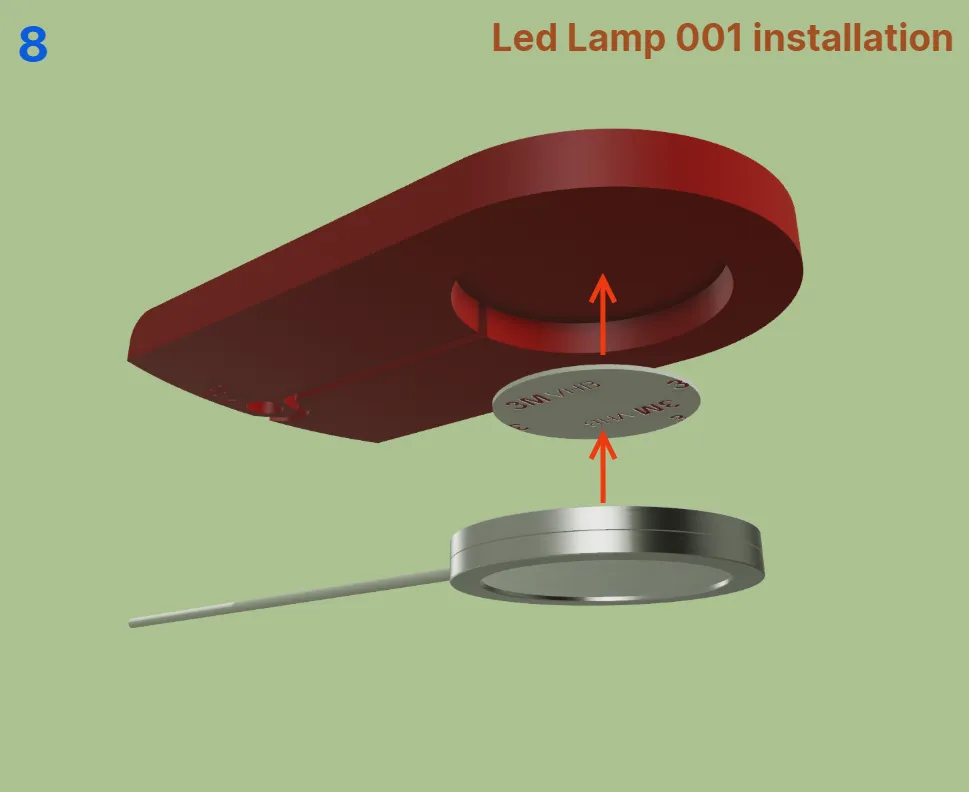

- Optional : Led Lamp Kit 001 or KC007
- Turntable
Tools :
- Hacksaw/angle grinder for steel rod.
- Ca glue
- 3d printer. 😅
You can find the steel rod you need here → (affiliate link)
Turntable here → (affiliate link)
Mewtwo is designed by AT62
Card stand is designed by Credo design

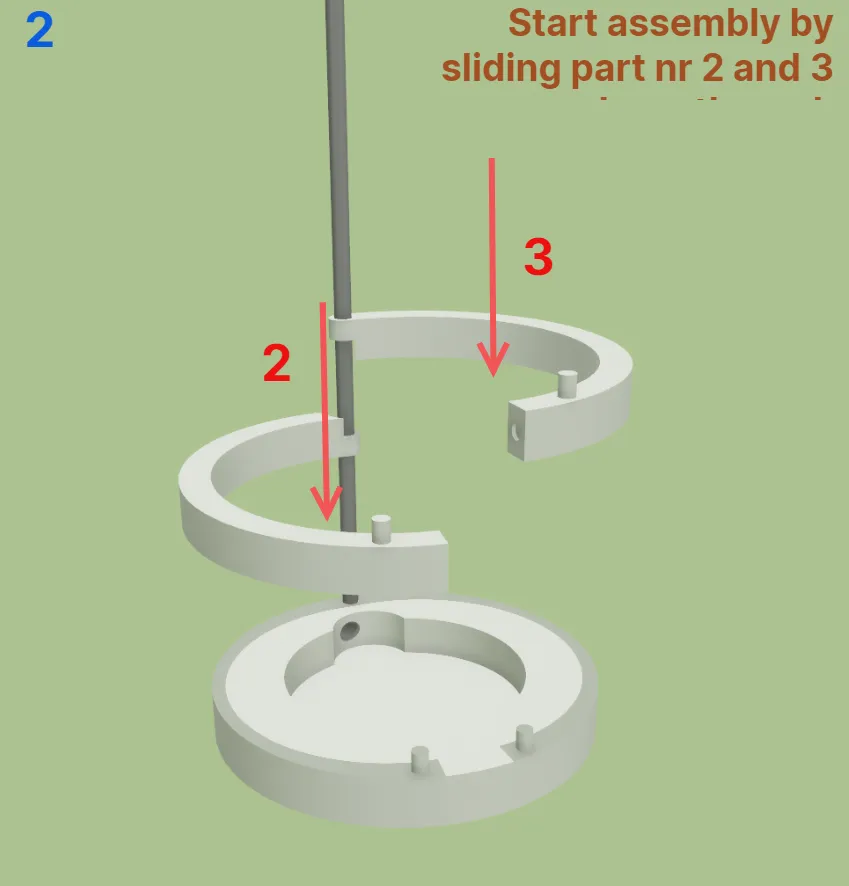

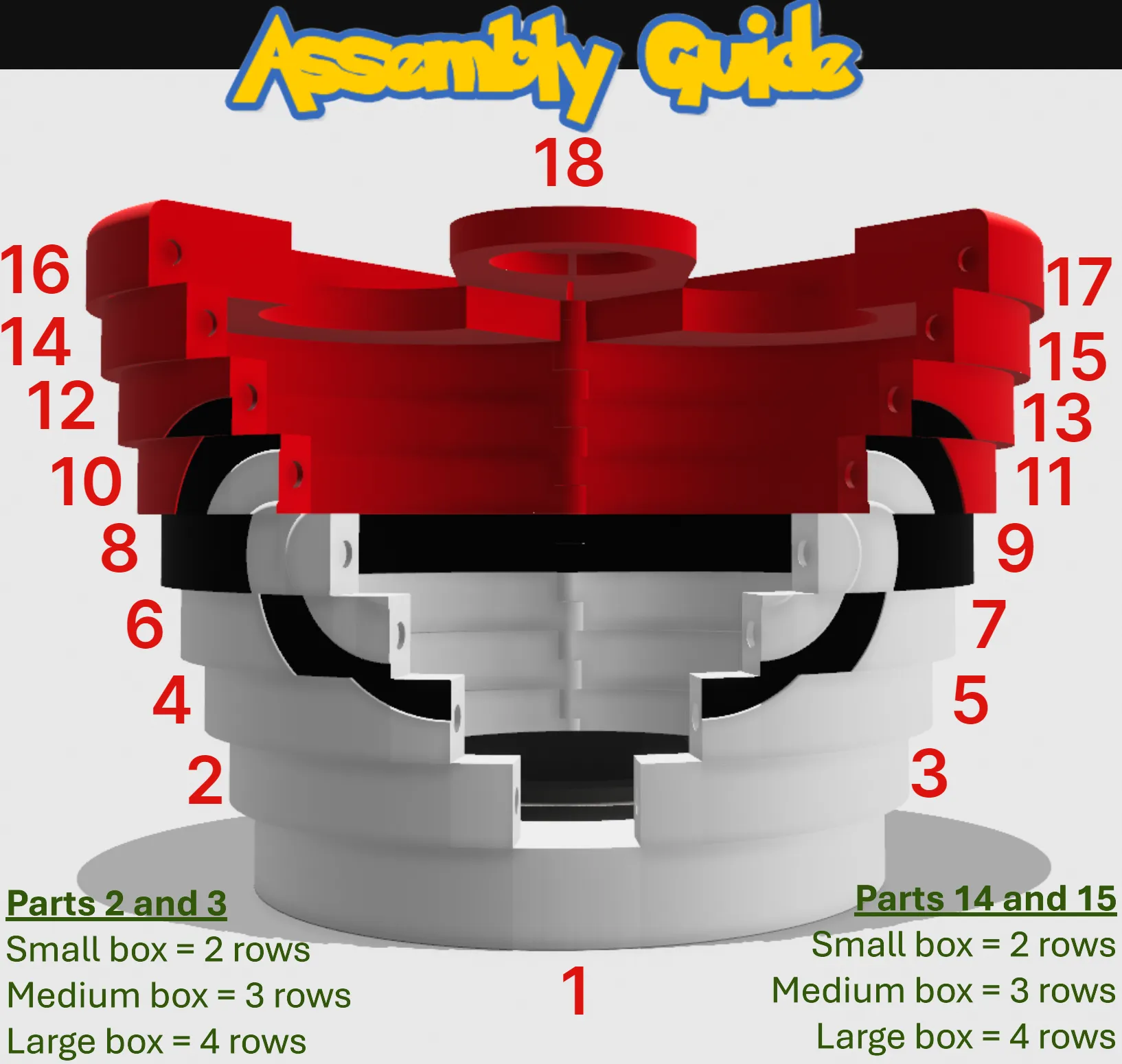

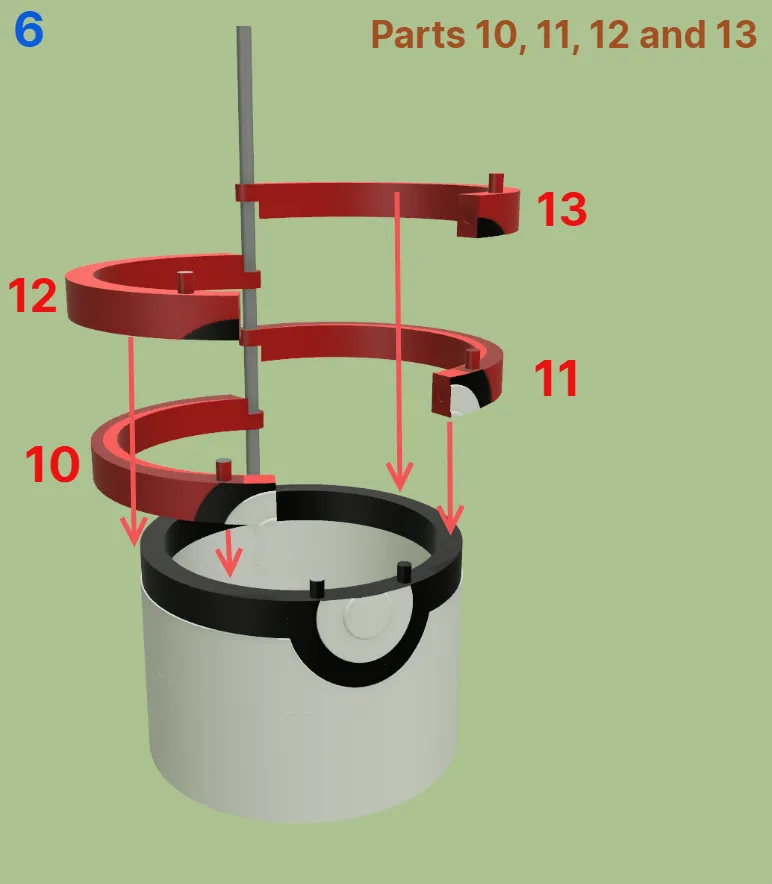

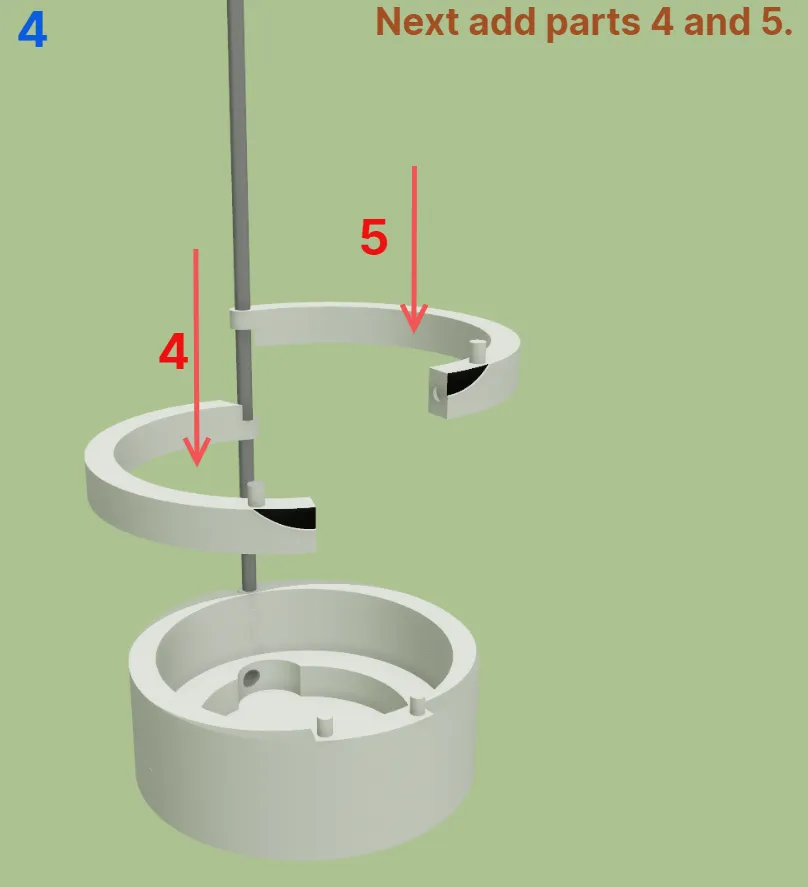

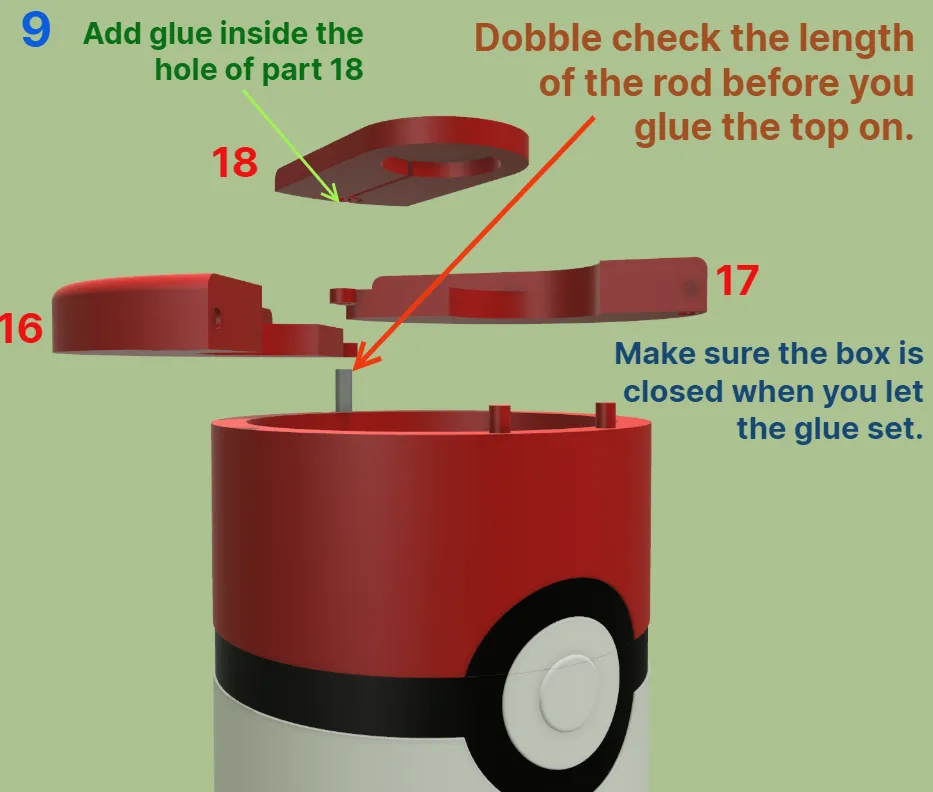

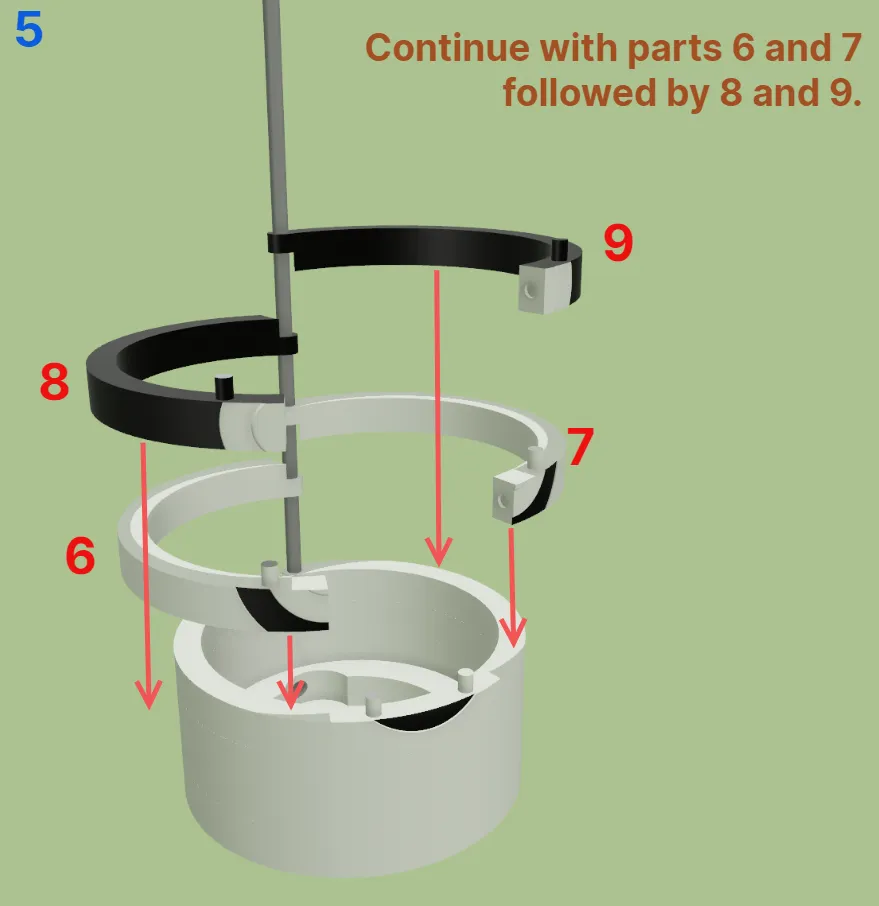

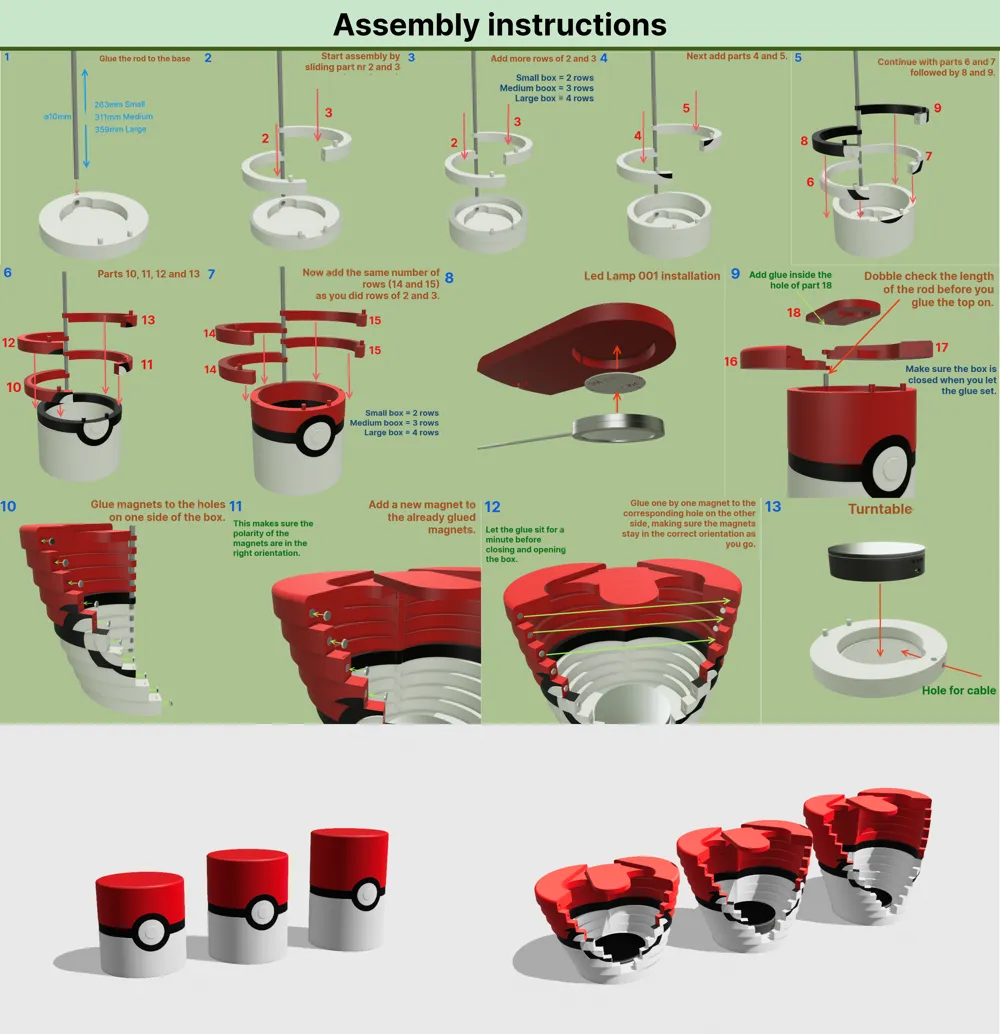

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.

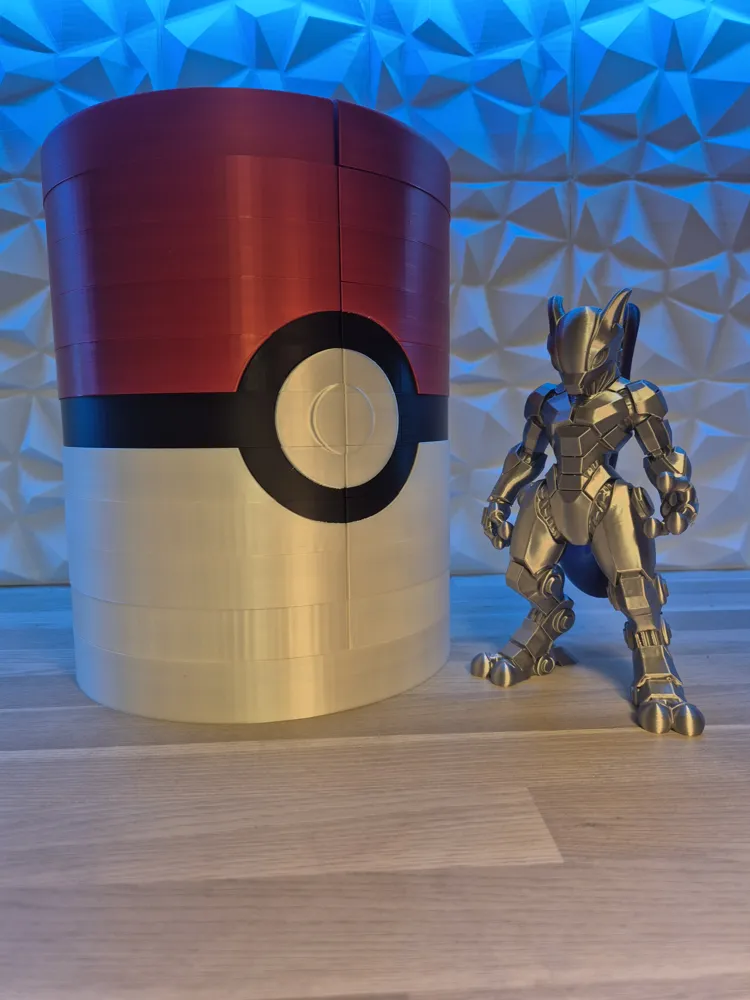

When you're done with assembley, it should look like this…
Follow me if you want to see more of my designs in the future!
