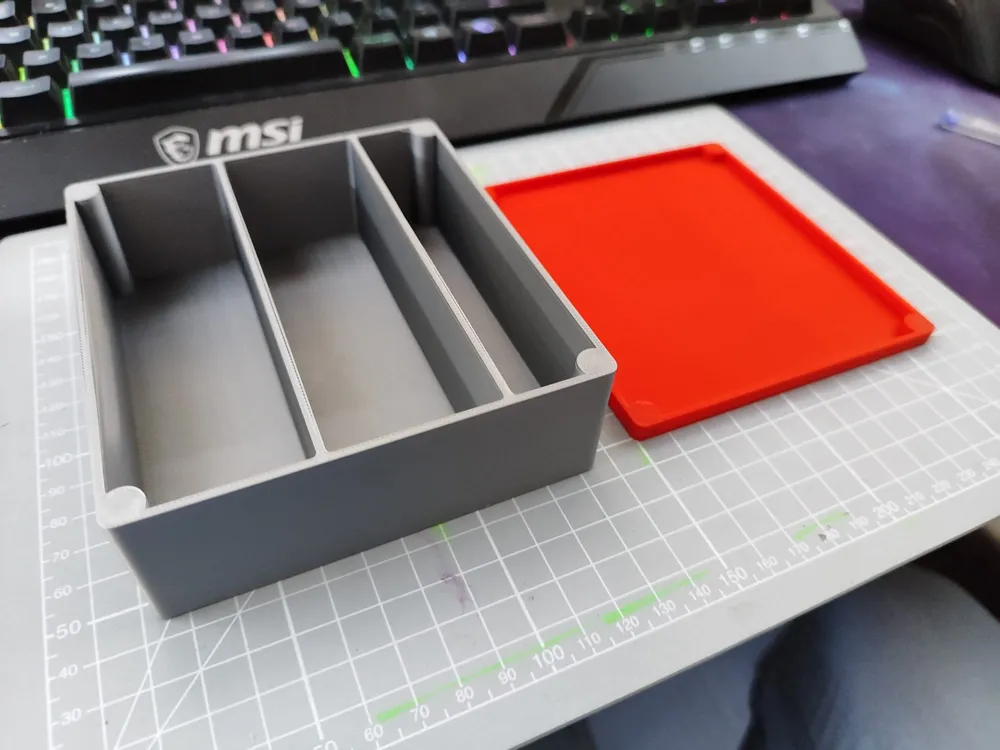

DJI Mini 5 Pro propeller and cable box with magnets

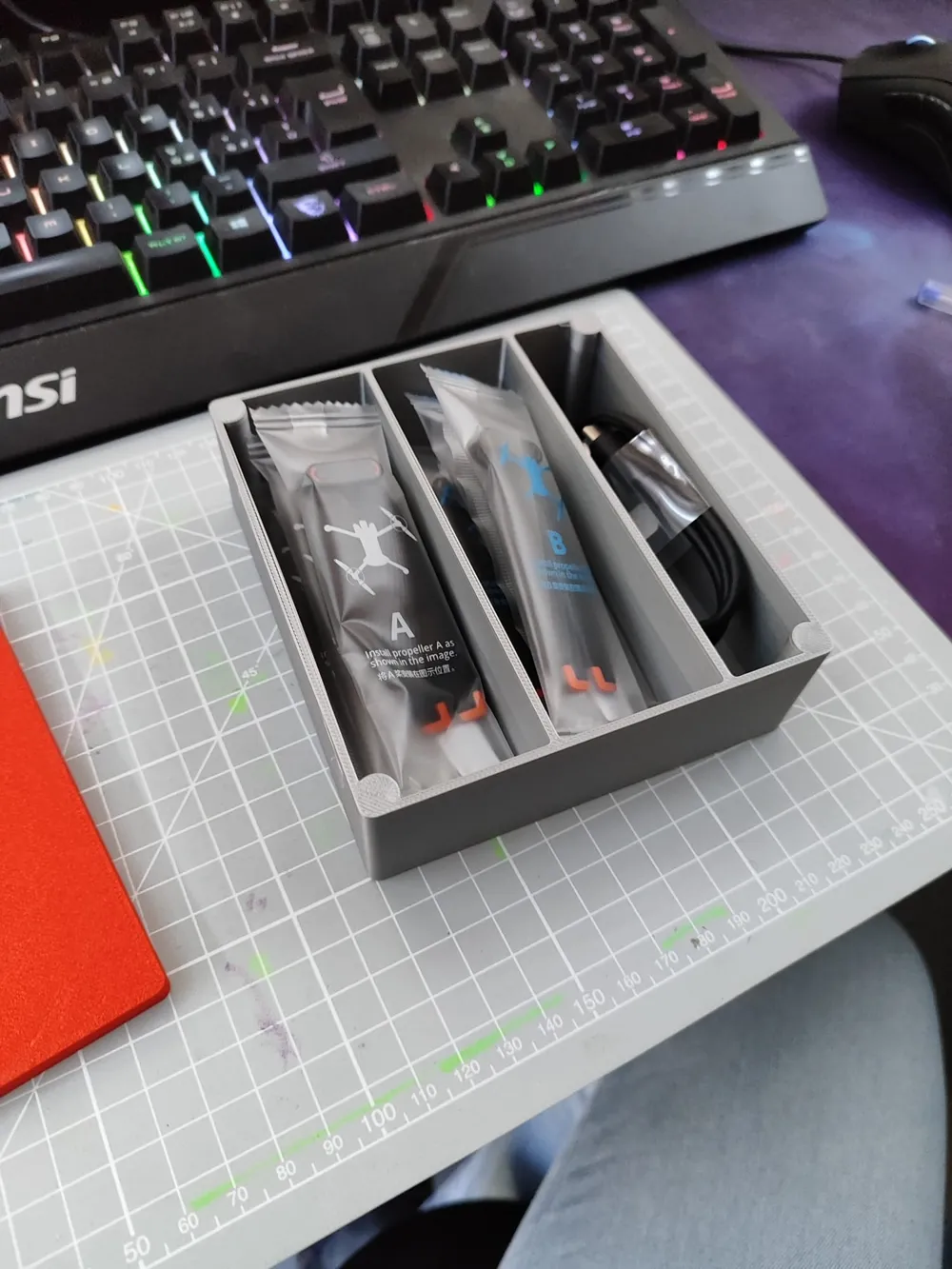

Box for DJI Mini 5 Pro propellers and cable with magnetic closure.

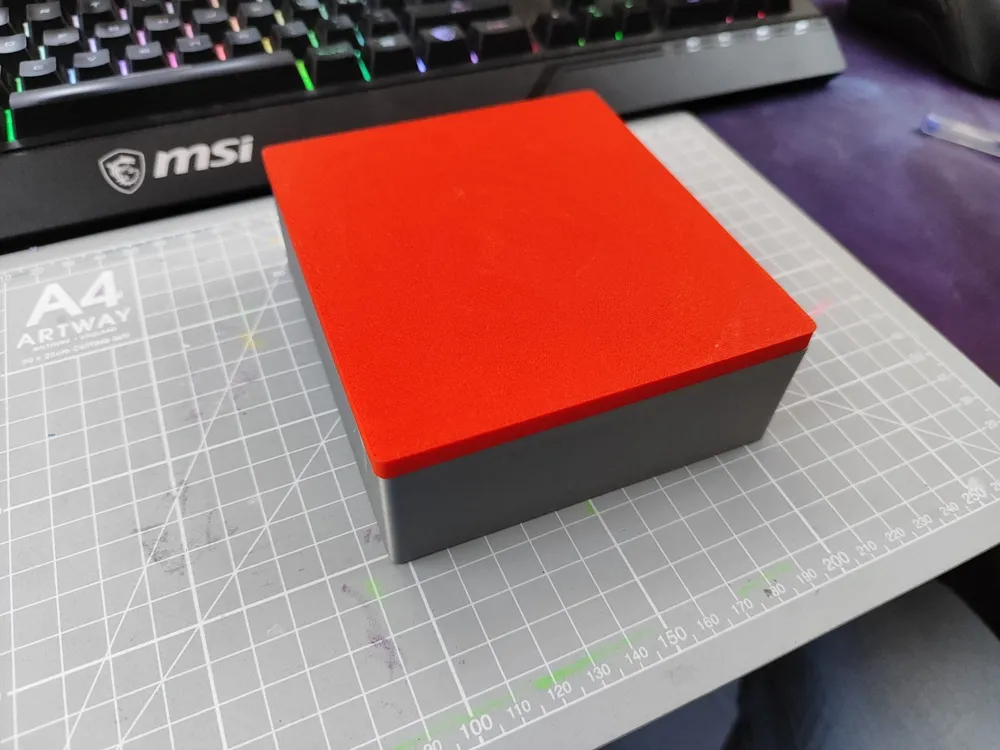

External box dimensions:

Width: 113mm

Length: 124mm

Height (without lid): 38mm

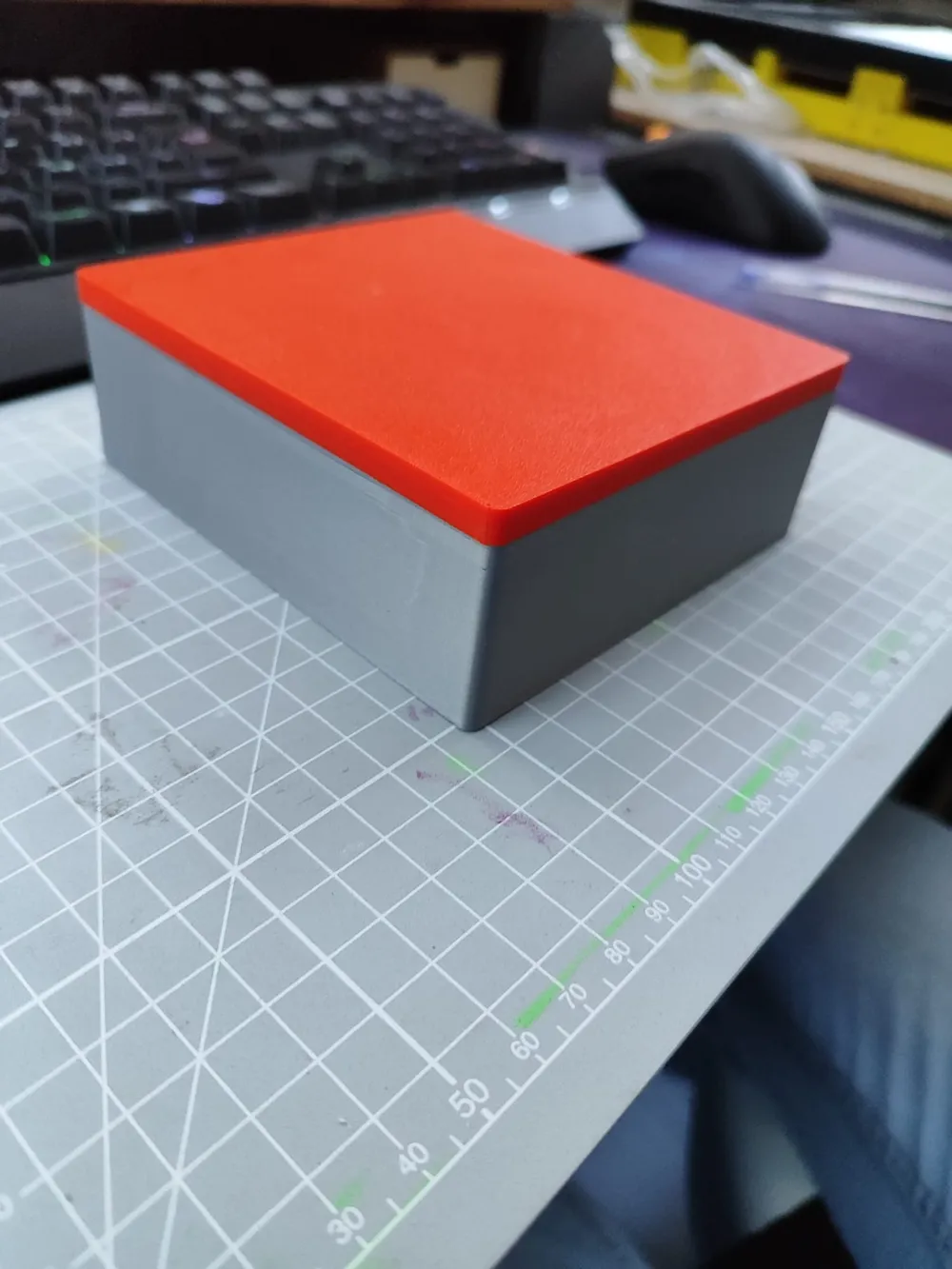

Height (with lid - total): 44mm

Lid height only: 6mm

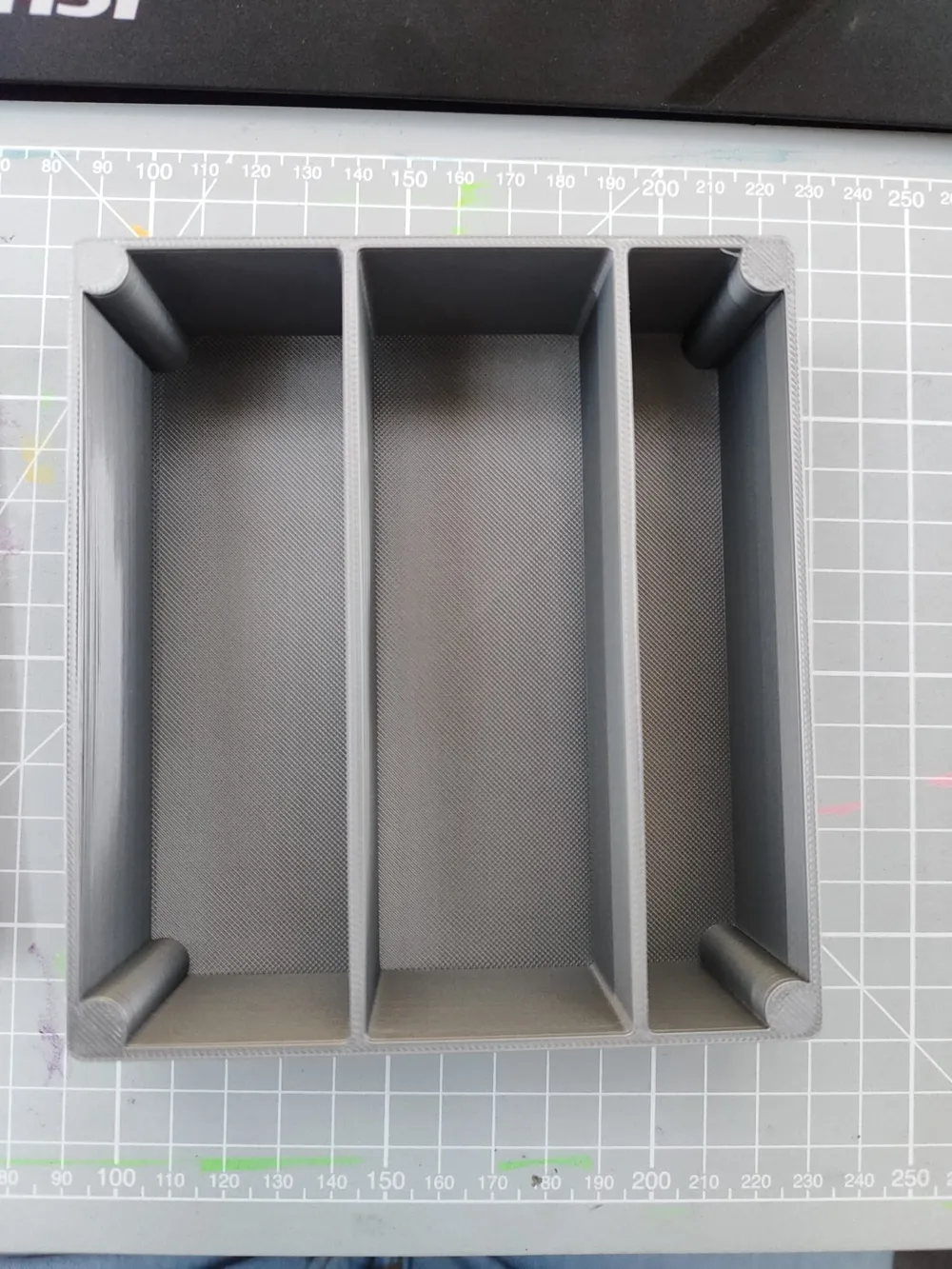

Internal box dimensions:

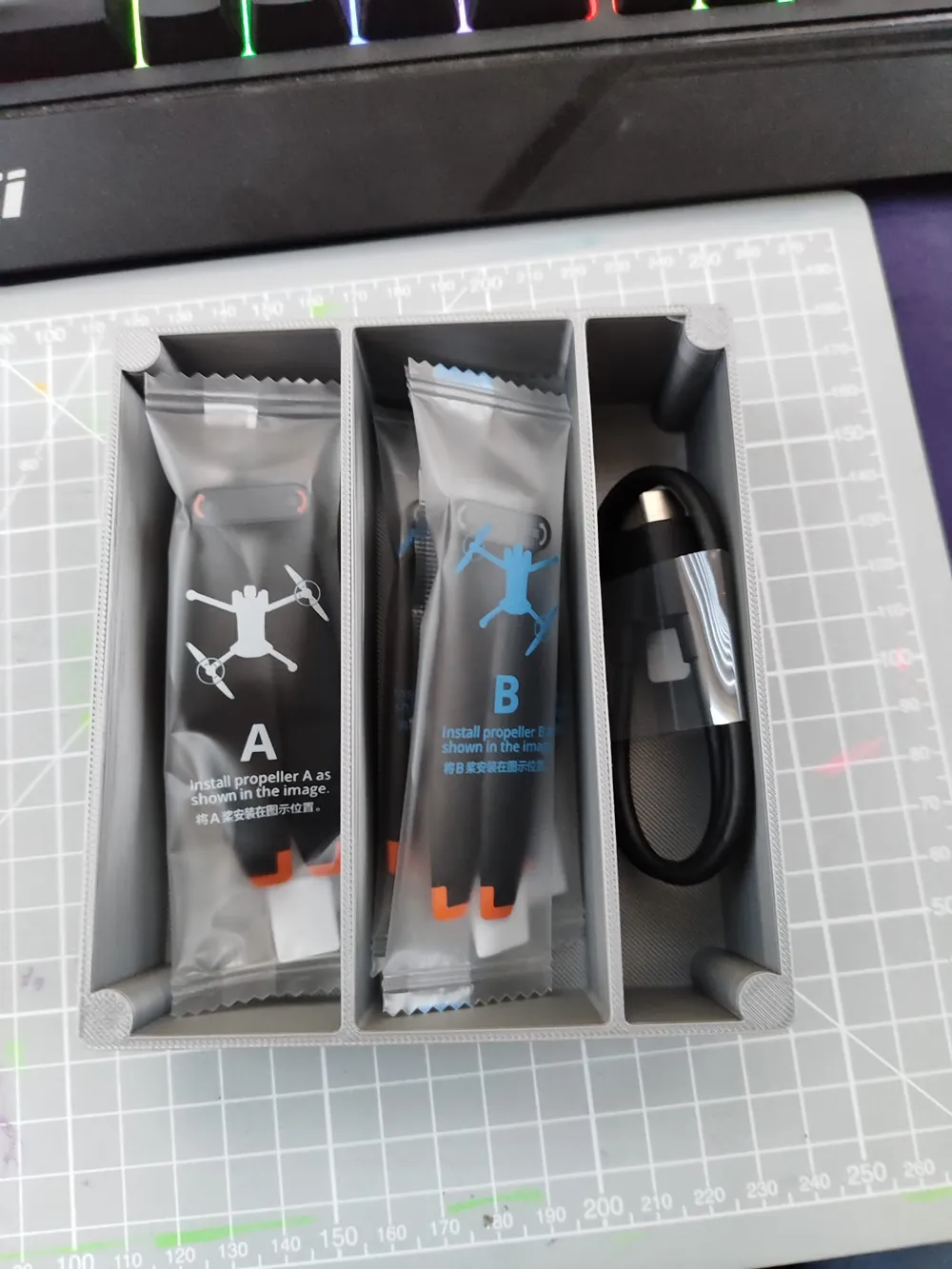

Compartment 1 and 2 (for propellers):

Width: 40mm

Length: 120mm

Height: 36mm

Compartment 3 (for cable):

Width: 25mm

Length: 120mm

Height: 36mm

The model is ready to print in PLA or PETG.

(the uploaded model is intended for PLA printing)

An automatic pause is provided during printing so that the Ø5mm x 3mm magnets (to be purchased separately from a supplier or Bambulab store directly) can be inserted (press-fit).

To create it, the following parameters were used:

• Infill density: 25% “rectilinear” (to provide strength to the model)
• Walls: 2
• Supports not needed
• Material: Gray PLA and Red PLA

It can also be used for other purposes and not just as a DJI Mini 5 Pro accessory box.
