Delta Force - Fuel Cell Model

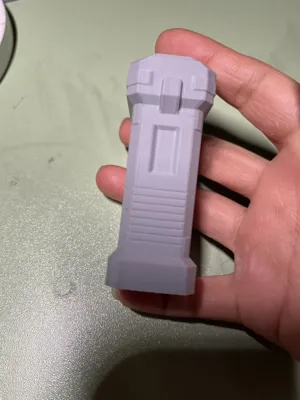

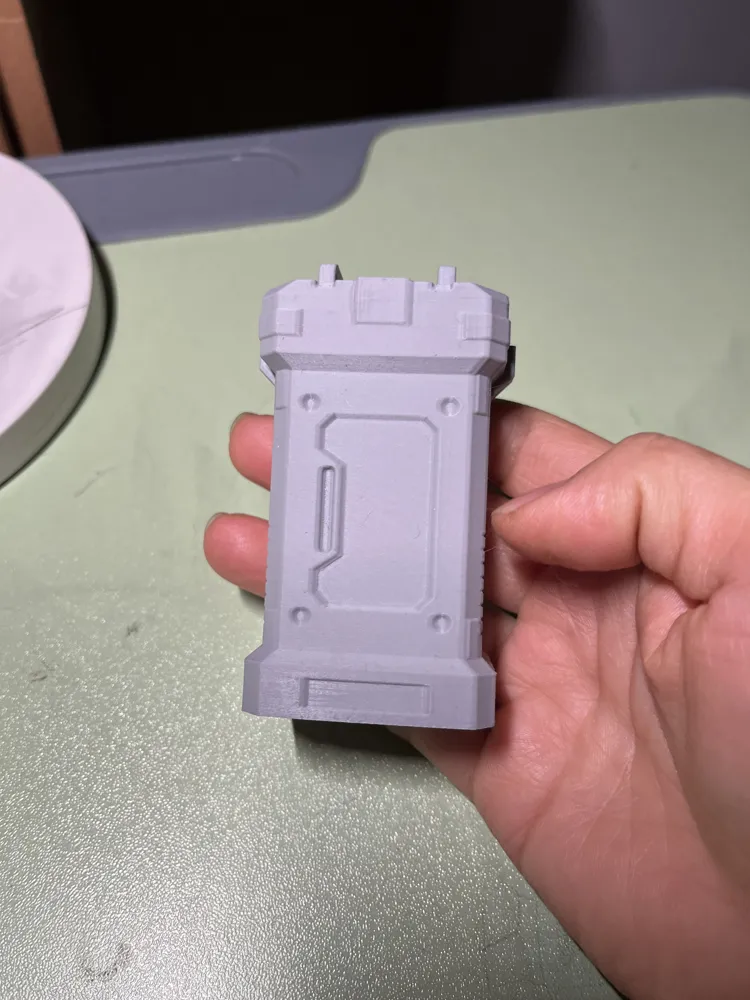

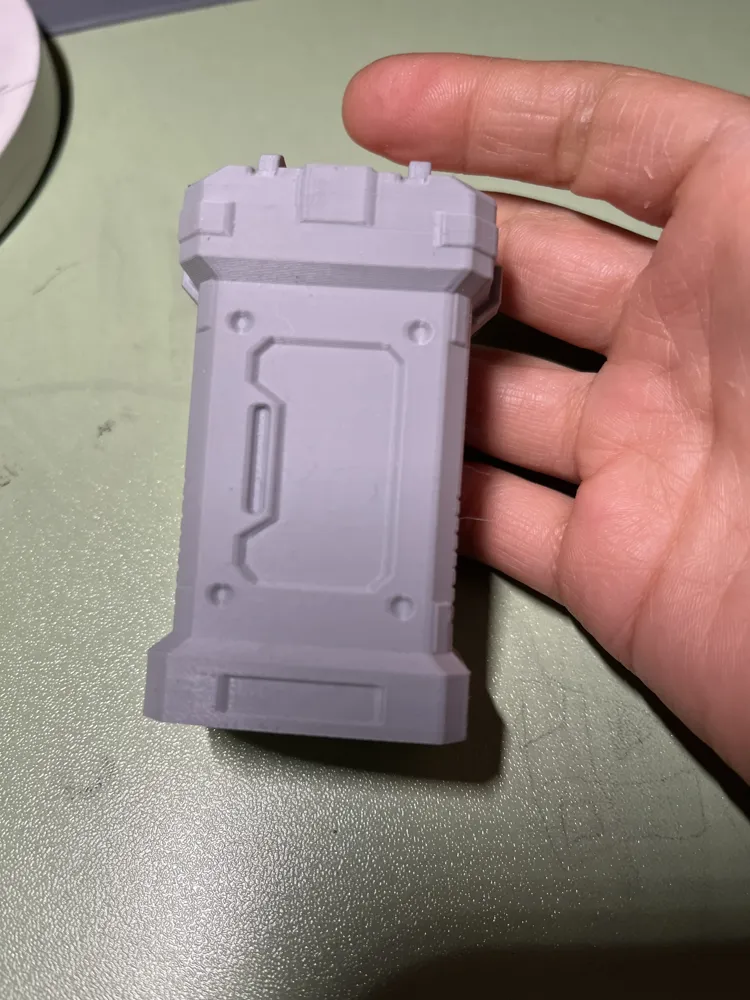

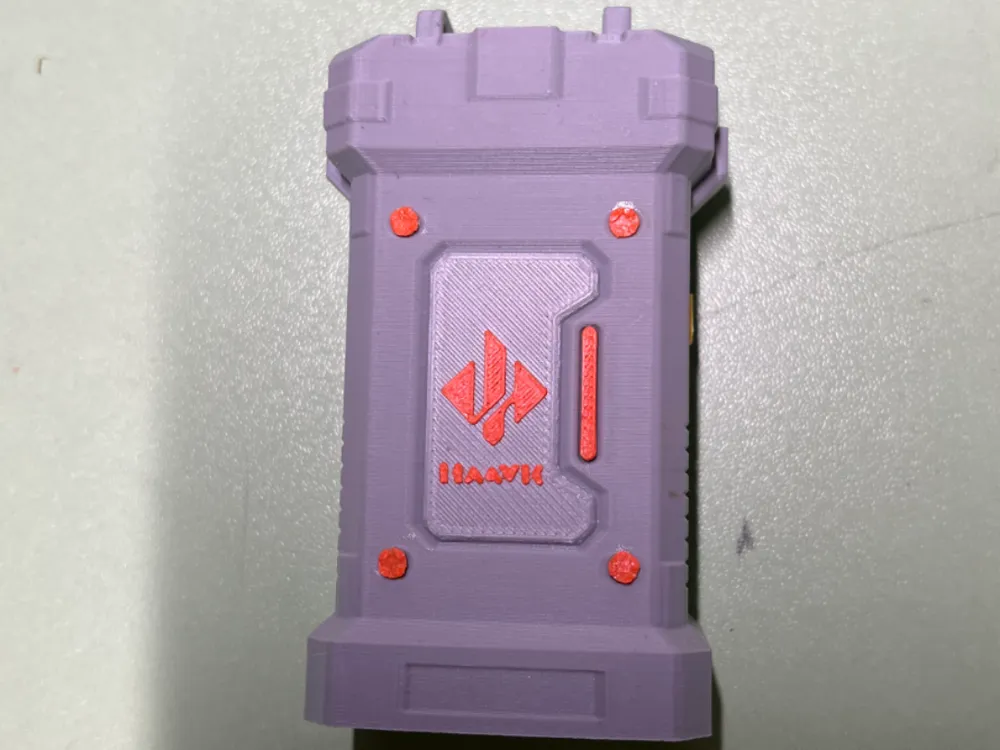

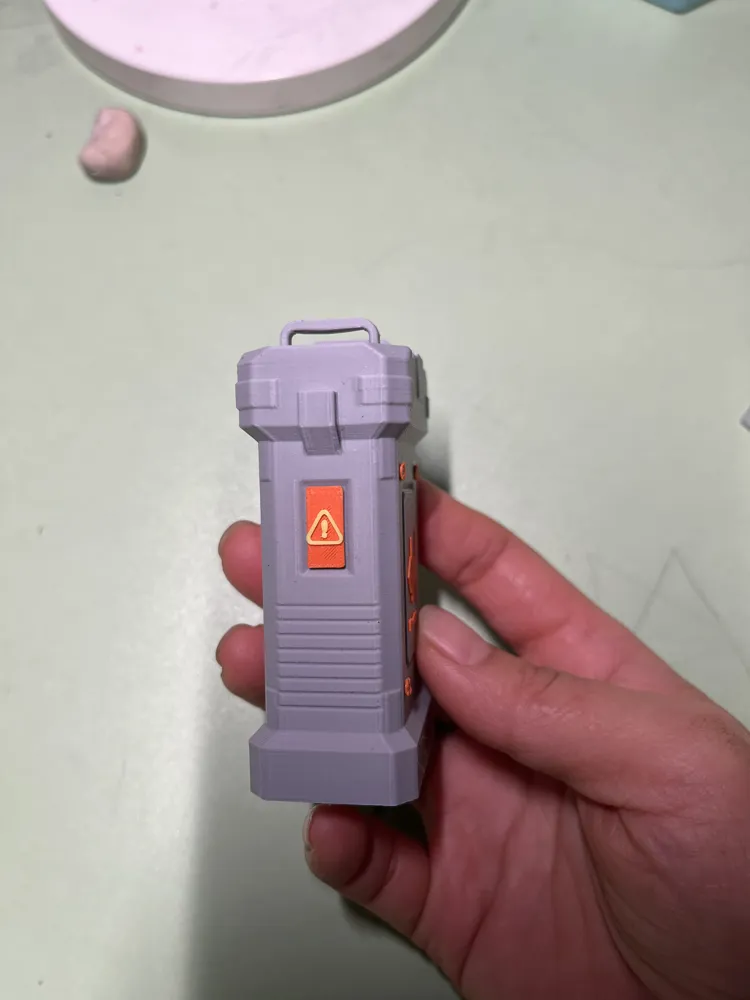

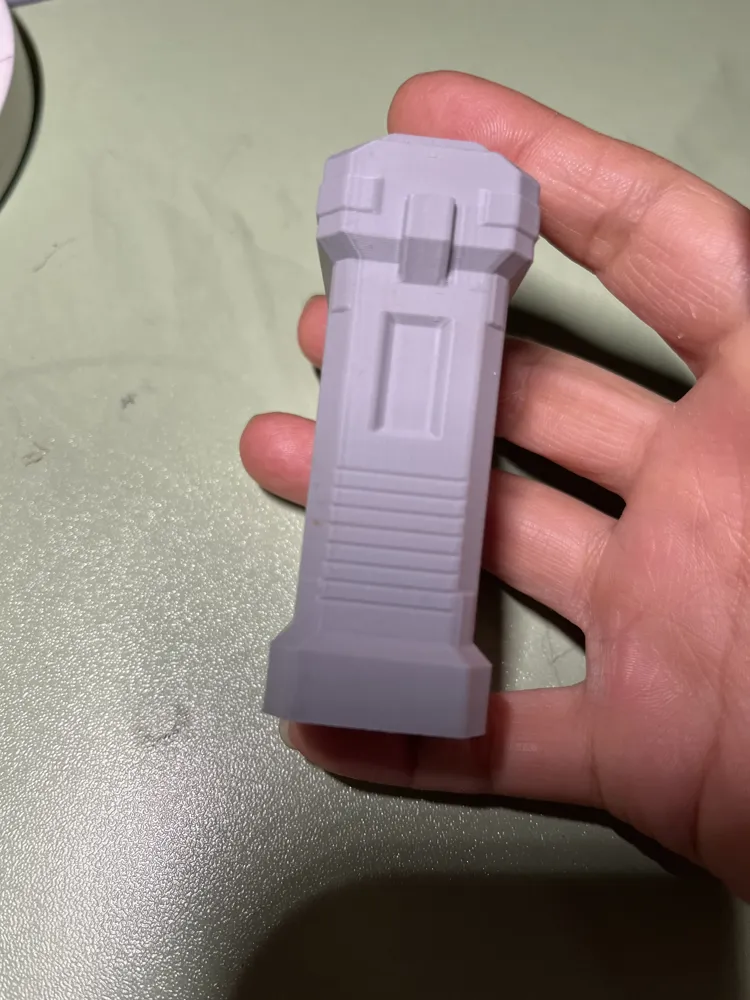

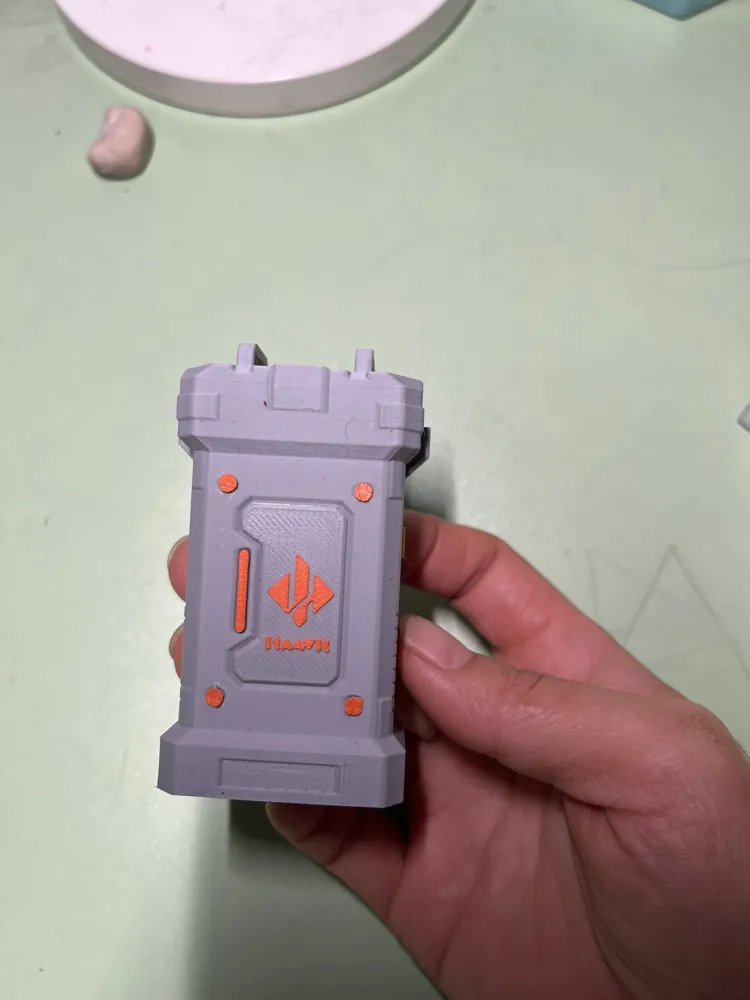

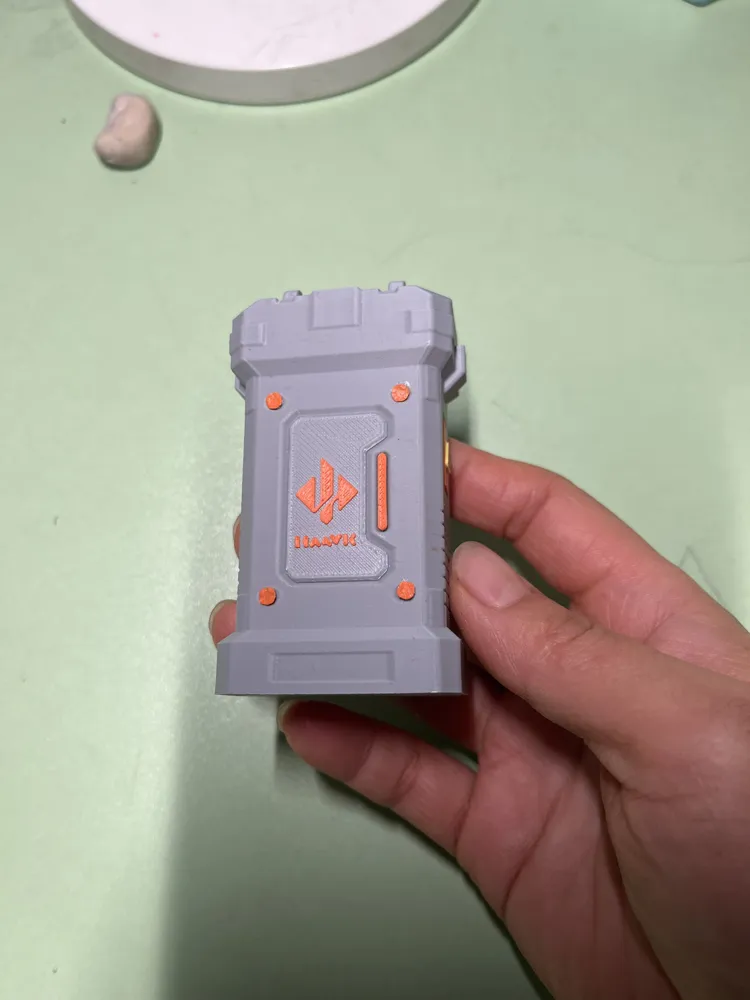

This is an item from the game Delta Force - a fuel cell, with dimensions of 8x5x3cm, a super miniature model

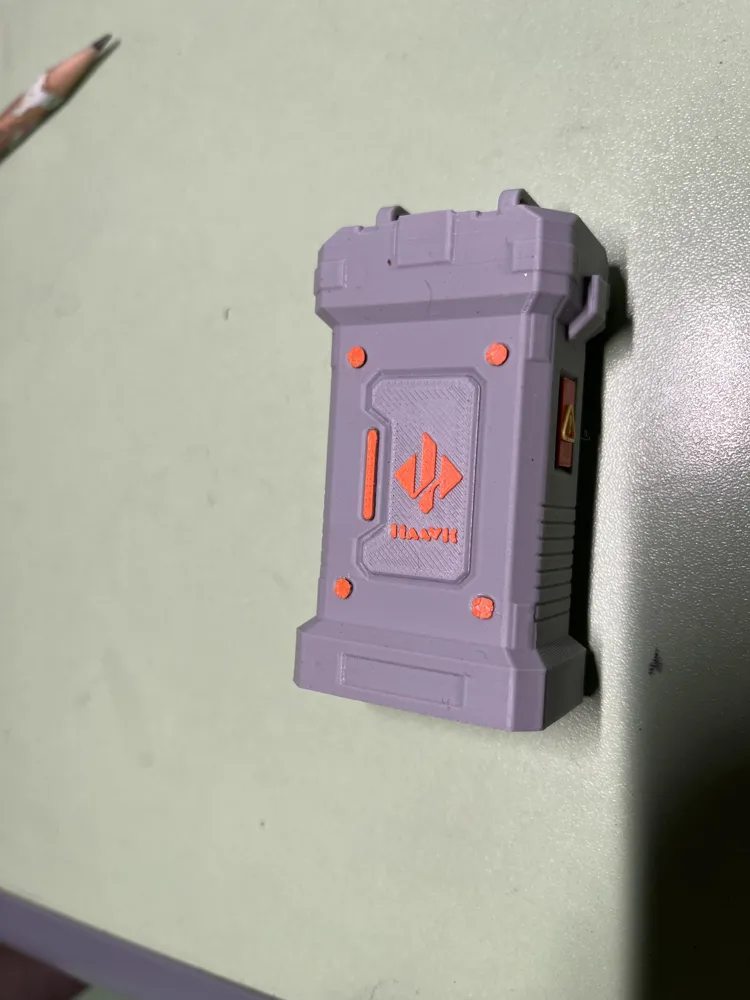

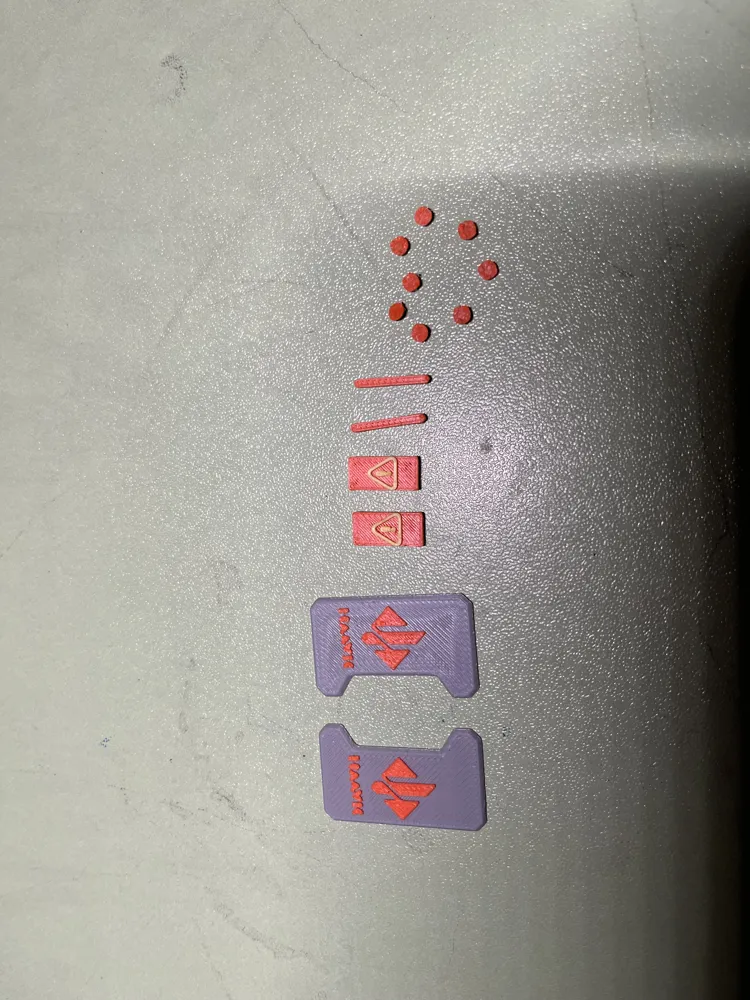

The details are not ambiguous, the colored and logo parts are independently modeled, and the height information of different colored parts has been matched, making the entire process require only two color changes, so there's no pressure even without an AMS

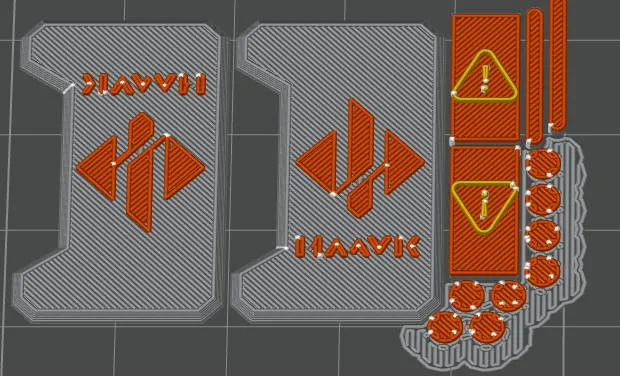

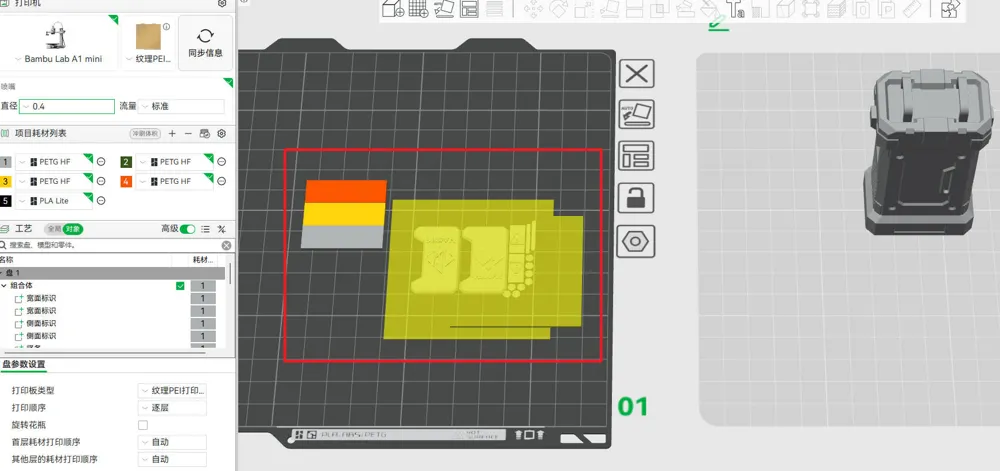

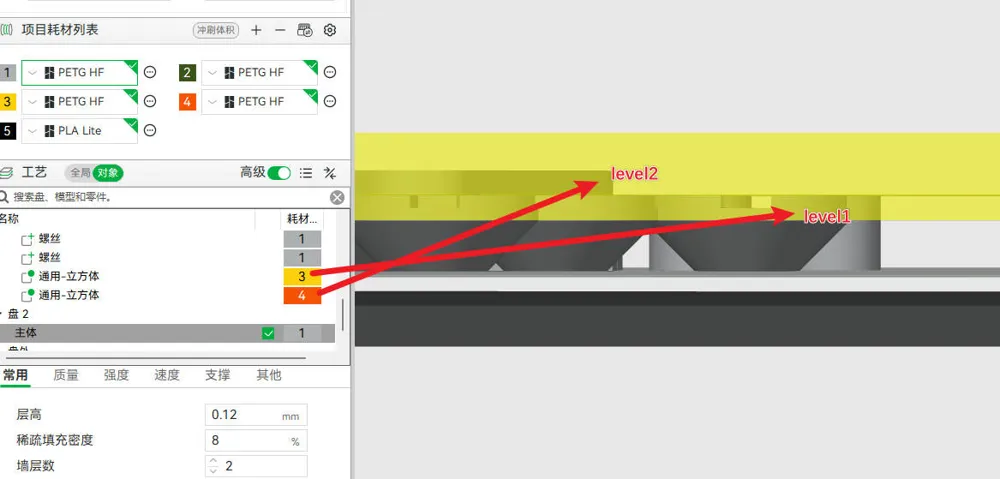

In the 'Objects' tab, based on the model's height layer information, two 'modifiers' have been created to precisely separate colors, prevent multiple color changes, and facilitate quick modification of the colors of the aforementioned multi-color parts

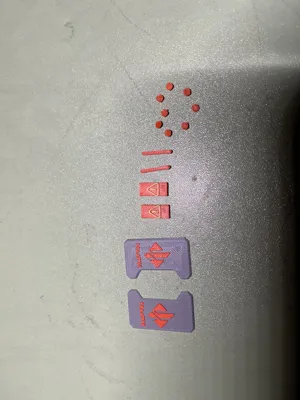

The multi-color parts and the main body all have 45° chamfers for fitting, achieving 0 supports, and also making it easy to insert the parts into the main body, the main body and parts have already considered the fit clearance, they fit just right, no alignment pins needed

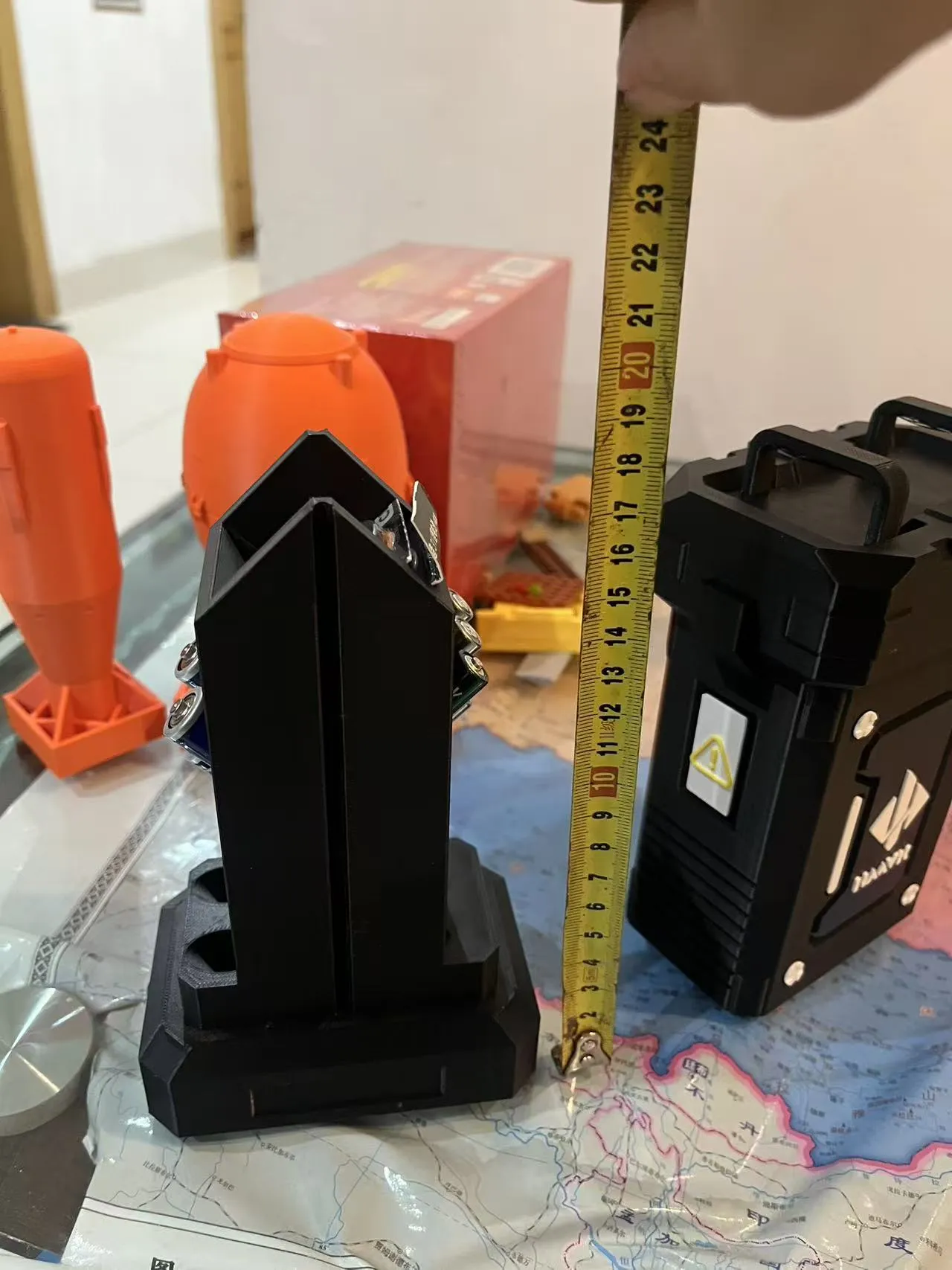

Theoretically, the model can be scaled up proportionally (because I scaled it down from my own 18cm model, as shown below, this is a split design

, and it can actually store batteries, currently it's closed source, if it gets more than 10 boosts, I will open source it directly)

Note: Do not move parts easily! Otherwise, it can easily lead to height mismatch

Known minor issue: Because it was scaled down from 18cm to 8cm, the 8 screw parts are too small, making them difficult to attach, if needed, I will consider changing the original 45° chamfered conical design of the screws to a cylindrical shape, because smaller sizes can more easily avoid the issue of circular hole sagging
