Chassis RC semi remorque 1/10 allmost full print
Print Profile(2)
Description

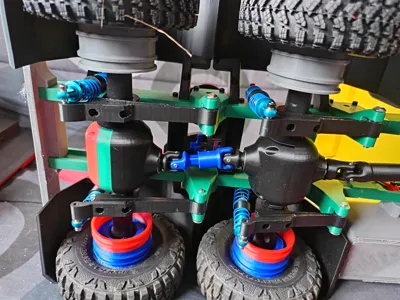

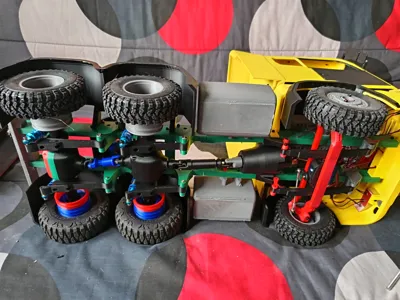

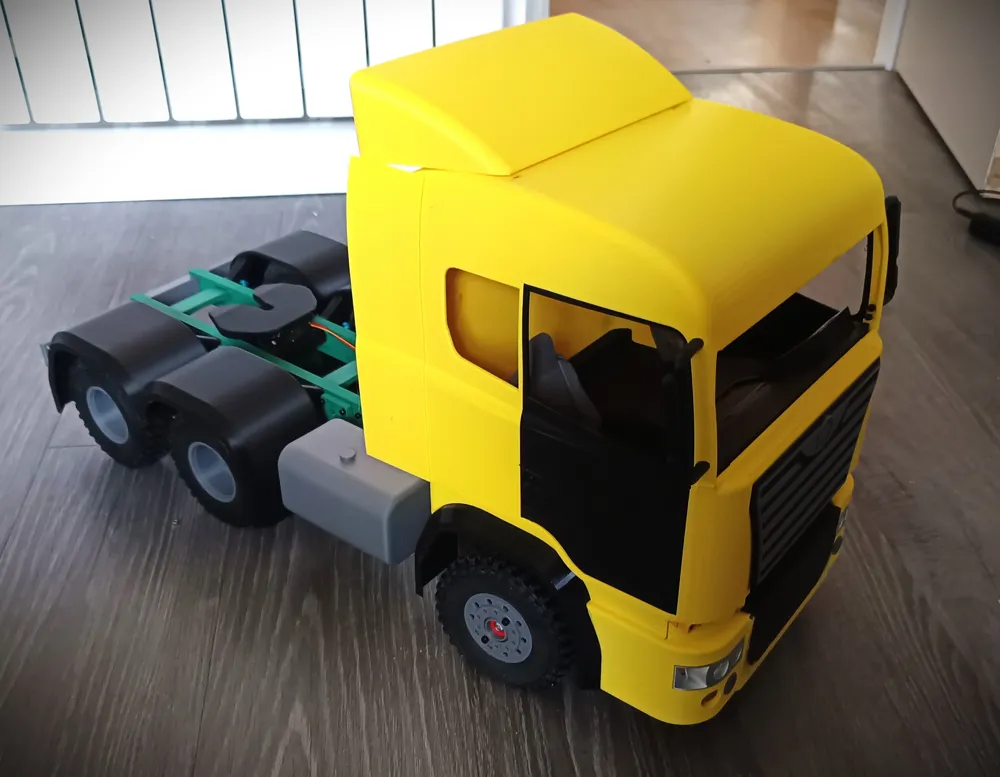

Here is the chassis part of my 1/10 scale semi-truck
The body parts will be missing and will arrive later
It is to be used with the previously published axles:
or the axles with metal differential:
26/11/2025 body part added: https://makerworld.com/en/models/2045294-piece-de-carrosserie-pour-1-10-rc-6x4-truck
31/12/2025 trailer added: https://makerworld.com/en/models/2179876-trailer-for-1-10-printed-semi-truck
Boost Me (for free)
My models are free, to keep them that way, boost me!
To complete it, you will need:
- M3 screws
- M3x8 grub screws for the drive shafts
- M5 screws
- R128 bearings for the front wheel hubs

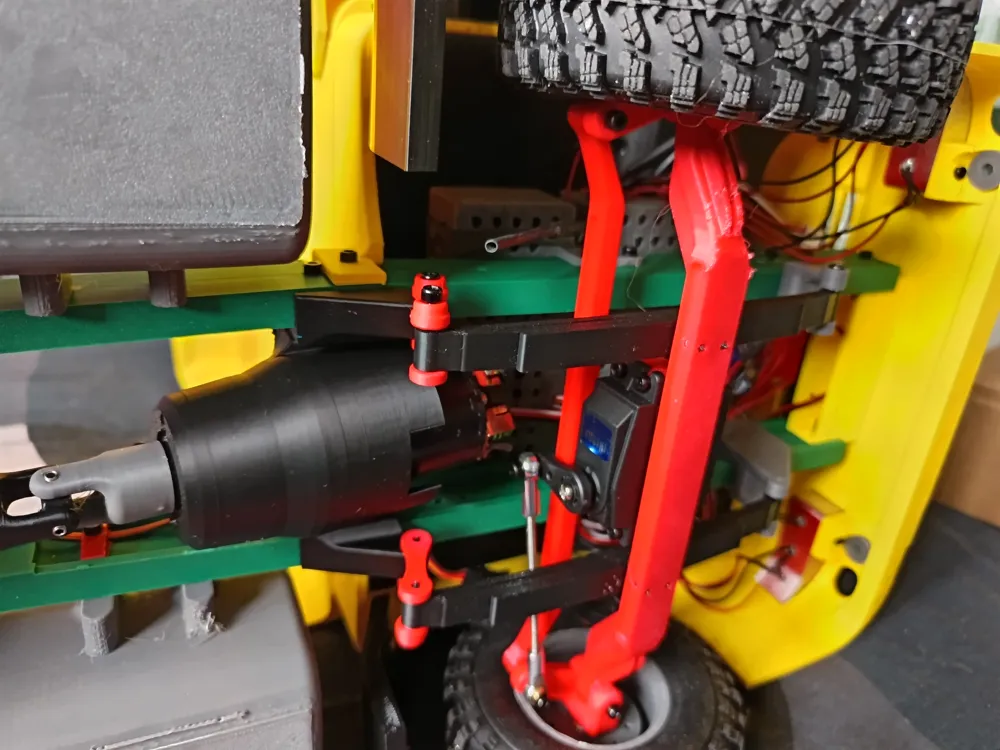

- a standard-size servo
- a link rod to go from the servo to the front knuckle
- a 540 type motor
- a 1:3 metal gearbox like the Injora CRAW18300
- for the ESC, I use a Hobbywing Quickrun 3S
- plan for a minimum 3-channel radio (especially for the fifth wheel)
- 4x 70mm shock absorbers
- 1.9 tires with a diameter between 105 and 115mm
Check out my MakerWorld page for other cool projects!
