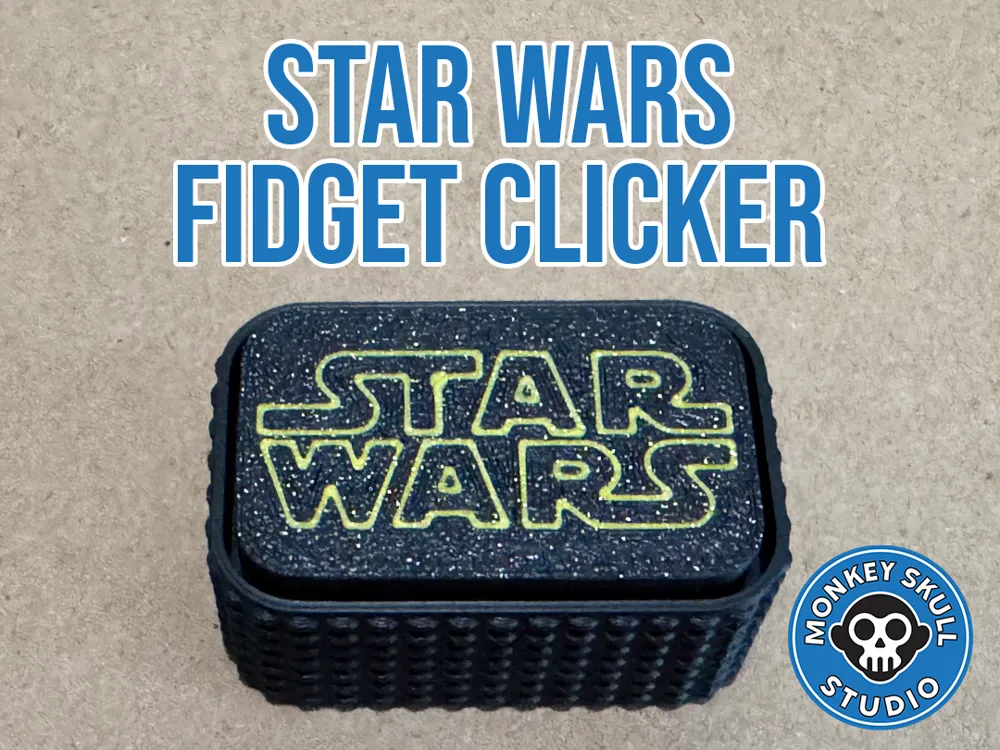

Star Wars Logo Mechanical Clicker - Fidget Toy

--------------------

Please like and follow to be notified of all of my designs - some more exciting stuff in the pipeline!

--------------------

*** You will need 1 x MX Style Keyboard Switch per clicker, such as https://amzn.to/49O9Fm7 ***

Use the Force (and this clicker) to stay focused.

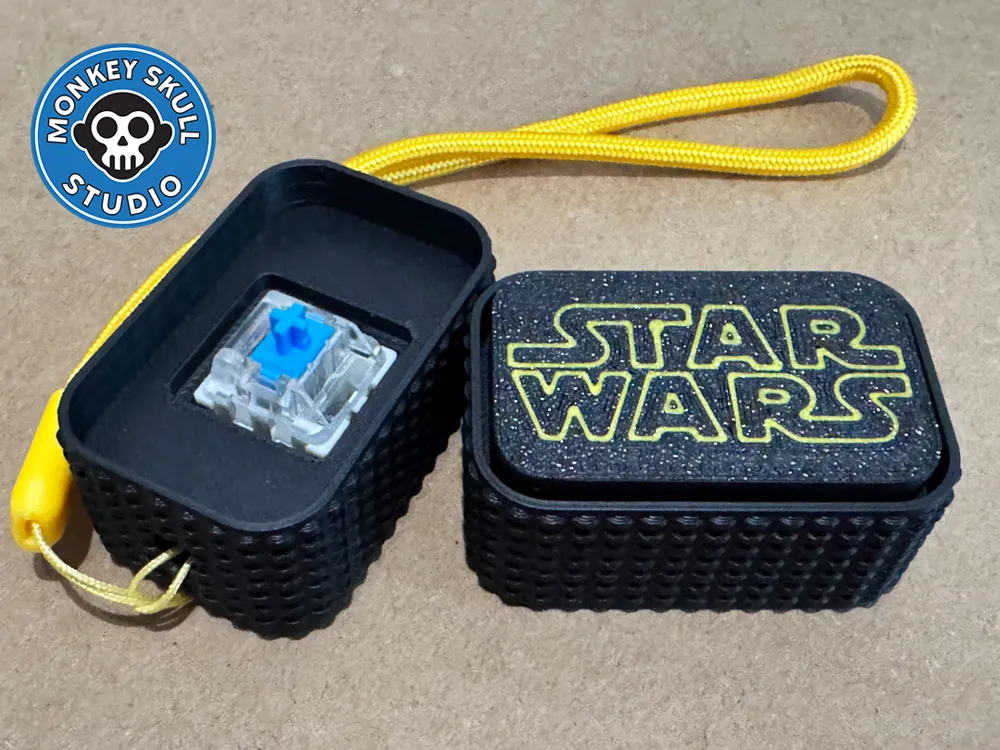

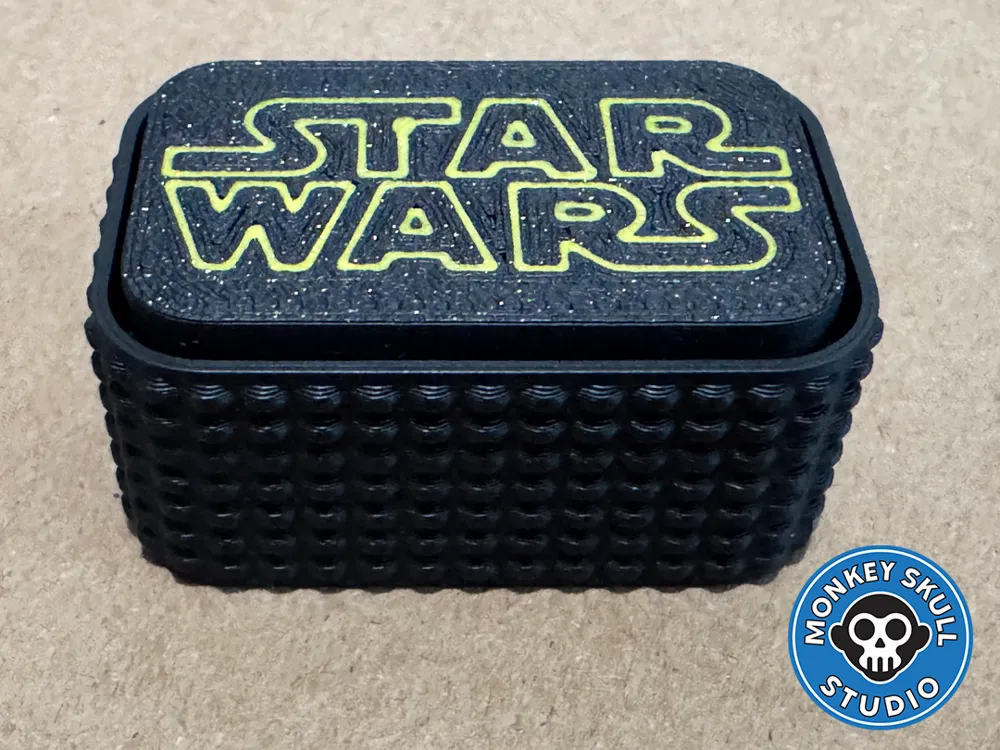

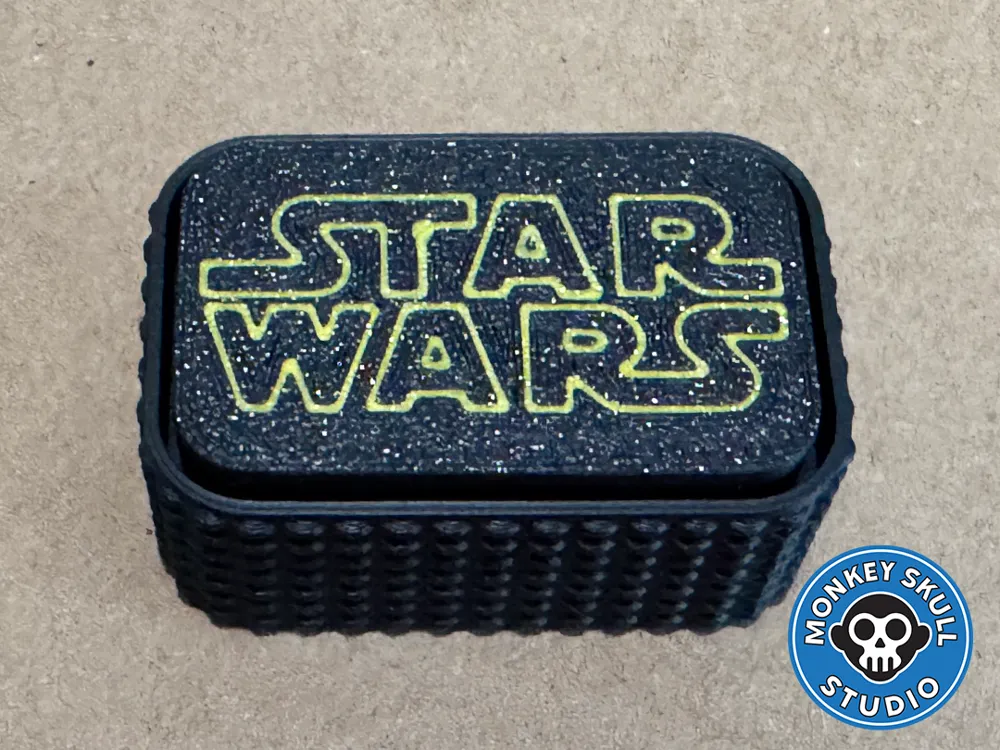

This Star Wars Mechanical Clicker features the classic yellow-outline logo. It houses a standard mechanical keyboard switch to provide a satisfying tactile click that is perfect for fidgeting while re-watching the saga.

The "Galaxy" Effect: When printed face-down on a Textured PEI Plate, the black background takes on a sparkling finish that looks just like a starfield behind the logo!

Features

• Multicolour Design: Optimized for AMS printing. The thin yellow outline is designed to print cleanly (requires Arachne wall generator).
• Two Base Versions:
  • Standard Base: Clean look for your desk.
  • Keyring Base: Includes a hole for a lanyard or keychain.
• Textured Grip: The base features a knurled pattern that matches the rugged industrial aesthetic of the universe.

Bill of Materials (Hardware)

• 1x Mechanical Keyboard Switch (Standard Cherry MX style).
• Recommendation: Blue switches give the most satisfying "click."

Print Settings

• Wall Generator: Arachne (Mandatory for the thin yellow font outlines).
• Plate: Textured PEI recommended for the "starry" finish.
• Material: Standard PLA (Black and Yellow).
• Layer Height: 0.2mm.
• Supports: None required.
• Infill: 15% Gyroid.

Assembly

1. Insert the mechanical switch into the Base (friction fit).
2. Align the Logo Cap with the switch stem.
3. Press down firmly.
