H2D Front left spool holder
Print Profile(1)
Description

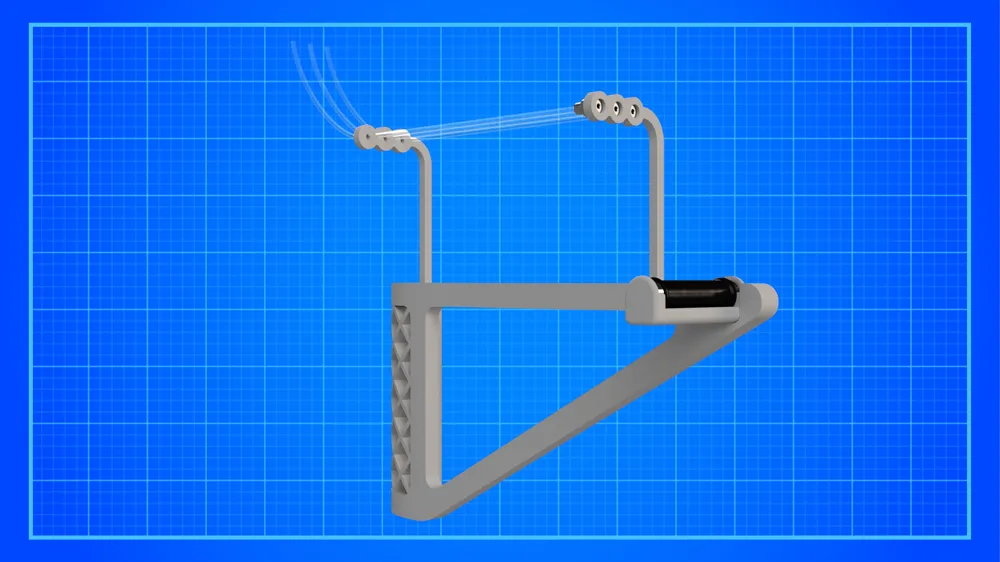

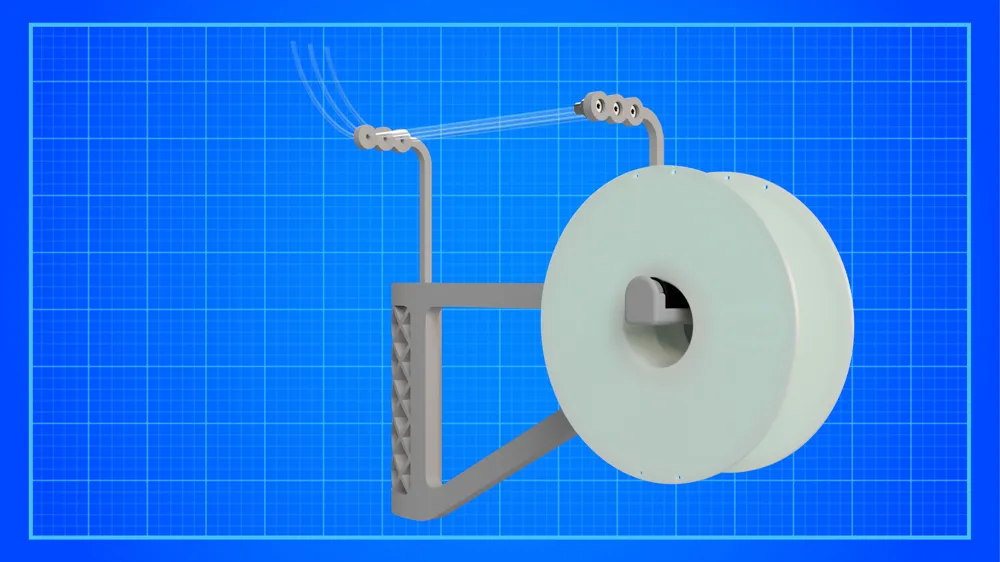

Front left spool holder for H2D.
Allows access to the external spool at the front of the printer without having to reach all the way to the back.
Low profile so that the printer can be placed as close as possible to a wall on the left.

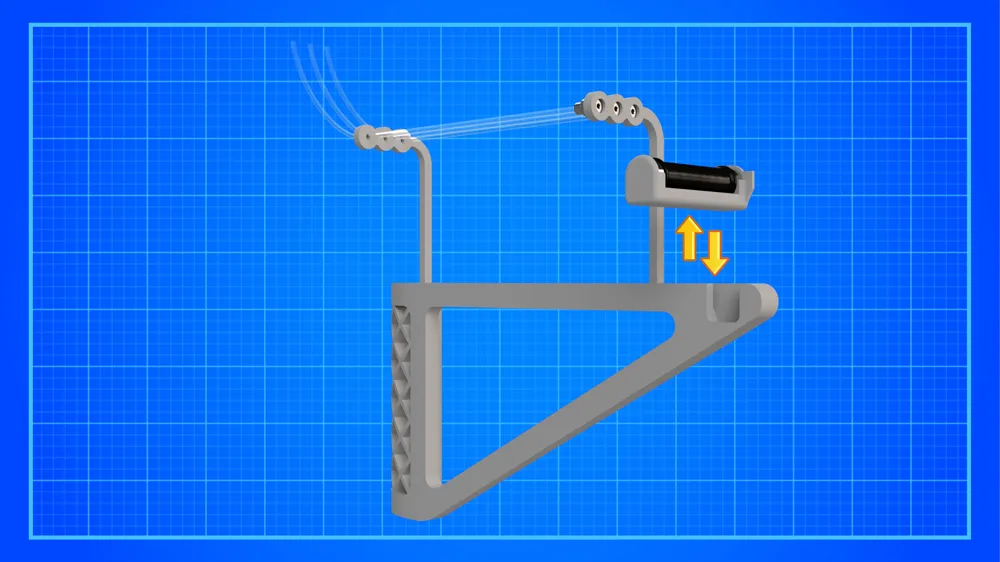

Removable spool roller to make changing spools as easy as possible.
Supports for 3 PTFE tubes (left, right et TPU inlet).
Requires:
- 4 M3x12 screws
- 1 to 3 PC4-M10 pneumatic connectors (preferably black ones, which allow the tube to pass through)
- 2 x 608ZZ bearings
