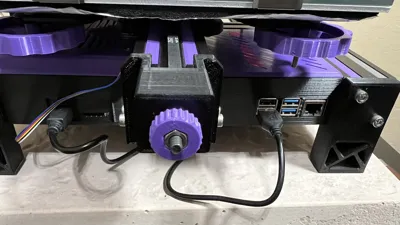

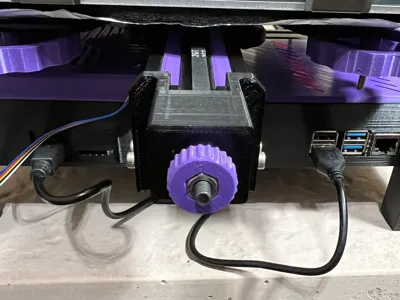

A simple belt tensioner knob remix for the Ender 3 and Ender 3 Pro X and Y belt tensioners by Crosslink.
The original design used M4 threaded heat inserts. This remix changes the knob so you can use a standard M4 nut instead. The nut is sized for a snug press fit and the body has a bit more bulk for strength and durability.
Features
- Compatible with Crosslink’s Ender 3 and Ender 3 Pro X and Y belt tensioners
- Uses a common M4 nut instead of a threaded heat insert
- Press fit pocket for the nut
- Slightly beefed up body for better grip and strength
Recommended print settings
- Material: PLA or PETG
- Layer height: around 0.16 mm or lower for a clean knurl
- Perimeters: 3
- Infill: 15 to 20 percent is plenty
- Supports: not required
Remix credits
Remix of the Belt Tensioner Knob M4 and M5 Nut by George, sized and adjusted to work with Crosslink’s Ender 3 and Ender 3 Pro X and Y Belt Tensioners.
